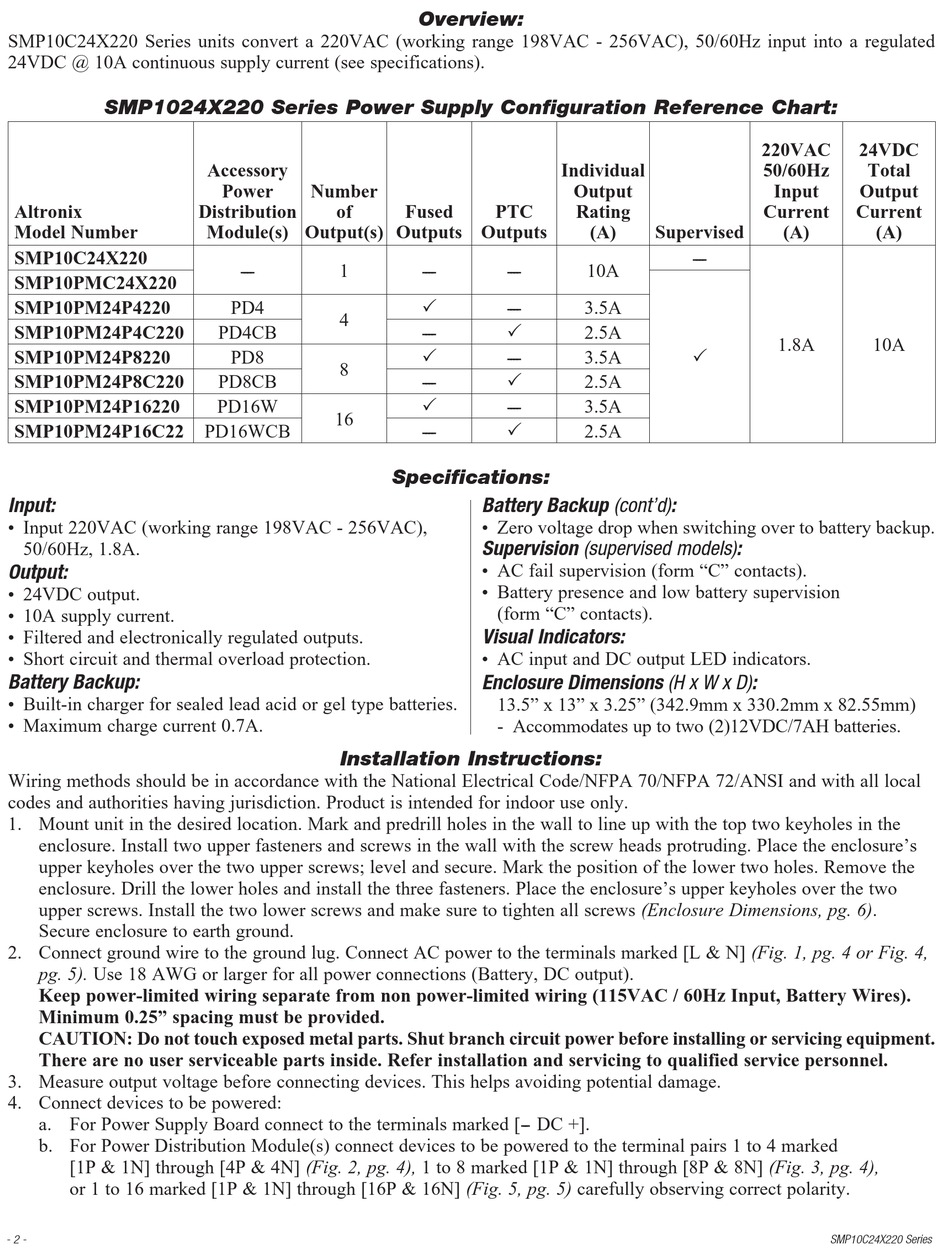

Specifications; Installation Instructions - Altronix SMP10C24X220 Installation Manual

SMP10C24X220 Series units convert a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into a regulated
24VDC @ 10A continuous supply current (see specifications).
SMP1024X220 Series Power Supply Configuration Reference Chart:
Altronix
Model Number
SMP10C24X220
SMP10PMC24X220
SMP10PM24P4220
SMP10PM24P4C220
SMP10PM24P8220
SMP10PM24P8C220
SMP10PM24P16220
SMP10PM24P16C22
Input:
• Input 220VAC (working range 198VAC - 256VAC),
50/60Hz, 1.8A.
Output:
• 24VDC output.
• 10A supply current.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
Battery Backup:
• Built-in charger for sealed lead acid or gel type batteries.
• Maximum charge current 0.7A.
Wiring methods should be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI and with all local
codes and authorities having jurisdiction. Product is intended for indoor use only.
1. Mount unit in the desired location. Mark and predrill holes in the wall to line up with the top two keyholes in the
enclosure. Install two upper fasteners and screws in the wall with the screw heads protruding. Place the enclosure's
upper keyholes over the two upper screws; level and secure. Mark the position of the lower two holes. Remove the
enclosure. Drill the lower holes and install the three fasteners. Place the enclosure's upper keyholes over the two
upper screws. Install the two lower screws and make sure to tighten all screws (Enclosure Dimensions, pg. 6).
Secure enclosure to earth ground.
2. Connect ground wire to the ground lug. Connect AC power to the terminals marked [L & N] (Fig. 1, pg. 4 or Fig. 4,
pg. 5). Use 18 AWG or larger for all power connections (Battery, DC output).
Keep power-limited wiring separate from non power-limited wiring (115VAC / 60Hz Input, Battery Wires).
Minimum 0.25" spacing must be provided.
CAUTION: Do not touch exposed metal parts. Shut branch circuit power before installing or servicing equipment.
There are no user serviceable parts inside. Refer installation and servicing to qualified service personnel.
3. Measure output voltage before connecting devices. This helps avoiding potential damage.
4. Connect devices to be powered:
a. For Power Supply Board connect to the terminals marked [- - - DC +].
b. For Power Distribution Module(s) connect devices to be powered to the terminal pairs 1 to 4 marked
[1P & 1N] through [4P & 4N] (Fig. 2, pg. 4), 1 to 8 marked [1P & 1N] through [8P & 8N] (Fig. 3, pg. 4),
or 1 to 16 marked [1P & 1N] through [16P & 16N] (Fig. 5, pg. 5) carefully observing correct polarity.
- 2 -
Accessory
Power Number
Distribution of
Module(s) Output(s)
---- 1
PD4
4
PD4CB
PD8
8
PD8CB
PD16W
16
PD16WCB

Installation Instructions:

Overview:
Individual
Fused PTC
Outputs Outputs
---- ----
P
----
P
----
P ----
---- P
P ----
---- P

Specifications:

Battery Backup (cont'd):
• Zero voltage drop when switching over to battery backup.
Supervision (supervised models):
• AC fail supervision (form "C" contacts).
• Battery presence and low battery supervision
(form "C" contacts).
Visual Indicators:
• AC input and DC output LED indicators.
Enclosure Dimensions (H x W x D):
13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.55mm)
- Accommodates up to two (2)12VDC/7AH batteries.
Output
Rating
(A) Supervised
----
10A
3.5A
2.5A
3.5A P
2.5A
3.5A
2.5A
220VAC 24VDC
50/60Hz Total
Input Output
Current Current
(A) (A)
1.8A 10A
SMP10C24X220 Series
