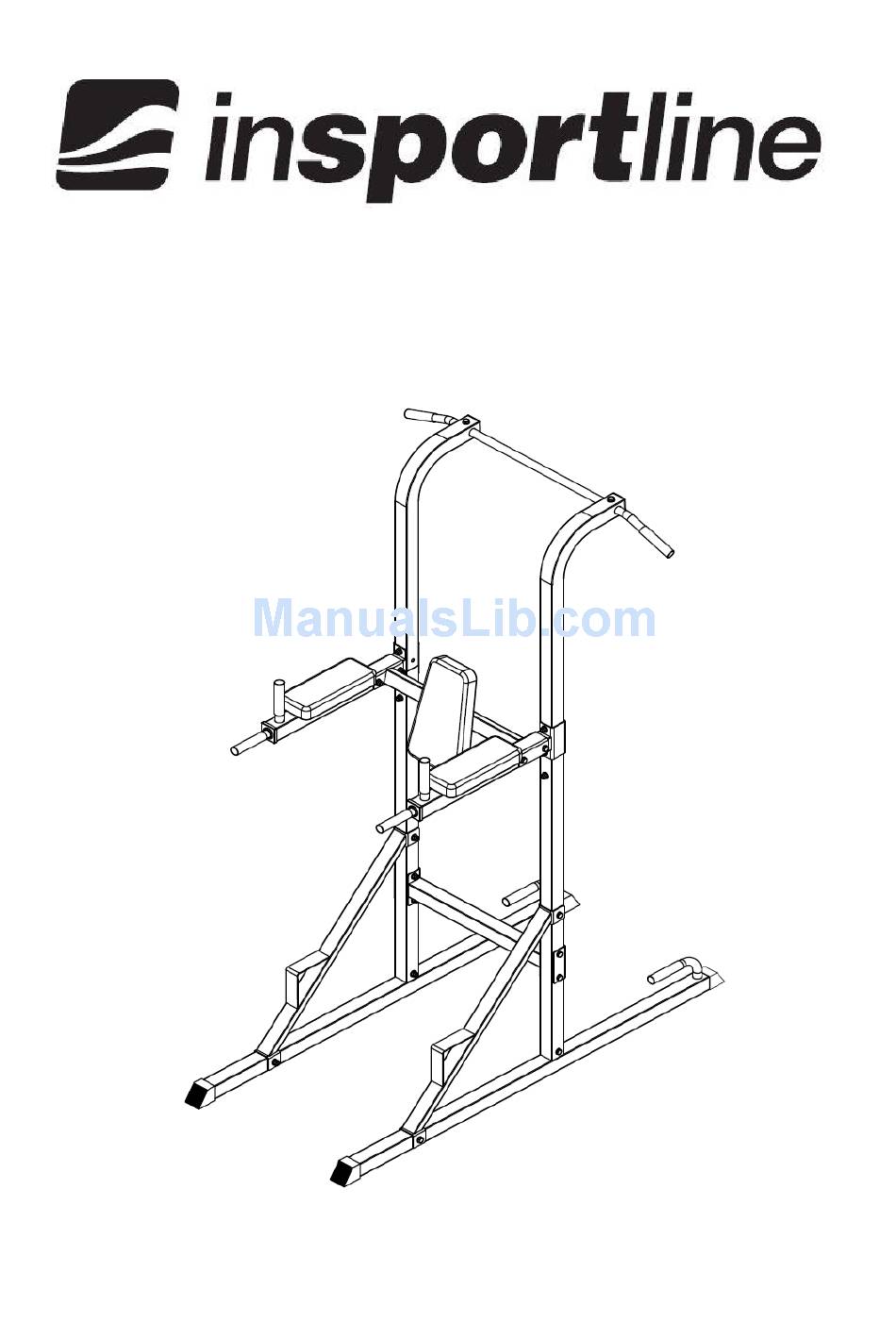

USER MANUAL – EN
IN 7536 Power Tower inSPORTline PT80

Advertisement

loading
Need help?

Need help?

Do you have a question about the IN 7536 Power Tower PT80 and is the answer not in the manual?

Questions and answers

Related Manuals for Insportline IN 7536 Power Tower PT80

Summary of Contents for Insportline IN 7536 Power Tower PT80

  • Page 1 USER MANUAL – EN IN 7536 Power Tower inSPORTline PT80...

  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS ........................3 EXPLODED DRAWING ........................... 4 PARTS LIST ............................5 ASSEMBLY INSTRUCTIONS ......................... 8 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ..........11...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS This exercise equipment is built for optimum safety. Be sure to read the entire manual before you assemble or operate your equipment. Please note the following safety precautions: 1. Keep children and pets away from the equipment at all times. Do not leave children unattended in the same room with the equipment.

  • Page 4: Exploded Drawing

    EXPLODED DRAWING...

  • Page 5: Parts List

    PARTS LIST Description Base Tube, 2 pcs Bottom Upright, 2 pcs Central Cross Support 1 pc Top Upright, 2 pcs Left Arm Support, 1 pc...
  • Page 6 Right Arm Support, 1 pc Lat Bar, 1 pc Back Pad Support, 1 pc Back Pad, 1 pc Arm Pad, 2 pcs Arm Support Handle, 2 pcs...
  • Page 7 Angle Support, 2pcs Hex Bolt (M10x70mm), 14 pcs Hex Bolt (M10x60mm), 2 pcs Hex Bolt (M10x20mm), 14pcs Hex Bolt (M8x65mm), 4pcs Hex Bolt (M8x20mm), 2pcs Washer (M10), 46pcs Washer (M8), 6pcs...

  • Page 8: Assembly Instructions

    Nylon Lock (M10), 16pcs ASSEMBLY INSTRUCTIONS STEP 1: Attach the Bottom upright (02) to Base tube (01) using 4pcs Hex bolt M10x20mm (15) and 4pcs Washer Φ10 (18). STEP 2: Attach Central cross support (03) to Bottom upright (02) using 4pcs Hex bolt M10x70mm (13), 8pcs washer Φ10 (18) and 4pcs Nylon lock nut M10 (20).
  • Page 9 STEP 3: Attach the lat bar (07) to the top upright (04), with 2pcs Hex bolt M10x60mm (14) and 4pcs washer Φ10 (18) and 2pcs Nylon nut M10 (20). Insert the Top upright (04) into the Bottom upright (02), using 4pcs Hex bolt M10x20mm (15) and 4pcs washer Φ10 (18).
  • Page 10 STEP 5: Attach the Back pad support (08) to the Left arm support (05) and Right arm support (06), using 4pcs Hex bolt M10x70mm (13), 8pcs washer Φ10 (18) and 4pcs Nylon nut M10 (20). STEP 6: Insert the Arm support handle (11) into the Left arm support (05) and Right arm support (06), using 2pcs Hex bolt M10x20mm (15), and 2pcs Washer Φ10 (18).

  • Page 11: Terms And Conditions Of Warranty, Warranty Claims

    STEP 7: Attach the Arm pad (10) to the Left arm support (05) and Right arm support (06), with 4pcs hex bolt M8x65 mm (16) and 4pcs washer Φ8 (19). Attach the Back pad (09) to Back pad support (08), with 2pcs Hex bolt M8x20mm (17) and 2pcs washer Φ8 (19).
  • Page 12 By the Warranty for Goods Quality, the Seller guarantees that the delivered Goods shall be, for a certain period of time, suitable for regular or contracted use, and that the Goods shall maintain its regular or contracted features. The Warranty does not cover defects resulting from: User’s fault, i.e.
  • Page 13 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.insportline.cz INSPORTLINE s.r.o. Headquarters, Warranty & Service centre: Elektricna 6471, 911 01 Trencin, Slovakia CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk servis@insportline.sk Web: www.insportline.sk Date of Sale: Stamp and Signature of Seller:...
