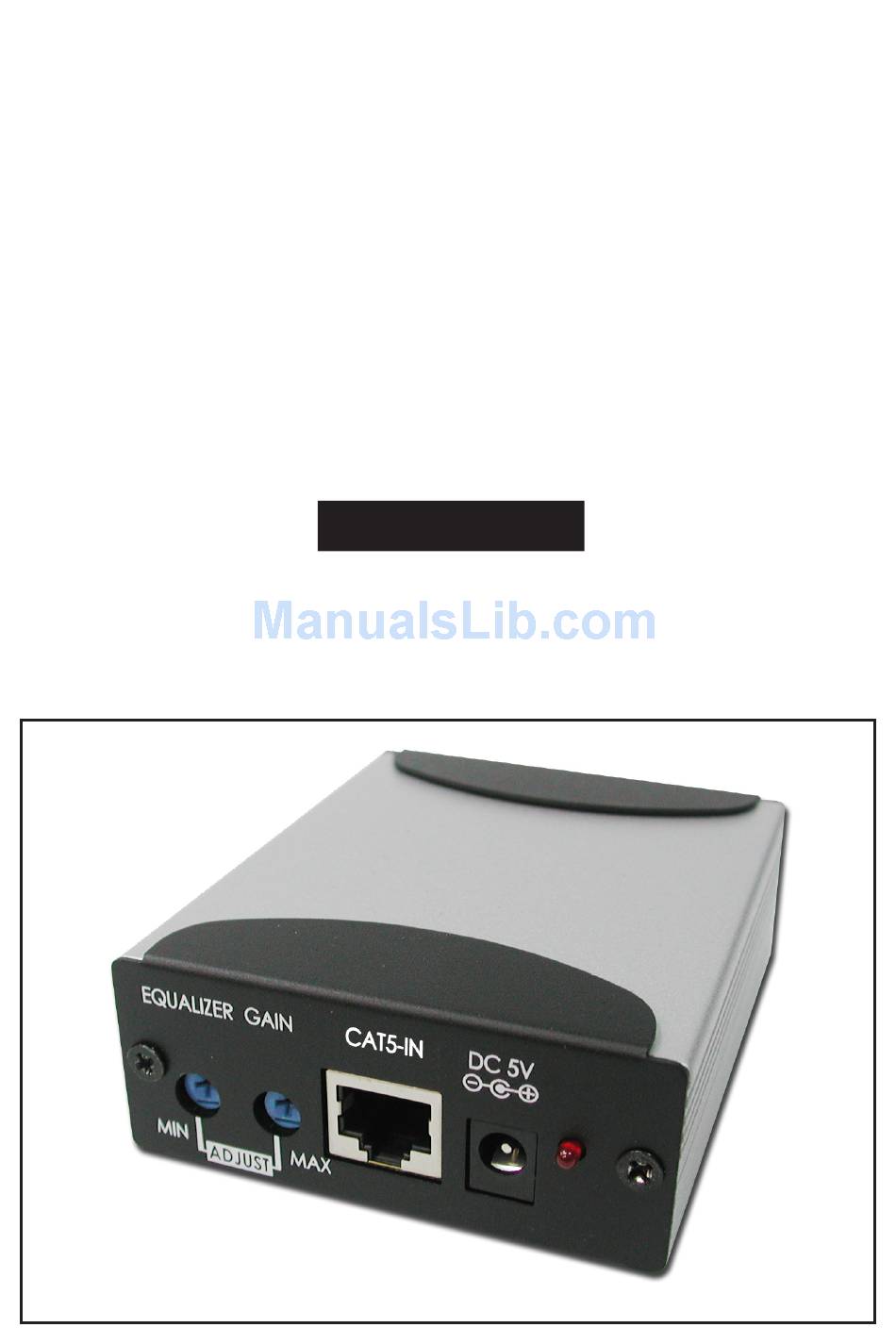

VGA Audio over
CAT5 Receiver at
100 Meters
Operation Manual
CA-COMP100R
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CA-COMP100R and is the answer not in the manual?

Questions and answers

Related Manuals for CYP CA-COMP100R

Summary of Contents for CYP CA-COMP100R

  • Page 1 VGA Audio over CAT5 Receiver at 100 Meters Operation Manual CA-COMP100R...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction ..................2. Features ....................3. Package Contents ................4. Operation Controls and Functions ............ 4.1 Front Panel ..................4.2 Rear Panel ..................5. Specifications ..................

  • Page 3: Introduction

    1. Introduction This is the receiver (Rx) unit of VGA audio over CAT5 solution, works with the transmitter that can extend PC/HD with Audio signal through CAT-5 cables for a distance up to 100 meters. The installation of VGA audio over CAT5 is easy and quick, simply place receiver next to your display, and get all necessary cables connected to complete and enjoy.

  • Page 4: Operation Controls And Functions

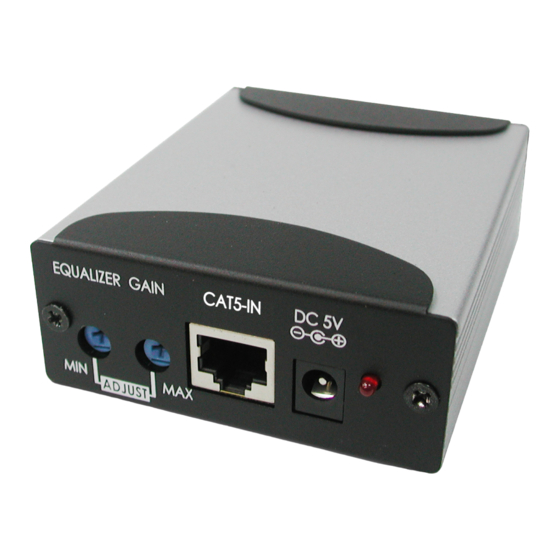

    4. Operation Controls and Functions 4.1 Front Panel EQUALIZER GAIN CAT5-IN DC 5V ADJUST 1. EQUALIZER: Use this switcher to adjust signal enhancement over long distance. 2. GAIN: Use this switcher to adjust brightness. 3. CAT5-IN: Connected the video output to the video input of the CAT5 receiver unit using CAT-5 cable.

  • Page 5: Rear Panel

    4.2 Rear Panel TOSLINK AUDIO PC/HD 1. Toslink output: Connected SPDIF output to the display audio input. 2. Audio output: Connected audio R/L output to the display audio input. 3. PC/HD output: Connect the PC/HDMI output port to the PC/HDMI input display with D-Sub 15pin cable.

  • Page 6: Specifications

    5. Specifications Supported Resolutions HD: up to 1080p; PC: up to UXGA Output Audio Source Ports VGA, Audio L/R or Toslink/SPDIF Input Video Source Port CAT-5 Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 99.5(W) x 77(D) x 32.5(H) Weight(g) Chassis Material Metal...
  • Page 8 Cypress Component over CAT5 series: Product Description CA-COMPAT Component over CAT5 Transmitter CA-HDMI 50R Component over CAT5 Receiver at 50 meters CA-HDMI 100R Component over CAT5 Receiver at 100 meters CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20071128 MPM-COMP100R...
