- Page 1 HDMI Over CAT5 Receiver at 250 Meters Operation Manual CA-HDMI250R...
- Page 2 TABLE OF CONTENTS 1. Introduction................1 2. Features..................1 3. Package Contents..............1 4. Operation Controls and Functions........... 2 4.1 Front Panel................2 4.2 Rear Panel................2 5. Specifications................3 6. Connection and Installation............ 4...
-
Page 3: Package Contents

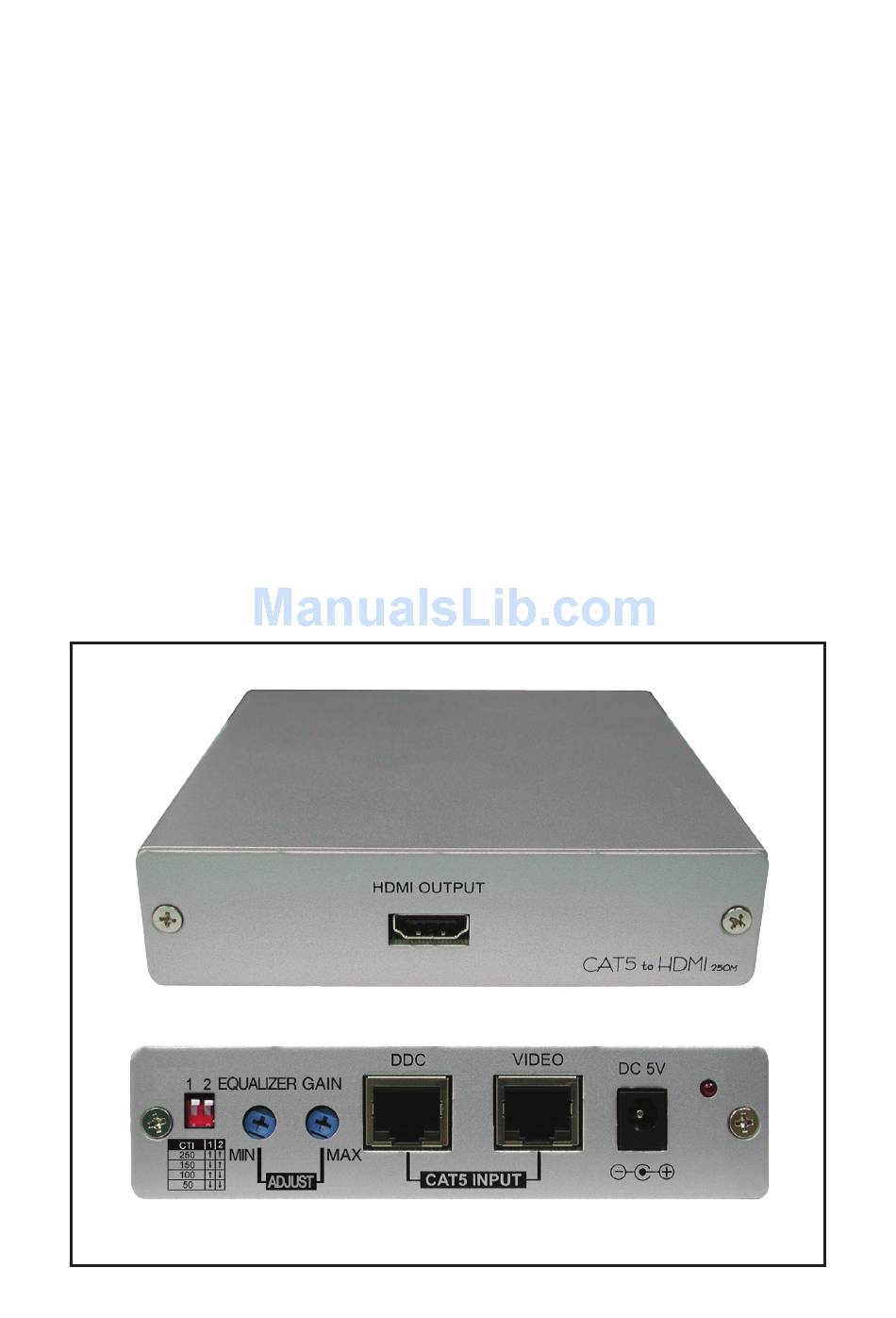

CAT-5 cables for a distance up to 250 meters. The installation of HDMI Over CAT5 is easy and quick, simply place CA-HDMIAT next to your HDTV source such as a DVD player, then place CA-HDMI250R next to your display, and get all necessary cables connected to complete and enjoy. - Page 4 4. Operation Controls and Functions 4.1 Front Panel HDMI OUTPUT to HDMI 250 1. HDMI OUTPUT: Connect the HDMI output port to the HDMI input of your display. 4.2 Rear Panel VIDEO DC 5V EQUALIZER GAIN ADJUST CAT5 INPUT 1. Distance Control Jumper: Before adjust EQUALIZER and GAIN, use the twin jumpers to adjust to the optimized setting for different distance of connection first.
-
Page 5: Specifications
2. EQUALIZER: Use this switch to adjust signal enhancement over long distance. 3. GAIN: Use this switch to adjust brightness. 4. DDC INPUT: Connect the DDC input to the DDC output of the transmitter unit using CAT-5/CAT-5E/CAT-6 cable. Note: For advanced user only, if it's known that the DDC or HDCP data are not required for the source and the display, you can use a single CAT-5 cable for the VIDEO connection only. -
Page 6: Connection And Installation
DDC (CAT-5 Cable) VIDEO DC 5V HDMI INPUT HDMI to CAT CAT5 OUTPUT CA-HDMIAT CA-HDMIAT Front Rear 250 Meters VIDEO DC 5V EQUALIZER GAIN HDMI OUTPUT to HDMI 250 ADJUST CAT5 INPUT CA-HDMI250R CA-HDMI250R Rear Front HDMI Cable HDMI Display... - Page 7 HDMI Over CAT5 Series: Product Description HDMI Over CAT5 Transmitter CA-HDMIAT HDMI Over CAT5 Receiver at 50 meters CA-HDMI 50R HDMI Over CAT5 Receiver at 100 meters CA-HDMI 100R HDMI Over CAT5 Receiver at 150 meters CA-HDMI 150R HDMI Over CAT5 Receiver at 250 meters CA-HDMI 250R...
