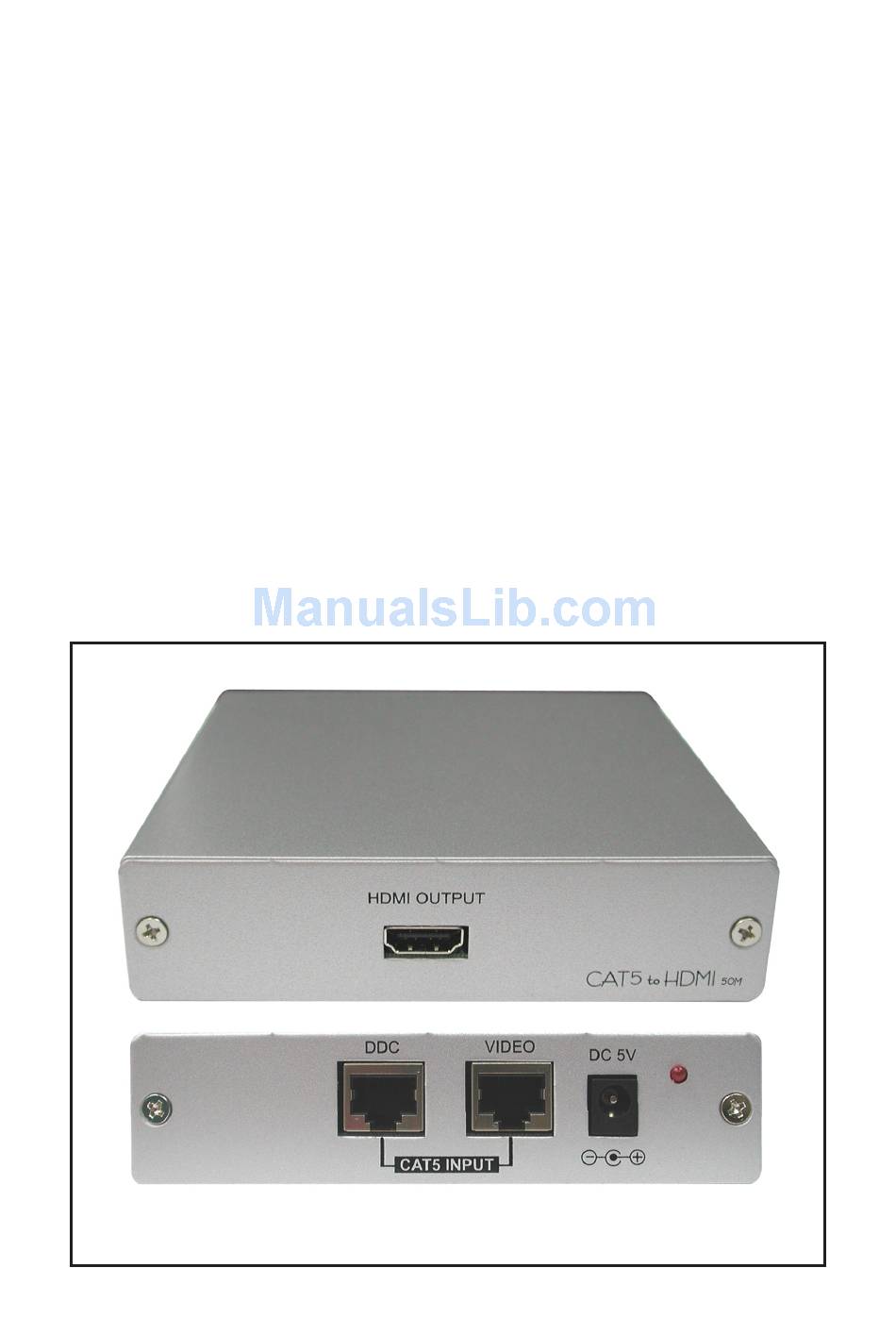

- Page 1 HDMI Over CAT5 Receiver at 50 Meters Operation Manual CA-HDMI50R...
- Page 2 TABLE OF CONTENTS 1. Introduction................1 2. Features..................1 3. Package Contents..............1 4. Operation Controls and Functions........... 2 4.1 Front Panel................2 4.2 Rear Panel................2 5. Specifications................3 6. Connection and Installation............ 4...
-
Page 3: Package Contents

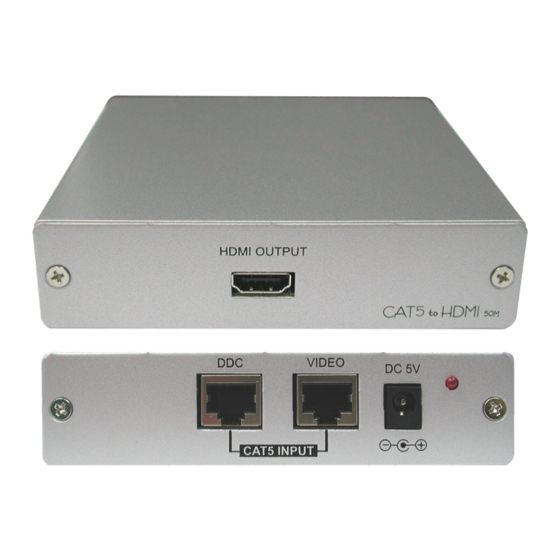

1. Introduction This is the receiver (Rx) unit of HDMI over CAT5 Tx/Rx solution, works with HDMI over CAT5 transmitter, can extend HDMI signal through CAT-5 cables for a distance up to 50 meters. The installation of HDMI Over CAT5 is easy and quick, simply place the transmitter next to your HDTV source such as a DVD player, then place this unit next to your display, and get all necessary cables connected to complete and enjoy. - Page 4 4. Operation Controls and Functions 4.1 Front Panel HDMI OUTPUT to HDMI 50 1 HDMI OUTPUT: Connect the HDMI output port to the HDMI input of your display. 4.2 Rear Panel VIDEO DC 5V CAT5 INPUT 1 DDC INPUT: Connect the DDC input to the DDC output of the transmitter unit using CAT-5/CAT-5E/CAT-6 cable.
-
Page 5: Specifications
5. Specifications 1. Supported resolutions: HDMI - 480i/480p, 576i/576p, 720P@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz 2. Input: 1* CAT-5 input for VIDEO, 1* CAT-5 input for DDC 3. Output: 1* HDMI female port 4. Power: 5V / 2.6A DC power supply 5. Dimensions: 123(W) x 125(D) x 30(H)mm 6. -
Page 6: Connection And Installation
6. Connection and Installation DVD Player HDMI HDMI Cable Cable VIDEO (CAT-5 Cable) DDC (CAT-5 Cable) VIDEO DC 5V HDMI INPUT HDMI to CAT CAT5 OUTPUT Transmitter Unit Transmitter Unit Front Rear 50 Meters VIDEO DC 5V HDMI OUTPUT to HDMI 50 CAT5 INPUT Receiver Unit Receiver Unit... - Page 8 Cypress HDMI Over CAT5 Series: Description Product HDMI Over CAT5 Transmitter CA-HDMIAT HDMI Over CAT5 Receiver at 50 meters CA-HDMI 50R HDMI Over CAT5 Receiver at 100 meters CA-HDMI 100R HDMI Over CAT5 Receiver at 150 meters CA-HDMI 150R HDMI Over CAT5 Receiver at 250 meters CA-HDMI 250R CYPRESS TECHNOLOGY CO., LTD.
