A D J U S T I N G V O L T A G E S E T T I N G S
EU Model
Local AC Supply
Freq.
50 Hz
50 Hz
50 Hz
1 Disconnect the fixture from AC power.
2 If the lamp is hot, allow it to cool for 5 minutes and wear safety goggles to protect
your eyes.
3 Remove the 6 cover-access screws and lift of the fixture cover.

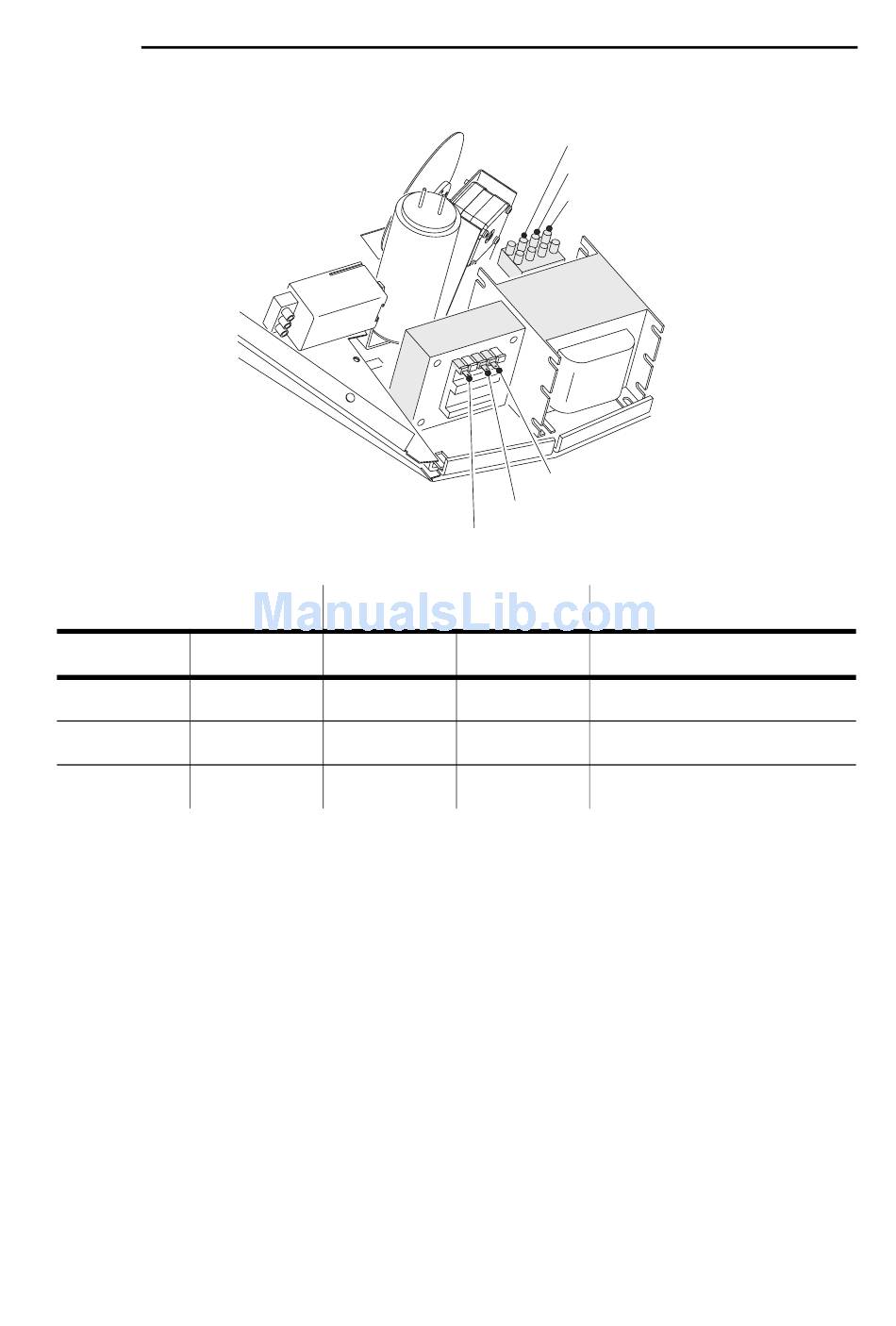

4 On the transformer, move the BROWN wire to the transformer terminal shown in
the table above for the local AC supply voltage. The terminals are indicated on a
label on the top of the transformer.
5 On the ballast, move the BROWN wire to the terminal listed for the voltage. The
terminals are indicated on the top of the ballast.
6 Replace the cover.
8
Voltage Setting
220 - 235 V 225 V
235 - 245 V 240 V
245 - 260 V 240 V
Wizard user manual
230 V
Ballast
Transformer
240 V
225 V
0 V
Transformer
Terminal
3
4
4
240 V
250 V
Ballast
Setting / Terminal
230 V
240 V
250 V
