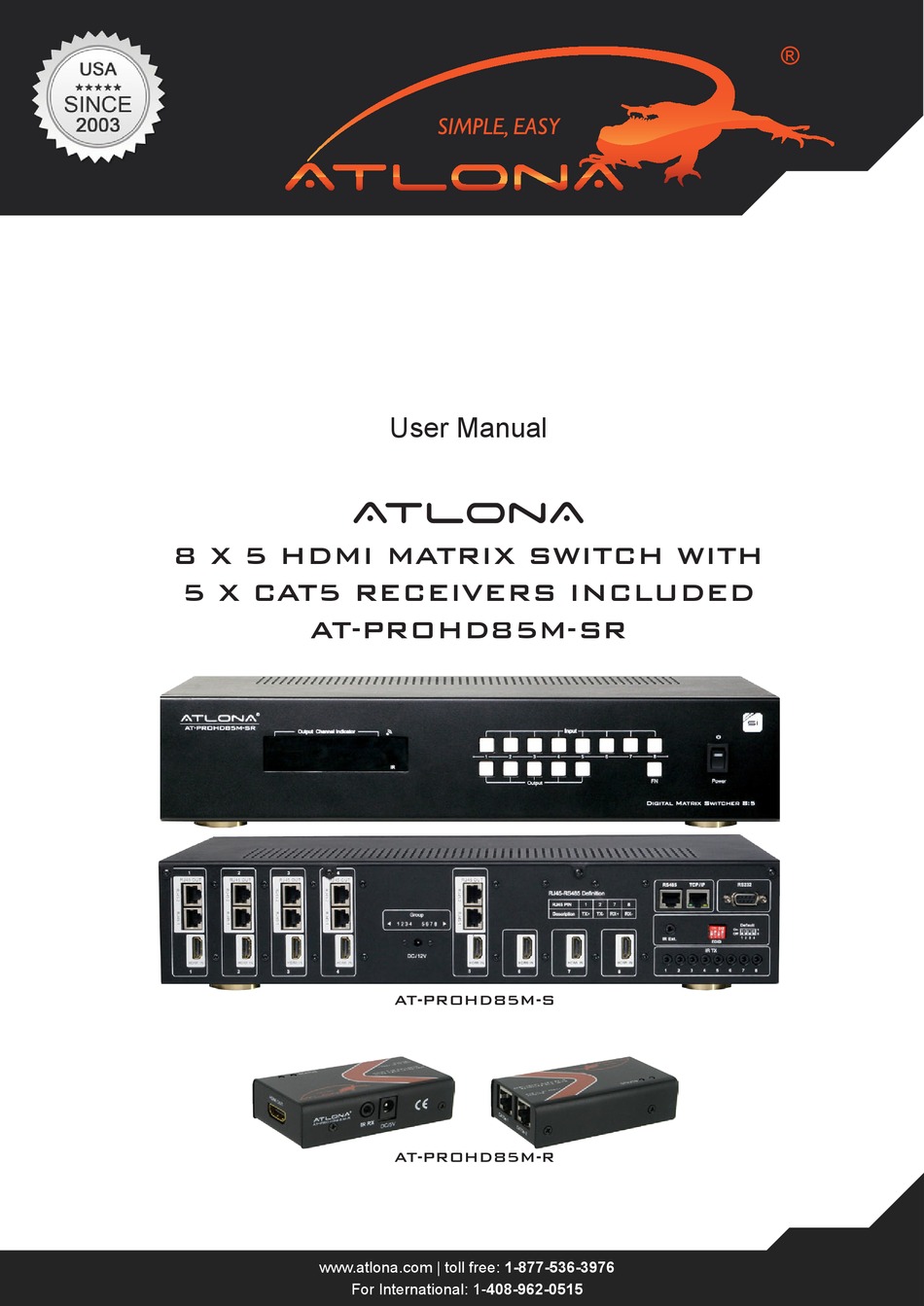

- Page 1 User Manual AtlonA 8 X 5 HDMI MATRIX SWITCH WITH 5 X CAT5 RECEIVERS INCLUDED AT-PROHD85M-SR AT-PROHD85M-S AT-PROHD85M-R www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 2: Table Of Contents
8. TCP/IP Control ..........10 9. RS-232 ..........9.1. RS232 Control ..........9.2. RS232 Cable Wiring ..........9.3. RS232 Commands ..........10. Safety Information ..........11. Warranty ..........12. Atlona Product Registration ..........www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 3: Introduction

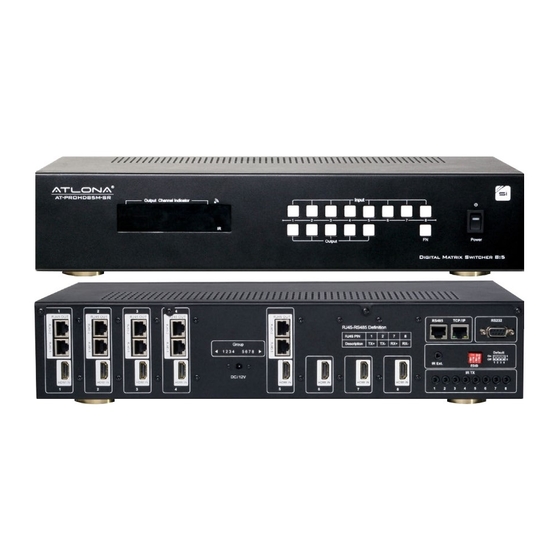

INTRODUCTION The Atlona AT-PROHD85M-SR is an HDMI 8X5 matrix switch which allows up to eight HDMI sources to be in- dependently switched to five HDMI displays. It extends sources such as Blu-Ray, X-Box or a Satellite receiver up to 165ft @ 1080p and 1920x1200 resolutions to each remote video display. It offers full pass through for all Digital audio formats such as Dolby True HD, DTS-HD Master Audio. -
Page 4: Specification
3. Output selection buttons: used to select preferred output channel. 4. Input selection buttons: used to select preferred input channel. 5. F/N button: used to execute a command. 6. Power: On/off switch www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 5: Rear Panel
Note: Please make sure when connecting Cat5e-1 and -2 receiver ports that they are matched to the corre- sponding RJ45 Ports on the AT-PROHD85M-SR. Receiver Cat5e-1 should be plugged into Matrix RJ45-1 and Receiver Cat5e-2 should be plugged into Matrix RJ45-2. -
Page 6: Connection And Operation
X-Box DVD player 1. Connect HDMI sources such as Blu-Ray, DirecTV or Apply TV to the inputs on the AT-PROHD85M-SR. 2. Connect 2 RJ45 CAT5 cables from each output on the AT-PROHD85-SR to the matching numbered inputs on the supplied receivers. It is important that that each end of the CAT5 cable matches the corresponding num- bered RJ45/CAT5 port on the matrix &... - Page 7 For a single CAT5 connection please use the RJ45-2 ports only. A). Auto EDID: Please set the dip switch to “0000” (off). Power cycle the AT-PROHD85M-SR by turning power off then back on. All connected output displays EDID’s will be copied and forwarded to all connected sources and the lowest common denominator will be locked in.
- Page 8 Single CAT5, 1080i, 2ch audio C). Copy EDID: Please set the dip switch to “0000” (off). Make sure to power cycle the AT-PROHD85M-SR after making this setting change on the dip switch. Turn off power and then back on to complete a power cycle.
-
Page 9: Ir Remote Control
Used when the AT-PROHD85M-SR is in an enclosure and the front panel IR window isn’t visible. 10. To manually select an input and output from the front panel follow these steps. -
Page 10: Tcp/Ip Control
2. Double Click on the device name or right-click and select OPEN. A web browser window will open with the log-in page. The default password is “0000000000”. Enter the password then select the “Login” button to log on to the control page. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 11: Rs232
Next select “Search” and then “Read Device” to display the matrix name. RS232 9.1. RS232 Control Baud Rate: 9600 bps Data bits: 8 bits Parity: None Stop bits: 1 bit Flow control: None www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 12: Rs232 Cable Wiring
17 Output 2 select Input8 cir 20 Output 3 select Input1 cir 21 Output 3 select Input2 Output 3 cir 22 Output 3 select Input3 cir 23 Output 3 select Input4 www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... - Page 13 43 Output 5 select Input4 Output 5 cir 44 Output 5 select Input5 cir 45 Output 5 select Input6 cir 46 Output 5 select Input7 cir 47 Output 5 select Input8 www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 14: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 15: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 16: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited war- ranty rights. To register go to www.atlona.com/registration www.atlona.com | toll free: 1-877-536-3976...
