Summary of Contents for Atlona AT-PROHD44M-SR

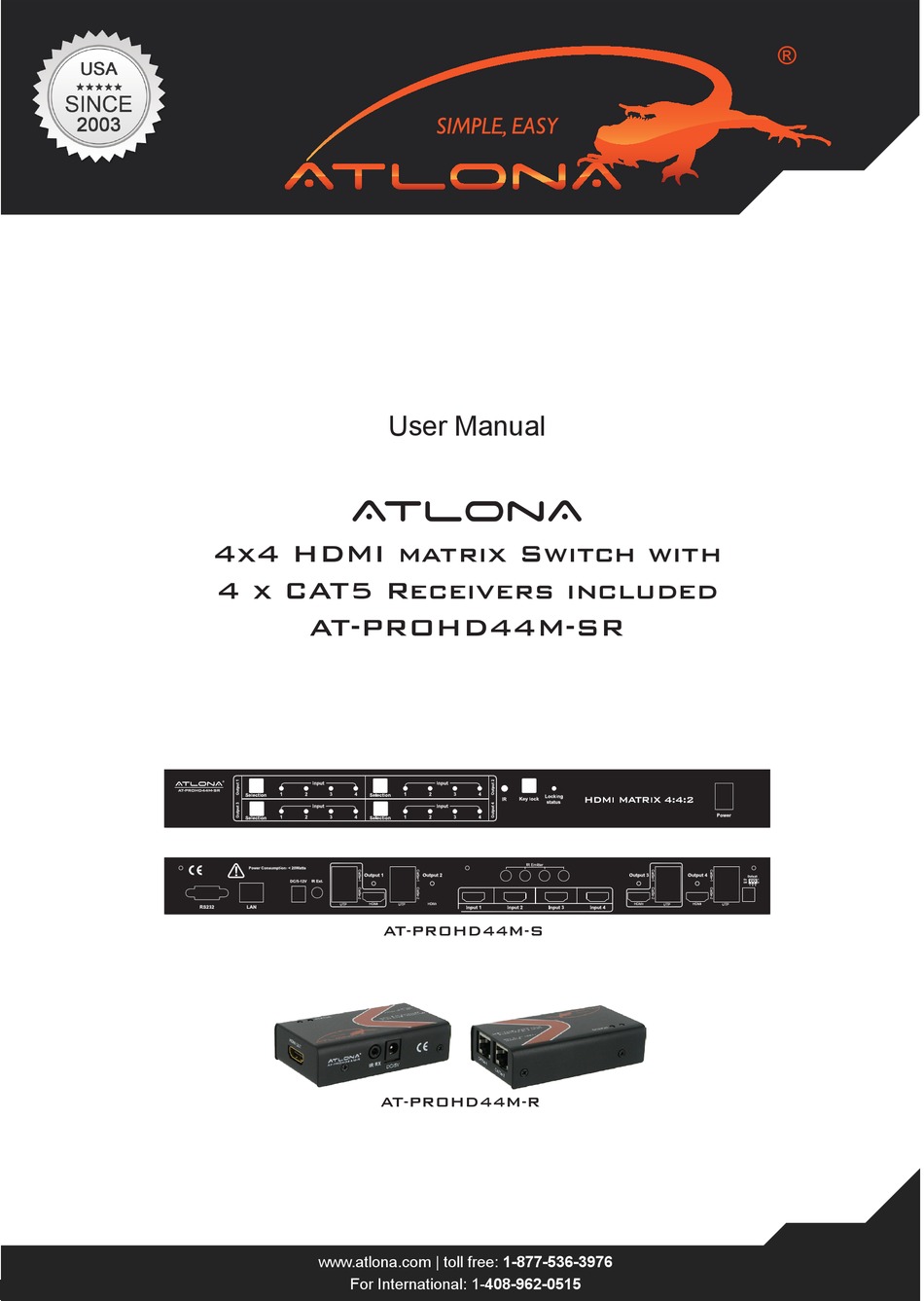

- Page 1 User Manual AtlonA 4x4 HDMI matrix Switch with 4 x CAT5 Receivers included AT-PROHD44M-SR AT-PROHD44M-S AT-PROHD44M-R www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 2: Table Of Contents
6. Connect and Operation ..........7. IR Remote Control ..........7.1. RS232 Control ..........7.2. RS232 Cable Wiring ..........8. F.A.Q........... 9. Safety Information ..........10. Warranty ..........11. Atlona Product Registration ..........www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 3: Introduction
INTRODUCTION Atlona Technologies’ AT-PROHD44M-SR is a 4x4 HDMI Matrix Switcher over Twisted Pair designed to work as a switcher for multiple Audio/Video sources and displays. The Atlona unit is capable of switching HDMI signals between four sources (such as: Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) and eight displays. -
Page 4: Specification
3. Key lock button, to lock the front panel buttons (it will not lock the power button). 4. Indicator of locking status: when the output selection buttons are locked, LED will illuminate. 5. ON/OFF switch. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 5: Rear Panel
RJ45 inputs – please be careful when connecting RJ45 # 1 and # 2 inputs. They absolutely have to match the outputs on the switch. Output # 1 should be connected to Input # 1 and Output # 2 should be connected to Inputs # 2. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 6: Connect And Operation
Up to 1080P with Stereo Audio (DIP#3) Up to 1080P with 5.1 Audio (DIP#4) Up to 1080P with 7.1 Audio (DIP#5) Up to 1080i with Stereo Audio (DIP#6) Note: 1 – ON and 0 – OFF www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... - Page 7 Audio. DIP#4: Atlona Switcher has a few built-in EDID modes; this mode is for resolutions up to 1080P with 5.1 Digital Audio. This mode is designed for applications where user has AV Receivers in each remote location which are able to accept Digital Audio from HDMI inputs.
-
Page 8: Ir Remote Control
IR REMOTE CONTROL The AT-PROHD44M-SR comes with 16 button IR remote control, which could be used to toggle input backward control the switcher when pointing at it or controlling the switcher from a remote location toggle input forward by pointing the remote control to the IR Eye connected to the HDMI receiver. -
Page 9: Rs232 Cable Wiring
66 Output 4 select Input next cir 50 Output 4 select Input1 Output 4 cir 55 Output 4 select Input2 cir 48 Output 4 select Input3 cir 4A Output 4 select Input4 www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 10: F.a.q
6. Question: I have a universal remote control and I would like to program this switcher into it. Answer: Under the download page on Atlona website you would be able to find IR codes in HEX format which you use to program your remote control or you can also learn the commands. -
Page 11: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 12: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 13: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited war- ranty rights. To register go to www.atlona.com/registration www.atlona.com | toll free: 1-877-536-3976...
