Atlona AT-PC81A User Manual

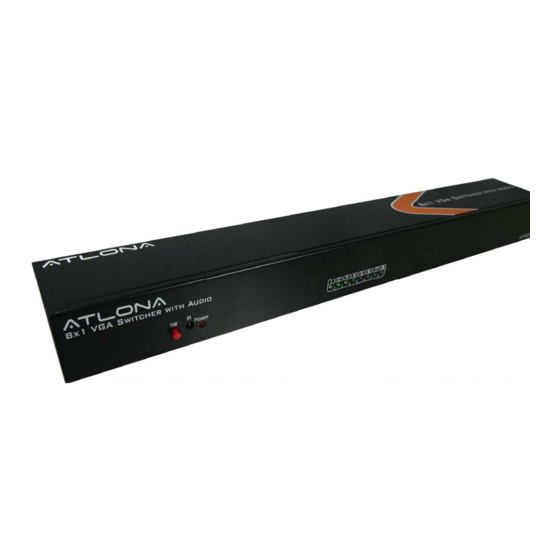

8x1 vga + analog audio switcher
Hide thumbs Also See for AT-PC81A:
Table of Contents

Advertisement

Quick Links

Download this manual

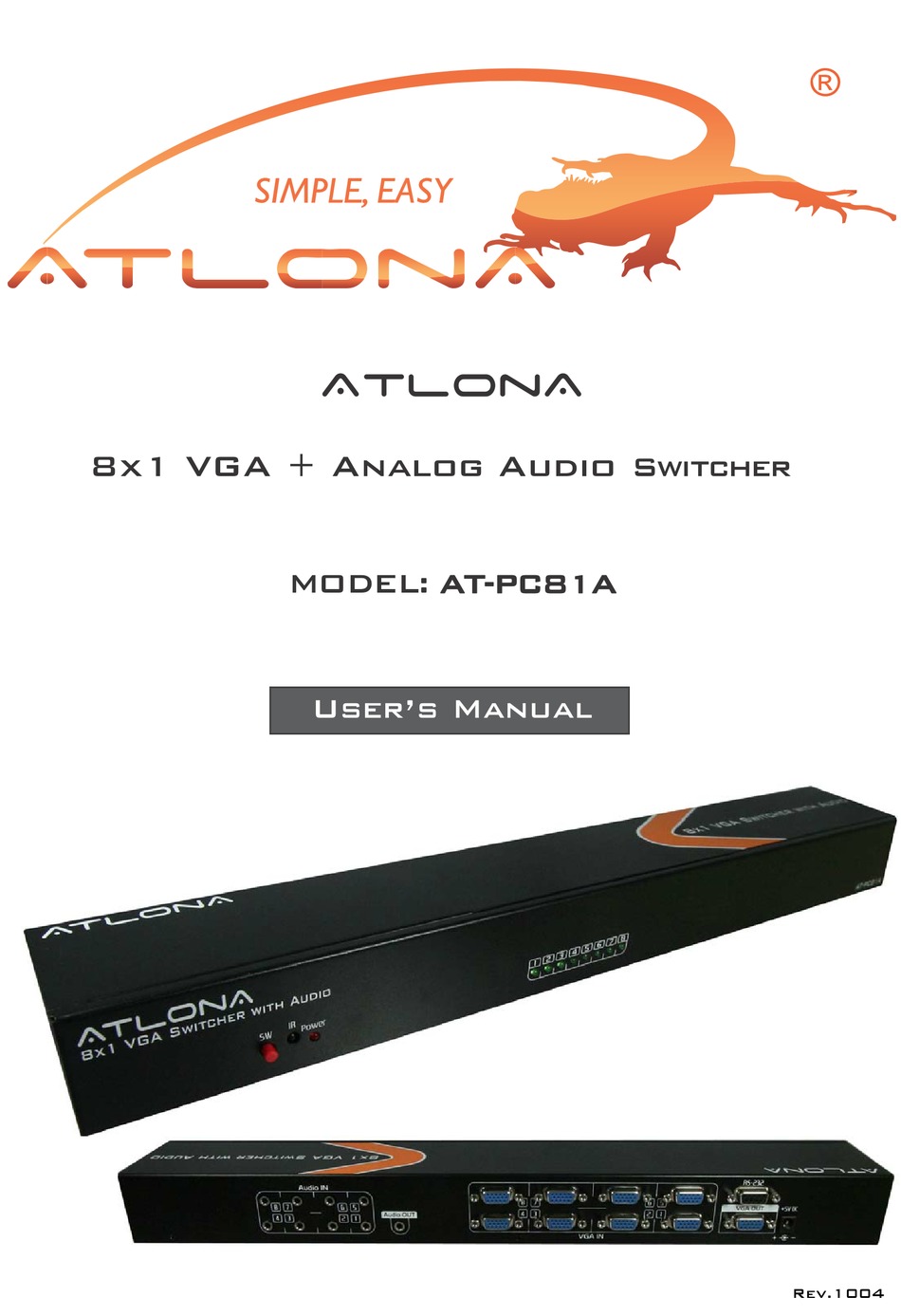

AtlonA
8x1 VGA + Analog Audio
Switcher
MODEL: AT-PC81A
User's Manual
Rev.1004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-PC81A and is the answer not in the manual?

Questions and answers

Related Manuals for Atlona AT-PC81A

Summary of Contents for Atlona AT-PC81A

  • Page 1 AtlonA 8x1 VGA + Analog Audio Switcher MODEL: AT-PC81A User’s Manual Rev.1004...

  • Page 2: Table Of Contents

    2. Features ............... 2 3. Package Contents ............... 4. Specifications ............... 5. Panel Description ............... 6. Channel Control ............... 6 7. Pin Definition ............... 10 8. Safety Information ..............11 9. Warranty ..............12 10. Atlona Product Registration ..............13...

  • Page 3: Introduction

    VGA source to be routed to a display. Switcher is tested to guarantee resolution up to 1920 x 1200 or 1080p without signal degradation. Atlona AT-PC81A is also equipped with analog audio connections to transfer audio signal from either source to a display or audio receiver.

  • Page 4: Features

    FEATURES LED indicators, tells you which input is currently active IR remote control Supports high resolution input: PC: VGA, SVGA, XGA, SXGA, UXGA (1600x1200) and WUXGA (1920x1200), & HDTV: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p. Bandwidth: 350MHz. Plug and play, easy to install and operate. Built-in advance circuit ensures a smooth transition when switching from one PC/HD source into another.

  • Page 5: Package Contents

    PACKAGE CONTENTS 1x AT-PC81A unit 1x IR remote control 1x Installation CD 2x Rack-mounting ear 1x 5V DC power supply unit 1x User's manual...

  • Page 6: Specifications

    SPECIFICATIONS Model Name AT-PC81A Technical Role of usage 8x1 switcher Supported input/output VGA / Component / S-video / Composite* Video bandwidth 350MHz Video support 1080p60, WUXGA [1920x1200@60] & UXGA [1600x1200@60] or higher Transmission Full HD 1080p, WUXGA 1920x1200, UXGA 1600x1200 – 65m [210ft]...

  • Page 7: Panel Description

    PANEL DESCRIPTION Front Panel 1 2 3 1. Push button for input switch from channel 1 to channel 8 in sequential order 2. Infrared sensor for receiving commands from the IR remote contorl 3. Power indicator 4. VGA input #1 − #8 indicator shows currently chosen input channel Rear Panel 5.

  • Page 8: Channel Control

    Disable this function will make the AT-PC81A stay at the the currently selected input even if the input signal is lost.
  • Page 9 Method B: Software Control via RS-232 serial port 1. Click here for PC to connect to AT-PC81A. 2. Click one of the eight channel buttons to choose the desired VGA input source RS-232 transmission format: Baud rate: 9600 bps Data bit: 8 bits...
  • Page 10 0xff :Machine number 0x09 0x53 0x57 0x90 0x08 0xff 0x02 0x02: Command ID *0x4d~0x54 0xaa *0x01~0x08 0x01~0x08: Selected input on AT-PC81A 0x4d~0x54: Check sum 0xaa: Header Set auto detect function 0x09: Command length 0x53 0x57 0x90 0x08: Check code 0xff :Machine number...
  • Page 11 (b) Read Command: Function Command Code Response *Check DATA Read selected source and auto detect status 0x08: Command length 0x53 0x57 0x90 0x08: Check code 0xff : Machine number 0x08 0x53 0x57 0xaa 0x03 0x01: Command ID 0x4a 0x90 0x08 0xff 0x01 0xN1 0xN4 0x4a: Check sum 0xaa: Header...

  • Page 12: Pin Definition

    PIN DEFINITION VGA / Component / Composite 14 13 12 Pin 1 » Pr / Red Pin 6 » Ground Pin 11 » Ground Pin 2 » Y / Green / Composite Pin 7 » Ground Pin 12 » Reserved Pin 3 »...

  • Page 13: Safety Information

    Attempting to do so could expose you to Precautions dangerous electrical shock or other hazards. It may also cause damage to your AT-PC81A. FCC Regulations state that any unauthorized Opening the product will void the warranty. changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this...

  • Page 14: Warranty

    Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt.

  • Page 15: Atlona Product Registration

    At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights.
