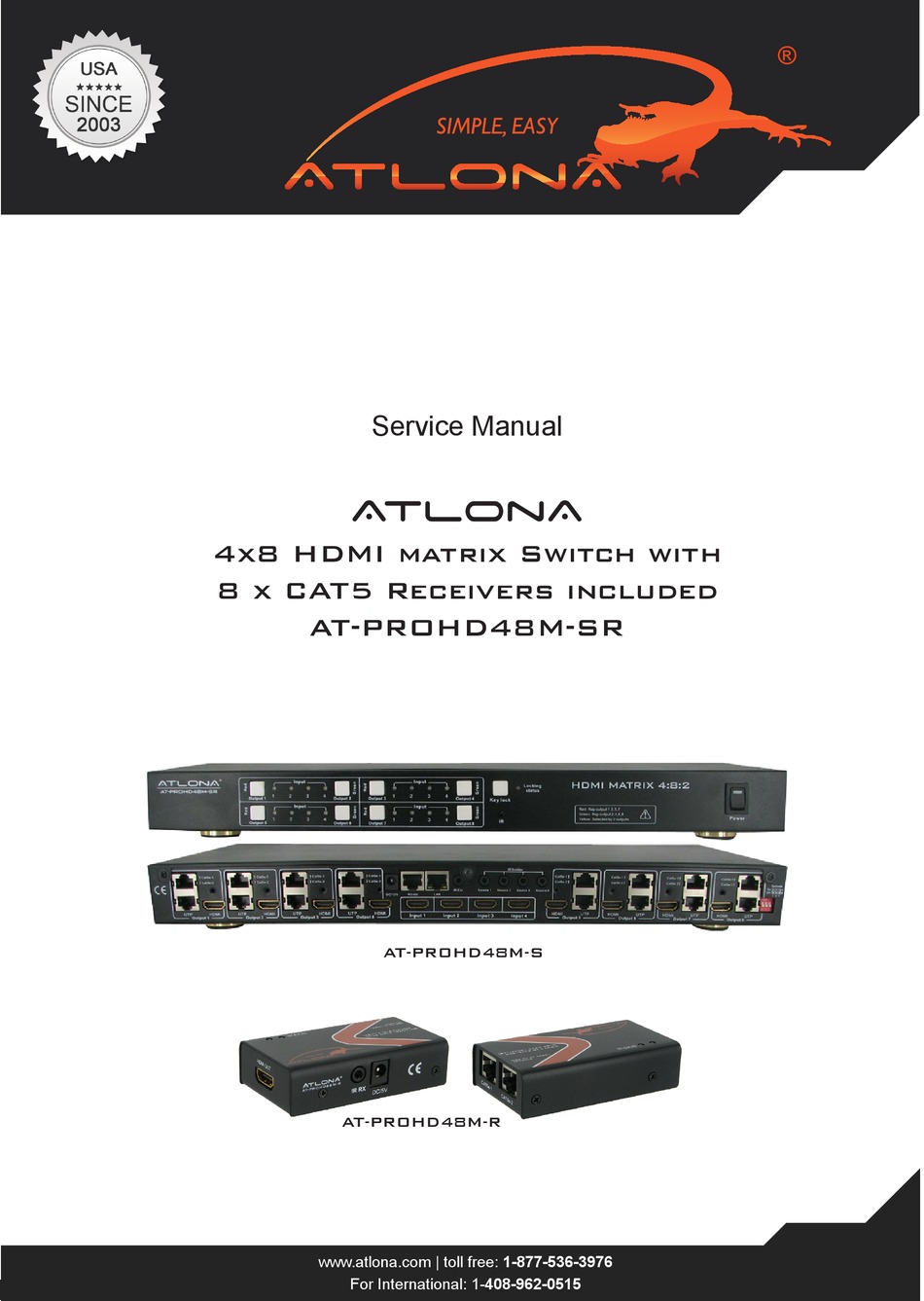

- Page 1 Service Manual AtlonA 4x8 HDMI matrix Switch with 8 x CAT5 Receivers included AT-PROHD48M-SR AT-PROHD48M-S AT-PROHD48M-R www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 2: Table Of Contents
..........10. UPC/ APC Back Ups ..........11. Controlling VIA RS232 ..........12. LAN Control ..........13. No Signal on HDMI and CAT5 Out ..........14. Using Other Sources Without HDMI ..........www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 3: Setting Up Cat5E/6/7
SETTING UP CAT5E/6/7 CAT5E or higher is recommended for use with the Atlona AT-PROHD48M-SR. If cables are run in the walls make sure to stay away from light fixtures, electrical boxes, fluorescent lights, and any or other electrical cables to reduce and prevent signal degradation. T568B termination needs to be used for this device. -
Page 4: Hdmi Receiver Baluns
To enable the function: press the output2 selection button and the key lock button at the same time for about 3 seconds. After all the output1 LEDs and the output2 LEDs flash once, the function is enabled. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 5: Edid Settings
1080P with 7.1 Audio (note#6) AUTO EDID MANAGEMENT with one RJ45 (OPTIONAL) (note#7) Copy EDID from output #1 with one RJ45 (OPTIONAL) (note#8) EACH TIME DIP SWITCHES ARE CHANGED; THE ATLONA SWITCH HAS TO POWER CYCLED. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... - Page 6 “Lock Key” buttons). The HDMI output has a higher priority than RJ45 outputs. DIP #3: Atlona Switcher has a few built-in EDID modes; this mode is for 1080P with Stereo Audio. When this mode is selected and user has some of the displays which are not compatible with 1080p, those displays may not be able to show the image correctly.
-
Page 7: Ir Remote Control
AT-PROHD48M-SR is capable of multiplying the HDCP key to as many outputs as needed, therefore even your source is only able to output 1 x HDCP, the Atlona box will still be able to display the im- age on 8 displays. This is a very commonly asked question. How do we manage HDCP? Well, a lot of companies do it differently. -
Page 8: Controlling Via Rs232
64 Output 3 select Input next cir 17 Output 3 select Input1 Output 3 cir 12 Output 3 select Input2 cir 59 Output 3 select Input3 cir 08 Output 3 select Input4 www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 9: Lan Control
1. Unzip and run the NETCTL application. It will automatically search for any connected devices and display its IP address. Hitting the button “Read Device” will change the IP address to its device name. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... - Page 10 3. Double Click on the device name or right-click and hit ‘open’. A Web Browser window will open with the log in page. The default password is “000000000”. After you have entered the password click the ‘Login’ button. You should now be logged into the Control page. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
- Page 11 ‘Assign IP’, you can now assign an IP for the Matrix. Click OK after assigning new IP, it will then return you to the previous window. Click ‘Search’ and then ‘Read Device’. The device should now be seen correctly. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 12: No Signal On Hdmi And Cat5 Out
USING OTHER SOURCES WITHOUT HDMI The solution to it is to contact Atlona for a conversion box to convert any signal you might have to HDMI. Atlona offers a wide variety of conversion boxes specifically designed for ap¬plication such as this. - Page 13 AT-HD560: Atlona Pal HDMI to NTSC HDMI Converter 1080p Atlona AT-HD560 is an advanced HDMI to HDMI Scaler Box. It accepts HDMI input with a separate to slink or analog audio and scales it to HDMI output (at a number of selectable resolutions and frequen- cies) with additional to slink and analog audio output.
- Page 14 The Atlona AT-HD500 is designed to take video signal from PC or Laptop and upscale it to digital HDMI output of wide-range HDTV and PC resolutions, up to 1080p or WUXGA (1920x1200). AT-HD570: Atlona HDMI (1.3) Audio De-Embedder with 3D Support The Atlona AT-HD570 is a professional quality HDMI (1.3) Audio De-Embedder.
