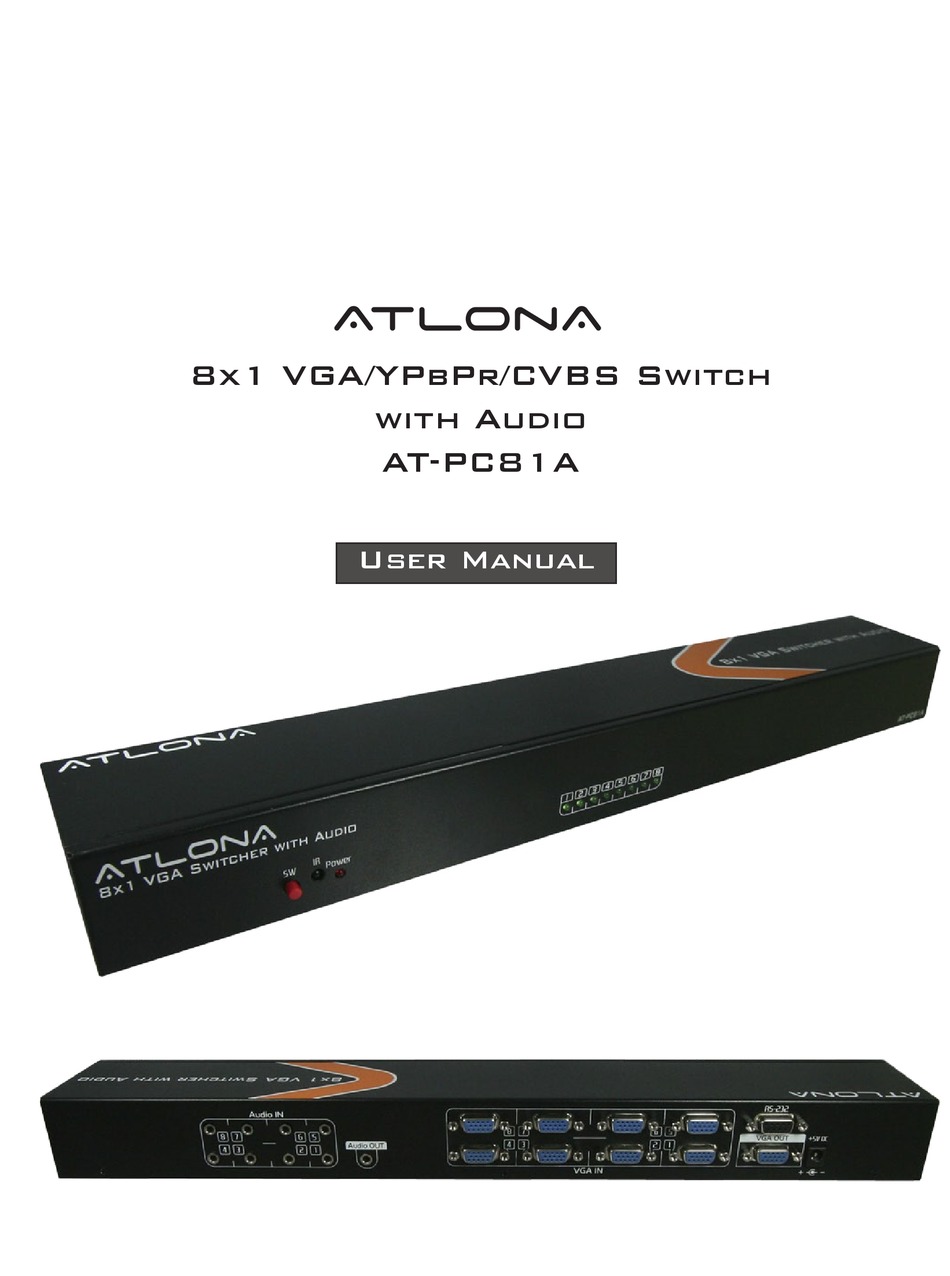

- Page 1 AtlonA 8x1 VGA/YPbPr/CVBS Switch with Audio AT-PC81A User Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ........2. Features ........3. Package Contents ........4. Technical Specifications ........5. Panel Descriptions ........5.1. Front Panel ........5.2. Rear Panel ........7. RS232 commands ........8. IR codes ........9. IR Remote Control ........ -
Page 3: Introduction
PC graphics and HDTV videos with crystal clear audio in the market. With equipped audio switch, AT-PC81A is ready to act as a switch with stereo audio and ideally for boardroom, showroom, and exhibition. The control of AT- PC81A is versatile and easier through the IR remote control, the push button on front panel, or the RS-232 control on rear panel. -
Page 4: Features
• Amplified video output with transmission length up to 65m (210ft) • Multiple control by IR remote, push button, and RS-232 control • Supports resolutions up to 1920 x 1200 Package Content • 1x AT-PC81A • 1x power adapter • 1x rack mount set • 1x IR remote •... -
Page 5: Panel Descriptions
Panel Descriptions Front Panel AtlonA 1 2 3 4 5 6 7 8 9 10 11 1. Push button for input switch 4. LED indicator for VGA input #1 8. LED indicator for VGA input #5 2. Infrared sensor 5. LED indicator for VGA input #2 9. LED indicator for VGA input #6 3. -
Page 6: Rs232 Commands
Parity: None (A) Set Command: Command code Response Description DATA *CHECK SUM 0x07 0x53 0x57 0x30 0x08 0xa8 0xaa SET AT-PC81A DEVICE ID 0x05 *0x01~0xFE (B)Status commend: Command code Response Description DATA *CHECK GET STATUS *CHECK STATUS 0x04 0x4d 0x4f... -
Page 7: Ir Codes
IR codes... -
Page 8: Ir Remote Control
Hardware Installation 1. Connect VGA/YPbPr/CVBS display/projector to the output of AT-PC81A. 2. Connect the VGA/YPbPr/CVBS source devices to the inputs of AT-PC81A. 3. Plug power adapter cable into 5V DC power jack. 4. Use IR remote or push button on the front panel to switch between inputs, or connect... -
Page 9: Safety
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 10: Warranty
WARRANTY LIMITED ONE-YEAR WARRANTY ATLONA by Lenexpo Electronics warrants only to the initial purchaser of this product for a period of one year from the date of purchase from an Authorized ATLONA Reseller, the product will be free of electrical and mechanical defects that materially affect the products operation as described in this users manual.
