Page 1: User Manual

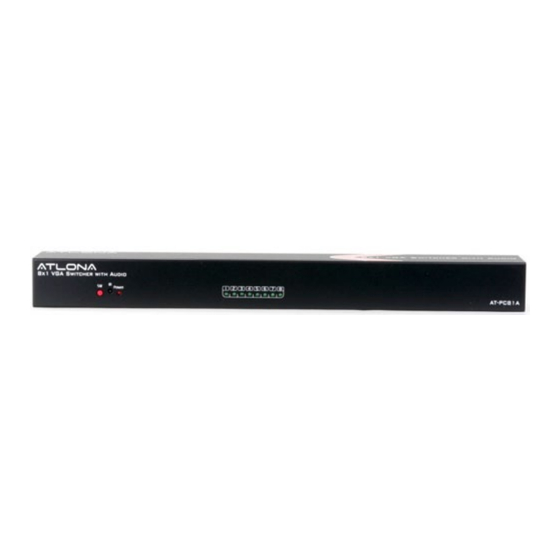

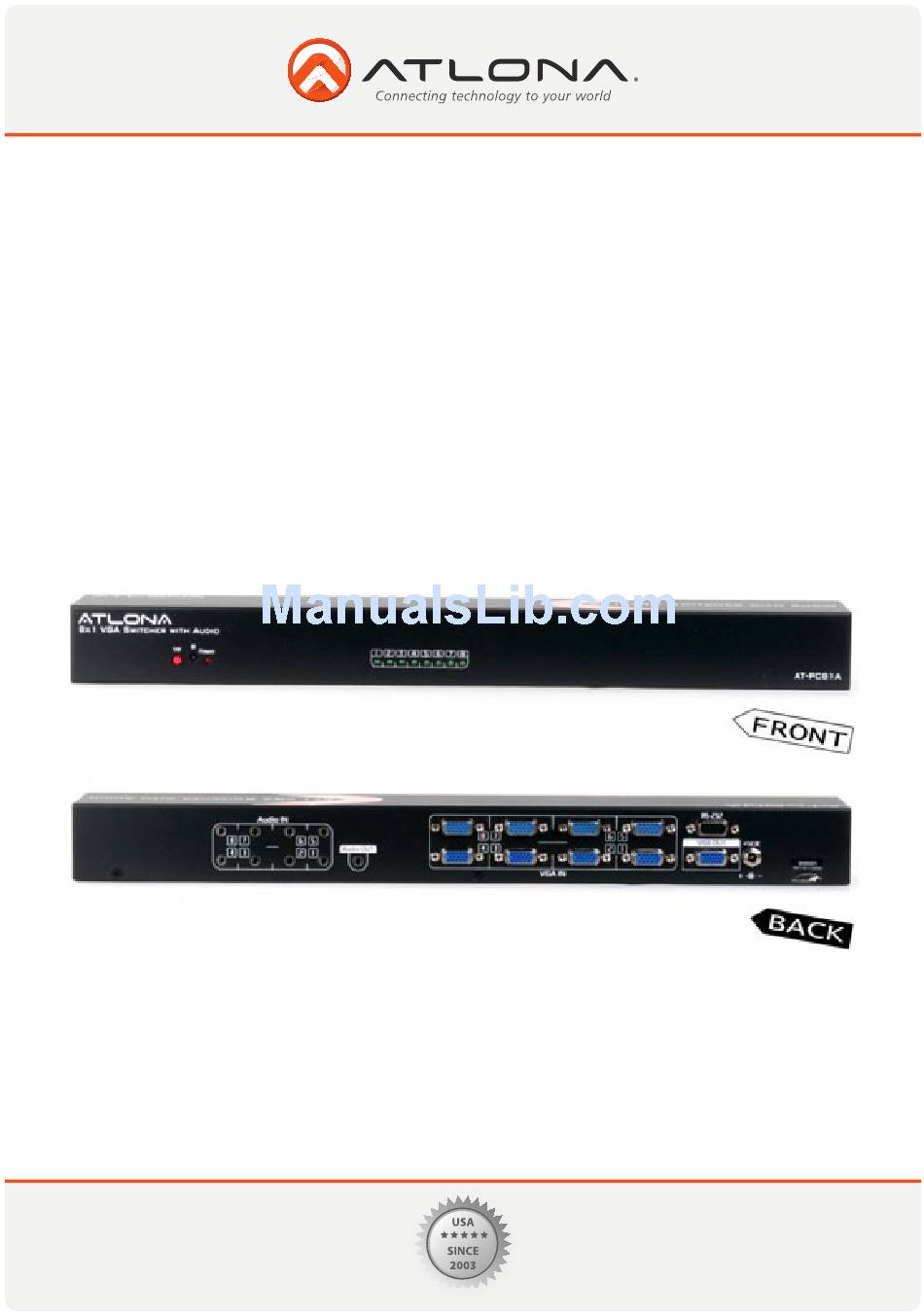

User Manual 8x1 VGA + Analog Audio Switcher AT-PC81A Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
5. Panel Description ..........4 6. Channel Control ..........5 7. Pin Definition ..........9 8. Connection diagram ..........10 9. Safety Information ..........11 10. Warranty ..........12 11. Atlona Product Registration ..........13 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
VGA source to be routed to a display. Switcher is tested to guarantee resolution up to 1920 x 1200 or 1080p without signal degradation. Atlona AT-PC81A is also equipped with analog audio connections to transfer audio signal from either source to a display or audio receiver. -
Page 4: Specifications
SPECIFICATIONS Model Name AT-PC81A Technical Role of usage 8x1 switcher Supported input/output VGA / Component / S-video / Composite* Video bandwidth 350MHz Video support 1080p60, WUXGA [1920x1200@60] & UXGA [1600x1200@60] or higher Transmission Full HD 1080p, WUXGA 1920x1200, UXGA 1600x1200 – 65m [210ft]... -
Page 5: Panel Description
7. 3.5mm audio socket for selected audio output 8. VGA input channels for connecting to VGA source #1 - #8 9. Selected VGA output to a VGA display 10. +5V DC power jack: Connect to a +5V power supply unit Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: Channel Control
Disable this function will make the AT-PC81A stay at the the currently selected input even if the input signal is lost. - Page 7 Method B: Software Control via RS-232 serial port 1. Click here for PC to connect to AT-PC81A. 2. Click one of the eight channel buttons to choose the desired VGA input source *RS-232 transmission format: Baud rate: 9600 bps Data bit: 8 bits...
- Page 8 Select input source *0x01~0x08 0x09: Command length 0x53 0x57 0x90 0x08: Check code 0xff :Machine number 0x02: Command ID 0x01~0x08: Selected input on AT-PC81A 0x4d~0x54: Check sum 0xaa: Header 0x09 0x53 0x57 0x90 0x08 0xff 0x07 0x52 0xaa Set auto detect function...
- Page 9 0x05 Transmission data amount 0x4d Check code 0x4f Check code 0x44 Check code 0xe5 Check sum 0xaa: Header 0x06 Command length 0x53 Check code 0x57 Check code 0x90 Check code 0x08 Check code 0x48 Check Sum Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 10: Pin Definition
Pin 5 » Ground Pin 10 » Ground Pin 15 » Reserved S-Video Pin 1 » Ground (Y) Pin 2 » Ground (C) Pin 3 » Y – Intensity (luminance) Pin 4 » C – Color (chrominance) Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 11: Connection Diagram
CONNECTION DIAGRAM Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 12: Safety Information
It may also cause damage to your AT-PC81A. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 13: Warranty
Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. -
Page 14: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
