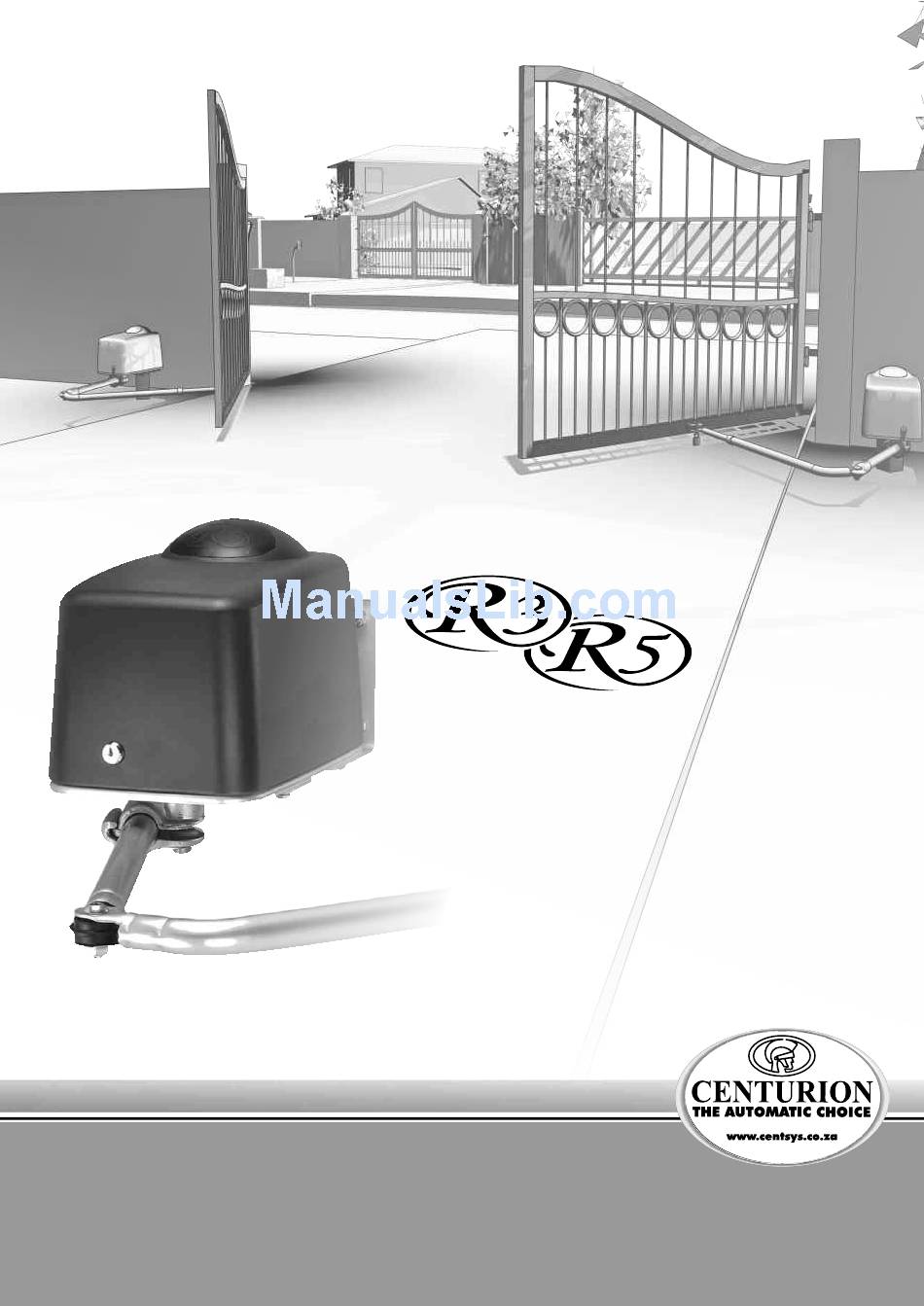

- Page 1 R O T A R Y QUICK SETUP GUIDE...
- Page 2 Updated for V2 Operators This guide is intended for the experienced installer who has done an R3 or R5 installation before, knows all the safety aspects required of a site, but who needs reminding of the basic steps to follow.
-
Page 3: Required Tools And Equipment
& E EQUIRED OOLS QUIPMENT Check that you have all the tools required. (IM page 12) ONSIDERATIONS Check for the safety and suitability of the site by looking at: (IM page All safety and local authority requirements. That the gate is within the operator specifications. Check that there is enough ground clearance to enable assembly of the drivearm clamps. -
Page 4: Pedestal Mount
TANDARD EDESTAL OUNT Pedestal Mount Installation Gate Bracket GATE LEAF IN CLOSED POSITION B E S U R E T O U S E A L O N G C O N N E C T I N G A R M F O R T H I S INSTALLATION TYPE. -
Page 5: Wall Mount
ERPENDICULAR OUNT Wall Mount Installation Gate Bracket GATE LEAF IN CLOSED POSITION BE SURE TO USE A SHORT CONNECTING ARM FOR THIS INSTALLATION TYPE. Ensure that the gate does not exceed the relevant specifications (IM page 9) Only recommended values are provided. For variances, refer to the Installation Manual. All dimensions shown are indicated in millimetres. -
Page 6: Pedestal Mount Installation
OUNT THE ATE BRACKET AND ETERMINE EDESTAL EIGHT Locate a suitable place for mounting the gate bracket according to dimen- sion “C” in the tables of Figures 2 or 3. Determine pedestal or wall mount bracket height relative to gate bracket as in figure 4 and 5. -
Page 7: Wall Mount Installation
OUNT NSTALLATION Wall Bracket Gate Bracket C (See Fig. 3) Figure 5 Wall/Gate Position & S OUTE ABLES ECURE OTOR Route cables as determined in the cabling plan in Figure 9. Make sure at least 400mm of cable protrudes above the pedestal or wall mount bracket. - Page 8 ASTEN EARBOX IN OSITION Fasten the motor onto the pedestal adaptor plate or the wall bracket using the M8 bolts and washers supplied. (IM page 23) RIVE RM TO ENGTH Using the relevant tables below, read off the required drive arm length. Then cut the drivearm 50mm longer than D, as shown in Figure 6.
-
Page 9: Fit The Drive Arm
IT THE RIVE Put the gearbox into manual mode. (IM page 24). Fit the drive arm to the operator as shown. SSEMBLE LAMP TO RIVE Clamp Clamp Drive Arm Drive Arm Wedge Wedge M12 Washer M12 Washer M12 x 65 Bolt M12 x 65 Bolt To mount: push clamp onto drive shaft, tap into place, slide drive arm into clamp,... - Page 10 ET THE ONNECTING ENGTH Loosen the connecting arm slightly and move it to its fully retracted position. Open the gate ½ way. Assemble the connecting arm to the gate bracket. Now slowly push the gate to its closed position. (The drive arm will turn, and the connecting arm will extend while doing so) Check that the hinge points of the gate bracket, connecting arm and motor output shaft are in a straight line as shown in Figure 8.
-
Page 11: Connect All Wiring
Electrical Set-Up Electrical Set-Up 1. Always check that the circuit breaker in the electrical panel is in the WARNING OFF position, and that all high voltage circuits (more than 42.4V) are completely isolated from the mains supply before doing any work. 2. - Page 12 CABLE REQUIREMENTS 220V AC mains cable (3 core LNE Radio receiver cable (3 core 0,5mm 0,5mm )*†, via mains isolator switch multistranded). Pedestrian key switch (if required) (2 core 0,5mm multistranded). Low voltage 16V AC battery charger supply (2 core 1,5mm )†. Infrared beams or safety edge (if required) (3 core 0,5mm Intercom cable (n1 + 6 core) to...
-
Page 13: Get Into Programming Mode
ROGRAMMING Remove all power. (IM page 28) Fit the SET link. Reapply power ELECT EITHER ASTER OR LAVE ETUP Press and hold the TEST button, release after 1 flash of L1. Then again, press and hold the TEST button, and release after 1 or 2 flashes of the STATUS LED. -
Page 14: Status Light
At this moment release the TEST button to select feature number 2. (L2 will turn off, and L1 will keep on flashing 2 times and pausing to indicate that feature number 2 is selected). NOTE: The STATUS of the Feature is not changed yet, the feature has only been selected to be changed! If an incorrect Feature is selected, then remove and re- apply power and repeat the procedure. - Page 15 CP75 Controller Functions CP75 Controller Functions FEATURE STATUS or COUNT STATUS FEATURE COUNT DESCRIPTION DESCRIPTION VALUE NUMBER VALUE Gate Limit Settings See detailed instructions on page 29 Auto-close OFF (Default) 15 seconds (Default) Auto-close Time 1 Flash = 1 second STANDARD (Default) CONDOMINIUM Mode of Operation...
- Page 16 CP75 Basic Controller Connections CP75 Basic Controller Connections STATUS LIGHT FUSE (LED) 3A F/B SLAVE FUSE 16A S/B MASTER -BATT+ SLAVE LIGHT SS1 SS2 SS3 COM COM SOL 12V LIVE NEUTRAL AUXILIARY SUPPLY 220V AC MAINS IN SLAVE CP75A SENSOR MOTOR 6-WAY CONNECTOR...
-
Page 17: Installation Handover
Trigger Connections Trigger Connections For a detailed description of terminal functions, refer to D E S C R I P T I O N O F TERMINAL FUNCTIONS on page 45 of the Installation COM COM SOL 12V TRG IRB FRX LED PED LCK SET SOLENOID LOCK RADIO RECEIVER... - Page 18 Centurion Systems (Pty) Ltd Head Office: Tel: +27 (0)11-699-2400, Fax: +27 (0)11-704-3412 or (0)11-462-6669 (Omit (0) when dialing from outside South Africa) 148 Epsom Avenue, North Riding P.O. Box 506, Cramerview, 2060 South Africa Sharecall 0860-CENTURION (Sharecall number applicable when dialed from within South Africa only) or visit www.centsys.co.za...
