Centurion R3R5 Quick Setup Manual

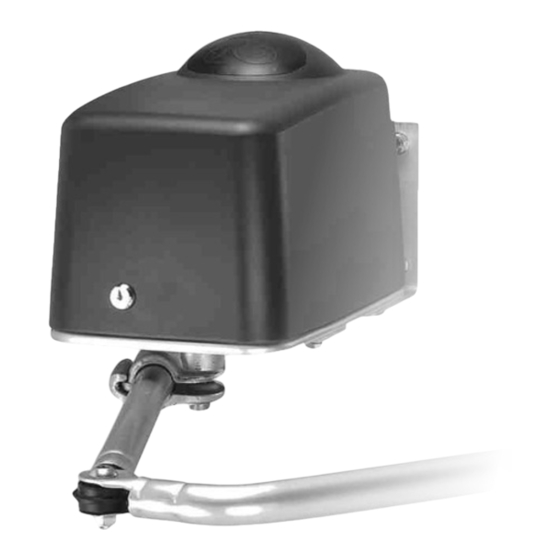

Rotary swing gate operator
Hide thumbs
Table of Contents

Advertisement

Quick Links

R3R5 quick setup guide
TM
TM
ROTARY
SWING GATE
OPERATOR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R3R5 and is the answer not in the manual?

Questions and answers

Related Manuals for Centurion R3R5

Summary of Contents for Centurion R3R5

  • Page 1 R3R5 quick setup guide ROTARY SWING GATE OPERATOR...

  • Page 2: Required Tools And Equipment

    & E EQUIRED OOLS QUIPMENT Check that you have all the tools required. (IM page 12) ONSIDERATIONS Check for the safety and suitability of the site by looking at: (IM page  All safety and local authority requirements.  That the gate is within the operator specifications. ...

  • Page 3: Pedestal Mount

    TANDARD EDESTAL OUNT Pedestal Mount Installation Gate Bracket GATE LEAF IN CLOSED POSITION  B E S U R E T O U S E A L O N G C O N N E C T I N G A R M F O R T H I S INSTALLATION TYPE.

  • Page 4: Wall Mount

    ERPENDICULAR OUNT Wall Mount Installation Gate Bracket GATE LEAF IN CLOSED POSITION  BE SURE TO USE A SHORT CONNECTING ARM FOR THIS INSTALLATION TYPE.  Ensure that the gate does not exceed the relevant specifications (IM page 9)  Only recommended values are provided. For variances, refer to the Installation Manual. ...

  • Page 5: Mount Installation

    OUNT THE ATE BRACKET AND ETERMINE EDESTAL EIGHT  Locate a suitable place for mounting the gate bracket according to dimension “C” in the tables of Figures 2 or 3.  Determine pedestal or wall mount bracket height relative to gate bracket as in figure 4 and 5.

  • Page 6: Wall Mount Installation

    OUNT NSTALLATION Wall Bracket Gate Bracket C (See Fig. 3) Figure 5 Wall/Gate Position & S OUTE ABLES ECURE OTOR  Route cables as determined in the cabling plan in Figure 9.  Make sure at least 400mm of cable protrudes above the pedestal or wall mount bracket.
  • Page 7 ASTEN EARBOX IN OSITION  Fasten the motor onto the pedestal adaptor plate or the wall bracket using the M8 bolts and washers supplied. (IM page 23) RIVE RM TO ENGTH  Using the relevant tables below, read off the required drive arm length.
  • Page 8 IT THE RIVE  Put the gearbox into manual mode. (IM page 24).  Fit the drive arm to the operator as shown. SSEMBLE LAMP TO RIVE Clamp Clamp Drive Arm Drive Arm Wedge Wedge M12 Washer M12 Washer M12 x 65 Bolt M12 x 65 Bolt To mount: push clamp onto drive shaft, tap into place, slide drive arm into clamp,...
  • Page 9 ET THE ONNECTING ENGTH  Loosen the connecting arm slightly and move it to its fully retracted position.  Open the gate ½ way.  Assemble the connecting arm to the gate bracket.  Now slowly push the gate to its closed position. (The drive arm will turn, and the connecting arm will extend while doing so) ...

  • Page 10: Electrical Set - Up

    LECTRICAL 1. Always check that the circuit breaker in the electrical panel is in the WARNING OFF position, and that all high voltage circuits (more than 42.4V) are completely isolated from the mains supply before doing any work. 2. Ensure that all low voltage systems (Less than 42.4V) are suitably protected from damage, by disconnecting all sources of power such as chargers and batteries before doing any work.
  • Page 11 CABLE REQUIREMENTS 220V AC mains cable (3 core LNE Radio receiver cable (3 core 0,5mm 0,5mm )*†, via mains isolator switch multistranded). Pedestrian key switch (if required) (2 core 0,5mm multistranded). Low voltage 16V AC battery charger supply (2 core 1,5mm )†. Infrared beams or safety edge (if required) (3 core 0,5mm Intercom cable (n1 + 6 core) to...

  • Page 12: Get Into Programming Mode

    ROGRAMMING   Remove all power. (IM page 28)  Fit the SET link.  Reapply power  ELECT EITHER ASTER OR LAVE ETUP  Press and hold the TEST button, release after 1 flash of L1.  Then again, press and hold the TEST button, and release after 1 or 2 flashes of the STATUS LED.

  • Page 13: Status Light

    At this moment release the TEST button to select feature  number 2. (L2 will turn off, and L1 will keep on flashing 2 times and pausing to indicate that feature number 2 is selected). NOTE: The STATUS of the Feature is not changed yet, the feature has only been selected to be changed! If an incorrect Feature is selected, then remove and re- apply power and repeat the procedure.
  • Page 14 CP75 C ONTROLLER UNCTIONS FEATURE STATUS or COUNT STATUS FEATURE COUNT DESCRIPTION DESCRIPTION VALUE NUMBER VALUE Gate Limit Settings See detailed instructions on page 29 Auto-close OFF (Default) 15 seconds (Default) Auto-close Time 1 Flash = 1 second STANDARD (Default) CONDOMINIUM Mode of Operation PIRAC...
  • Page 15 CP75 B ASIC ONTROLLER ONNECTIONS STATUS LIGHT FUSE (LED) 3A F/B SLAVE FUSE 16A S/B MASTER -BATT+ SLAVE LIGHT SS1 SS2 SS3 COM COM SOL 12V LIVE NEUTRAL AUXILIARY SUPPLY 220V AC MAINS IN SLAVE CP75A SENSOR MOTOR 6-WAY CONNECTOR CP84ER5V01 BLACK BLACK...

  • Page 16: Installation Handover

    RIGGER ONNECTIONS For a detailed description of terminal functions, refer to DESCRIPTION OF TERMINAL FUNCTIONS on page 45 of the Installation Manual. SOLENOID LOCK RADIO RECEIVER 12V or 24V IRB Tx IRB RECEIVER LOOP LOOP DETECTOR Figure 12 CP75 Controller Trigger Connections ERFORM NSTALLATION ANDOVER...
