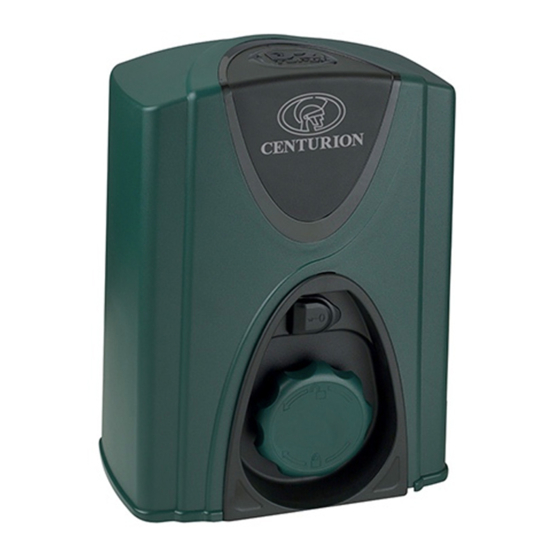

Centurion D2 Turbo User Manual
  1. Manuals
  2. Brands
  3. Centurion Manuals
  4. Gate Opener
  5. D2 Turbo
  6. User manual

Centurion D2 Turbo User Manual

Domestic sliding
Hide thumbs Also See for D2 Turbo:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
Centurion Logo

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D2 Turbo and is the answer not in the manual?

Questions and answers

Related Manuals for Centurion D2 Turbo

Summary of Contents for Centurion D2 Turbo

  • Page 1 Centurion Logo...
  • Page 2 Centurion Systems (Pty) Ltd. reserves the right to make changes to the products described in this document without notice and without obligation of Centurion Systems (Pty) Ltd. to notify any persons of any such revisions or changes. Additionally, Centurion Systems (Pty) Ltd. makes no representations or warranties with respect to this document.

  • Page 3: Table Of Contents

    Contents IMPORTANT SAFETY FEATURES page 1 Introduction page 2 D2 Turbo overview page 2 Identification of parts page 3 Manual Override page 4 2.1. Disengage the gearbox/drive page 4 2.2. Re-engage the gearbox/drive page 4 Features and functions page 5...
  • Page 4 31 5.1. Battery saver 5.2. Solar power supply page 31 page 32 Basic Maintenance page 32 Servicing your D2 Turbo page 33 Diagnostics page 34 Specifications 24 Month product warranty page 35 page 37 Optional extras Icons used in this user guide...
  • Page 5 Even if you have owned and used an automated gate before, we suggest that you read through the safety instructions below very carefully. Although years of thought have been put into every CENTURION product – and your safety is our top priority – accidents do happen. So, please make sure that you fully understand the following safety requirements before using your automated gate.

  • Page 6: Introduction

    – even when the power is out. For increased power capacity you can install a larger, 7Ah battery (your D2 Turbo was designed to cater for this), or you can even use a solar panel to power it.

  • Page 7: Identification Of Parts

    Identification 1. Identification of parts parts Refer to the drawings below, for how to identify your D2 Turbo operator and its parts. 1. Motor fuse 2. Motor enclosure unit 3. Camlock cover 4. Manual release thumbwheel 5. Foundation plate 6. Spare fuse 7.

  • Page 8: Manual Override

    2. Manual Override 2.1. Disengaging the Manual gearbox/drive Override To manually override the operator you will need to: Open the camlock cover, insert the camlock key and rotate it 90° clockwise (the operator cover can also be removed at this stage if so desired).

  • Page 9: Features And Functions

    FIGURE 5 3.1.2. Modes of Operation To operate the gate to open fully, the D2 Turbo has three modes to choose from depending on the application. Only one mode can be selected at any given time. 3.1.2.1. Standard Mode Standard Mode is the most commonly used mode for domestic applications as it allows full control of the gate.

  • Page 10: Open Only Mode

    We highly recommended that a pair of safety beams are installed across the gate entrance and connected to the closing safety beam input on the D2 Turbo if you select Open Only Mode. This will prevent the gate from closing on people, pets or vehicles.

  • Page 11: Automatic Closing (Autoclose Mode)

    3.1.3. Automatic closing (Autoclose Mode) The D2 Turbo has the facility to automatically close the gate after it has opened (Autoclose Mode). The time that the gate stays open is by default fifteen seconds, but this time period can be set to be five, ten, fifteen, thirty, or forty-five seconds.

  • Page 12: Pedestrian Opening

    It will also give the person enough time to move their hand away if they are reaching through the gate to operate a keyswitch or a keypad*. If the Courtesy Light* (page 13) is connected to the D2 Turbo's control card, it will flash indicating that the gate will open approximately one metre.

  • Page 13: Pirac Mode (Beam Autoclose) - Optional

    3.1.5. PIRAC Mode (Beam Autoclose Mode) - optional This mode can only be used if a Closing Safety Beam (page 12) is fitted. This mode can be used in conjunction with any of the Operating Modes - Features Standard, Open Only and Reversing Modes. functions Gate opening...

  • Page 14: Holiday Lockout Mode

    When Holiday Lockout is enabled, any of the access control devices that are connected to the D2 Turbo will be rendered inactive. Not even tampering with the keyswitch or keypad on the outside of the property will open the gate –...

  • Page 15: Speed Profiles

    3.1.8. Speed Profiles There’s no substitute for speed! The D2 Turbo can be set to run on either a High Speed Mode (default) which is approximately 24 metres per minute, or a Low Speed Mode which is approximately 16 metres per minute.

  • Page 16: Closing Safety Beams

    The typical device is a pair of Infrared Safety Beams which can detect the presence of any vehicle, person or pet that breaks the beam and communicates back to the D2 Turbo that something is in the path of the gate.

  • Page 17: Courtesy (Pillar) Light Timer (Optional Feature)

    Using the Pedestrian Opening feature will cause the Courtesy (Pillar) Lights to flash three times before the gate opens. *The cabling that supplies the 220V supply to the D2 Turbo must be suitably sized to carry the additional load of the courtesy (pillar) lights.

  • Page 18: External Gate Status Indication Led

    If you choose not to fit a Gate Status Indicator, the Status LED on the controller can also be used for trouble-shooting. 3.1.13. Battery Low Protection The D2 Turbo’s controller has circuitry that monitors the state of the battery. During a power failure, energy is drawn from the battery but not replaced.

  • Page 19: Customising The Features And Functions

    4. Customising the features and functions "Simplicity is the ultimate sophistication". ~ Leonardo Da Vinci The D2 Turbo controller makes ordinarily complex settings as quick and easy as possible. Using the Function and Setting Dials, the Select/Toggle Pushbutton , and the bi-colour (red and green) Status LED you can set up the many features and functions in a flash.
  • Page 20 If a setting is for a single fixed value, for example, 15 second Autoclose time, then the Select Pushbutton acts as a select for that single choice. However, if the setting has two options, for example On/Off or Hi/Lo, then the Pushbutton acts as a Toggle between the FIGURE 18 two preferences.

  • Page 21: Examples A. Setting Up The Gate Limits

    Examples: A. Setting up the gate Limits This is usually performed by an installer at the end of the installation. However, should you need to change these settings, you can do this by simply following these steps: Step 1: Ensure the gate is in the fully closed position and the motor drive is engaged.

  • Page 22: B. Remote Control Administration

    (Keeloq encryption). However, it’s important to note that the other devices cannot be activated with the new shift button, only the D2 Turbo (and other CENTURION operators that are equipped with an onboard receiver) is able to recognise the shift button signals.
  • Page 23 C. Adding NOVA remote controls (Keeloq encryption) To add a NOVA rolling code remote control (Keeloq encryption) to the onboard receiver and assign a button to any specific function as described above, follow the steps below: Step 1: Rotate the Function Dial to the REMOTES position (B).

  • Page 24: D. Deleting Specific Remote Controls

    D. Deleting specific remote controls To delete specific remote controls from the D2 Turbo's onboard receiver follow the steps below: Aux 12V Step 1: Rotate the Function Dial Safe Com to the REMOTES position (B). Safe OPN Safe CLS FUNCTION...

  • Page 25: E. Deleting All Remote Controls

    E. Deleting ALL remote controls To delete all the learned-in remote controls from the D2 Turbo's onboard receiver follow the steps below: Step 1: Rotate the Function Dial to the REMOTES position (B). Step 2: Rotate the Setting Dial to the DELETE ALL position along the ‘B’...

  • Page 26: F. Setting The Autoclose Feature

    F. Setting the Autoclose feature The Autoclose feature can be selected to be either Off or Activated, with a pre-selected time delay. F1. Activating the Autoclose feature: To activate the Autoclose feature with as pre-selected time delay, follow the steps below: Step 1: Rotate the Function Dial Customising to the AUTOCLOSE position (C).
  • Page 27 F2. De-activating the Autoclose feature To de-activate the Autoclose feature, follow the steps below: Step 1: Rotate the Function Dial to the AUTOCLOSE position (C). Step 2: Rotate the Setting Dial to the OFF selection along the ‘C’ row of options. The Status LED will be red if Customising Autoclose is on.

  • Page 28: G. Setting The Mode Of Operation

    G. Setting the Mode of Operation The D2 Turbo has three modes to choose from depending on the application. Only one mode can be selected at any given time. G1. Standard Mode: Step 1: Rotate the Function Dial to the MODE position (D).
  • Page 29 Step 3: Press the pushbutton to select the setting. The Status LED will change from red to green indicating that the Open Only Mode has been activated. FIGURE 48 Step 4: Return the Function Dial to the RUN position. Customising features FIGURE 49 functions...

  • Page 30: H. Setting Pirac Mode

    H. Setting PIRAC Mode PIRAC (Beam Autoclose) Mode can be activated when using any of the three Operating Modes (Standard, Open Only, or Reversing). To select PIRAC Mode as either On or Off, please follow the following steps: Step 1: Rotate the Function Dial to the MODE position (D).

  • Page 31: I. Setting The Pre-Flashing Modes

    I. Setting the Pre-flashing Modes Pre-flashing Mode A and Pre-flashing Mode C can be activated in addition to any of the above modes of operation. To select a Pre-flash Mode as either on or off please follow these steps: Aux 12V Step 1: Rotate the Function Dial Safe Com to the MODE position (D).

  • Page 32: J. Setting The Operating Profiles

    J. Setting the Operating Profiles Three Operating Profiles, Positive Close Mode, Speed and Collision Sensitivity, can each be configured depending on your individual requirements. J1. Positive Close Mode Step 1: Rotate the Function Dial Customising to the PROFILE position (E). features Step 2: Rotate the Setting Dial to PCM on/off along the ‘E’...
  • Page 33 J2. Setting the Speed Profile to High or Low To select the desired speed profile, either High (approximately 24m/min) or Low (approximately 16m/min) please follow these steps: Step 1: Rotate the Function Dial to the PROFILE position (E). Step 2: Rotate the Setting Dial to SPEED hi/lo along the ‘E’...

  • Page 34: K. Verifying Your Setup

    J3. Setting the Anti-crushing Sensitivity Profile To select the desired sensitivity of the anti-crushing technology to either High or Low please follow the following steps: Step 1: Rotate the Function Dial to the PROFILE position (E). Step 2: Rotate the Setting Dial to SENS hi/lo along the ‘E’...

  • Page 35: Additional Features

    (product code CP107) totally disconnects the battery and protects it from being fully discharged and potentially damaged. Consult your gate automation specialist or Centurion Systems Additional for further details. features FIGURE 68 5.2. Solar power supply A solar panel can be used to...

  • Page 36: Basic Maintenance

    Your D2 Turbo sliding gate operator requires no special care other than that described in the Maintenance section. If you are having a problem with your D2 Turbo sliding gate operator, please contact your installer or Centurion Systems. page 32...

  • Page 37: Diagnostics

    Safety Beams Failure – if the safety beams are not operating the buzzer will emit three beeps each time the gate is triggered Contact your gate automation specialist or Centurion Systems for further assistance. WARNING! Do not attempt to repair the unit yourself.

  • Page 38: Specifications

    9. Specifications Technical specifications Input voltage 220V AC ±10%, 50Hz Motor voltage 12V DC Battery driven (standard capacity - Motor power supply 12V 5Ah) Battery charger 1A @ 13.7V Current consumption (mains) 70mA Current consumption (motor at rated load) 18kgf Operator push force - starting 9kgf Operator push force - rated...

  • Page 39: Month Product Warranty

    The warranty will cover the repair or replacement, at the discretion of Centurion Systems, of such faulty materials or parts free of charge provided that the equipment is returned to our workshop. The workmanship of the installation of the products carried out by any third party is specifically not covered under this warranty (please consult with your installer about their workmanship warranty terms and conditions).
  • Page 40 D2 Turbo 24 Month Warranty Sticker For your own record and reference purposes if claiming against the warranty - Stick Barcode product and serial number label for the operator here. 24 Month product warranty page 36...

  • Page 41: Optional Extras

    11. Optional extras i5 Infrared Safety Beams Always recommended on any gate automation installation SmartGUARD keypad Cost-effective and versatile i5 Infrared keypad, allowing for access to safety beams pedestrians, armed response companies, etc SOLO/Lattice Proximity SmartGUARD Access Control System keypad Proximity reader, allowing for access to both pedestrians and vehicles, while offering a higher...
