Centurion D2 Turbo Installation Manual
  1. Manuals
  2. Brands
  3. Centurion Manuals
  4. Gate Opener
  5. D2 Turbo
  6. Installation manual

Centurion D2 Turbo Installation Manual

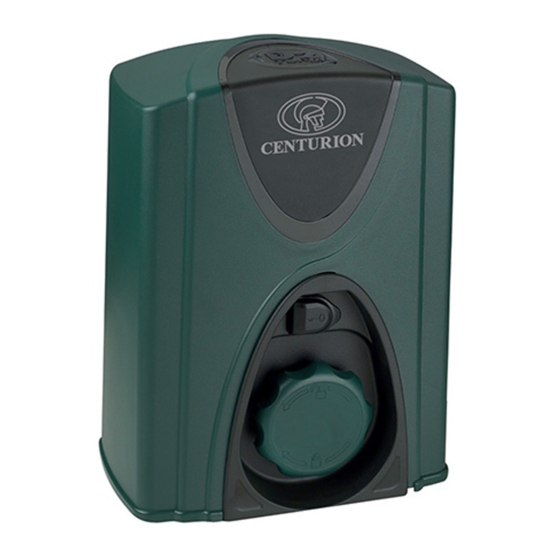

Domestic sliding gate operator for 250kg gates
Hide thumbs Also See for D2 Turbo:
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

See also: User Manual , Installation Manual
D2 Turbo Low-Voltage
Pocket installation
guide
DOMESTIC
SLIDING GATE
OPERATOR
FOR 250KG
GATES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D2 Turbo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Centurion D2 Turbo

Summary of Contents for Centurion D2 Turbo

  • Page 1 D2 Turbo Low-Voltage Pocket installation guide DOMESTIC SLIDING GATE OPERATOR FOR 250KG GATES...

  • Page 2: Important Safety Instructions

    4. General description The D2 Turbo Low-Voltage is a cost-effective domestic sliding gate operator for gates weighing up to 250kg. Its logic controller and onboard charger require only a low-voltage AC or DC input, which means that there is no need for high-voltage cable runs and consequently a reduced risk of electric shock.

  • Page 3: Mount The Operator

    For optimum range, an external receiver can be mounted on the wall Ensure that all the standard considerations for a quality gate installation are adhered to as specified in Centurion Systems’ comprehensive installation manuals. If you are unfamiliar with these, then you may find them on www.CentSys.com.
  • Page 4 Lower 8B.4. Fit RAZ/Nylon/Steel angle rack as recommended by Centurion Systems. Use height-adjustment nuts to obtain correct rack and pinion mesh. Rack can be mounted above or below the pinion to suit site conditions. Refer to illustration A1, A2, A3, B1, B2 and B2.
  • Page 5 Unclip orange battery clip 8B.8. Battery is fitted between the motor enclosure unit and the D2 Turbo Low-Voltage controller. Fit the 8B.9. Unclip the orange clips 7Ah/5Ah battery holding the controller onto the motor enclosure unit.

  • Page 6: Connect All Wiring

    Wire the controller to the required input and output devices as per the wiring diagrams on the right-hand side. Refer to the illustration of the D2 Turbo Low-Voltage controller, which shows the position of the Function and Setting Dials, the status LED, and the select/toggle pushbutton.
  • Page 7 PFA: The Pillar Light relay will activate for two seconds before gate movement occurs, as well as during gate movement. This means gate movement will be delayed for a period of two seconds after a trigger has been received PFB: The Pillar Light relay will only activate during gate movement High Speed: Gate will operate at its maximum speed –...
  • Page 8 CP106 Relay Card i5 Infrared safety beam (opening) 110V - 240V Mains in Connection type: Normally-closed To alarm panel, etc Step-down transformer capable of supplying the controller with 10V - 24V AC or 10V - 28V DC Relay card IRB Receiver CP106 IRB Tx - Open Pillar Light/Courtesy Light...
  • Page 9 Sharecall 0860-CENTURION (0860 236 887) Head Office: +27 11 699 2400 Sharecall Technical Support 0861 003 123 or +27 11 699 2481 from 07h00 to 18h00 (GMT+2) (Sharecall number applicable when dialed from within South Africa only) 0.07.A.0191_22012014 www.CentSys.com...
