Pro-Form PFIVEX86012.0 User Manual page 6

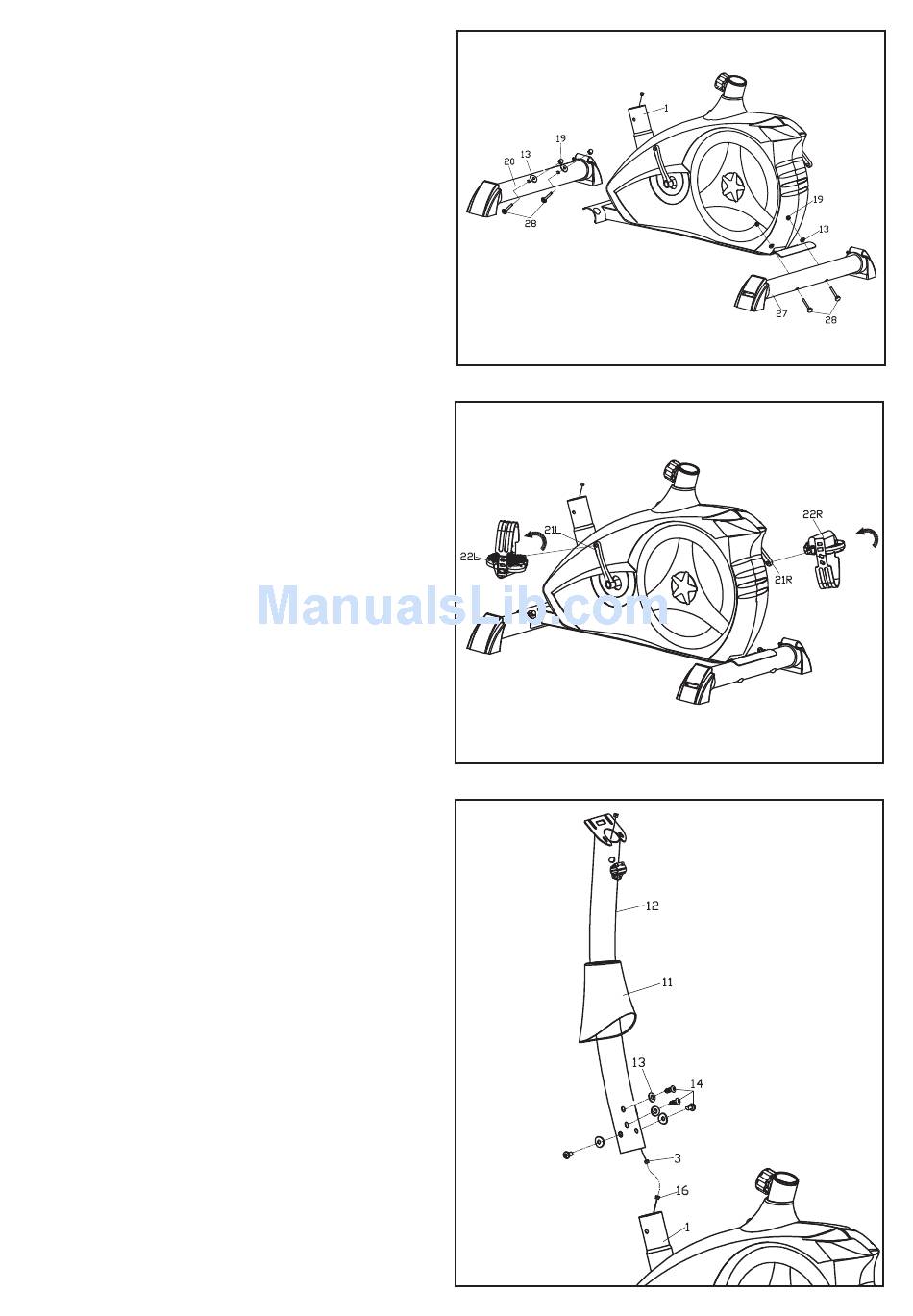

STEP 1
Attach the front stabilizer (20) and rear stabilizer
(27) to the main frame (1) with the Carriage bolts
(28),arc washers (13) and Acorn nuts (19) .
STEP 2
Attach the Pedal (22L/R) to the Crank (21L/R) of
the Main frame (1) use the Cross solid wrench.
Note: The left pedal (22L) should be tighten in the
counterclockwise direction, the right pedal (22R)
should be tighten in the clockwise direction.
STEP 3
Insert the vertical post cover (11) into the vertical
post (12) and then connect sensor wire (16) well
with upper sensor wire (3).
Fix the vertical post (12) on the post of the main
frame (1) with hex bolt (14)and arc washer (13)
then cover the vertical post cover (11).
01` :
1>8 X3YV 3 114 S ab ?X3
2> c8 45678 3 34d 458
8 ?X3 (12)9:; &' (1)M X3 <h ( < X3YV
6
3 124<?
(16).ef X g R 2 efg./*0
3 114E
3 1445 `)Qa
