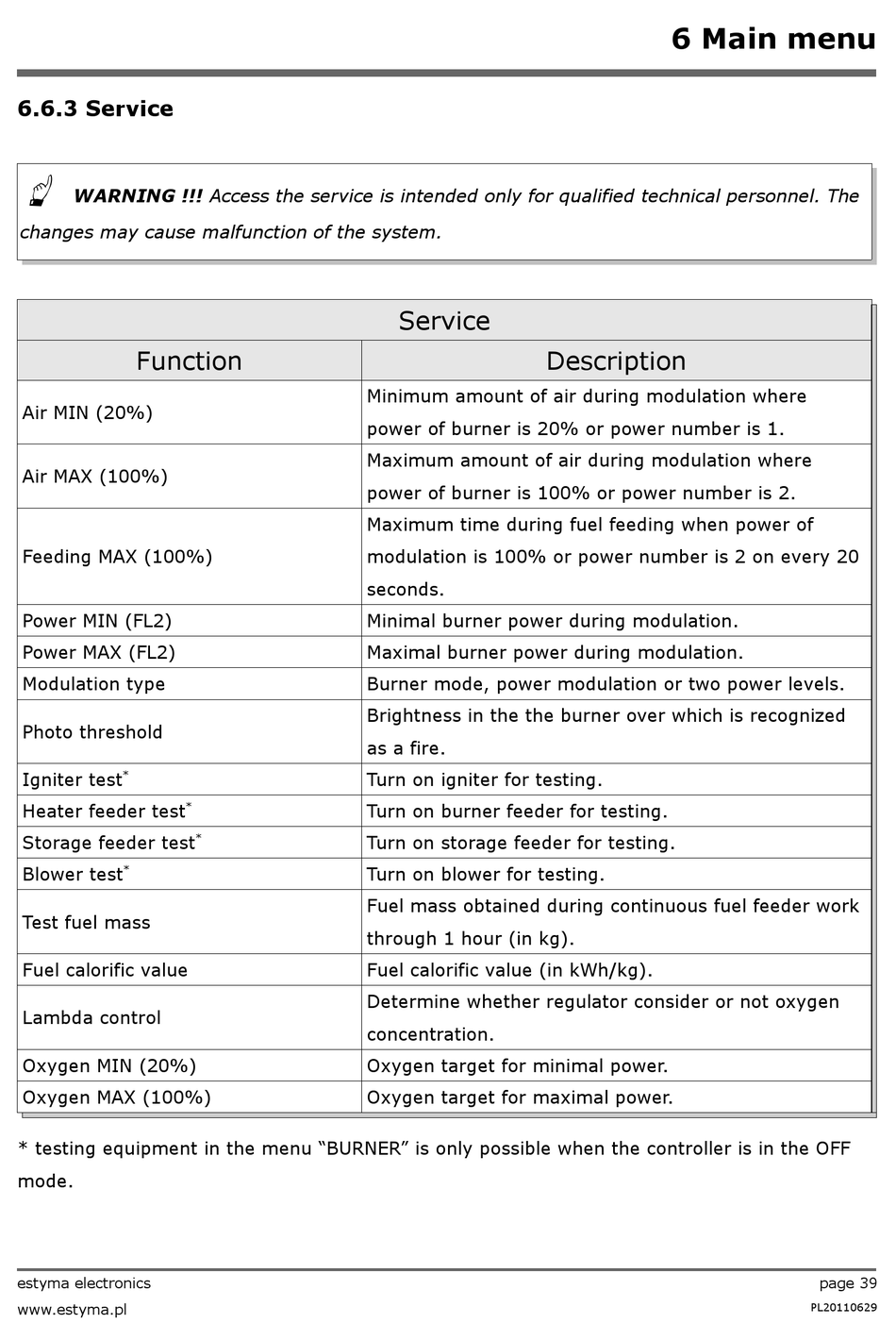

6.6.3 Service


WARNING !!! Access the service is intended only for qualified technical personnel. The
changes may cause malfunction of the system.
Function
Air MIN (20%)
Air MAX (100%)
Feeding MAX (100%)
Power MIN (FL2)
Power MAX (FL2)
Modulation type
Photo threshold
Igniter test *
Heater feeder test
Storage feeder test
Blower test *
Test fuel mass
Fuel calorific value
Lambda control
Oxygen MIN (20%)
Oxygen MAX (100%)
* testing equipment in the menu "BURNER" is only possible when the controller is in the OFF
mode.
estyma electronics
www.estyma.pl
*
*
Service
Minimum amount of air during modulation where
power of burner is 20% or power number is 1.
Maximum amount of air during modulation where
power of burner is 100% or power number is 2.
Maximum time during fuel feeding when power of
modulation is 100% or power number is 2 on every 20
seconds.
Minimal burner power during modulation.
Maximal burner power during modulation.
Burner mode, power modulation or two power levels.
Brightness in the the burner over which is recognized
as a fire.
Turn on igniter for testing.
Turn on burner feeder for testing.
Turn on storage feeder for testing.
Turn on blower for testing.
Fuel mass obtained during continuous fuel feeder work
through 1 hour (in kg).
Fuel calorific value (in kWh/kg).
Determine whether regulator consider or not oxygen
concentration.
Oxygen target for minimal power.
Oxygen target for maximal power.
