- Page 1 User manual EG-Pellet...
-
Page 3: Table Of Contents
3.3 Heating and hot water operation modes..................... 12 3.4 Heating................................. 12 3.4.1 SETTINGS............................12 3.5 Hot water..............................13 3.5.1 SETTINGS............................13 3.6 Burner................................13 3.6.1 SETTINGS............................13 3.7 Buffer................................14 3.7.1 SETTINGS............................14 3.8 Solar heating............................... 14 3.8.1 SETTINGS............................14 3.9 Alarms................................14 www.estyma.pl EGP-EN 20171024... -
Page 4: Chapter 1. General Information

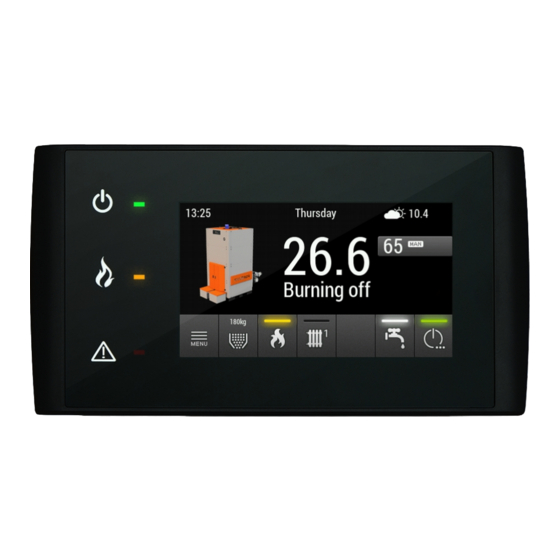

ESTYMA electronics Team NTRODUCTION The boiler regulator IGNEO Touch is a modern microprocessor system, which manages not only the boiler, but also the heating system. In the full configuration, the regulator can manage: 4 central heating circuits ... -
Page 5: Disposal Of Waste Of Electrical And Electronic Equipment
This electronic device consists of partly recycleable materials. It has to be disposed of by taking it to a designated used electric and electronic equipment collection point or a retailer. It should not be mixed with general household waste. www.estyma.pl EGP-EN 20171024... -
Page 6: Chapter 2. Basic Controller Operation
It is not lit if the burner is not working and there is not flame. C (red) Alarm. It is flashing if the alarms are active. It is lit if there are unconfirmed alarms. www.estyma.pl EGP -EN 20171024... -
Page 7: Date And Time - Setting
To turn on summer mode (heating only hot water circuit), press the On/Off button and move all the ''Heating'' sliders to ''off''. ATTENTION! If there are more than two heating circuits in the system you should enter the menu and then go to the circuit number 3 and 4 to turn off the heating. www.estyma.pl EGP-EN 20171024... -
Page 8: Setting The Target Boiler Temperature (Program)
This screen also allows to turn on the fuel conveyor manually. In case of comlete fuel depletion it allows to fill the conveyor tube again. To enter the fuel level menu, press the ''8'' button on the main screen. www.estyma.pl EGP -EN 20171024... -
Page 9: Menu Structure
Chapter 2. Basic controller operation ENU STRUCTURE www.estyma.pl EGP-EN 20171024... -
Page 10: Chapter 3. Detailed Description Of Screens/Functions
The burner is turned on when the temperature in the boiler is lower than the set temperature, minus the switching hysteresis. The burner is turned off if the temperature in the boiler is higher than the set Hysteresis exemption [°C] temperature plus hysteriesis exemption. www.estyma.pl EGP -EN 20171024... -
Page 11: Schedules
''eco'' or ''comf'' button. After setting the program, slider moves to another hour. The regulator is equipped with a convenient function of copying the mode for other days of the week. www.estyma.pl EGP-EN 20171024... -
Page 12: Heating And Hot Water Operation Modes
Set temperature for the instalation when the outside temperature is below -20°C Temp. HC for 0°C [°C] Set temperature for the instalation when the outside temperature is below 0°C Temp. HC for 10°C [°C] Set temperature for the instalation when the outside temperature is above 10°C www.estyma.pl EGP -EN 20171024... -
Page 13: Hot Water
3.6.1 SETTINGS NAME DESCRIPTION Air correction [%] Correction of air programmed by the instrallator for the burning process. Min power [%] Lower limit for burner power modulation. Max power [%] Upper limit for burner power modulation. www.estyma.pl EGP-EN 20171024... -
Page 14: Buffer
The driver includes the history of alarms which is saved in the memory. If there are any active or unconfirmed alarms, on the main screen alarm icon will appear. On pressing it, the history will be displayed, where the last 20 alarms are stored. www.estyma.pl EGP -EN 20171024... - Page 16 Produced by estyma electronics tel. +48 87 429 86 75 fax +48 87 429 86 75 al. Lipowa 4 biuro@estyma.pl 11-500 Giżycko POLAND www.estyma.pl...
