2 Connecting to the system
2.3 Assembly
The controller is designed for mounting in a wall or plate mounting. Plate thickness
should not exceed 3mm. The minimum depth of the mounting hole is 100mm. The dimensions

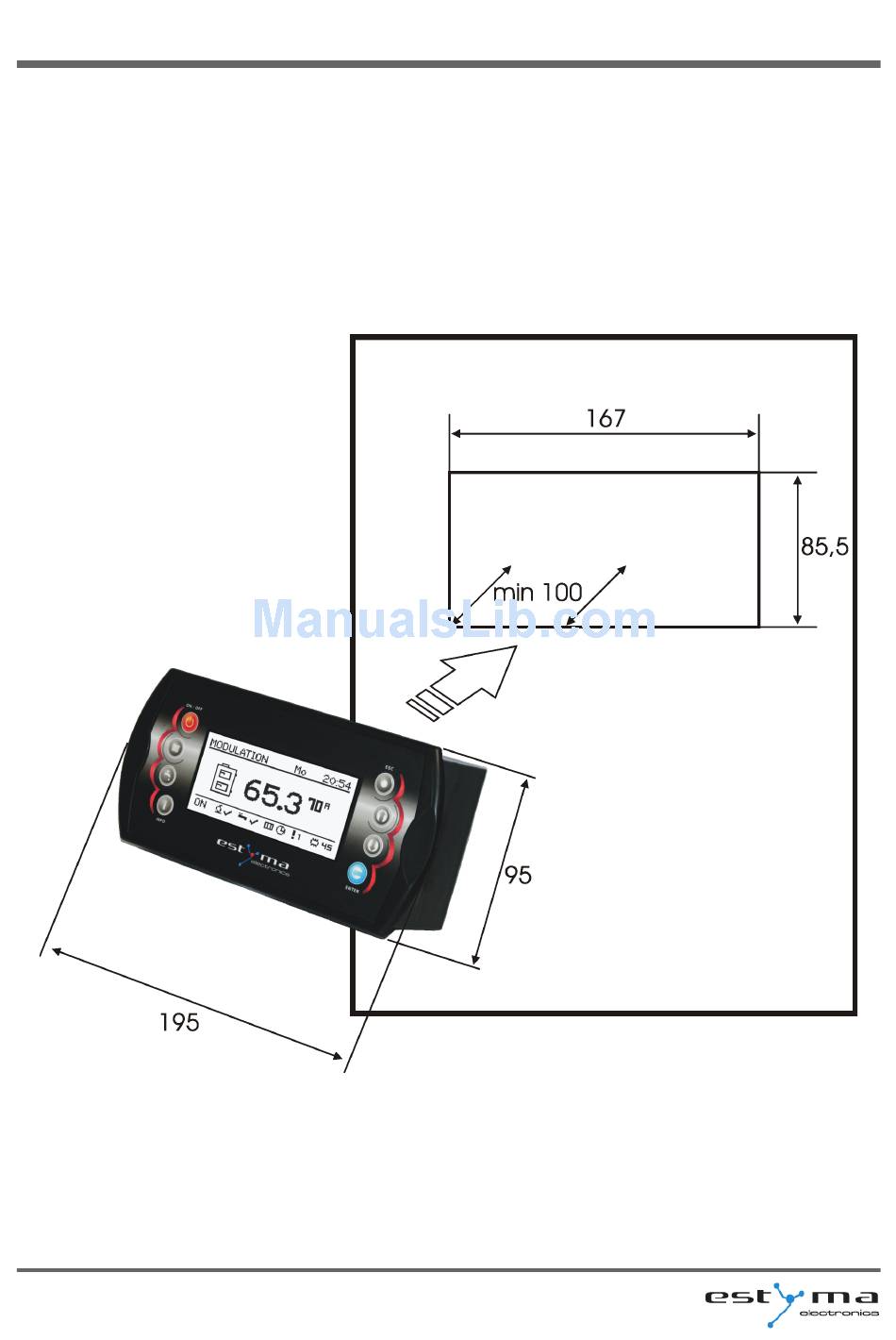

of the hole and controller are indicated in the figure below.
After placing the panel in the hole, always install the mounting frame.
page 10
PL20110629
