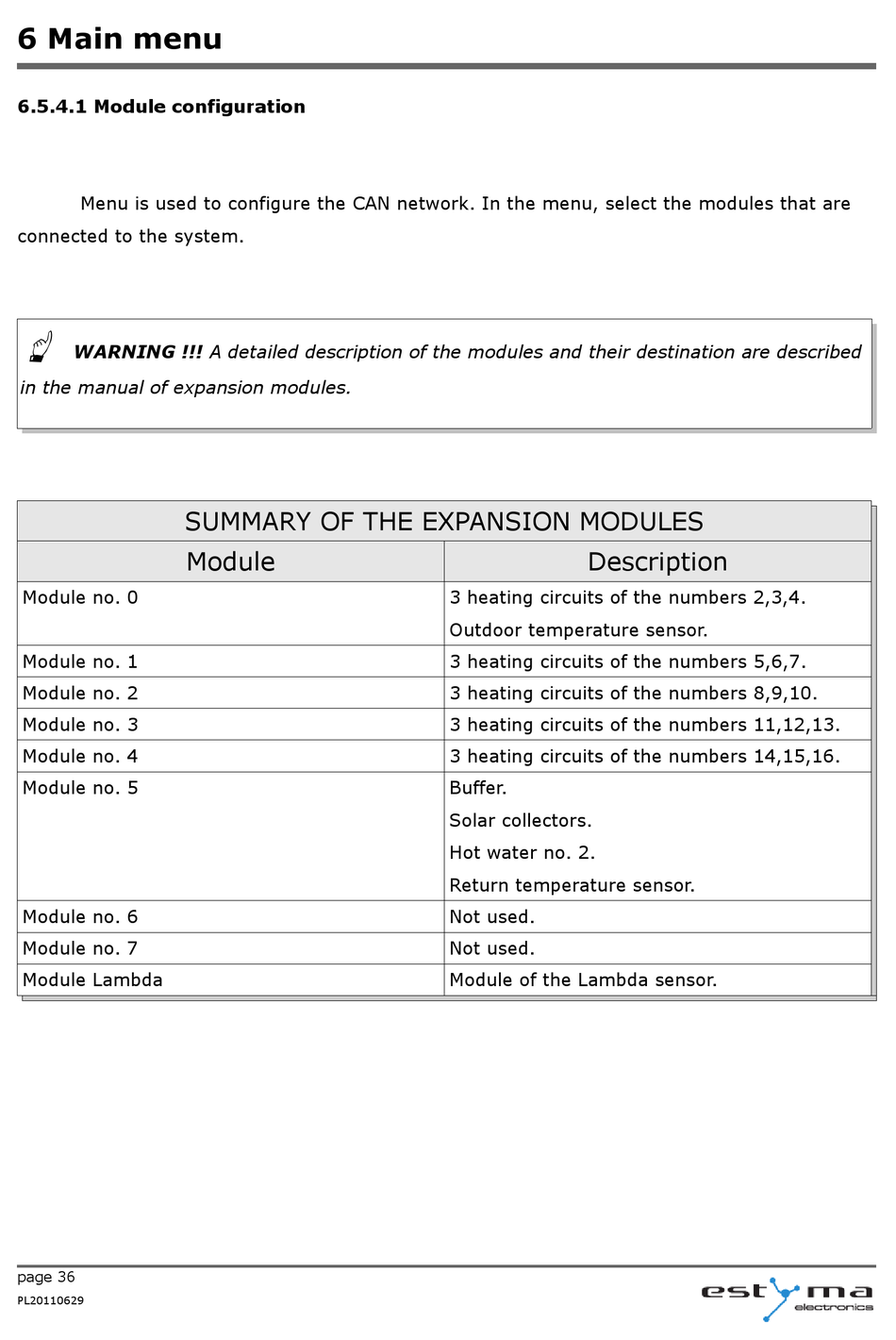

6 Main menu
6.5.4.1 Module configuration
Menu is used to configure the CAN network. In the menu, select the modules that are
connected to the system.
WARNING !!! A detailed description of the modules and their destination are described
in the manual of expansion modules.
SUMMARY OF THE EXPANSION MODULES
Module no. 0
Module no. 1
Module no. 2
Module no. 3
Module no. 4
Module no. 5
Module no. 6
Module no. 7
Module Lambda
page 36
PL20110629
Module
Description
3 heating circuits of the numbers 2,3,4.
Outdoor temperature sensor.
3 heating circuits of the numbers 5,6,7.
3 heating circuits of the numbers 8,9,10.
3 heating circuits of the numbers 11,12,13.
3 heating circuits of the numbers 14,15,16.
Buffer.
Solar collectors.
Hot water no. 2.
Return temperature sensor.
Not used.
Not used.
Module of the Lambda sensor.
