Summary of Contents for Supermicro X10SDV

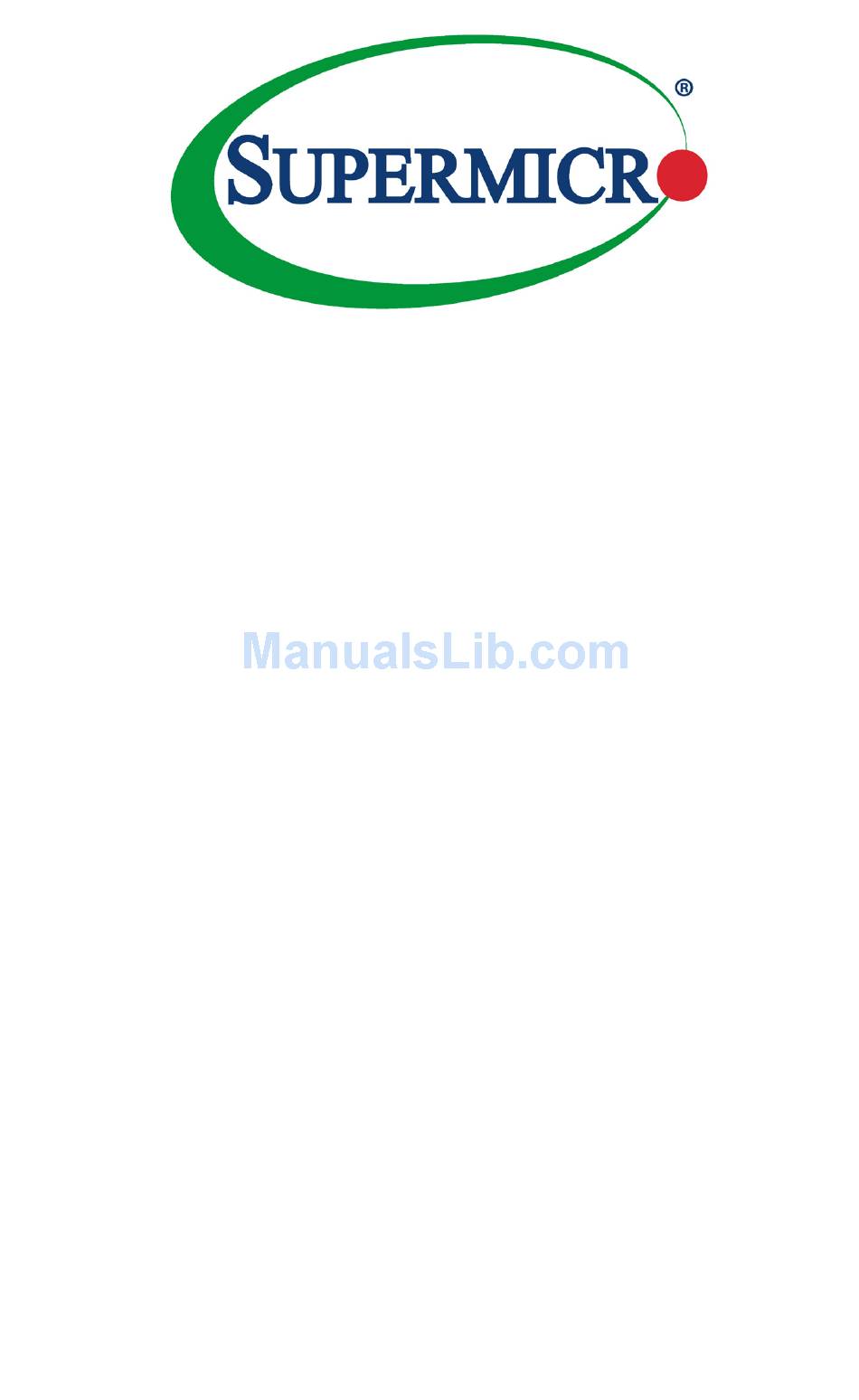

  • Page 1 X10SDV Mini-ITX Series USER’S MANUAL 1.0b...
  • Page 2 This product, including software and docu- mentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.
  • Page 3: About This Motherboard

    10 Gigabit Intel Ethernet ports*, two 1 Gigabit Intel Ethernet ports*, M.2 SSD, Intel Rapid Storage Technology Enterprise (RSTe), USB 3.0 and a thermal design from 35 to 65 watts only. The X10SDV Mini-ITX Series motherboards provide software consistency from the data center to the storage and network edge with the same instruction set as the robust Xeon processor.
  • Page 4: Conventions Used In The Manual

    X10SDV Mini-ITX Series Motherboard User’s Manual Conventions Used in the Manual: Special attention should be given to the following symbols for proper installation and to prevent damage done to the components or injury to yourself: Warning: Critical information to prevent damage to the components or injury to your- self.
  • Page 5: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...
  • Page 6: Table Of Contents

    X10SDV Mini-ITX Series Motherboard User’s Manual Table of Contents Preface About This Motherboard ....................iii Manual Organization ..................... iii Conventions Used in the Manual: .................iv Contacting Supermicro ....................v Chapter 1 Introduction Overview ......................1-1 Checklist ......................1-1 Motherboard Features ................... 1-12 Processor Overview ..................
  • Page 7 Table of Contents Universal Serial Bus (USB) ..............2-12 Unit Identifier Switch ................2-13 VGA ......................2-13 Front Control Panel ..................2-14 Front Control Panel Pin Definitions............... 2-15 Power LED ....................2-15 Overheat (OH)/Fan Fail/PWR Fail/UID LED ..........2-15 HDD LED ....................2-16 NIC1/NIC2 (LAN1/LAN2) ................
  • Page 8 X10SDV Mini-ITX Series Motherboard User’s Manual Onboard Indicators ..................2-33 LAN LEDs ....................2-33 BMC Heartbeat LED ................2-33 Onboard Power LED ................2-34 Overheat/PWR Fail/Fan Fail LED ............2-34 Unit Identification LED ................2-35 SATA Connections ..................2-36 SATA Ports (I-SATA0 ~ I-SATA5) ............2-36 M.2 Socket ....................
  • Page 9: Chapter 1 Introduction

    Checklist Congratulations on purchasing your computer motherboard from an acknowledged leader in the industry. Supermicro boards are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. Please check that the following items have all been included with your motherboard.
  • Page 10 X10SDV Mini-ITX Series Motherboard User’s Manual X10SDV-TLN4F Image X10SDV-6C+-TLN4F Image X10SDV-16C+-TLN4F Image Note: All graphics shown in this manual were based upon the latest PCB Revision available at the time of publishing of the manual. The motherboard you have re-...
  • Page 11 Chapter 1: Introduction X10SDV-F Image Note: All graphics shown in this manual were based upon the latest PCB Revision available at the time of publishing of the manual. The motherboard you have re- ceived may or may not look exactly the same as the graphics shown in this manual.
  • Page 12 X10SDV Mini-ITX Series Motherboard User’s Manual X10SDV-8C+-LN2F Image Note: All graphics shown in this manual were based upon the latest PCB Revision available at the time of publishing of the manual. The motherboard you have re- ceived may or may not look exactly the same as the graphics shown in this manual.
  • Page 13 Chapter 1: Introduction X10SDV-4C-TLN2F Image Note: All graphics shown in this manual were based upon the latest PCB Revision available at the time of publishing of the manual. The motherboard you have re- ceived may or may not look exactly the same as the graphics shown in this manual.
  • Page 14 X10SDV Mini-ITX Series Motherboard User’s Manual X10SDV-4C-TLN4F Image X10SDV-6C-TLN4F Image X10SDV-8C-TLN4F Image X10SDV-12C-TLN4F Image X10SDV-16C-TLN4F Image Note: All graphics shown in this manual were based upon the latest PCB Revision available at the time of publishing of the manual. The motherboard you have re-...
  • Page 15 Chapter 1: Introduction X10SDV Series Motherboard Layout JPL1 i350 SRW2 JNVI2C1 USB 0/1(3.0) LAN1/2 IPMI_LAN LAN3/4 LED8 COM1 SRW1 X10SDV-F REV: 2.00 DESIGNED IN USA USB 2/3 AST2400 JPI2C1 SLOT7 LEDM1 PCI-E 3.0 X16 Intel D-1500 JPW1 JBT1 USB 4/5...
  • Page 16 X10SDV Mini-ITX Series Motherboard User’s Manual X10SDV Series Motherboard Quick Reference LAN3/4 USB0/1 LED7 LAN1/2 JPL1 IPMI LAN JNVI2C1 JPL1 i350 SRW2 JNVI2C1 SRW2 USB 0/1(3.0) LAN1/2 JIPMB1 IPMI_LAN LED8 JPG1 LAN3/4 LED8 SRW1 COM1 COM1 SRW1 JOH1 X10SDV-F REV: 2.00...
  • Page 17 Chapter 1: Introduction X10SDV Mini-ITX Series Motherboard Model Variation Table X10SDV Mini-ITX Series Motherboard PCB 2.00 Model Variation Table Model X10SDV-6C- X10SDV-6C+- X10SDV-12C- X10SDV- X10SDV-16C- TLN4F TLN4F TLN4F 16C+-TLN4F TLN4F Processor Name D-1528 D-1528 D-1557 D-1587 D-1587 # of Cores...
  • Page 18 X10SDV Mini-ITX Series Motherboard User’s Manual Jumpers Jumper Description Default JBR1 BIOS Recovery Pins 1-2 (Normal) JBT1 CMOS Clear Open: Normal, Short: Clear CMOS C1/JI C2 SMB to PCI-Exp. Slots Pins 2-3 (Disabled) JPG1 VGA Enable Pins 1-2 (Enabled) JPL1...
  • Page 19 Chapter 1: Introduction JSMB1 SMBus Header JSTBY1 Standby Power Header JTPM1 Trusted Platform Module (TPM)/Port 80 Connector JUIDB1 Unit Identifier (UID) Button LAN1 ~ LAN2 Gigabit Ethernet (RJ45) Ports (Not available on TLN2F) LAN3 ~ LAN4 10G Ethernet (RJ45) Ports (TLN4F and TLN2F only) 4-pin 12V DC Power Connector (To provide alternative power for special enclosure when the 24-pin ATX power is not in use.)
  • Page 20: Motherboard Features

    X10SDV Mini-ITX Series Motherboard User’s Manual Motherboard Features Intel ® Xeon D-1500 SoC Processor Family 4C: D-1518/D-1521, 4 Core, 8 Threads, 6MB Cache 6C: D-1528, 6 Core, 12 Threads, 9MB Cache 8C: D-1541, 8 Core, 16 Threads, 12MB Cache 12C: D-1557, 12 Core, 24 Threads, 18MB Cache...
  • Page 21 Chapter 1: Introduction IPMI 2.0 IPMI 2.0 supported by Aspeed AST2400 BMC (Base- board Management Controller) VGA (Graphics Display) One (1) VGA Port on the rear IO panel supported by the Aspeed AST2400 VGA Controller BIOS 128 Mb AMI BIOS ®...
  • Page 22: System Block Diagram

    X10SDV Mini-ITX Series Motherboard User’s Manual X10SDV Mini-ITX Series Block Diagram JPCIE1 PCI-E 3.0 PCIE 3.0 x16 PCIE 3.0 x16 M.2 connector PCIE 3.0 x3 PCIE 3.0 x4 PCI-E 3.0 or SATA 3.0 x1 PCIE 3.0 x1 SWITCH PCI-E 3.0...
  • Page 23: Processor Overview

    Chapter 1: Introduction Processor Overview The Intel ® Xeon ® D-1500 product family is the third generation, low-powered 64-bit SoC (System-on-a-Chip) processor that is optimized to deliver high performance, energy efficiency and enhance the total cost of ownership solutions. The low- power consumption of the processor makes it suitable for dense servers that can effectively take on hyperscale workloads, intelligent edge network or ultra-dense embedded devices.
  • Page 24: Special Features

    Environmental Temperature Control Some X10SDV models come with an active heatsink built in while others come with a passive heatsink for rackmount systems that are chassis-fan optimized (refer to the model variation tables on page 1-9).
  • Page 25: Acpi Features

    Windows ® 7, Windows 8, and Windows 2008 operating systems. The X10SDV Series motherboards support S0, S4 and S5 only. Power Supply As with all computer products, a stable power source is necessary for proper and reliable operation.
  • Page 26 X10SDV Mini-ITX Series Motherboard User’s Manual Notes 1-18...
  • Page 27: Chapter 2 Installation

    The following statements are industry-standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assis- tance. Only certified technicians should attempt to install or configure components.
  • Page 28 X10SDV Mini-ITX Series Motherboard User’s Manual Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant. Jeter les piles usagées conformément aux instructions du fabricant.
  • Page 29: Product Disposal

    Chapter 2: Installation Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、 国の関係する全ての法律 ・ 条例に従い処理する必要が あり ます。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.
  • Page 30: Static-Sensitive Devices

    X10SDV Mini-ITX Series Motherboard User’s Manual ‫القىانين واللىائح الىطنية‬ ‫جميع‬ ‫وفقا ل‬ ‫ينبغي التعامل معه‬ ‫هذا المنتج‬ ‫من‬ ‫التخلص النهائي‬ ‫عند‬ 경고! 이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다. Waarschuwing De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming met alle nationale wetten en reglementen.
  • Page 31: Motherboard Installation

    Only if Needed Location of Mounting Holes JPL1 i350 SRW2 JNVI2C1 USB 0/1(3.0) LAN1/2 IPMI_LAN LAN3/4 LED8 COM1 SRW1 X10SDV-F REV: 2.00 DESIGNED IN USA USB 2/3 AST2400 JPI2C1 SLOT7 LEDM1 PCI-E 3.0 X16 Intel D-1500 JPW1 JBT1 USB 4/5...
  • Page 32: Installing The Motherboard

    X10SDV Mini-ITX Series Motherboard User’s Manual Installing the Motherboard 1. Install the I/O shield into the back of the chassis. 2. Locate the mounting holes on the motherboard. (See the previous page.) 3. Locate the matching mounting holes on the chassis. Align the mounting holes on the motherboard against the mounting holes on the chassis.
  • Page 33: Memory Support

    Chapter 2: Installation Memory Support The X10SDV Mini-ITX series motherboard supports up to 128GB of DDR4 ECC RDIMM or 64GB of DDR4 ECC/Non-ECC UDIMM with speeds up to 2133MHz (D-1541 up to 2400MHz) in four memory slots. Populating these DIMM slots with memory modules of the same type and size will result in interleaved memory, which will improve memory performance.
  • Page 34: Memory Installation Guidelines

    X10SDV Mini-ITX Series Motherboard User’s Manual Memory Installation Guidelines When installing memory modules, the DIMM slots should be populated in the following order: DIMMA1, DIMMB1, then DIMMA2, DIMMB2. • Always use DDR4 DIMM modules of the same size, type and speed. Mixing memory modules of different types and speeds is not allowed.
  • Page 35: Connectors/Io Ports

    I/O ports. Back panel I/O Panel JPL1 i350 SRW2 JNVI2C1 USB 0/1(3.0) LAN1/2 IPMI_LAN LAN3/4 LED8 COM1 SRW1 X10SDV-F REV: 2.00 DESIGNED IN USA USB 2/3 AST2400 JPI2C1 SLOT7 LEDM1 PCI-E 3.0 X16 Intel D-1500 JPW1 JBT1...
  • Page 36: Serial Port

    X10SDV Mini-ITX Series Motherboard User’s Manual Serial Port COM Port 1 Pin Definitions COM1 port is located near DIMM slot Pin # Definition Pin # Definition A1 to provide a front accessible serial connection. See the table on the right for pin definitions.
  • Page 37: Ethernet Ports

    C. LAN3 D. LAN4 E. IPMI LAN JPL1 i350 SRW2 JNVI2C1 USB 0/1(3.0) LAN1/2 IPMI_LAN LAN3/4 LED8 COM1 SRW1 X10SDV-F REV: 2.00 DESIGNED IN USA USB 2/3 AST2400 JPI2C1 SLOT7 LEDM1 PCI-E 3.0 X16 Intel D-1500 JPW1 JBT1 USB 4/5...
  • Page 38: Universal Serial Bus (Usb)

    X10SDV Mini-ITX Series Motherboard User’s Manual Universal Serial Bus (USB) Two USB 3.0 ports (USB0/1) are located on the I/O back panel. Two USB 2.0 headers (USB2/3, 4/5) are on the motherboard to provide front panel access. USB cables are not included. See the tables below for pin definitions.
  • Page 39: Unit Identifier Switch

    Note: UID can also be triggered via IPMI on the motherboard. For more information on IPMI, please refer to the IPMI User's Guide posted on our website at http://www.supermicro. com. A. UID Switch A VGA port is located next to the LAN ports on B.
  • Page 40: Front Control Panel

    These connectors are designed spe- cifically for use with Supermicro chassis. See the figure below for the descriptions of the front control panel buttons and LED indicators. Refer to the following section for descriptions and pin definitions.
  • Page 41: Front Control Panel Pin Definitions

    Chapter 2: Installation Front Control Panel Pin Definitions Power LED Power LED Pin Definitions (JF1) The Power LED connection is located Pin# Definition on pins 15 and 16 of JF1. Refer to the 3.3V table on the right for pin definitions. PWR LED OH/Fan Fail/PWR Fail/ Overheat (OH)/Fan Fail/PWR Fail/...
  • Page 42: Hdd Led

    X10SDV Mini-ITX Series Motherboard User’s Manual HDD LED HDD LED Pin Definitions (JF1) The HDD LED connection is located Pin# Definition on pins 13 and 14 of JF1. Attach a 3.3V Standby cable here to indicate the status of HD LED HDD-related activities, including SATA activities.
  • Page 43: Reset Button

    Chapter 2: Installation Reset Button Reset Button Pin Definitions (JF1) The Reset Button connection is located Pin# Definition on pins 3 and 4 of JF1. Attach it to a Reset hardware reset switch on the computer Ground case to reset the system. Refer to the table on the right for pin definitions.
  • Page 44: Power Fail Led (Available On Pcb 2.00 Only)

    X10SDV Mini-ITX Series Motherboard User’s Manual Power Fail LED Power Fail LED (Available on PCB 2.00 only) Pin Definitions (JF1) Pin# Definition The Power Fail LED connection is lo- cated on pins 5 and 6 of JF1. Refer to 3.3V...
  • Page 45: Connecting Cables

    B. 12V DC Power C. 4-Pin HDD Power JPL1 i350 SRW2 JNVI2C1 USB 0/1(3.0) LAN1/2 IPMI_LAN LAN3/4 LED8 COM1 SRW1 X10SDV-F REV: 2.00 DESIGNED IN USA USB 2/3 AST2400 JPI2C1 SLOT7 LEDM1 PCI-E 3.0 X16 Intel D-1500 JPW1 JBT1 USB 4/5...
  • Page 46: Fan Headers (Fan1 ~ Fan4) (Fan4 Is Available On Pcb 2.00 Only)

    X10SDV Mini-ITX Series Motherboard User’s Manual Fan Headers (FAN1 ~ FAN4) Fan Header (FAN4 is available on PCB 2.00 only) Pin Definitions Pin# Definition This motherboard has up to four 4-pin fan head- Ground (Black) ers. (Dual cooling zone is only available on PCB 12V (Red) 2.00 with FAN4 serving as the second zone's...
  • Page 47: System Management Bus Header

    A. SMBus Header B. DOM Power JPL1 i350 SRW2 JNVI2C1 USB 0/1(3.0) LAN1/2 IPMI_LAN LAN3/4 LED8 COM1 SRW1 X10SDV-F REV: 2.00 DESIGNED IN USA USB 2/3 AST2400 JPI2C1 SLOT7 LEDM1 PCI-E 3.0 X16 Intel D-1500 JPW1 JBT1 USB 4/5...
  • Page 48: Tpm Header/Port 80 Header

    X10SDV Mini-ITX Series Motherboard User’s Manual TPM Header/Port 80 Header TPM/Port 80 Header Pin Definitions A Trusted Platform Module/Port 80 Pin # Definition Pin # Definition header, located at JTPM1, provides LCLK Trusted Platform (TPM) support and LFRAME# <(KEY)> Port 80 connection. Use this header...
  • Page 49: Speaker

    No connection A. JD1 B. Standby Power JPL1 i350 SRW2 JNVI2C1 USB 0/1(3.0) LAN1/2 IPMI_LAN LAN3/4 LED8 COM1 SRW1 X10SDV-F REV: 2.00 DESIGNED IN USA USB 2/3 AST2400 JPI2C1 SLOT7 LEDM1 PCI-E 3.0 X16 Intel D-1500 JPW1 JBT1 USB 4/5...
  • Page 50: I-Sgpio1/I-Sgpio2

    X10SDV Mini-ITX Series Motherboard User’s Manual I-SGPIO1/I-SGPIO2 Serial Link General Purpose Headers Pin Definitions Two Serial Link General Purpose In- Pin# Definition Definition put/Output (SGPIO) headers are used to communicate with the enclosure Ground DATA Out management chip in the system. See...
  • Page 51: Power Smbus (I 2 C) Connector (Available On Pcb 2.00 Only)

    A. Power SMBus (I C) Connector B. SMBus Header JPL1 i350 SRW2 JNVI2C1 USB 0/1(3.0) LAN1/2 IPMI_LAN LAN3/4 LED8 COM1 SRW1 X10SDV-F REV: 2.00 DESIGNED IN USA USB 2/3 AST2400 JPI2C1 SLOT7 LEDM1 PCI-E 3.0 X16 Intel D-1500 JPW1 JBT1 USB 4/5...
  • Page 52: Gpio Header

    X10SDV Mini-ITX Series Motherboard User’s Manual GPIO Header GPIO Header Pin Definitions The JGPIO1 header is located near the Pin# Definition Definition SATA connectors on the motherboard. P3V3 The JGPIO header is a general purpose I/O on a pin header. See the table on the right for pin definitions.
  • Page 53: Jumper Settings

    Disabled A. VGA Enable JPL1 i350 SRW2 JNVI2C1 USB 0/1(3.0) LAN1/2 IPMI_LAN LAN3/4 LED8 COM1 SRW1 X10SDV-F REV: 2.00 DESIGNED IN USA USB 2/3 AST2400 JPI2C1 SLOT7 LEDM1 PCI-E 3.0 X16 Intel D-1500 JPW1 JBT1 USB 4/5...
  • Page 54: Cmos Clear

    X10SDV Mini-ITX Series Motherboard User’s Manual CMOS Clear JBT1 is used to clear CMOS. Instead of pins, this "jumper" consists of contact pads to prevent accidental clearing of CMOS. To clear CMOS, use a metal object such as a small screwdriver to touch both pads at the same time to short the connec- tion.
  • Page 55: Watch Dog Timer Enable

    JPL1 i350 SRW2 JNVI2C1 USB 0/1(3.0) LAN1/2 IPMI_LAN LAN3/4 LED8 COM1 SRW1 X10SDV-F REV: 2.00 DESIGNED IN USA USB 2/3 AST2400 JPI2C1 SLOT7 LEDM1 PCI-E 3.0 X16 Intel D-1500 JPW1 JBT1...
  • Page 56: Management Engine (Me) Recovery

    X10SDV Mini-ITX Series Motherboard User’s Manual Management Engine (ME) Recovery ME Recovery Jumper Settings Use JPME1 to select ME Firmware Re- Pin# Definition covery mode, which will limit resource Normal (Default) allocation for essential system operation ME Recovery only in order to maintain normal power operation and management.
  • Page 57: Gigabit Lan Ports Enable/Disable (On -F, -Ln2F, -Tln4F Models)

    A. 1G LAN Port Enable/Disable B. 10Gb LAN Port Enable/Disable JPL1 i350 SRW2 JNVI2C1 USB 0/1(3.0) LAN1/2 IPMI_LAN LAN3/4 LED8 COM1 SRW1 X10SDV-F REV: 2.00 DESIGNED IN USA USB 2/3 AST2400 JPI2C1 SLOT7 LEDM1 PCI-E 3.0 X16 Intel D-1500 JPW1 JBT1...
  • Page 58: Bios Recovery

    X10SDV Mini-ITX Series Motherboard User’s Manual BIOS Recovery BIOS Recovery Jumper Settings Close pins 2 and 3 of jumper JBR1 for Pin# Definition BIOS recovery. The default setting is on Normal pins 1 and 2 for normal operation. See BIOS Recovery the table on the right for jumper settings.
  • Page 59: Onboard Indicators

    A. LAN LEDs B. BMC Heartbeat LED JPL1 i350 SRW2 JNVI2C1 USB 0/1(3.0) LAN1/2 IPMI_LAN LAN3/4 LED8 COM1 SRW1 X10SDV-F REV: 2.00 DESIGNED IN USA USB 2/3 AST2400 JPI2C1 SLOT7 LEDM1 PCI-E 3.0 X16 Intel D-1500 JPW1 JBT1 USB 4/5...
  • Page 60: Onboard Power Led

    X10SDV Mini-ITX Series Motherboard User’s Manual Onboard Power LED Onboard PWR LED Indicator LED Settings An onboard Power LED is located at Color Definition LED3 on the motherboard. When this LED System Off (PWR cable is on, the system is on. Please turn off the...
  • Page 61: Unit Identification Led

    A. UID LED JPL1 i350 SRW2 JNVI2C1 USB 0/1(3.0) LAN1/2 IPMI_LAN LAN3/4 LED8 COM1 SRW1 X10SDV-F REV: 2.00 DESIGNED IN USA USB 2/3 AST2400 JPI2C1 SLOT7 LEDM1 PCI-E 3.0 X16 Intel D-1500 JPW1 JBT1 USB 4/5...
  • Page 62: Sata Connections

    The X10SDV series deploy an M key only dedicated for SSD devices with the ultimate performance capability in a PCI Express 3.0 X4 interface for native PCIe SSD support. The X10SDV M.2 is mux with the I-SATA0 port for legacy SATA SSD devices.
  • Page 63: Chapter 3 Troubleshooting

    Chapter 3: Troubleshooting Chapter 3 Troubleshooting Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any hardware components.
  • Page 64: Memory Errors

    2. You should be using either DDR4 ECC RDIMM or ECC/Non-ECC UDIMM (1.2V) 2133MHz memory recommended by Supermicro (D-1541 up to 2400MHz). Also, it is required that you use the memory modules of the same type and speed for all DIMMs in the system.
  • Page 65: Technical Support Procedures

    Before contacting Technical Support, please make sure that you have followed all the steps listed below. Also, Note that as a motherboard manufacturer, Supermicro does not sell directly to end users, so it is best to first check with your distributor or reseller for troubleshooting services.
  • Page 66: Frequently Asked Questions

    Frequently Asked Questions Question: What type of memory does my motherboard support? Answer: The X10SDV Mini-ITX motherboard supports up to 128GB of DDR4 ECC RDIMM or 64GB of DDR4 ECC/Non-ECC UDIMM memory of speeds up to 2133MHz (D-1541 up to 2400MHz). See Section 2-4 for details on installing memory.
  • Page 67: Battery Removal And Installation

    Chapter 3: Troubleshooting Battery Removal and Installation Battery Removal To remove the onboard battery, follow the steps below: 1. Power off your system and unplug your power cable. 2. Locate the onboard battery as shown below. 3. Using a tool such as a pen or a small screwdriver, push the battery lock out- wards to unlock it.
  • Page 68: Returning Merchandise For Service

    You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. For faster service, you may also obtain RMA authorizations online (http://www.supermicro. com/RmaForm/). When you return the motherboard to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton, and mailed prepaid or hand-carried.
  • Page 69: Chapter 4 Bios

    When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. (Note: the AMI BIOS has default text messages built in. Supermicro retains the option to include, omit, or change any of these text messages.) The AMI BIOS setup utility uses a key-based navigation system called "hot keys".
  • Page 70: Main Setup

    Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential dam- ages arising from a BIOS update. If you have to update the BIOS, do not shut down or reset the system while the BIOS is updating.
  • Page 71 Day MM/DD/YY format. The time is entered in HH:MM:SS format. Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The following BIOS items will also be displayed: Supermicro X10SDV-TLN4F Version Build Date Memory Information Total Memory This displays the total size of memory available in the system.
  • Page 72: Advanced Setup Configurations

    X10SDV Mini-ITX Series Motherboard User’s Manual Advanced Setup Configurations Use the arrow keys to select Boot Setup and press <Enter> to access the submenu items. Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable.
  • Page 73: Power Configuration

    Chapter 4: AMI BIOS Wait For 'F1' If Error Use this feature to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled. INT19 (Interrupt 19) Trap Response Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Immediate, the ROM BIOS of the host adapters will "capture"...
  • Page 74: Cpu Configuration

    X10SDV Mini-ITX Series Motherboard User’s Manual CPU Configuration The following CPU information will be displayed: • Processor ID • Processor Frequency • Processor Max Ratio • Processor Min Ratio • Microcode Revision • L1 Cache RAM • L2 Cache RAM •...
  • Page 75 Chapter 4: AMI BIOS Execute Disable Bit (Available if supported by the OS & the CPU) Select Enabled to enable the Execute-Disable Bit which will allow the processor to designate areas in the system memory where an application code can execute and where it cannot, thus preventing a worm or a virus from flooding illegal codes to overwhelm the processor or damage the system during an attack.
  • Page 76: Advanced Power Management Configuration

    X10SDV Mini-ITX Series Motherboard User’s Manual Note: If a change is made to this setting, you will need to reboot the system for the change to take effect. Refer to Intel’s website for detailed information. Advanced Power Management Configuration This section is used to configure the following CPU Power Management settings.
  • Page 77 Chapter 4: AMI BIOS CPU HWPM State Control Enable CPU HWPM Select Enable for better CPU energy performance. The options are Disable, HWPM NATIVE MODE, and HWPM OOB MODE. Enable CPU Autonomous Cstate Use this feature to enable CPU Autonomous C State, which converts HALT instructions to Mwait.
  • Page 78 X10SDV Mini-ITX Series Motherboard User’s Manual  CPU Advanced PM Tuning  Energy Perf BIAS Energy Performance Tuning When enabled, this item selects whether the BIOS or Operating System can turn on the energy performance bias tuning. The options are Enable and Disable.
  • Page 79: Chipset Configuration

    Chapter 4: AMI BIOS  DRAM RAPL Configuration Override BW_LIMIT_TF Use this feature to set the value for the custom tuning of BW_LIMIT_TF. The default value is 1. DRAM RAPL Extended Range Use this feature to set the DRAM Running Average Power Limit (RAPL) Extended Range.
  • Page 80: Memory Configuration

    X10SDV Mini-ITX Series Motherboard User’s Manual ® IOAT (Intel IO Acceleration) Configuration Enable IOAT Select Enable to enable Intel I/OAT (I/O Acceleration Technology) support, which significantly reduces CPU overhead by leveraging CPU architectural improve- ments and freeing the system resource for other tasks. The options are Disable and Enable.
  • Page 81: Dimm Information

    Chapter 4: AMI BIOS Data Scrambling Select Enabled to enable data scrambling to enhance system performance and data integrity. The options are Auto, Disabled and Enabled. DRAM RAPL Baseline Use this feature to set the run-time power-limit baseline for DRAM modules. The options are Disable, DRAM RAPL Mode 0, and DRAM RAPL Mode 1.
  • Page 82: South Bridge

    X10SDV Mini-ITX Series Motherboard User’s Manual Patrol Scrub Interval This feature allows you to decide how many hours the system should wait before the next complete patrol scrub is performed. Use the keyboard to enter a value from 0-24. The Default setting is 24.
  • Page 83: Sata Configuration

    Chapter 4: AMI BIOS Port 60/64 Emulation This feature enables or disables I/O port 60h/64h emulation support. This should be enabled for complete USB keyboard legacy support for non-USB-aware Operating Systems. The options are Disabled and Enabled. USB 3.0 Support Select Enabled for USB 3.0 support.
  • Page 84 X10SDV Mini-ITX Series Motherboard User’s Manual SATA Frozen Use this item to enable the HDD Security Frozen Mode. The options are Enabled and Disabled. SATA AHCI LPM Use this feature to enable the Link Power Management for SATA AHCI. The options are Disabled and Enabled.
  • Page 85 Chapter 4: AMI BIOS Server ME (Management Engine) Configuration This feature displays the following system ME configuration settings. • General ME Configuration • Operational Firmware Version • ME Firmware Type • Recovery Firmware Version • ME Firmware Features • ME Firmware Status #1 •...
  • Page 86 X10SDV Mini-ITX Series Motherboard User’s Manual Maximum Payload Use this feature to select the setting for the PCI Express maximum payload size. The options are Auto, 128 Bytes, 256 Bytes, 512 Bytes, 1024 Bytes, 2048 Bytes, and 4096 Bytes. Relaxed Ordering...
  • Page 87 Chapter 4: AMI BIOS Onboard LAN2 Option ROM Use this option to select the type of device installed in LAN Port 2 used for system boot. The options are Disabled and PXE. Onboard LAN3 Option ROM Use this option to select the type of device installed in LAN Port 3 used for system boot.
  • Page 88: Super Io Configuration

    X10SDV Mini-ITX Series Motherboard User’s Manual Super IO Configuration Super IO Chip AST2400  Serial Port 1 Configuration This submenu allows the user the configure settings of Serial Port 1. Serial Port Select Enabled to enable the selected onboard serial port. The options are Enabled and Disabled.
  • Page 89 Chapter 4: AMI BIOS Bits Per second Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines.
  • Page 90 X10SDV Mini-ITX Series Motherboard User’s Manual Legacy OS Redirection Resolution Use this feature to select the number of rows and columns used in Console Redi- rection for legacy OS support. The options are 80x24 and 80x25. Putty KeyPad This feature selects the settings for Function Keys and KeyPad used for Putty, which is a terminal emulator designed for the Windows OS.
  • Page 91 Chapter 4: AMI BIOS Parity A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd.
  • Page 92 X10SDV Mini-ITX Series Motherboard User’s Manual Redirection After BIOS POST Use this feature to enable or disable legacy Console Redirection after BIOS POST. When set to Bootloader, legacy Console Redirection is disabled before booting the OS. When set to Always Enable, legacy Console Redirection remains enabled when booting the OS.
  • Page 93: Acpi Settings

    Chapter 4: AMI BIOS Flow Control Use this item to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the re- ceiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty.
  • Page 94 X10SDV Mini-ITX Series Motherboard User’s Manual TPM State Select Enabled to use TPM (Trusted Platform Module) settings for system data security. The options are Disabled and Enabled. Note: The system will reboot for the change on TPM State to take effect.
  • Page 95: Event Logs

    Chapter 4: AMI BIOS Event Logs Use this feature to configure Event Log settings. Change SMBIOS Event Log Settings Enabling/Disabling Options SMBIOS Event Log Change this item to enable or disable all features of the SMBIOS Event Logging during system boot. The options are Enabled and Disabled. Runtime Error Logging Support Use this feature to enable Runtime Error Logging support.
  • Page 96: View Smbios Event Log

    X10SDV Mini-ITX Series Motherboard User’s Manual PCI-Ex Error Enable Select Yes for the BIOS to correct errors occurred in the PCI-E slots. The options are Yes and No. Erasing Settings Erase Event Log If No is selected, data stored in the event log will not be erased. If Yes, Next Reset is selected, data in the event log will be erased upon next system reboot.
  • Page 97: Ipmi

    Chapter 4: AMI BIOS IPMI Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. BMC Firmware Revision This item indicates the IPMI firmware revision used in your system. IPMI Status (Baseboard Management Controller) This item indicates the status of the IPMI firmware installed in your system. System Event Log ...
  • Page 98: Bmc Network Configuration

    X10SDV Mini-ITX Series Motherboard User’s Manual When SEL is Full This feature allows the user to decide what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full.
  • Page 99 Enabled and Disabled. When Disabled, the motherboard powers on quickly by removing BIOS control for extended IPMI features. The Disable option is for applications that require faster power on time wthout using Supermicro Update Manager (SUM) or extended IPMI features. The BMC network configuration in the BIOS setup is also invalid when IPMI Function Support is disabled.
  • Page 100: Security

    X10SDV Mini-ITX Series Motherboard User’s Manual Security This menu allows the user to configure the following security settings for the system. Password Check Select Setup for the system to check for a password at Setup. Select Always for the system to check for a password at bootup or upon entering the BIOS Setup utility.
  • Page 101 Chapter 4: AMI BIOS • Secure Boot • Vendor Keys Secure Boot Use this item to enable secure boot. The options are Disabled and Enabled. Secure Boot Mode Use this item to select the secure boot mode. The options are Standard and Custom.
  • Page 102 X10SDV Mini-ITX Series Motherboard User’s Manual Append Key Select Yes to add the KEK from the manufacturer's defaults list to the existing KEK. Select No to load the KEK from a file. The options are Yes and No.  Authorized Signatures Set New Key Select Yes to load the database from the manufacturer's defaults.
  • Page 103: Boot Settings

    Chapter 4: AMI BIOS Boot Settings Use this feature to configure Boot Settings: Setup Prompt Timeout Use this item to indicate the length of time (the number of seconds) for the BIOS to wait before rebooting the system when the setup activation key is pressed. Enter the value of 65535 (0xFFFF) for the BIOS to wait indefinitely.
  • Page 104 X10SDV Mini-ITX Series Motherboard User’s Manual • Dual Boot Order #6 • Dual Boot Order #7 • Dual Boot Order #8 • Dual Boot Order #9 • Dual Boot Order #10 • Dual Boot Order #11 • Dual Boot Order #12 •...
  • Page 105: Save & Exit

    Chapter 4: AMI BIOS Save & Exit Select the Exit tab from the BIOS setup utility screen to enter the Exit BIOS Setup screen. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer.
  • Page 106 X10SDV Mini-ITX Series Motherboard User’s Manual Restore Defaults To set this feature, select Restore Defaults from the Save & Exit menu and press <Enter>. These are factory settings designed for maximum system stability, but not for maximum performance. Save As User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <En-...
  • Page 107: Appendix A Bios Error Beep Codes

    Appendix A: POST Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue with bootup.
  • Page 108 X10SDV Mini-ITX Series Motherboard User’s Manual Notes...
  • Page 109: Appendix B Software Installation Instructions

    Software Installation Instructions B-1 Installing Software Programs The Supermicro ftp site contains drivers and utilities for your system at ftp://ftp. supermicro.com. Some of these must be installed, such as the chipset driver. After accessing the ftp site, go into the CDR_Images directory and locate the ISO file for your motherboard.
  • Page 110: B-2 Installing Superdoctor5

    X10SDV Mini-ITX Series Motherboard User’s Manual B-2 Installing SuperDoctor5 The Supermicro SuperDoctor ® 5 is a hardware monitoring program that functions in a command-line or web-based interface in Windows and Linux operating systems. The program monitors system health information such as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).
  • Page 111: Appendix C Uefi Bios Recovery Instructions

    Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update. If you need to update the BIOS, do not shut down or reset the system while the BIOS is updating to avoid possible boot failure.
  • Page 112 Root "\" Directory of a USB device or a writeable CD/DVD. Note: If you cannot locate the "Super.ROM" file in your driver disk, visit our website at www.supermicro.com to download the BIOS image into a USB flash device and rename it "Super ROM" for BIOS recovery use.
  • Page 113 Appendix C: UEFI BIOS Recovery 6. After the process of BIOS Recovery is complete, press any key to reboot the system. 7. Using a different system, extract the BIOS package into a bootable USB flash drive. 8. When a DOS prompt appears, enter AMI.BAT BIOSname.### at the prompt. Note: Do not interrupt this process until BIOS flashing is completed.
  • Page 114 X10SDV Mini-ITX Series Motherboard User’s Manual 9. After seeing the message that BIOS update is completed, unplug the AC pow- er cable from the power supply to clear CMOS, and then plug the AC power cable in the power supply again to power on the system.
  • Page 115: Appendix D Dual Boot Block

    Appendix D: Dual Boot Block Appendix D Dual Boot Block D-1 Introduction This motherboard supports the Dual Boot Block feature, which is the last-ditch mechanism to recover the BIOS boot block. This section provides an introduction to the feature. BIOS Boot Block A BIOS boot block is the minimum BIOS loader required to enable necessary hardware components for the BIOS crisis recovery flash that will update the main BIOS block.
  • Page 116: D-2 Steps To Reboot The System By Using Jumper Jbr1

    X10SDV Mini-ITX Series Motherboard User’s Manual D-2 Steps to Reboot the System by Using Jumper JBR1 1. Power down the system. 2. Close pins 2-3 on Jumper JBR1, and power on the system. 3. Follow the BIOS recovery SOP listed in the previous chapter (Appendix C).
  • Page 117 (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.

Table of Contents
