Globalsat TR-102 User Manual

Hide thumbs Also See for TR-102:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

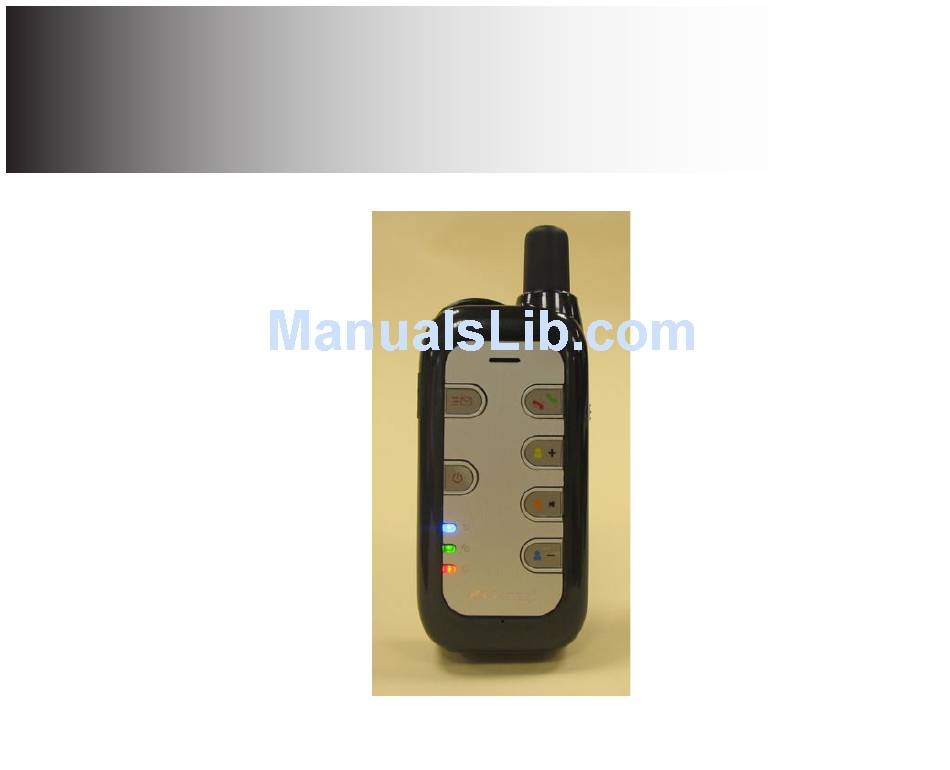

TR-102

User Manual

Ver 1.18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR-102 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Globalsat TR-102

Summary of Contents for Globalsat TR-102

  • Page 1: User Manual

    TR-102 User Manual Ver 1.18...

  • Page 2: Table Of Contents

    4.3 Install SIM card ..................... 5. Hardware Overview ....................9 5.1 Appearance ......................5.2 Button description ....................6. TR-102 Setup and Call Center Operation ............11 6.1 Install the USB driver ................... 6.2 Install the Call Center program ................6.3 Call Center Operation ..................
  • Page 3 9. Tracking by GPRS mode ................... 25 9.1 Setup GPRS return type ..................9.2 Trigger the TR-102 to connect to Internet by GPRS ........... 9.3 Send a command from Call Center to TR-102 ............ 9.4 TR-102 sends back location information to Call Center ........

  • Page 4: Introduction

    TR-102 is a personal remote positioning device with built-in GPS and GSM modules; it’s compact and portable. Not only can TR-102 transmit the longitude and latitude coordinate to your cell phone by the short message service, but it can also transmit the longitude and latitude coordinate to your personal computer by the internet connection of GPRS and then displaying the location by a specific map software.

  • Page 5: Specification

    Professional Call Center program, supporting the operating system such as Windows 98 /2000 /XP, also supporting up to 5 sets of TR-102's tracking function at the same time by using the GPRS mode. Clicking on one of the TR-102's user name from the Call Center program will open a browser with the latitude and longitude information displaying as a point at the center of the maps.google.com.
  • Page 6 TR-10 Cold start: 42 sec., average Altitude Limit: 18,000 meters (60,000 feet) max. Velocity Limit: 515 meters/second (1000 knots) max. Acceleration Limit: Less than 4g Jerk Limit: 20 m/sec3 Operating temperature: -20° to 55° C Humidity: 5% to 95% Non-condensing Dimension: 115 mm ×...

  • Page 7: Start-Up

    TR-10 . Start-up 4.1 Accessories 1. TR-102 2. 1300 mAh Li-ion Battery 3. Mini USB cable 4. AC power adapter 5. CD-ROM 6. Leather case (Optional) Li-lon Battery...

  • Page 8: Charging The Battery

    Before you can use the TR-102, you must complete the following procedures: 1. Fully charge the battery. Before your first time using of TR-102, please connect it with AC power adapter for battery charging at least hours under the power-off condition. (The included battery is specially designed for TR-102. Please do not use other type of battery;...

  • Page 9: Hardware Overview

    TR-10 . Hardware Overview 5.1 Appearance SOS button Speaker Answer / Hang up Power button Quick dial 1 / Volume up Quick dial 2 / Mute the microphone GSM LED GPS LED Quick dial 3 / Volume down Power LED Microphone Button Lock Power adapter jack...

  • Page 10: Button Description

    Turn on / Turn off: Please see 7.1 for details. SOS button You can assign up to 3 sets of phone numbers to the SOS button. When this button is pressed, TR-102 will send its location information to these 3 sets of phone numbers by SMS.

  • Page 11: Tr-102 Setup And Call Center Operation

    6.1 Install the USB driver 1. Insert the CD into CD-ROM drive. When the autorun dialog box is displayed, click on "Install USB Driver" button to install the TR-102 driver. 2. You will see dialog box 1, click on Next to continue.

  • Page 12: Install The Call Center Program

    TR-10 6.2 Install the Call Center program 1. From the autorun dialog box, click on the "Install PC Software" to install the Call Center program. 2. Follow instruction of dialog box 1 to continue the installation. 3. When the installation is complete, click on Finish in dialog box 2 to close the dialog box.

  • Page 13: Call Center Operation

    5 users, please delete a existing one first. Management > Setup When a TR-102 is connected to your PC, you can do the basic setup to this TR- 102. GPRS > Start Start the Call Center connection to Internet.

  • Page 14: Basic Setting

    (ii) Press and hold the "Answer/Hang up" button about 5 seconds until you see the three LEDs flashing slowly and simultaneously. Release the button and it will enter the setup mode. 3. Start the TR-102 Call Center program in your PC (or double click on the "TR102-Call Center icon from desktop).
  • Page 15 TR-102 will return the location information by SMS. TR-102 will not ring and user can not answer the call. Answer Mode When received a call or SMS, TR-102 will return the location information by the way of "Return Type". (please see figure. 3 in page 32) When received a call, TR-102 will ring, and user can answer the call.

  • Page 16: Position Report

    TR-10 Note: The returned SMS from TR-102 to your mobile phone will be the following format: (example) Position Report: TR102 2005/01/02 11:20:30 24.9965,121.4877 GPS fixed • The second line shows your User Name (default is "TR102"). • The third line contains the date and time. (yyyy/mm/dd hh:mm:ss) •...
  • Page 17 You can set number 4 ~ 10. Phone Number 4~10 item description International Mobile Equipment IMEI Identity Firmware version of TR-102 Firmware Version Input a user name here. (Default is Name TR102) Input the phone number of this Phone TR-102.
  • Page 18 TR-10 item description Please consult your GPRS user name Call Center system GPRS user password administrator for GPRS apn all other parameter values. GPRS_dns1 GPRS_dns2 item description Default GPRS Port is GPRS Port "5000". Set the GPRS server GPRS Server Host host name.

  • Page 19: Operating The Device

    TR-10 . Operating the device 7.1 Turn on / Turn off ● Turn on: When the device is off, press the Power button for 3 seconds, three LEDs will start to flash quickly from top to bottom. It will enter the standby mode with blue LED flash slowly after the startup process is finished.

  • Page 20: Adjust The Volume

    TR-10 7.3 Adjust the volume ● While in talking, you can press the "+" button to increase the volume. ● While in talking, the other party will not hear from you if the mute button is pressed to mute the microphone; press it again to enable the microphone.

  • Page 21: Send Out Emergency Sms

    1. To confirm that you have pressed SOS button correctly, TR-102 will followed by long flash the red LED about 2 times. 2. TR-102 will start to position itself with green GPS LED flashing; when the GPS position is fixed, the LED will be on.

  • Page 22: Tracking By Sms Mode

    Return Type from "Phone Mode" tab. 8.2 Send SMS from a cell phone to TR-102 • Send a short message to TR-102 to trigger it for sending back the location information. (The message content can be anything, even a blank message.) 8.3 TR-102 sends SMS to cell phone...

  • Page 23: Displaying The Location On Map

    8.4 Displaying the location on map ● Start the Google Earth software. (For more information about the Google Earth software, please refer to “TR-102 Supporting User Manual En_Free Google Earth Software.pdf” which you can find them in the CD-ROM under the “Manual”...
  • Page 24 TR-10 ● Or you can start the Internet Explorer and type "http://maps.google.com" to connect to Google Map website for displaying the location map. Select "Satellite" or "Hybrid". It depends on Google Map whether your area is supported by this mode or not. Input the latitude and longitude that you received from SMS and click on Search button.

  • Page 25: Tracking By Gprs Mode

    9.2 Trigger the TR-102 to connect to Internet by GPRS • If the Answer Mode is "Off", you can use the cell phone to call TR-102, or send a short message to TR- 102 to trigger it for connecting to internet.

  • Page 26: Send A Command From Call Center To Tr-102

    • You can send command to TR-102 by the following steps and make it send back the location information: (1) Start the TR-102 Call Center program and click on "GPRS" > "Start" from menu bar to start the connection for internet.
  • Page 27 For detailed description of how to set the Return Mode and Second, please see "TR-102 GPRS Access command Vx.x.pdf" in the CD-ROM under the "Manual" folder.  When you turn on the TR-102, it will resume to the previous "Return Mode" status as it was turned off.

  • Page 28: Tr-102 Sends Back Location Information To Call Center

    9.4 TR-102 sends back location information to Call Center • When TR-102 receives a command, it will send back the location information by GPRS. Please switch to GPRS view in the Call Center program and you can see the most updated information is displayed...

  • Page 29: Displaying The Location On Map

    TR-10 9.5 Displaying the location on map ● Click on Map from menu bar, you can setup the program to display the map by "Google Map" or "Google Earth". ● If you have checked the View > Show Map, the Call Center program will make the "Google Map"...

  • Page 30: How Does Tr-102 Work By Sms And Grps

    TR-10 10. How does TR-10 work by SMS and GRPS?
  • Page 31 TR-10...
  • Page 32 TR-10 Answer Mobile Phone Call TR-10 Answer Figure. 1 mode is "On". (Any content, include blank SMS.) Mobile Phone TR-10 Answer mode is "On". example Position Report: Figure. 2 TR102 2005/01/02 11:20:30 24.9965,121.4877 GPS fixed Call or SMS (Any content, include blank SMS.) TR-10 Mobile Phone Answer...
  • Page 33 TR-10 Mobile Phone SOS number 1 TR-10 SOS number 2 When SOS button Emergency Report: example TR102 is pressed. 2005/01/02 11:20:30 24.9965,121.4877 SOS number 3 GPS fixed Figure. 4 TR-10 Mobile Phone Quick Dial number Call Answer When Quick Dial button is pressed.

  • Page 34: Troubleshooting And Safety Info

    ► Please do not connect TR-102 to a USB cable when you are changing the battery, otherwise it will make some beep sound. ► If TR-102 can not be turned off properly, please open the battery cover and remove the battery for 3 seconds at least. Put the battery back and then restart it.
  • Page 35 ► When you use TR-102 to make a call, but the other party can not be reached for some reason (not turn on, busy line, reject the call), you may hear the voice that requests you to leave a message in the voice box. If you don't want...

  • Page 36: Fcc Regulations

    TR-10 FCC Regulations: • This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. •...
  • Page 37 TR-10 cific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certi- fied power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value.
