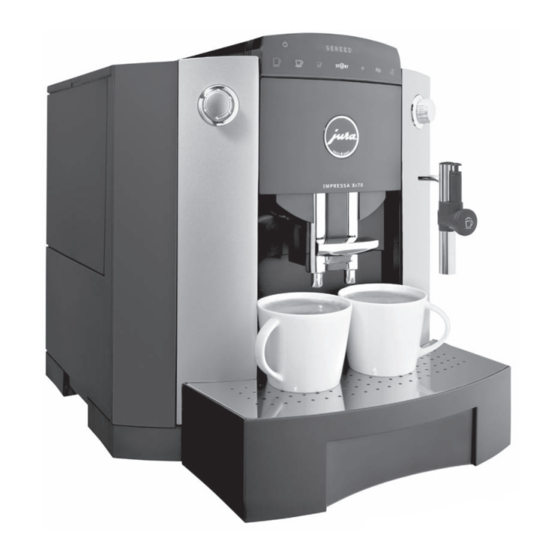

Jura Impressa xf70 Instructions For Use Manual
  1. Manuals
  2. Brands
  3. Jura Manuals
  4. Coffee Maker
  5. IMPRESSA XF70
  6. Instructions for use manual

Jura Impressa xf70 Instructions For Use Manual

Hide thumbs Also See for Impressa xf70:
Table of Contents

Advertisement

Quick Links

Download this manual
IMPRESSA X
70
F
Instructions for use
www.redmonkeycoffee.co.uk
4/05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Impressa xf70 and is the answer not in the manual?

Questions and answers

Related Manuals for Jura Impressa xf70

Summary of Contents for Jura Impressa xf70

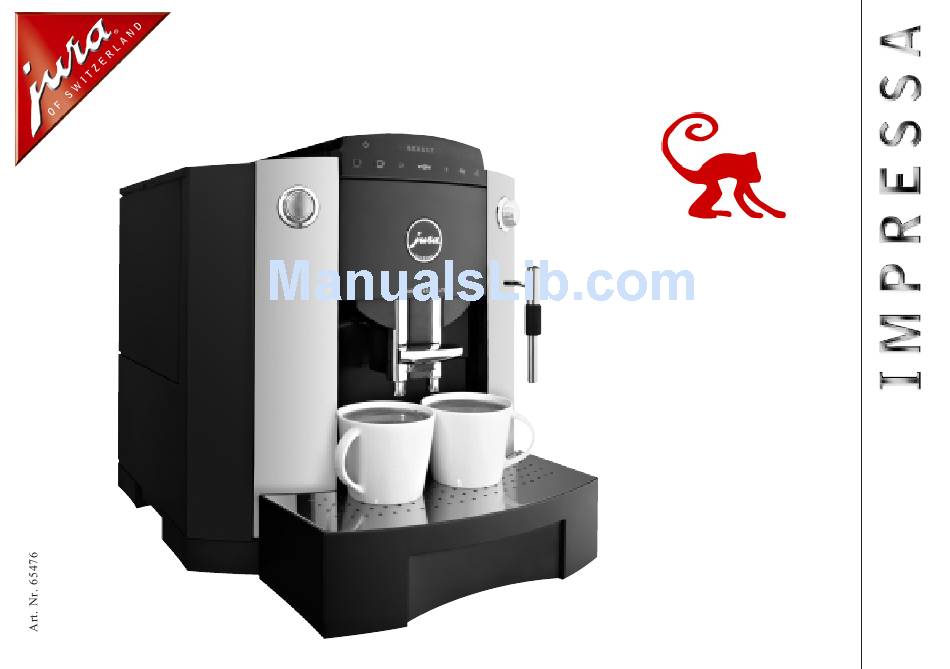

  • Page 1 IMPRESSA X Instructions for use www.redmonkeycoffee.co.uk 4/05...
  • Page 2 JURA IMPRESSA tel 0870 207 4831 | email mail@redmonkeycoffee.com www.redmonkeycoffee.co.uk Legend: DISPLAY: serves as information. DISPLAY: please follow the instructions shown. JURA Elektroapparate AG, CH-4626 Niederbuchsiten, = Note = Important = Tip...
  • Page 3 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8 Fig. 9 Fig. 10 Fig. 11 Fig. 12 Fig. 13 Fig. 14 Fig. 15 Fig. 16 Fig. 17 Fig. 18 Fig. 19...
  • Page 4 Control elements 1. Rotary Switch 2. Illuminated ring 3. ON / OFF symbol 4. 1 LARGE CUP symbol 21 22 23 5. 1 COFFEE symbol 6. 1 ESPRESSO symbol 7. MAINTENANCE symbol 8. START symbol 9. Display dialog system 10. Water tank with handle 11.

  • Page 5: Table Of Contents

    Contents 1. Safety information..........page 6 15. Programming ..........page 15 Warning ..........page 6 15.1 Programming the filter ......page 15 Precautions ..........page 6 15.2 Programming the water hardness ....page 15 2. Preparing the IMPRESSA........page 6 15.3 Maintenance menu.........page 15 Check supply voltage ......page 6 15.4 Programming the aroma INTENSIVE Check electrical fuse ......page 6 or STANDARD ........page 16...

  • Page 6: Safety Information

    Never put the coffee machine or individual parts of it into a dishwasher. You will also find useful tips on operation and maintenance of your IMPRESSA on our website at www.jura.com. Make sure to install the machine at a place with sufficient air circulation, to prevent overheating of the machine.

  • Page 7: Fill Coffee Beans

    (e.g.during holidays). of your JURA coffee machine is not suitable for coffee beans which were treated, during or after roasting, with additives (e.g. sugar). Such coffee blends may damage the grinding 3.

  • Page 8: Adjusting The Water Hardness

    Close the steam / hot water draw-off tap (14). The displayed information means the following: FILLING SYSTEM LEVEL –– Water hardness function switched off HEATING LEVEL 1 German water hardness degree 1 to 7° French Water hardness degree 1.79 – 12.53° PRESS MAINT.

  • Page 9: Installation Of Claris Plus Filter Cartridges

    Open the steam / hot water draw-off tap (14) (Fig.12). 5. Installation of Claris plus filter cartridges RINSING If the Claris plus filter cartridge is installed properly, de- FILTER scaling of the coffee machine is no longer required. For CLOSE TAP more information on the Claris plus filter cartridge refer to brochure «Claris plus.

  • Page 10: Changing The Filter Without Display Request

    Place a sufficiently large jug (approx 1 litre) under the replace- Touch the symbol (7). able hot water nozzle (16) and open the steam/hot water tap (14) RINSING (Fig. 12). READY RINSING FILTER 6.1 Rinsing the IMPRESSA without display request CLOSE TAP Press the Rotary Switch (1) until Open the steam / hot water draw-off tap (14) (Fig.

  • Page 11: Making 1 Cup Of Coffee

    8. Making 1 cup of coffee 9. Making 2 cups of coffee You can choose from 3 different coffee strengths. Touch one You cannot choose the strength of the coffee when making of the symbols to select the strength of your 2 cups.

  • Page 12: Drawing Off Pre-Ground Coffee

    10. Drawing off pre-ground coffee For Example: 210 ML COFFEE Never use instant coffee or quick-coffee. We recommend that you always use powder from fresh coffee beans or, pre- Your product is being prepared. ground, vacuum-packed coffee. Never fill in more than 2 READY portions of powder.

  • Page 13: Drawing Off Steam

    CLOSE TAP READY Close the steam / hot water draw-off tap (14). Place a cup under the 2-stage frothing jet (15) and immerse it in the milk to be frothed or the liquid to be heated. READY To draw off steam, open the steam/hot water draw-off tap (14) Before CLOSE TAP water may still escape the system.

  • Page 14: Attaching The Professional-Cappuccino Frother Or The Easy-Cappuccino Frother To The Impressa

    13.1 Attaching the Professional-Cappuccino Frother If the set amount of steam has been reached, the display indi- cates or the Easy-Cappuccino Frother to the CLOSE TAP IMPRESSA Close the steam / hot water draw-off tap (14). Remove either the hot water nozzle (Fig.5) or the 2-stage froth- READY ing jet (Fig.

  • Page 15: Switching Off The Impressa

    ¼ Draw-offs ¼ Language The Professional-Cappuccino Frother and the Easy-Cappuc- ¼ Display cino Frother are best cleaned using the JURA Auto-Cappuc- ¼ Exit cino cleaner. Please contact an authorized dealer. We recom- mend cleaning these devices daily. To start programming, press the Rotary Switch (1) until FILTER –...

  • Page 16: Programming The Aroma Intensive Or Standard

    Press the Rotary Switch (1) Turn the Rotary Switch (1) until EXIT appears RINSE Press the Rotary Switch (1) to leave the programming mode. Turn the Rotary Switch (1) until the required program item ap- pears on the display (9). READY e.g.

  • Page 17: Programming The Automatic Switch-On Time

    The illuminated ring (2) is active. Turn the Rotary Switch (1) until MACHINE ON is displayed. Turn the Rotary Switch (1) until TIME is displayed. MACHINE ON TIME Now press the Rotary Switch (1) to start programming the switch-on time. Now press the Rotary Switch (1) to start programming the time.

  • Page 18: Cup Counter

    OFF AFT. HR Press one of the draw-off keys to check the number of individual cups made. Now press the Rotary Switch (1) to start programming the switch-off time. Switch-off time OFF AFT. HR E.g press draw-off key 1 cup of coffee (5).

  • Page 19: Programming Display 24H/Am/Pm

    15.12 Programming the display for ML/OZ LANGUAGE Turn the Rotary Switch (1) until READY EXIT appears Press the Rotary Switch (1) until Press the Rotary Switch (1) to leave the programming mode. FILTER – / appears READY The illuminated ring (2) is active. Turn the Rotary Switch (1) until 15.11 Programming Display 24H/AM/PM DISPLAY appears...

  • Page 20: Maintenance

    16. Maintenance 16.3 Drip tray missing 16.1 Filling in water TRAY FILL If this information is displayed, the drip tray (20) is not installed WATER properly or was not installed at all. Insert the drip tray (20). If this information is displayed, drawing off products is no longer possible.

  • Page 21: Cleaning The Impressa

    Never use scratching objects, pan cleaners, cleaning sponges or caustic chemicals to clean the machine. JURA cleaning tablets which are specially designed for the Wipe off the case on the inside and outside using a soft, moist cleaning program of your IMPRESSA are available at your cloth.

  • Page 22: Cleaning Without Display Request

    40 min. TABLET Fill in the tablet (see Fig. 14) JURA de-scaling tablets which are specially designed for the de-scaling program of your IMPRESSA are available at your PRESS authorized dealer. Please note that machine defects or MAINT.
  • Page 23 When using the de-scaling agent, immediately remove any EMPTY splashes or drips from sensitive surfaces, i.e. natural stone TRAY and wooden surfaces, or take appropriate precautions. Empty the tray (Fig. 18/19). In any case wait until the de-scaling agent is used up and the TRAY tank is empty.

  • Page 24: Decalcifying Without Display Request

    EMPTY TRAY significantly. The program “De-scale” is now active. Now proceed as de- scribed in Chapter 18 from EMPTY TRAY onwards. 19. Disposal Please return the IMPRESSA machine to your local dealer, the service shop or to JURA for proper disposal.

  • Page 25: Messages

    CHANGE FILTER / Filter used up Replace filter (Chapter 5.2) MACHINE READY ERROR General fault - switch off - disconnect from mains supply - Connect IMPRESSA to power supply - Switch on IMPRESSA - Have IMPRESSA checked by JURA Service...

  • Page 26: Problems

    Use a coarser pre-ground coffee High-frequency, electromagnetic interference may influence the display. Drawing off coffee is possible at any time. If the messages or problems still persist, please contact your local authorized dealer or JURA Elektroapparate AG. tel 0870 207 4831 | email mail@redmonkeycoffee.com...

  • Page 27: Legal Information

    Any Pump pressure: static, max. 15 bar obligations to be fulfilled by JURA Elektroapparate AG are stipu- Water tank: 3.2 litres lated in the corresponding purchase contract, which also contains the full and solely applicable warranty stipulations.
