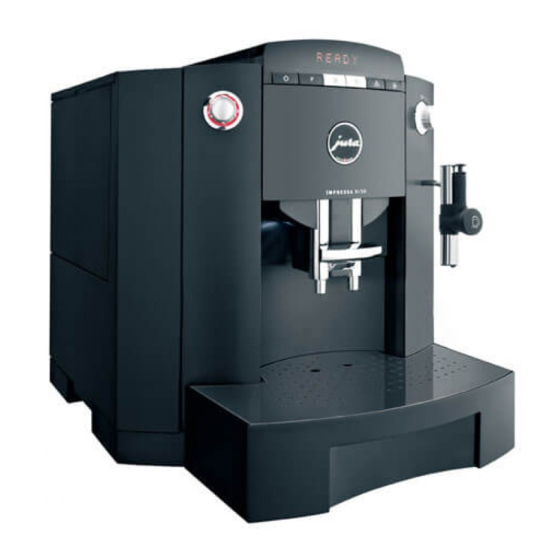

Jura IMPRESSA XF50 Instructions For Use Manual
Hide thumbs
Also See for IMPRESSA XF50:
- Instructions for use manual (34 pages) ,
- Operating & cleaning instructions (12 pages) ,
- Operating instructions manual (11 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Jura IMPRESSA XF50
Summary of Contents for Jura IMPRESSA XF50

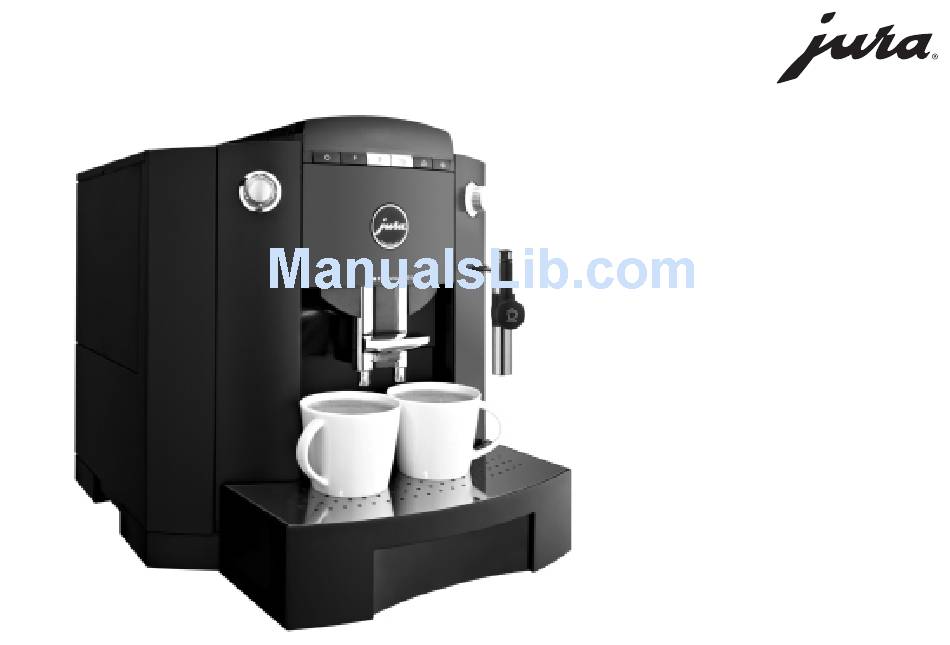

- Page 1 IMPRESSA X Instructions for use...
- Page 2 Legend: DISPLAY: serves as information. DISPLAY: please follow the instructions shown. = Note = Important = Tip...
- Page 3 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8 Fig. 9 Fig. 10 Fig. 11 Fig. 12 Fig. 13 Fig. 14 Fig. 15 Fig. 16 Fig.17 Fig.18...
- Page 4 Control elements 1. Rotary Switch 2. Illuminated ring 3. ON/OFF key 4. Programming key 5. Draw-off key 1 cup Rotary Switch 6. Draw-off key 2 cups 7. Maintenance key 8. Steam pre-selection key 9. Display dialog system 10. Water tank with carrying handle 11.
-
Page 5: Table Of Contents
Contents 1. Safety information..........page 6 15.3 Programming the aroma ROBUST Warning ..........page 6 or STANDARD ........page 15 Precautions ..........page 6 15.4 Programming the temperature ....page 16 2. Preparing the IMPRESSA........page 6 15.5 Programming the time......page 16 Check supply voltage ......page 6 15.6 Programming the automatic Check electrical fuse ......page 6 switch-on time ........page 17... -
Page 6: Safety Information
You will also find useful tips on operation and maintenance When disconnecting the mains cable never pull on the mains of your IMPRESSA on the website at www.jura.com. cable or the machine itself. Don’t forget to check out the Knowledge Builder our ani- The coffee machine is connected to mains supply via a mains mated operating instructions. -
Page 7: Fill Water Tank
(e.g.during holidays) time and to avoid damage, please note that the grinding gear of your JURA coffee machine is not suitable for coffee beans 3. First use which were treated, during or after roasting, with additives (e.g. -
Page 8: Adjusting The Water Hardness
The displayed information means the following: FILLING SYSTEM LEVEL –– Water hardness function switched off CLOSE TAP LEVEL 1 German water hardness degree 1 to 7° French Water hardness degree 1.79 – 12.53° Close the steam / hot water draw-off tap (14). LEVEL 2 German water hardness degree 8 to 15°... -
Page 9: Installation Of Claris Plus Filter Cartridges
Close the steam/hot water draw-off tap (14), now the IM- 5. Installation of CLARIS plus filter cartridges PRESSA will heat up to coffee temperature. If the CLARIS plus filter cartridge is installed properly, HEATING descaling of the coffee machine is no longer required. For READY more information on the CLARIS plus filter cartridge refer to brochure «Claris plus. -
Page 10: Rinsing The Impressa
Turn the Rotary Switch (1) until the required water quantity is HEATING displayed. READY For example, 120 ML 6. Rinsing the IMPRESSA 8. Drawing off 1 cup of coffee When the IMPRESSA is switched off and has cooled down, You have the possibility of increasing the strength of the a rinsing operation is started when the machine is switched coffee at any time in the grinding process by pressing the on again. -
Page 11: Drawing Off 2 Cups Of Coffee
10. Drawing off pre-ground coffee For Example: 160 ML For Example: MILD Never use instant coffee or quick-coffee. We recommend that you always use powder from fresh coffee beans or, pre- Your product is being prepared. ground, vacuum-packed coffee. Never fill in more than 2 READY portions of powder. -
Page 12: Drawing Off Hot Water
Close the steam / hot water draw-off tap (14). For Example: 210 ML READY POWDER Your product is being prepared. Before CLOSE TAP water may still escape the system. READY 11. Drawing off hot water 12. Drawing off steam If you do not change the settings using the Rotary Switch The steam function is used for the preparation of milk foam (1), the water quantity last adjusted will be drawn off auto- as well as for the Easy Cappuccino Frother (15) cleaning... -
Page 13: Dispensing Cappuccino With The Easy Cappuccino Frother
They keep the milk cool the whole day long and are opti- mally suited to the design of your IMPRESSA. As long as STEAM READY is on view in the display, the All original JURA accessories can be obtained from the machine is ready to dispense steam. specialist shop. -
Page 14: Cleaning The Easy Cappuccino Frother
(14). Easy Cappuccino Frother (15). As long as STEAM READY is on view in the display, the You can obtain the JURA Auto-Cappuccino Cleaner from machine is ready to dispense steam. the specialist shop. -
Page 15: Switching Off The Impressa
You can programme the following stages: As long as STEAM READY os on view in the display, the machine is ready to dispense steam. ¼ Filter ¼ Water hardness Fill the container with 2.5 dl of fresh water. ¼ Aroma Dip the milk pipe into the container with the fresh water. -
Page 16: Programming The Temperature
To confirm the new settings, press the Rotary Switch (1). READY TEMPERATURE Press programming key (4) until FILTER appears. Press the programming key (4) to quit the programming mode or select the next programming item using the Rotary The illuminated ring (2) is active. Switch (1). -
Page 17: Programming The Automatic Switch-On Time
15.7 Programming the automatic switch-off time READY You can programme your coffee machine such that it will If the machine is disconnected from power supply, the time switch off automatically after a certain time. You can pro- must be programmed again. gramme the switch-off time in a range between 0.5 and 9 hours, or select ––:––... -
Page 18: Programming The Language
READY LANGUAGE Press programming key (4) until Now press the Rotary Switch (1) to start programming the item FILTER appears. LANGUAGE. The illuminated ring (2) is active. Turn the Rotary Switch (1) until the required language is dis- played. Turn the Rotary Switch (1) until CUPS MADE is displayed. For example ENGLISH CUPS MADE... -
Page 19: Programming The Display For Ml/Oz
READY Press the programming key (4) to quit the programming mode or select the next programming item using the Rotary The water tank should be rinsed daily and refilled with fresh Switch (1). water. Only fill in fresh, cold water. Never fill in milk, READY mineral water or other liquids. -
Page 20: Fill Coffee Beans
16.4 Fill coffee beans 16.7 IMPRESSA calcified FILL During operation, the machine will calcify. The degree of scaling BEANS depends on the hardness of the water in your region. The machine will inform you when descaling is required. You can still draw off Refill beans as described in Chapter 2.4. -
Page 21: Emptying The System
Your IMPRESSA features an integrated cleaning program. The cleaning operation will take some 15 min. PRESS RINSE Please only use original JURA cleaning tablets: their formu- Press the maintenance key (7). la is especially tailored to JURA coffee machines. Please... -
Page 22: Descaling
Insert the tray again. descaling operation will take some 40 min. SOLVENT Please only use original JURA descaling tablets: their for- IN TANK mula is especially tailored to JURA coffee machines. Please note that machine defects or residues in the water cannot be Completely dissolve the content of one blister (3 tablets) in a jug excluded if you use inappropriate descaling agents. -
Page 23: Disposal
20. Tips for perfect coffee OPEN Height-adjustable coffee spout (17) Open the steam / hot water draw-off tap (14) (Fig. 13). You can adjust the height of the coffee spout to the size of your cups (Fig. 3) DESCALING CLOSE TAP Grinding degree After you have closed the steam / hot water draw off tap (14), Refer to Chapter 2.5 «Adjusting the grinding gear». -
Page 24: Messages
Start de-scaling programme (Chapter 18) READY FILTER Filter used up Replace filter (Chapter 5.2) FAULT General fault - switch off - disconnect from mains supply - Connect IMPRESSA to power supply - Switch on IMPRESSA - Have IMPRESSA checked by JURA Service... -
Page 25: Problems
Pre-ground coffee too fine Use a coarser pre-ground coffee High-frequency, electromagnetic interference may influence the display. Drawing off coffee is possible at any time. If the messages or problems still persist, please contact your local authorized dealer or JURA Elektroapparate AG. -
Page 26: Legal Information
Any Pump pressure: static, max. 15 bar obligations to be fulfilled by JURA Elektroapparate AG are stipu- Water tank: 3.2 litres lated in the corresponding purchase contract, which also contains the full and solely applicable warranty stipulations. - Page 27 JURA Elektroapparate AG – Kaffeeweltstrasse 10 – CH-4626 Niederbuchsiten www.jura.com...
