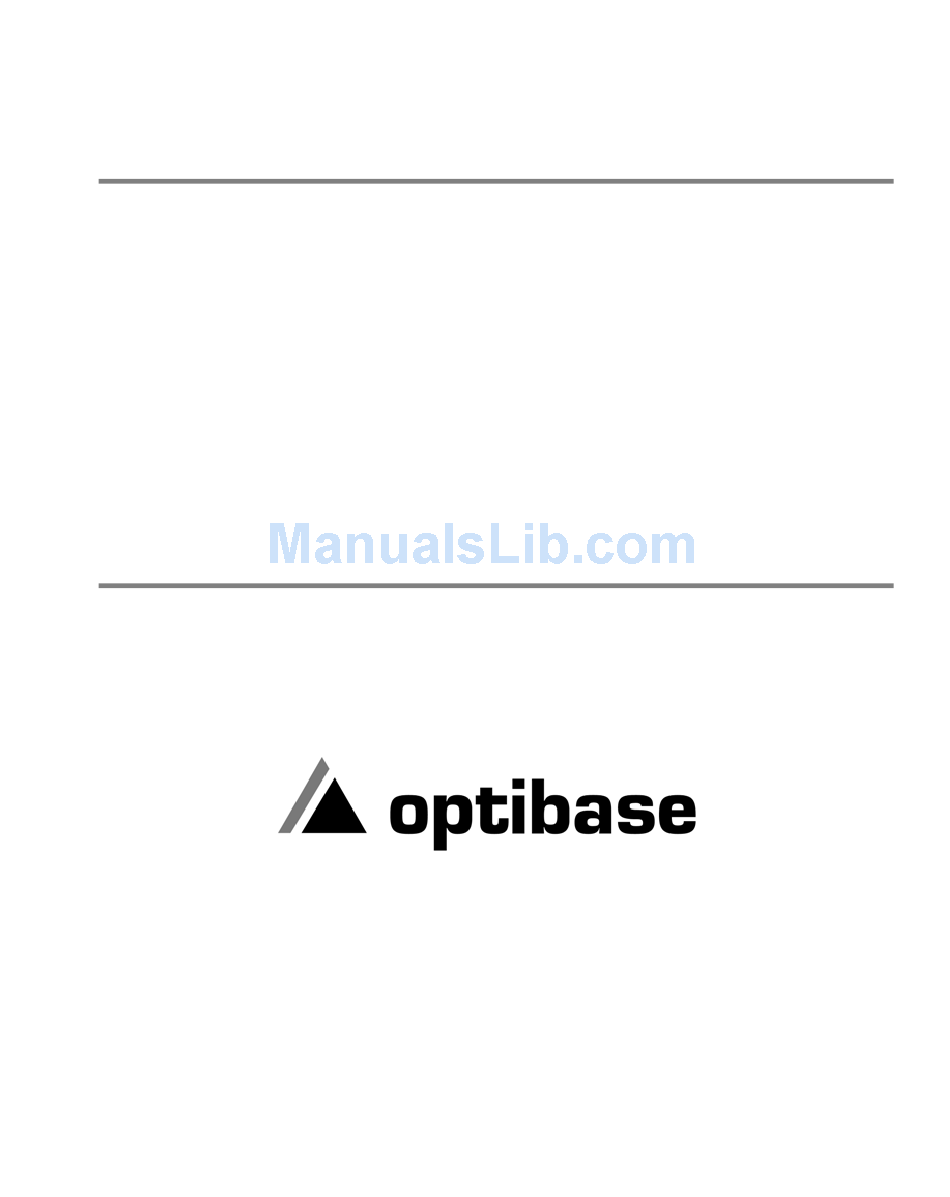

  • Page 1 MGW 2400 WMT Streaming Server User's Manual...
  • Page 2 Notice Information in this document is subject to change without notice. Optibase Inc. and Optibase Ltd. assume no responsibility for any errors that may appear in this manual. Companies, names and data used in examples herein are fictitious unless otherwise noted. No part of this document may be copied or reproduced in any form, or by any means, electronic or mechanical, for any purpose, without the express written permission of Optibase Inc.

  • Page 3: Safety Instructions

    Safety Instructions Use the following safety guidelines to help protect your MGW 2400 unit from potential damage and to ensure your own personal safety. When using MGW 2400 As you operate MGW 2400, observe the following safety guidelines Do not open the MGW 2400 unit, as this will void your warranty. MGW 2400 does not contain any user serviceable parts.
  • Page 4 • Keep your MGW 2400 unit away from radiators and heat sources. Also, do not block cooling vents. Avoid placing loose papers underneath your MGW 2400 unit. Do not place your MGW 2400 unit in a closed-in wall unit or on a bed, sofa, or rug.

  • Page 5: Compliance Information

    Compliance Information FCC User Information This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 6: Declaration Of Conformity

    Declaration of Conformity Manufacturer’s Name: Optibase Ltd. Manufacturer’s Address: 7 Shenkar St., Herzliya 46120, Israel Description of Equipment: MGW 2400 WMT Streaming Server with MGE-400D and MGE-400 Encoders Date of Issue: 2002 Directive Complied With: 89/336/EEC, 73/23/EEC, 93/68/EEC Harmonized Standards to which Conformity is Declared: •...

  • Page 7: Table Of Contents

    Introduction ... 1 Overview ... 1 System Description ... 2 System Overview...2 MGW 2400 Features ...3 What’s in this Manual ... 4 Configuration & Installation ... 5 Overview ... 5 System Configuration... 6 MGW 2400 Components ...6 Peripheral Components ...8 Getting Started...
  • Page 8 Initial Configuration ... 20 Configuring HyperTerminal...20 DHCP enabled Networks...22 Changing Passwords...27 MGW 2400’s Network Settings...28 If DHCP is disabled – TCP/IP Settings ...34 MGW 2400 Utilities ...39 Working with SCSI Disks ...41 Uploading Files...44 Changing Settings from a Remote PC ... 45 Operating MGW 2400 ...
  • Page 9 Main Window Overview... 59 The Modules Page ...60 The Channels Page ...61 The Platform Page...62 Toolbar and Displays ...66 Viewing and Setting Module Parameters ... 67 I/O Parameters ...67 Encoding Parameters ...70 Tools...71 Editing the Channel Profile... 72 Adding a Channel ...73 Editing an existing Channel ...75 Removing Channels ...75 Viewing the Channel Profile ...76...
  • Page 10 Technical Specifications ... 97 Chassis ... 97 Physical ...97 Electrical Characteristics ...97 Input/Output Interfaces ...98 Environmental...98 Safety Standards ...98 Management...99 Network Protocols ...99 Encoding Modules ... 100 Physical Dimensions ...100 Standard Compliance ...100 Input Signals ...100 Encoding Format ...100 Video Resolutions and Bit-Rates ...101 Audio Modes and Bit-Rates ...101 System Defaults...

  • Page 11: Introduction

    Overview MGW 2400 is a multi-channel WMT encoding and streaming server designed to enable the deployment of advanced streaming media services over the broadband Internet and corporate networks. MGW 2400 encodes and streams up to six live Microsoft WMT compliant streams over broadband terrestrial and wireless networks such as xDSL, FTTx, satellite, cable, Ethernet LANs and the Internet.

  • Page 12: System Description

    Chapter 1 • System Description System Description MGW 2400 easily integrates with networking equipment and complementary video equipment. This section describes MGW 2400 and its features. System Overview Table 1 lists the PCs needed to configure and operate MGW 2400. Computer Configuration PC Management Station...

  • Page 13: Mgw 2400 Features

    MGW 2400 Features • Multi-channel rack-mount video streaming server. • Encodes, multiplexes and transmits up to 6 live Microsoft WMT compliant streams. • Real-time uploading to a Windows Media Server. • Multiple multicast targets and on-demand live unicast targets per channel. •...

  • Page 14: What's In This Manual

    Chapter 1 • What’s in this Manual What’s in this Manual This manual shows you how to use MGW 2400 as follows: • • • • • Chapter 1 presents an overview of MGW 2400. Chapter 2 shows you how to install and configure MGW 2400.

  • Page 15: Configuration & Installation

    Configuration & Installation Overview MGW 2400 is a rack-mountable stand-alone server. Up to six WMT encoding modules can be installed in MGW 2400's chassis. You may operate MGW 2400 from any PC on your network that has the MGW 2400 EMS installed. In this Chapter •...

  • Page 16: System Configuration

    This section lists the MGW 2400 components. It also explains and describes optional and required peripheral components, which are not supplied by Optibase. MGW 2400 Components The following components are supplied by Optibase, if not otherwise noted. Component MGW 2400 chassis Power cord that fits your local Din socket.
  • Page 17 Component MGE-400 encoding module MGE-400D encoding module Video BNC cable Low Loss Digital Video Belden 1694A cable S-Video MiniDIN cable Audio Stereo MiniJack cable RCA Coaxial cable Table 3: Encoding Modules Component MGW 2400 Configuration Utility MGW 2400 EMS Table 4: Software Document MGW 2400 User’s Manual MGW 2400 EMS Help...

  • Page 18: Peripheral Components

    Chapter 2 • System Configuration Peripheral Components This section lists peripheral components that serve MGW 2400. Optibase does not supply these components. Hardware PC (Windows 2000 or XP) with available COM1 port. This PC will be referred to as Configuration PC.

  • Page 19: Getting Started

    Getting Started This section describes how to unpack and start working with MGW 2400. • To unpack and rack-mount MGW 2400, refer to page 10 • For a hardware overview, refer to page 12. • For instructions on installing and removing encoding modules and connect sources, refer to page 16.

  • Page 20: Unpacking Mgw 2400

    Chapter 2 • Getting Started Unpacking MGW 2400 Mounting MGW 2400 into a Rack MGW 2400 can be used as a stand-alone device or rack- mounted into a 19”, 23” or ETSI rack-mount chassis. To rack- mount MGW 2400, do the following: Disconnect the power cable from the power connector while mounting MGW 2400.

  • Page 21: Power Supply

    Power Supply MGW 2400 works with 90/260V AC. The power cord connects to the power connector on MGW 2400’s rear panel. MGW 2400 recognizes your local voltage automatically. MGW 2400 does not ship with a power cord. You will have to purchase a power cord that fits your local DIN socket.

  • Page 22: Hardware Overview

    10 / 100 Base T 10 / 100 Base T RS-232 Port RS-232 SCSI SCSI Port Figure 2: MGW 2400 Front Panel Table 7: MGW 2400 Front Panel Alarm LED Power LED optibase ALARM POWER MGW 2400 Channels 6 Channel LEDs Description Connects the Configuration PC to MGW 2400.
  • Page 23 LEDs Description Power Blinks green Green Alarm Ethernet Link Orange Ethernet Transmit Flashes green (Channel) 1-6 Blinks red (if module inserted) Green Blinks green Table 8: MGW 2400 Front Panel LEDs To avoid damaging MGW 2400’s hardware, turn MGW 2400 off immediately once the Alarm LED turns red.

  • Page 24: Rear Panel

    Chapter 2 • Getting Started Rear Panel Ports Six slots Power connector Power switch Slots for six Encoding Modules Power Switch Power Connector Figure 3: MGW 2400 Rear Panel Description Install up to six encoding modules. Connects the power cord. Switches MGW 2400 on and off.
  • Page 25 Encoding Module MGW 2400 supports MGE-400 and MGE-400D encoding modules. MGE-400 encoding modules support analog sources while MGE-400D encoding modules support both analog and digital sources. Figure 4: MGE-400D Encoding Module Interface Connectors Description ANALOG AUD Connects analog audio source to MGW 2400. DIG AUD Connects a digital audio source to MGW 2400.

  • Page 26: Connecting Peripherals - Encoders & Sources

    Chapter 2 • Getting Started Connecting Peripherals - Encoders & Sources To install an encoding module: • • • Make sure that MGW 2400 is switched off and disconnect the power cable. Remove the slot cover of the free slot in which you want to install an encoding module.
  • Page 27 To remove an encoding module: Make sure that MGW 2400 is switched off and disconnect the power cable. Disconnect video and audio source cables. Loosen the screws on the left and right side of the rear panel and carefully pull the encoding module out of the slot.
  • Page 28 Chapter 2 • Getting Started To connect a video source • • • • • Composite Video. Use the Video BNC cable (catalog number BZA3636) as illustrated in Figure 5 to connect a Composite video source to the COMP.VID connector. Figure 5: The Video BNC Cable (BZA3636) S-Video.
  • Page 29 To connect an audio source: • Analog audio. Use the Stereo MiniJack audio cable (catalog number WCA2274) as illustrated in Figure 7 to connect the audio source to the ANALOG AUD connector. Figure 7: The Stereo MiniJack Audio Cable (WCA2274) •...

  • Page 30: Initial Configuration

    HyperTerminal is pre-installed on PCs that run on Windows NT, 2000 or XP. For further information on HyperTerminal, refer to the Microsoft Windows documentation. Optibase has provided you with pre-configured HyperTerminal settings, which are available on MGW 2400's CD. To apply these settings, do the following: If you do not have the CD available, you have to manually configure HyperTerminal for first use.
  • Page 31 To set communication parameters in HyperTerminal: Open HyperTerminal and click Properties HyperTerminal’s toolbar. The Properties screen appears. From the Connect using list, choose COM1 to which you will connect MGW 2400 and click Configure. The COM Properties screen appears. Figure 9: HyperTerminal’s COM Properties Screen Enter the parameters into the respective fields as shown in Figure 9.

  • Page 32: Dhcp Enabled Networks

    Chapter 2 • Initial Configuration DHCP enabled Networks DHCP automatically provides TCP/IP settings for the NIC connected to the respective DHCP enabled network. In certain cases, you might want to assign unique IP addresses. To change IP addresses, refer to your local network administrator.
  • Page 33 To initialize MGW 2400 for the first time: If you have not already done so, use a serial cable to connect MGW 2400’s RS-232 port to the previously chosen and configured serial COM1 port on the Configuration PC. Connect MGW 2400’s Ethernet links to two separate network segments.
  • Page 34 Chapter 2 • Initial Configuration Upon initializing, you must change MGW 2400’s hostname. The hostname must consist of less than 15 characters. If you try to enter more than 15 characters, you will receive an error message. To change MGW 2400’s hostname, follow the instructions at page 25.
  • Page 35 To change MGW 2400’s hostname: To avoid network conflicts, make sure that you don’t have a network device with the desired new hostname already connected. Press 1 (Rename MGW 2400); you will be asked to confirm your request to change MGW 2400’s hostname. Figure 11: Change the Hostname Press Y to confirm the request.
  • Page 36 Chapter 2 • Initial Configuration 10. If you don’t want to log on again, terminate the connection. MGW 2400 is now ready to use. For instructions on operating MGW 2400, refer to chapter 3. If you wish to change the hostname again at a later stage, log on to MGW 2400 as Administrator and follow the instructions at page 25: •...

  • Page 37: Changing Passwords

    Changing Passwords MGW 2400 lets you define and change passwords for Administrator. To define and change passwords, do the following: Log on to MGW 2400’s Configuration Utility as Administrator; the Main menu appears. Type 4 (Change Administrator Password); the Password menu appears.

  • Page 38: Mgw 2400'S Network Settings

    Chapter 2 • Initial Configuration MGW 2400’s Network Settings MGW 2400 comes with two network interface cards. To increase performance, you can assign one network to manage and configure MGW 2400, and the other one to transmit. MGW 2400 lets you change network settings for both network interface cards.
  • Page 39 Chapter 2 • Initial Configuration Figure 12: The Network Menu Figure 13: The Network Mode Settings Menu...
  • Page 40 Chapter 2 • Initial Configuration 10. To return to the Main menu, press 0 (Main Menu); MGW 11. To log off MGW 2400, press 0 (Quit); you will be asked 12. To restart now, press Y; the Logon prompt appears and 13.
  • Page 41 Changing and adding DNS IP Addresses MGW 2400 lets you set the IP addresses for multiple Default Name servers (DNS) manually. You must enter all DNS IP addresses, even if you want to add or update only one of them. To view DNS options: Log on to MGW 2400’s Configuration Utility as Administrator;...
  • Page 42 Chapter 2 • Initial Configuration 10. To restart later, press N; the Logon prompt appears. You 11. If you don’t want to log on again, terminate the connection. • • • To return to the Main menu, press 0 (Main Menu); the Main menu appears.
  • Page 43 To add DNS IP addresses: To add a DNS IP address, press 1 (Add DNS IP Address); you will be asked to enter the first DNS IP address. Type the desired IP address and press Enter; the desired DNS IP address is added; you will be asked to enter the second DNS IP address.

  • Page 44: If Dhcp Is Disabled - Tcp/Ip Settings

    Chapter 2 • Initial Configuration If DHCP is disabled – TCP/IP Settings If the relevant NIC or network segments are not DHCP enabled, you have to edit TCP/IP settings manually when logging on for the first time. If desired, you may disable DHCP and set or change TCP/IP settings manually.
  • Page 45 To define or change TCP/IP settings: Enter the new IP address NIC and press Enter. Make sure that each NIC’s IP address belongs to a different subnet. To make MGW 2400 accessible from outside your local network for the relevant NIC, define the Default Gateway server's IP address and press Enter.
  • Page 46 Chapter 2 • Initial Configuration 10. To log on again, type the username and password for 11. To restart MGW 2400 later, press N; the Logon prompt 12. If you don’t want to log on again, terminate the connection. MGW 2400 is now ready to start operating. For instructions on operating MGW 2400, refer to chapter 3.
  • Page 47 Displaying TCP/IP Settings MGW 2400 lets you view the TCP/IP settings for both NICs. To view TCP/IP settings, do the following: If you changed TCP/IP settings, make sure that you first restart MGW 2400; otherwise you will not be able to view them.

  • Page 48: Restoring Default Settings

    Chapter 2 • Initial Configuration Restoring Default Settings In some cases, you may wish to restore MGW 2400’s default settings. MGW 2400 lets you restore the default of network settings and the hostname as follows: • • • Make sure that MGW 2400’s default settings won’t cause network conflicts.

  • Page 49: Mgw 2400 Utilities

    MGW 2400 Utilities This section instructs you how to set the time and date. It explains how to manage a SCSI disk from MGW 2400’s configuration and how to enable FTP mode for maintenance purposes. Setting Time and Date MGW 2400 lets you set the time and date. To set the time and date, do the following: Log on to MGW 2400’s Configuration Utility as Administrator;...
  • Page 50 Chapter 2 • Initial Configuration 10. To log on again, type the username and password for 11. If you don’t want to log on again, terminate the connection. To synchronize MGW 2400 to the network time, press 2 (To Synchronize Time and Date with Server), type the time server’s hostname upon instruction to do so and press Enter;...

  • Page 51: Working With Scsi Disks

    Working with SCSI Disks MGW 2400 requires a SCSI disk to save streams to file. MGW 2400 is equipped with an Ultrawide SCSI port, which can connect to SCSI disks. To prepare and connect a SCSI disk: Format the SCSI disk on a separate PC in NTFS or FAT FAT32) format.
  • Page 52 Chapter 2 • Initial Configuration To enable Share access for SCSI disk partitions: Log on to MGW 2400’s Configuration Utility as Administrator; the Main menu appears. Press 6 (Utility Menu); the Utility menu appears. Press 3 (Enable Share Access to SCSI Disk Partitions) and enter the desired partitions as illustrated in Figure 18;...
  • Page 53 To disable Share access for SCSI disk partitions: Log on to MGW 2400’s Configuration Utility as Administrator; the Main menu appears. Press 6 (Utility Menu); the Utility menu appears. Press 4 (Disable Share Access to SCSI Disk Partitions) and enter the desired partitions; the desired partitions cannot be accessed from the network.

  • Page 54: Uploading Files

    Log on to MGW 2400’s Configuration Utility as Administrator; the Main menu appears. Press 6 (Utility Menu); the Utility menu appears. On the Main menu, press 1 (FTP Mode); the FTP prompt appears. Follow the instructions provided by Optibase. Note...

  • Page 55: Changing Settings From A Remote Pc

    Changing Settings from a Remote PC After initializing MGW 2400 for the first time, you can perform changes from any computer in your network by using Telnet. Telnet is pre-installed on any PC running Windows and usually resides in the system folder. To make MGW 2400 accessible from outside your local network, you must define a Default Gateway.
  • Page 56 Chapter 2 • Changing Settings from a Remote PC MGW 2400 is now ready for use. For instructions on operating MGW 2400, refer to chapter 3. • • you want to restart now or later upon logging off MGW 2400. To restart now, press Y;...

  • Page 57: Operating Mgw 2400

    Operating MGW 2400 Overview MGW 2400 is a rack-mountable stand-alone server. Up to six WMT encoding modules can be installed in MGW 2400's chassis. You may operate MGW 2400 from any PC on your network that has the MGW 2400 EMS installed. In this Chapter •...

  • Page 58: Installing Software

    Chapter 3 • Installing Software Installing Software This section instructs you on configuring your Management PC and installing the MGW 2400 EMS. System Requirements • • • • • • Configuring the Management PC for the Network • • Pentium-III PC 500 MHz or higher with one 10/100BT network interface card (NIC) installed.

  • Page 59: Installing The Mgw 2400 Ems

    Installing the MGW 2400 EMS The MGW 2400 EMS installs together with Java Runtime 1.3.1_03. Make sure to uninstall any previous version of MGW 2400 EMS before you install the new version. To uninstall MGW 2400 EMS: • Use the Add Or Remove Programs wizard in the Control Panel and follow the onscreen instructions.
  • Page 60 Chapter 3 • Installing Software Double-click setupwin32.exe and follow the on-screen instructions. • You will be asked whether you wish to edit the default IP address 127.0.0.1 specified for MGW 2400 EMS. We recommend setting it to the IP address associated with the unit mostly used.
  • Page 61 To edit the default IP address at a later stage: Make sure that you close the MGW 2400 EMS. Browse the MGW 2400 EMS folders for EMSConfig.ini and create a backup. Save the backup in a different folder on your PC. Open EMSConfi.ini;...

  • Page 62: Installing Microsoft Components

    Chapter 3 • Installing Software Installing Microsoft Components In order to use an external WMS server and receive WMT streams, you have to download and install Microsoft's Windows Media Services and Windows Media Player respectively. You may install Windows Media Services and Windows Media Player on the same PC as MGW 2400 EMS, if desired.

  • Page 63: Accessing Mgw 2400

    Accessing MGW 2400 You manage MGW 2400 from MGW 2400 EMS, an SNMP based management application installed on a PC on the network. The MGW 2400 EMS allows you to remotely add, edit and remove channels associated with installed hardware. Before starting to operate MGW 2400, you must log on to MGW 2400.

  • Page 64: User Profiles

    MGW 2400 ships with three default users configured, each one associated with a certain user profile as listed below. The password for the default users is optibase. You can add, edit and delete additional users associated with the listed user profiles as explained at page 57. Users are specific to the MGW 2400 unit to which you log on.

  • Page 65: Logging On To Mgw 2400

    Logging on to MGW 2400 Up to ten users associated with three different user profiles can access MGW 2400. The same user can log on once from the same Management PC and up to five times from different Management PCs. Users can log on via NIC A or NIC B depending on the configuration and which one is used first.
  • Page 66 Chapter 3 • Accessing MGW 2400 Logging on to a different Unit or as a different User If the arrow is broken and turned red Re-Login. In this case, first close MGW 2400 EMS and then log on to a different unit. From the Privileges list, choose the desired user profile.

  • Page 67: Viewing And Editing The List Of Permitted Users

    Viewing and Editing the List of Permitted Users • To edit the list of permitted users, you must be logged on as Super User. To log on as Super User, refer to the previous pages for instructions. • To view the list of permitted users, in the MGW 2400 EMS Menu bar, go to Login and then to Users/Permissions Table;...

  • Page 68: Viewing The List Of Users Currently Logged On

    Chapter 3 • Accessing MGW 2400 Viewing the List of Users Currently Logged On • Forcing a User off MGW 2400 • • Logging off MGW 2400 • In the MGW 2400 EMS Menu bar, go to Login and then to Current Users Table;...

  • Page 69: Main Window Overview

    Main Window Overview The Main window lets you view and set module, channel, platform and WMS configurations. By default, the MGW 2400 EMS Main window appears with the Modules page open. • For the Modules page, refer to page 60. •...

  • Page 70: The Modules Page

    Chapter 3 • Main Window Overview The Modules Page LEDs Figure 21: Modules Page with six Encoding Modules LED Status Description Green MGW 2400 responding MGW 2400 not responding or switched off. No error At least one fan is running too slowly or failed. No channel configured or slot empty Orange Channel ready...

  • Page 71: The Channels Page

    Chapter 3 • Main Window Overview The Channels Page Figure 22: Channels Page with one Channel Buttons Description Opens the Channel wizard to add a channel. Opens the Parameter window to edit an existing channel. Opens the Parameter window to view channel parameters. Removes selected channels.

  • Page 72: The Platform Page

    Chapter 3 • Main Window Overview The Platform Page Unit Parameters Parameters Description Up Time Name Location Figure 23: Platform Page Settings Comments MGW 2400's Version Time since last switching To update the displayed time, on or restarting MGW click Refresh 2400.
  • Page 73 MGW Monitoring Parameter Total Bit-Rate Number of Stations Aggregated Send Rate Number of Unicast Streams CPU Usage Table 15: Platform Page - MGW Monitoring NIC Table Parameter Settings Index IP Address NIC A and B's IP addresses Subnet Mask NIC A and B's subnet masks Table 16: Platform Page - NIC Table Tools...
  • Page 74 Chapter 3 • Main Window Overview The External WMS Page Servers • • • • Figure 24: External WMS Page To add or edit an external WMS server, go to the External WMS page, select a list entry and type or change the IP address, user name and password as required and click Apply ;...

  • Page 75: Server Properties

    Server Properties Buttons Server Name User Name Password MGW Transmission NIC Table 18: External WMS Page Buttons Description Adds external WMS server to the list and makes it available. Opens related help topic. Table 19: External WMS Page Chapter 3 • Main Window Overview Settings Description An external WMS...

  • Page 76: Toolbar And Displays

    Chapter 3 • Main Window Overview Toolbar and Displays The Main window's Menu and Status bars are available from the Modules, Channels, Platform and External WMS pages. The following table explains available options. Toolbar Status Buttons Status Bar Description Opens the Login window to log on to a different unit or as a different user.

  • Page 77: Viewing And Setting Module Parameters

    Viewing and Setting Module Parameters To access the desired encoding module's parameters, click the associated image in the Modules page. I/O Parameters Figure 25: Encoding Module - I/O Parameters Video Settings Source Composite S-Video Color System NTSC, PAL, Auto Detect Input Detect Chapter 3 •...
  • Page 78 Chapter 3 • Viewing and Setting Module Parameters Video Color Sys Detect Sharpness Filter Contrast Brightness Saturation Settings Comments NTSC, PAL, N/A If you choose Auto Detect, this field displays the correct color system. This field displays N/A if the color system could not be recognized or no source is connected.
  • Page 79 Chapter 3 • Viewing and Setting Module Parameters Audio Settings Audio Source Unbalanced AES/EBU Sample Rate 32, 44.1, 48 kHz Table 22: Encoding Module - Audio I/O Parameters Comments Analog audio source that has a single voltage relative to ground or common.

  • Page 80: Encoding Parameters

    Chapter 3 • Viewing and Setting Module Parameters Encoding Parameters Module Capabilities Max. Video Bit Rate Figure 26: Encoding Module - Encoding Parameters Comment = WMT detected = WMA detected Displays the bit-rate to which you can adjust while playing the channel. If this field displays 0, you cannot adjust the bit-rate while playing.

  • Page 81: Tools

    Encoder State Video and Audio Resolutions Tools Buttons Description Updates the displayed settings. This button is disabled if you are logged on as Guest. Applies changes and closes the window. This button is disabled if you are logged on as Guest. Closes the current window without making changes.

  • Page 82: Editing The Channel Profile

    Chapter 3 • Editing the Channel Profile Editing the Channel Profile Each encoding module supports one WMT channel. You can configure channels either manually or use previous configurations that you saved as templates. MGW 2400 allows you also to save configurations for later use. •...

  • Page 83: Adding A Channel

    Adding a Channel You can manually configure a new channel or use previous configurations that you saved as templates. You can add one channel per installed encoding module. If you logged on as Guest, you cannot add channels. To define a new channel: On the MGW 2400 EMS Main window, in the toolbar, click Add Channels appears.
  • Page 84 Chapter 3 • Editing the Channel Profile To complete adding the channel: • • • To continue, click Next appear. • Input parameters. To view advanced video input parameters, click Video to page 81. • Encoding (processing) parameters. To view advanced video or audio encoding parameters, click Video or Audio...

  • Page 85: Editing An Existing Channel

    Editing an existing Channel If you logged on as Guest, you cannot edit channel parameters. To view channel parameters without editing: • Select the desired channel and click View parameters appear but are unavailable for editing. To edit channel parameters: Select the desired channel and click Edit parameters appear and are available for editing.

  • Page 86: Viewing The Channel Profile

    Chapter 3 • Editing the Channel Profile Viewing the Channel Profile In the MGW 2400 EMS Main window, click the Channels tab; the Channels list appears displaying the current channel profile as follows. • • • • State Stopped Playing Stopped Playing Ready...

  • Page 87: Managing Templates

    Managing Templates To add a template, you must have at least one channel added to the Channels list. For instructions on adding a channel, refer to page 73. To view existing templates: • On the MGW 2400 EMS toolbar, click Templates ;...
  • Page 88 Chapter 3 • Editing the Channel Profile To add a template from the Channels list: To delete a template: • On the Channels list, select the desired channel and click Save ; you will be asked to assign a name and add a short description (optional).

  • Page 89: Managing Configurations

    Managing Configurations MGW 2400 lets you save system configurations allowing you to restore channels and their settings from previous settings. To view configurations: • On the MGW 2400 EMS Main window, in the toolbar, click Configs appears displaying a list of currently saved configurations. Figure 27: The Device Configuration Manager •...
  • Page 90 Chapter 3 • Editing the Channel Profile To activate a configuration: • To reload a configuration after restarting MGW 2400: • To add a configuration: • To delete a configuration: • When adding or activating a configuration, a window appears indicating that the issued command is being processed.

  • Page 91: Editing Channel Parameters

    Editing Channel Parameters If you add a channel, default parameters are set, which you can change. Some video parameters may be changed while playing. • For input parameters, refer to page 67. • For encoding parameters, refer to page 81. •...

  • Page 92: Parameters Settings

    Chapter 3 • Editing Channel Parameters Advanced Video Encoding Parameters • • • • Parameters Fixed Bit- Rate Frame Sampling Method Frame Drop Step If you are in the process of adding a channel, click Video for advanced video encoding parameters. If you are in the process of editing a channel, click Advanced for advanced video encoding...
  • Page 93 Parameters Settings Video Buffer 1000 (default) Window Dup Top Lines 0 - 10 (default is 0) Dup Bottom 0 - 10 (default is 1) Lines DCT Filter Automatic (default) Disabled Level 1 Level 2 Smooth Filter Automatic (default) Disabled Level 1 Level 2 Intra Period 2 - 240...

  • Page 94: Audio Parameters

    Chapter 3 • Editing Channel Parameters Audio Parameters Parameters Channel Mode Bit-rate Advanced Audio Parameters • • • Parameters Encoding Format Buffer Window Settings Mono or Stereo Available audio bit-rates depend on the sample rate you chose. Table 29: Audio Encoding Parameters If you are in the process of adding a channel, click Audio for advanced audio encoding parameters.

  • Page 95: Adjusting Video Parameters On The Fly

    Adjusting Video Parameters On The Fly MGW 2400 lets you edit certain parameters while channels are being encoded. Select the desired channel and click Edit parameters appear for editing. Set the desired parameters and click Apply close the Video Parameters window without making changes, click Cancel For parameter settings and explanations, refer to pages 67 and 81 respectively.

  • Page 96: Target Parameters

    Chapter 3 • Editing Channel Parameters Target Parameters • • • Viewing and Editing Target Parameters • • WMS Multicast Parameters External WMS For WMS Multicast, refer to the section below. For WMS Unicast, refer to page 89. For writing to a file, refer to page 90. If you are in the process of adding a channel, select the desired target and click Edit displaying the associated parameters.
  • Page 97 Parameters Settings Output NIC IP address of the NIC via which content transmits. Target IP Multicast IP addresses address 224.1.1.1 - 239.255.255.255 Port You may use ports between 1024 and 20000. Do not use ports between 7008 and 7013. UDP Block Size 1024 - 20000 (default is 0 for Automatic) Chapter 3 •...
  • Page 98 Chapter 3 • Editing Channel Parameters Parameters NSC File Name User Name Password Settings If you write the file to a SCSI disk connected to MGW 2400, enter the full path and file name with the file name's extension NSC, for example <SCSI drive>:\<Folder names>\File.nsc.
  • Page 99 WMS Unicast Parameters Settings External WMS <None> (default) IP address of an external WMS server you may have configured for this channel. Max Clients 0 - 10 (default is 10) UDP Block Size 1024 - 20000 (default is 0 for Automatic) Host URL For example: mms://MGW2400/Test0...

  • Page 100: File Output

    Chapter 3 • Editing Channel Parameters File Output Parameters File Name User Name Password • • • • • Settings If you write the file to a SCSI disk connected to MGW 2400, enter the full path and file name with the file name's extension ASF, for example <SCSI drive>:\<Folder names>\File.asf.

  • Page 101: Operating Channels

    Operating Channels This section instructs you on transmitting and receiving WMT channels for playback. To start playing a channel: Log on to MGW 2400 EMS as Administrator or Super User; the MGW 2400 EMS Main window appears with the Modules page open. If you log on as Guest, you cannot operate channels.

  • Page 102: Receiving And Playing Back Streams

    Chapter 3 • Operating Channels Receiving and Playing Back Streams We recommend using Windows Media Player 9 Series (English version). For instructions on installing Windows Media Player 9 Series, refer to page 52. To play a multicast stream: Verify that the desired channel is transmitting to a multicast target.
  • Page 103 To play a unicast stream: Verify that the desired channel is transmitting to a unicast target. On the Desktop of the receiving client, click Windows Media Player appears. From the menu, select File and then Open URL; the Open URL window appears. Type the URL for the desired unicast stream into the Open field in the Open URL, for example: mms://172.16.100.44/Test0.

  • Page 104: Upgrading Mgw 2400

    Upgrades will be made available for MGW 2400. The required upgrade files are provided in zip archives available on a CD or at Optibase's FTP site for download. Instructions for down- loading files from Optibase's FTP site, required passwords and information on the relevant upgrades are provided with upgrade release notes.
  • Page 105 Administrators group and has a password assigned. Disable currently active firewall software. Create a folder called optibase under the root folder on a local drive or a network drive. Make sure that this folder is shared with full permissions and accessible to MGW 2400.
  • Page 106 If your PC belongs to a workgroup, leave the Domain field empty. • Navigate to the Optibase folder. You may enter the path into the respective field including the file name or use the Browse button to navigate to the desired location.

  • Page 107: Technical Specifications

    Technical Specifications Chassis Physical Dimensions: 17.1” (w) x 15.4” (d) x 2RU (h) (19” rack compliant, 23” with brackets) Weight 8kg, 15.5 Ibs) Scalability: Up to 6 MGE-400 or MGE-400D modules, field swappable Fans Three ball-bearing fans. The fans have to be replaced every five years.

  • Page 108: Input/Output Interfaces

    Chapter 4 • Chassis Input/Output Interfaces 2 × 10/100 BaseT Ethernet 2 × RJ-45 (Full Duplex or Half Duplex support) - 2 × RJ-45 connectors Ultrawide II SCSI - 68 pin SCSI connector RS-232 serial port – RS-232 (D-9) connector Environmental Operating temperature Storage temperature...

  • Page 109: Management

    Management SNMP MIB EMS based remote management application. Telnet and FTP client for remote configuration, diagnostics and software upgrades. Local configuration via RS-232 port. Network Protocols UDP Unicast and Multicast TCP/IP HTTP SNMP Chapter 4 • Chassis...

  • Page 110: Encoding Modules

    Chapter 4 • Encoding Modules Encoding Modules MGE-400 and MGE-400D – WMT, ASF compliant Physical Dimensions 185 x 100mm, 7.2 x 3.9” Standard Compliance Microsoft Windows Media Technology, ASF compliant Input Signals Video Inputs Audio Inputs Encoding Format File Format Video Format Audio Format Audio Mode...

  • Page 111: Video Resolutions And Bit-Rates

    Video Resolutions and Bit-Rates NTSC 176x112 176x144 160x112 192x144 352x240 352x288 320x240 384x288 Audio Modes and Bit-Rates Sampling Rate 32 kHz Audio Bit-Rate 20016 22008 32000 32032 36016 40000 44024 48008 64000 64024 Chapter 4 • Encoding Modules Bit-Rates (bps) QSIF 64000 - 350000 QSIF SQP...
  • Page 112 Chapter 4 • Encoding Modules Sampling Rate 44.1 kHz Audio Bit-Rate 32040 48016 64040 64080 80016 96040 128040 160032 Sampling Rate 48 kHz Audio Bit-Rate 128008 160000 Supported Audio Mode Mono Stereo Stereo Stereo Stereo Stereo Stereo Stereo Supported Audio Mode Stereo Stereo...

  • Page 113: System Defaults

    System Defaults DHCP Client Hostname My System Settings We recommend to make a note of customized settings, as you may need them for future reference. Hostname DNS IP Addresses DNS 1 DNS 2 DNS 3 DNS 4 DNS 5 NIC A IP Address Subnet mask Default Gateway...

  • Page 114: User Names And Passwords

    MGW 2400 EMS Users Default Users super admin guest New Users MGW 2400 Administrator User Name Administrator User Profile Password Super User optibase Administrator optibase Guest optibase User Profile Passwords Default Password New Password Administrator...

  • Page 115: Troubleshooting

    Hardware Errors The Problem Possible Cause • MGW 2400 No power supply won’t turn on. to the MGW 2400. MGW 2400 • MGW 2400 may turns on, but have won’t boot. encountered a temporary error causing it not to boot. Chapter 5 Troubleshooting Possible Solution...
  • Page 116 Chapter 5 • Troubleshooting The Problem I cannot connect to MGW 2400 via RS-232. Possible Cause Possible Solution • • Is your serial Check the connection of the cable properly serial cable. Connect properly connected? or replace the cable. • •...
  • Page 117 The Problem Possible Cause • I connected a You may have SCSI hard chosen a disk to MGW, forbidden SCSI but MGW address. 2400 won’t boot. I can’t encode • Bad source or no a stream, the source connected Source LED is off and the Channel LED is green.

  • Page 118: Errors While Running Mgw 2400 Ems

    Chapter 5 • Troubleshooting Errors while running MGW 2400 EMS The Problem I cannot install the MGW 2400 I cannot log on to MGW 2400 I try locating MGW 2400 units on the network by using Discover, but no units are found.
  • Page 119 The Problem Possible Cause The channels • Channel error became un- available after unsuccessfull y trying to start and stop several times. • MGW 2400 MGW 2400 EMS EMS freezes may not repetitively communicate after about properly with one minute. MGW 2400.

  • Page 120: Error Messages

    Chapter 5 • Troubleshooting The Problem I cannot start a multicast stream. The external WMS server cannot be reached I cannot write to a file (*.asf file output). Error Messages Error messages with explanations and workarounds can be found in the MGW 2400 EMS help system. Possible Cause Possible Solution •...

  • Page 121: Optimizing Performance

    Optimizing Performance If not otherwise noted, all supported video/audio bit-rate combinations perform smoothly for up to six channels serving the desired number of multicast and unicast targets. Stereo at a Sample Rate of 32 kHz At audio bit-rates of 64000 - 64024 bps, six channels can transmit to three unicast targets.
  • Page 123 UDP Block Size Values UDP Block Size values strongly depend on video and audio bit- rates. This section shows UDP Block Size values selected automatically when choosing 0 for Automatic on the MGW 2400 EMS Target page. This section also shows you the lowest values that you may choose manually.
  • Page 124 Appendix B • UDP Block Size Values Video Bit-Rates (bps) 700000 1000000 1000000 1000000 1500000 1500000 1500000 2000000 2000000 2000000 Audio Sampling Rate: 44.1 kHz: Video Bit-Rates (bps) 200000 300000 500000 700000 1000000 1500000 2000000 Audio Default UDP Bit-Rates (bps) Block Size 32032 9281...
  • Page 125 Stereo Audio Sampling Rate: 32 kHz: Video Audio Bit-Rates (bps) Bit-Rates (bps) 200000 22008 200000 32032 200000 36016 200000 40000 200000 44024 200000 48008 200000 64000 200000 64024 300000 22008 300000 32032 300000 36016 300000 40000 300000 44024 300000 48008 300000 64000 300000...
  • Page 126 Appendix B • UDP Block Size Values Video Bit-Rates (bps) 700000 700000 700000 700000 700000 700000 700000 1000000 1000000 1000000 1000000 1000000 1000000 1000000 1000000 1500000 1500000 1500000 1500000 1500000 1500000 1500000 1500000 2000000 2000000 2000000 2000000 2000000 2000000 2000000 Audio Default UDP Bit-Rates (bps)
  • Page 127 Video Audio Bit-Rates (bps) Bit-Rates (bps) 2000000 64024 Appendix B • UDP Block Size Values Default UDP Lowest UDP Block Size Block Size 16111 1722...
  • Page 128 Appendix B • UDP Block Size Values Audio Sampling Rate: 44.1 kHz: Video Bit-Rates (bps) 200000 200000 200000 200000 200000 200000 200000 300000 300000 300000 300000 300000 300000 300000 500000 500000 500000 500000 500000 500000 500000 700000 700000 700000 700000 700000 700000 Audio...
  • Page 129 Video Audio Bit-Rates (bps) Bit-Rates (bps) 700000 160032 1000000 48016 1000000 64040 1000000 64080 1000000 80016 1000000 96040 1000000 128040 1000000 160032 1500000 48016 1500000 64040 1500000 64080 1500000 80016 1500000 96040 1500000 128040 1500000 160032 2000000 48016 2000000 64040 2000000 64080 2000000...
  • Page 130 Appendix B • UDP Block Size Values Audio Sampling Rate: 48 kHz: Video Bit-Rates (bps) 200000 200000 300000 300000 500000 500000 700000 700000 1000000 1000000 1500000 1500000 2000000 2000000 Audio Default UDP Bit-Rates (bps) Block Size 128008 4231 160000 4631 128008 5481 160000...
  • Page 131 Optimizing your Network Introduction In order for rich media to be an effective tool for your business you must first provision your network to support streaming. Below are some rules of thumb to ensure that video streaming will enhance your company’s performance without hurting your network performance.
  • Page 132 Appendix C • Optimizing your Network not adversely affect other segments. In this case, clusters of people will have access to resources from the same common device that connects them to the backbone. Exploit new Technologies for your Backbone Your backbone should be larger than the pipes that connect to it.
  • Page 133 Network Configurations that are friendly to Streaming 100BaseT Switched Networks More bandwidth is always better than less bandwidth. 100BaseT appliances have more features and more capabilities than 10BaseT appliances. While it is true that a 10BaseT network can theoretically support the streaming of an MPEG-1 SIF stream at 1-1.2 Mbps, this will effectively use 30% to 40% of available bandwidth, rendering the network ineffective.
  • Page 134 Appendix C • Optimizing your Network (Metropolitan Area Network). LAN Emulation (LANE) is used in these types of networks to give an Ethernet feel to the network. This emulation is easier to implement than IP emulation over ATM and is much more popular. ATM’s broad bandwidth (155Mb) and interfaces, with no collisions, is ideal for streaming.

  • Page 135: Glossary Of Terms

    Appendix D Glossary of Terms Access time – The time between issuing a command to read or write a specific location until reading or writing actually starts at that location (in mass storage devices). Algorithm – A detailed description of a method. Amplifier –...
  • Page 136 Appendix D • Glossary of Terms The letterbox method produces a black band at the top and bottom of the screen, wasting the television's vertical resolution. AVI – Refers to Audio Video Interleaved, the original term for Microsoft’s Video For Windows. Bandwidth –...
  • Page 137 Appendix D • Glossary of Terms applications, buffers store video or audio data until there is enough information for the stream to be composed. Bus Topology – A LAN network in which all nodes connect to the same cable. Data transmit across this one cable. CBR –...
  • Page 138 Appendix D • Glossary of Terms Color Noise – Random interference in the color portion of a composite video system. Because of reduced color bandwidth or color subsampling, color noise appears as relatively long streaks of incorrect color in the image. Collision –...
  • Page 139 For example, "optibase.com" could be a domain with records for "www.optibase.com" and "www1.optibase.com," and so forth. In Windows NT and Windows 2000, a domain is a set of network resources (applications, printers, and so forth) for a group of users.
  • Page 140 Appendix D • Glossary of Terms Driver – A software entity that provides a software interface to a specific piece of hardware. For example, the MPEG-5000 video driver provides software access to the video board hardware. DSL – Refers to the Digital Subscriber Line, a technology for bringing high-bandwidth information to homes and small businesses over ordinary copper telephone lines.
  • Page 141 Appendix D • Glossary of Terms Frame – Refers to a single picture being part of a series. When the series is viewed at speed, a “moving picture” is created. Frame rate – The frame rate of a video sequence refers to how many frames are viewed per second.
  • Page 142 Appendix D • Glossary of Terms I Frames – Intra Frames, which are key reference frames in the MPEG compression algorithm. I-frames contain all the data needed to represent an entire frame, IGMP – Refers to the Internet Group Management Protocol, an Internet protocol that provides a way for an Internet computer to report its multicast group membership to adjacent routers.
  • Page 143 KBps – Kilobytes per second. A date flow rate indicating exactly 2 bytes per second. Kiosk – A stand-alone unit being used for delivering information. Laser Disc – An analog storage device that can read video and sound. Latency – The minimum time required to move data from one point to another.
  • Page 144 Appendix D • Glossary of Terms Motion Compensation – A video compression technique that makes use of the redundancy between adjacent frames of motion video. Motion Video – Refers to video that displays real motion. It is accomplished by displaying a sequence of image (frames) rapidly enough that the eye sees the image as a continuously moving picture.
  • Page 145 Appendix D • Glossary of Terms displayed at a rate of 25 frames per second. PAL is based on a 625/50-line/field system. The bandwidth for PAL is 5.5 MHz for luminance and 1.3 MHZ for U and V. Other standards are NTSC and SECAM.
  • Page 146 Appendix D • Glossary of Terms SCSI (Small Computer System Interface) – Interface that allows up to 7 or 15 devices to be connected to a single SCSI port in series (daisy-chain). SDI – Refers to Serial Digital Interface, the standard based on a 270 Mbps transfer rate.
  • Page 147 Appendix D • Glossary of Terms pixels and a refresh rate of 30 frames per second. Note that MPEG-1 allows resolutions up to 4095 x 4095 active pixels; however, there is a "constrained subset" of parameters defined as SIF. The computer industry, which uses square pixels, has defined SIF to be 320 x 240 active pixels, with a refresh rate of whatever the computer is capable of supporting.
  • Page 148 In Ethernet, this size is 1500 bytes. In ATM 53 bytes, and in Frame Relay 6500 bytes. The network stack running on MGW, NOT THE SOFTWARE decides the size of the frame sent to the network. Optibase’s MPEG ComMotion 3.5/3.55 has...
  • Page 149 Appendix D • Glossary of Terms a checkbox for AUTO SET UDP BLOCK SIZE. Leave this box checked unless there are many buffer overrun errors on the transmitter. If this is the case, deselect this option and increase the number displayed by about 10%. MPEG ComMotion PRO does not provide any AUTO SET for the UDP Block size.
  • Page 150 Appendix D • Glossary of Terms the association of host names and locations with IP addresses without an administrator having to be involved in each configuration change. WINS automatically creates a host name- IP address mapping entry in a table, ensuring that the respective host name is unique and not a duplicate of someone else's computer name.
  • Page 151 Audio Bit-rates At 32 kHz, 101 At 44.1 kHz, 102 At 48 kHz, 102 Audio Input AES/EBU, 69, 100 Sampling rates, 69, 101 Source, 69 Unbalanced, 69 Buttons Add - channel, 61 Add - configuration, 80 Add - target, 73 Add - template, 77 Add Channel, 66, 73 Audio, 74...
  • Page 152 Rack-mounting, 10 Weight, 97 Config Utility, 7 Configuration PC, 2, 8 Configuring NICs, 34 Current settings, 37, 63 Connectors ANALOG AUD, 15 COMP.VID, 15 DIG AUD, 15 Network, 12, 98 Power, 14 RJ-45, 12 SCSI, 12, 98 SDI, 15 Serial (RS-232), 12, 98 S-VIDEO, 15 Constant bit-rate, 82 DNS, 31...
  • Page 153 Changing, 25 In the EMS, 62 HyperTerminal, 20 Required settings, 21 Initializing, 23 If DHCP disabled, 34 LEDs Alarm, 12, 13 Channels, 12, 13 Ethernet Link, 13 Ethernet Transmit, 13 Front, 13 Power, 13 Source, 15 LEDs in MGW 2400 EMS Alarm, 60 Channels, 60 Fans, 60...
  • Page 154 Connector, 12 Disabling share, 43 Disk, 6 Enabling share, 42 Preparing, 41 SECAM sources, 18 Sources Analog audio, 19 Composite, 18 Digital audio, 19 SDI, 18 S-Video, 18 Standard compliance, 100 Status displays Connected unit, 66 User profile, 66 Storage temperature, 98 System defaults, 103 Targets - File File name, 90...

  • Page 155: Technical Support

    Technical Support Optibase's Extended Warranty program is a support package for Optibase products and provides one to four years of warranty starting with the day of purchase. For more details and first-line support, contact the reseller or distributor who sold you your Optibase product.

  • Page 156: Warranty

    We will repair or replace (at our option) any part that proves defective during the warranty period, provided the entire unit is returned to Optibase by prepaid shipping in Optibase’s original packing. Note that you are only eligible for warranty, if your MGW unit carries a serial number on its rear panel.

This manual is also suitable for:

Mgw 2400

Table of Contents
