Connecting antennas

To use the tuner of the TX-SR701/701E/601/601E, it is necessary to
prepare the supplied FM and AM antennas.
• Adjustment and placement of the FM and AM antennas for
better reception must be done while listening to a station
broadcast.
• If better reception cannot be obtained, then placement of an
outside antenna is recommended.

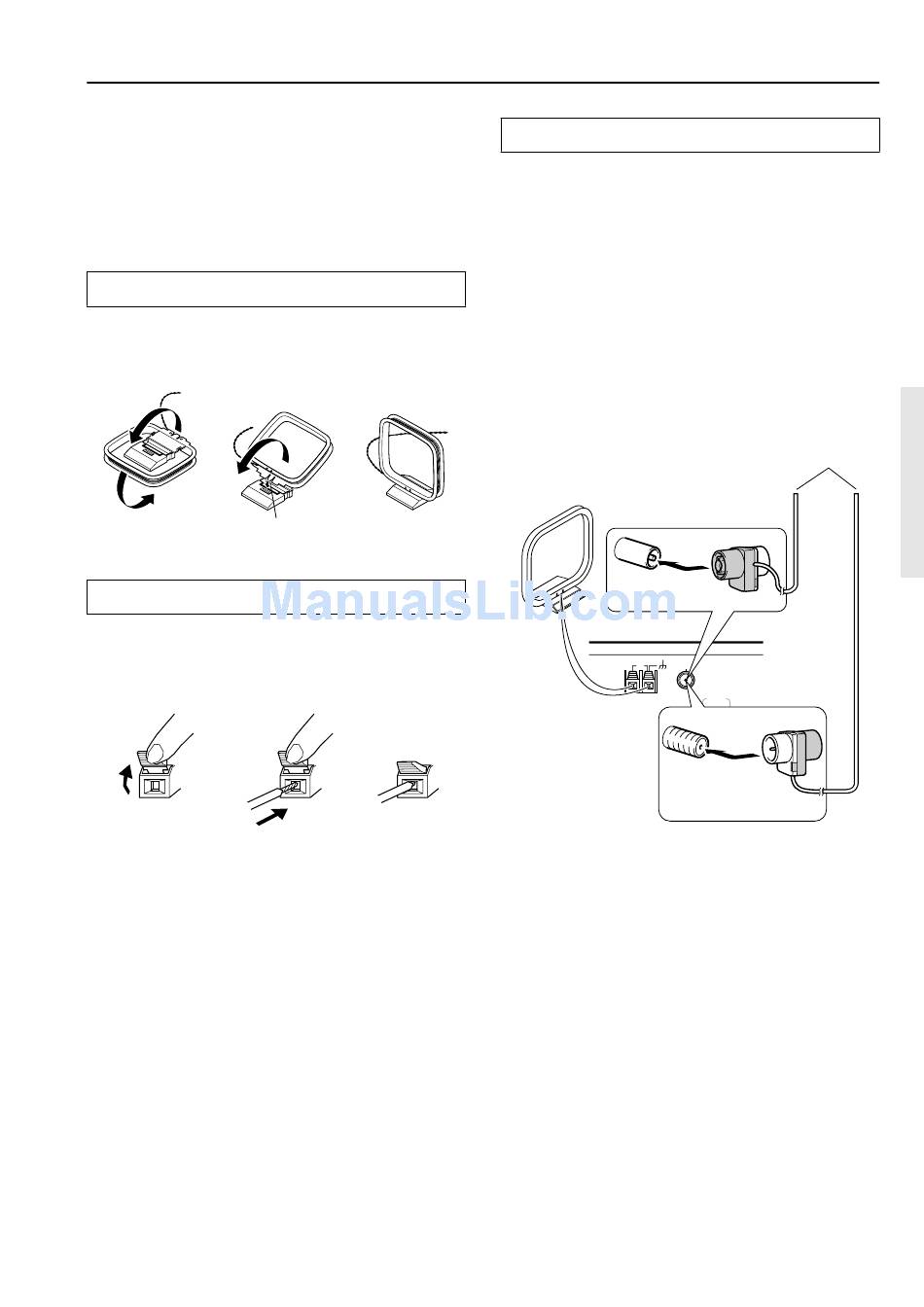

Assembling the AM loop antenna

Assemble the loop antenna as shown in the illustration.
• Refer to "Connecting the AM loop antenna" below for details
on how to connect the loop antenna.
Insert into the hole

Connecting the AM antenna cable

1. Press down the lever at the antenna terminal.
2. Insert the wire into the terminal hole.
3. Release the lever.
1 2

Connecting the included antennas

Connecting the FM indoor antenna:
The FM indoor antenna is for indoor use only. During use, extend
the antenna and adjust its orientation until the clearest signal is
received. Fix it with push pins or similar items in the position that
will cause the least amount of distortion.
If the reception is not very clear with the attached FM indoor
antenna, the use of an outdoor antenna is recommended.
Connecting the AM loop antenna:
The AM loop antenna is for indoor use only. Set it in the direction
and position where you receive the clearest sound. Put it as far away
as possible from the TX-SR701/701E/601/601E, televisions,
speaker cables, and power cords.
If the reception is not very clear with the attached AM indoor
antenna, the use of an outdoor antenna is recommended.
(Indoor)
AM loop antenna
3
Hint:
Either of the split ends of the AM antenna can be connected to
either terminal. Unlike speaker cabling, there is no polarity for AM
broadcast signals.
Other models
ANTENNA
AM FM 75
ZONE 2
LINE OUT
USA and
L
Canadian
models
FM antenna
29
