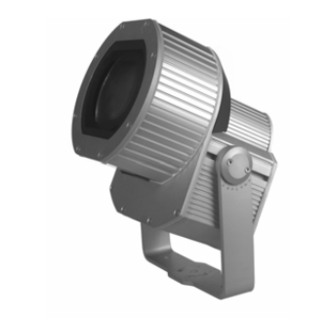

Martin Exterior 200 User Manual

Automated 150 watt color-changing floodlight
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
m a r t i n
a r c h i t e c t u r a l
Exterior 200

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Exterior 200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Martin Exterior 200

Summary of Contents for Martin Exterior 200

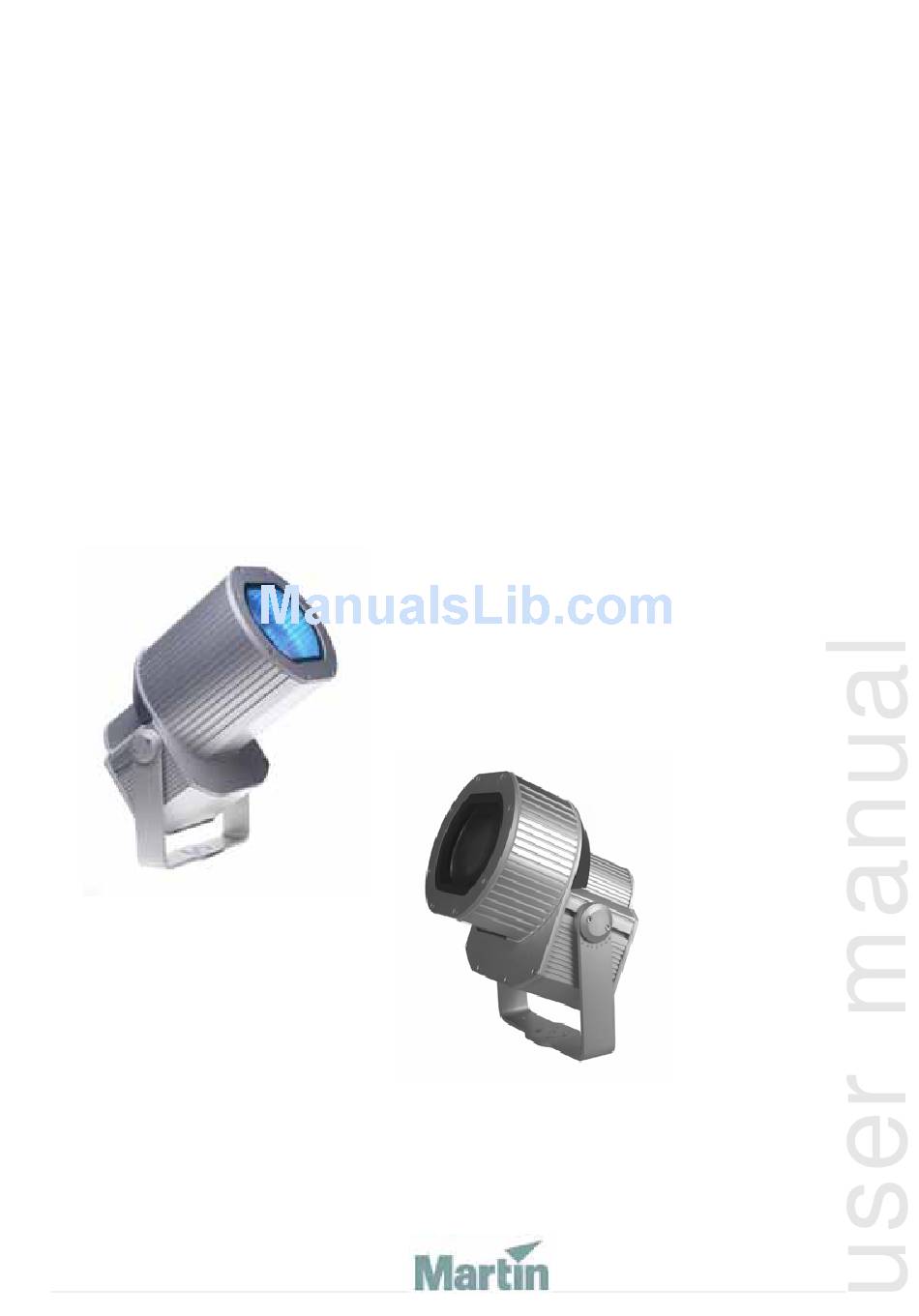

  • Page 1 Exterior 200...
  • Page 2 Martin Professional A/S, Denmark. Information subject to change without notice. Martin Professional A/S and all affiliated companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other loss occasioned by the use of, inability to use or reliance on the information contained in this manual.

  • Page 3: Table Of Contents

    Contents Section 1. Getting started ........5 Introduction .
  • Page 4 DMX protocol ......... . . 69 Specifications - Exterior 200 ....... 70...

  • Page 5: Section 1. Getting Started

    1. G ECTION ETTING STARTED...

  • Page 6: Introduction

    • Micro diffuser lens (provides a 71° beam angle in a standard Exterior 200) • Beam shaper (provides a 83° x 91° beam angle in a standard Exterior 200 and a 14° x 69° beam angle in an Exterior 200 Long Barrel)

  • Page 7: Software Note

    If you have questions about how to operate the fixture safely, please contact your Martin dealer or call the Martin 24-hour service hotline at +45 70 200 201.
  • Page 8 Do not locate the fixture in areas where accidental contact is likely. • Do not modify the fixture or install other than genuine Martin parts. • Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C (104°...

  • Page 9: Installation

    Ø53 90° Ø13 The Exterior 200 may be permanently fastened to any flat surface, pedestal, or other support that can safely bear the weight of all installed fixtures and hardware. The mounting bracket provides 3 holes for 12 mm (1/2 in.) hardware, spaced 100 mm on center, and 2 quarter-circle slots with a center radius of 26.5 mm for 8 mm (5/16 in.) hardware.

  • Page 10: Fixture Orientation And Location

    • High-pressure water jets from any direction • Immersion in water (or any other fluid) Do not bury the Exterior 200 or otherwise locate it in an unventilated space. Install the fixture in a location where it is • at least 0.5 meters (20 inches) away from the surface to be illuminated, •...

  • Page 11: Bracket Adjustment

    AC p o wer Do not connect the Exterior 200 to an electrical dimmer system: doing so can damage the electronics. Warning! Disconnect the fixture from AC power before removing any cover.
  • Page 12 C h a n g i n g t h e p o w e r s up p l y s e t t i n g s 1 Verify that the Exterior 200 is isolated from AC power. Remove the rear cover.

  • Page 13: Mains Connection

    AC Mains Transformer Tap, brown Tap, white & Tap, black voltage setting wire blue wires wire 190 - 202 V 195 V 203 - 217 V 210 V 218 - 235 V 225 V 236 - 252 V 245 V 269 - 285 V 277 V Table 2: Transformer Primary Taps 3 Set the correct AC frequency on the...
  • Page 14 • Replacing the supplied cable with one that connects directly inside the fixture. The Exterior 200 is equipped with a 1.8-meter (5.9 ft.) length of 3-conductor 0.75 mm (~18 AWG) weatherproof electrical cable for connection to the AC power supply. The cable enters the fixture through a cable gland that fits 5.5 - 10 mm diameter cables.

  • Page 15: Data Link

    Exterior 200s. Cable and junctions The Exterior 200 provides a dual 1.8 meter (5.9 ft.) 24 AWG cable with locking 3-pin male and female XLR connectors for data connection. The male cable is the data input and the female cable is the data output. The connectors are wired pin 1 to shield (gnd.), pin 2 to signal - (cold), and pin 3...
  • Page 16 Adaptors Adaptors may be required to connect the Exterior 200 to the controller or other 5-pin devices. Adaptor cables for indoor use are available from Martin. The adaptor cables are wired as shown below. 5-pin to 3-pin 3-pin to 5-pin...

  • Page 17: Fixture Settings

    One limitation with MUM is that you can only connect to, and set-up, one fixture at a time. See “Defining fixture settings using MUM” on page 18. Martin MP-2 This hardware uploader can be loaded with the Exterior Uploader 200’s control software and connected to the fixture or data link.

  • Page 18: Defining Fixture Settings Using Mum

    1 Connect a DABS1 adaptor to your PC. 2 Connect the DABS1 adaptor to your Exterior 200. 3 Power on the Exterior 200 and start the MUM application. The application will automatically detect an Exterior 200 if it is powered-on and connected to your computer via a DABS1 adaptor.
  • Page 19 Clock The Exterior 200 has a battery operated 24-hour clock that can start and stop stand-alone operation. To set the clock: 1 Using MUM, click on the Fixture information button: 2 Using the two Fixture time spin buttons set the fixture to the current time (expressed in the 24-hour clock in hours and minutes).
  • Page 20 The control address, also known as the start channel, is the first channel used. The Exterior 200 uses seven channels of control data. It reads the data on the start channel and the next six channels. If the control address is set to 100, the fixture uses channels 100, 101, 102, 103, 104, 105, and 106.

  • Page 21: Defining Fixture Settings Using An Mp-2

    D e f i n i n g f i x t u r e s e t t i n g s u s i n g a n MP-2 This hardware uploader can be loaded with the Exterior 200’s control software and connected to a fixture or data link. (Please refer to the MP-2 Uploader user manual for details on how to do this).
  • Page 22 The control address, also known as the start channel, is the first channel used. The Exterior 200 uses seven channels of control data. It reads the data on the start channel and the next six channels. If the control address is set to 100, the fixture uses channels 100, 101, 102, 103, 104, 105, and 106.
  • Page 23 5 Select the desired personality and setting. (See “MP-2 control menu structure” on page 66.) Press OK. Clock The Exterior 200 has a battery operated 24-hour clock that can start and stop stand-alone operation. To set the clock: 1 Prepare and connect an upload device as described in the MP2 Uploader manual.
  • Page 24 4 Select H ou r and scroll to the current hour. 5 Press OK. 6 Select M in u te and scroll to the current minute. 7 Press OK. 8 Press Back to return to the main menu. Fixture settings...

  • Page 25: General Operation

    G e n e r a l g u i d e l i n e s When the Exterior 200 is connected to power it will reset. For optimum lamp life, turn off lamp power whenever illumination is not required for extended periods of an hour or more.

  • Page 26: Fixture Control Methods

    • Using stand-alone programming. There are two ways of programming and storing a show in the fixture itself: 1 From a personal computer, using the Martin MUM software application, or 2 Via an MP-2 Uploader Stand-Alone programming is described in “Section 2. Stand-Alone operation”...

  • Page 27: Section 2. Stand-Alone Operation

    2. S ECTION TAND LONE OPERATION General operation...

  • Page 28: Stand-Alone Programming Overview

    The term stand-alone is used to mean that the Exterior 200 is not connected to a control device, but is pre- programmed with a series of up to 20 scenes that play continuously in a loop.

  • Page 29: About Scene Timing

    About scene timing Each scene has a dynamic part - the fade - during which effects move to the scene’s programmed positions, and a static part - the wait - where effects do not change. The duration of the fade and wait is programmed individually for each scene.

  • Page 30: Programming Methods

    The Exterior 200 provides two stand-alone programming methods; using the: • Martin MUM application from a personal computer (recommend because it provides an intuitive, easy-to-use, graphical user interface), or an • MP-2 Upload device. See the “Programming using an MP-2 Uploader” on page 37 for further information.

  • Page 31: Programming From A Pc Using Mum

    1 Connect a DABS1 adaptor to your PC. 2 Connect the DABS1 adaptor to your Exterior 200. 3 Power on the Exterior 200 and start the MUM application. The application will automatically detect an Exterior 200 if it is powered-on and connected to your computer via a DABS1 adaptor.

  • Page 32: Stand-Alone Settings

    S t a n d - A l o n e S e t t i n g s The fixture needs to be configured to know if and when to activate a stand- alone program: Click Stand-alone settings to display the following window. The following options are available: Stand-alone Activates or deactivates stand-alone operation.
  • Page 33 Synchr oni z ing scene chan ges for multiple Exterior 200s In situations where you are running multiple fixtures on a data link it is possible to synchronize scene changes (for fixtures that support this functionality - see “Introduction” on page 6). Read this section if this applies in your case.

  • Page 34: Programming Effects In Scenes

    If both the clock and the light sensor are used, operation starts, within the times set, and whenever it is darker than the light-level setting. Operation stops at the stop time provided that the ambient light is brighter than the light-trigger setting.
  • Page 35 Scene wait This is the duration a color is applied. A wait time can be time from 1 second to 12 hours. Random A range of continuously changing color combinations. colors When operating multiple fixtures in synchronized-triggering mode, the wait time in “slave”...

  • Page 36: Programming The Same Stand-Alone Show On Multiple Fixtures

    P r o g r a m m i n g t h e s a m e s t a n d - a l o n e s h o w o n m u l t i p l e f i x t u r e s Although you can only connect to and program a single fixture at a time using the MUM, you can use it to program a single fixture, download and save the fixture settings to a file on your PC, and then upload the stand-...

  • Page 37: Programming Using An Mp-2 Uploader

    Programming using an MP-2 Uploader The programming of scenes, and setting up of master/slave relationships, can be performed using an MP-2 Uploader. The uploader is connected to the fixture, used to program the stand-alone settings for that fixture (or all the fixtures connected to that fixture by data link), and then removed.

  • Page 38: Selecting Fixtures To Program

    “DMX address” on page 22. You have the option of programing all the Exterior 200s on a data link, or an individual Exterior 200. Fixture-specific settings such as the control address should be made in single-fixture mode. If no other fixtures are connected, however, then all-fixtures mode may be used.

  • Page 39: Enabling Or Disabling Stand-Alone Mode

    E n a b l i n g o r d i s a b l i n g s t a n d - a l o n e mo de • Disable stand-alone mode, select , then St a nd a l on e E na bl e , and then Of f...

  • Page 40: Automatically Triggering Stand-Alone Operation

    2 Scroll to SA E and press [enter]. 3 Select: If the fixture will operate in isolation (with no synchronous triggering). This is the factory default setting. If the fixture will send scene triggering signals to the other Exterior 200s on the data link. If the fixture should “listen”...
  • Page 41 To avoid false triggering by sudden light changes, for example from automobile headlights, the light level must remain above or below the trigger threshold for 5 minutes. To set the light trigger: 1 From the Stand alone menu, select , then Li gh t l ev e l E n ab le...

  • Page 42: Programming Effects In Scenes

    7 Select St ar t , then M in u te . Use the arrow keys to specify the stop minute. Select P r o g r a m m i n g e f f e c t s i n s c e n e s The programming of effects is performed using the stand alone Program menu options, such as: The dimmer level.

  • Page 43: Automatic Program Start At Power-On

    Remove the current scene from memory. Scenes D el e t e above the deleted scene move down a number. s ce n e Step to the next scene. N ex t s ce n e Step to the previous scene. P re v i o u s s ce n e Remove all scenes from the fixture memory.

  • Page 44: Stand-Alone Show Playback

    S c e n e e x e c u t i o n u s i n g t h e o p t i o na l M C - X The MC-X is an optional remote control unit that is available from Martin. Once the remote controller is connected, 7 scenes can be conveniently called up on the MC-X's buttons.

  • Page 45: Dmx Controller Override During Stand-Alone Show Playback

    “Defining fixture settings using MUM”. Connecting and using the MC-X Controller 1 Connect the MC-X controller to the Exterior 200’s data network via an XLR- to-RJ-45 adaptor. If multiple Exterior 200s are connected, plug the controller into the first fixture in the link.

  • Page 46: Synchronous Triggering During Stand-Alone Operation

    2 Scenes are numbered from 0 to 19. 3 A scene contains a fade-section, followed by a wait-section. 4 When running "synchronous triggering" one Exterior 200 issues commands to the other Exterior 200s to "go to scene xx", where xx is the scene number that master will execute next.
  • Page 47 6 If a slave has more scenes than the master calls, the last scenes in the slave will never be executed, as is the case with scene S4 in the following example. F=fade, W=wait Timeline => Programmed in Master Programmed in Slave Result -- F 7 A slave fixture will not listen for the next message from the master fixture...
  • Page 48 Synchronous triggering during Stand-Alone operation...

  • Page 49: Section 3. Dmx Control

    3. DMX ECTION CONTROL Synchronous triggering during Stand-Alone operation...

  • Page 50: Dmx Controller Operation

    70 for specific control values, and “Data link” on page 15 for connection requirements. DMX control device Important: If an Exterior 200 is connected to a DMX controller and receives DMX signals during show playback, the stand-alone show will stop running and the fixture will respond to the DMX controller.

  • Page 51: Effects

    3 colors are fully applied. For maximum brightness, mix only 2 colors at a time. If you have Exterior 600 and Exterior 200 fixtures rigged in the same installation then refer to “Color matching Exterior 200s and 600s” on page...
  • Page 52 Tracking control is enabled by setting channel 7, the speed channel, to a decimal value from 0 to 2. Fades are then programmed using the controller’s cross-faders. The Exterior 200 has a digital filter algorithm that averages several updates to ensure smooth movement.

  • Page 53: Section 4. Optics

    4. O ECTION PTICS DMX Controller operation...

  • Page 54: Color Matching Exterior 200S And 600S

    • Higher-powered lamps used in the Exterior 600 result in deeper colors in the cold colors of the spectrum. • Lower-powered lamp used in the Exterior 200 will give deeper colors in the warm colors of the spectrum. The following table gives some approximate values for color matching:...

  • Page 55: Lens Options

    Beam shaper The beam-shaper lens provides a 83° x 91° beam lens angle in a standard Exterior 200 and a 14° x 69° beam angle in an Exterior 200 Long Barrel. The lens should be installed with the ridges facing in, towards the lamp and may be turned as desired;...

  • Page 56: Changing The Front Glass

    1 Remove the front cover and seal. Loosen the screws in the bottom lens bracket a few turns to release the pressure in the rubber washers. Remove the top lens bracket. Remove the existing lens. 2 Place the new lens flat against the metal plate with the rougher side in or out as described above.

  • Page 57: Section 5. Service And Troubleshooting

    5. S ECTION ERVICE AND TROUBLESHOOTING Lens options...

  • Page 58: Service

    Service This section describes service procedures that can be performed by the user. Refer all service not described here to a qualified Martin technician. Warning! Disconnect the fixture from power before removing any cover. S e a l m a i n t e n a n c e Seals and torque settings To maintain the fixture’s resistance to dust and moisture, it is important that...
  • Page 59 Front section seal for Exterior 200/300 ......P/N 20600070 Lamp section seal for Exterior 200/300 ..... . . P/N 20600080 Power section seal for Exterior 200/300 .

  • Page 60: Lamp Replacement

    L a m p r e p l a c e m e n t The Exterior 200 can use the following discharge lamps. Installing any other lamp type may damage the fixture. Lamp Efficiency Color Temp. Average Life Philips CDM-SA/T 150W...

  • Page 61: Cleaning

    F i r m w a r e u p d a t e s The latest Exterior 200 firmware is available from the support area of the Martin web site at http://www.martin.com. It can be installed using an MP-2, or via a PC serial data link using a hardware interface supported by the Software Uploader shareware (also available from the Martin web site).

  • Page 62: Fuse Replacement

    Warning! Never replace fuses with ones of a different rating! The Exterior 200 has 3 fuses located in the power section. The main fuse is located on the small circuit board and the secondary fuses for the low- voltage power supplies are located on the main circuit board.

  • Page 63: Printed Circuit Board Layout

    Printed circuit board layout PL14 Magenta PL22 PL15 Cyan PL21 Yellow PL20 Dimmer PL19 PL16 PL17 PL12 PL11 PL13 Fuse T2AT Fuse T2AT Terminal PL10 PL1 PL2 Printed circuit board layout...

  • Page 64: Troubleshooting

    Troubleshooting Problem Probable cause(s) Remedy No power to fixture. Check power cables. No response from fixture when Primary fuse blown. Replace fuse. power is applied. Secondary fuse blown. Replace fuse. Controller not connected. Connect controller. Incorrect addressing of the Check address setting on fixtures.

  • Page 65: Section 6. Reference

    6. R ECTION EFERENCE...

  • Page 66: Control Menu Structure

    MP-2 control menu structure Default settings appear in bold. Level 1 Level 2 Level 3 Level 4 Level 5 Effect (default settings bold) 1-512 Select control address. address Disable stand-alone operation. Enable SA Enable stand-alone operation. Disable light level operation. Enable Enable light level operation.
  • Page 67 Level 1 Level 2 Level 3 Level 4 Level 5 Effect (default settings bold) Dimmer 0-255 Set dimmer level. Cyan 0-255 Set cyan level. Magenta 0-255 Set magenta level. Yellow 0-255 Set yellow level. Random off Disable random color. CMY - slow Random colors, slow CMY - medium Random colors, medium...
  • Page 68 Level 1 Level 2 Level 3 Level 4 Level 5 Effect (default settings bold) Reset Reset effects to home position. Lamp on Turn on lamp. Lamp off Turn off lamp. Open Move all effects to open position. All effects Closed Move all effects to closed position.

  • Page 69: Dmx Protocol

    DMX protocol Start code = 0 DMX channel Value Percent Function Reset, Lamp On/Off 0 - 207 0 - 81 Reserved (no change) 208 - 217 82 - 85 Reset fixture* * If the command is 218 - 227 85 - 89 Reserved (no change) disabled, set channels 228 - 237...

  • Page 70: Specifications - Exterior 200

    Base: ..........................GY 12 C o n t r o l & P r o g r a m m i n g Control options ....DMX-512, stand-alone, master/slave, Martin MC-X remote control Receiver ...........................RS-485 Setting and addressing ................MP-2, DAD, MUM Firmware update ..................
  • Page 71 M a x i m u m h e a t o u t p u t 195 V @ 50/60 Hz ....................665 BTU/hour 210 V @ 50/60 Hz ....................716 BTU/hour 225 V @ 50/60 Hz ....................767 BTU/hour 245 V @ 50/60 Hz ....................836 BTU/hour 277 V @ 50/60 Hz ....................945 BTU/hour * These measurements have a margin of error of +/- 10% A C S u p p l y...
  • Page 72 P h o t o m e t r i c s - E x t e r i o r 2 0 0 Efficiency ..........................39% Half peak angle ........................38º One-tenth-peak angle ......................60º Illuminance ....................12263/distance² lux Half-peak diameter ..................0.64 x distance m One-tenth-peak diameter .................0.99 x distance m Measurement conditions ..............
  • Page 73 Exterior 200 Long Barrel, 12°, 245V, 50Hz ............P/N 90509022 Exterior 200 Long Barrel, 12°, 210V, 60Hz ............P/N 90509024 Exterior 200 Long Barrel, 22°, 230V, 50Hz ............P/N 90509040 Exterior 200 Long Barrel, 22°, 245V, 50Hz ............P/N 90509042 Exterior 200 Long Barrel, 22°, 210V, 60Hz ............P/N 90509044...
  • Page 74 WEEE (Waste Electrical and Electronic Equipment), as amended by Directive 2003/108/EC, where applicable. Help preserve the environment! Ensure that this product is recycled at the end of its life. Your supplier can give details of local arrangements for ® the disposal of Martin products.
  • Page 76 • Olof Palmes Allé 18 • 8200 Aarhus N • Denmark Tel: +45 8740 0000 • Fax +45 8740 0010...
