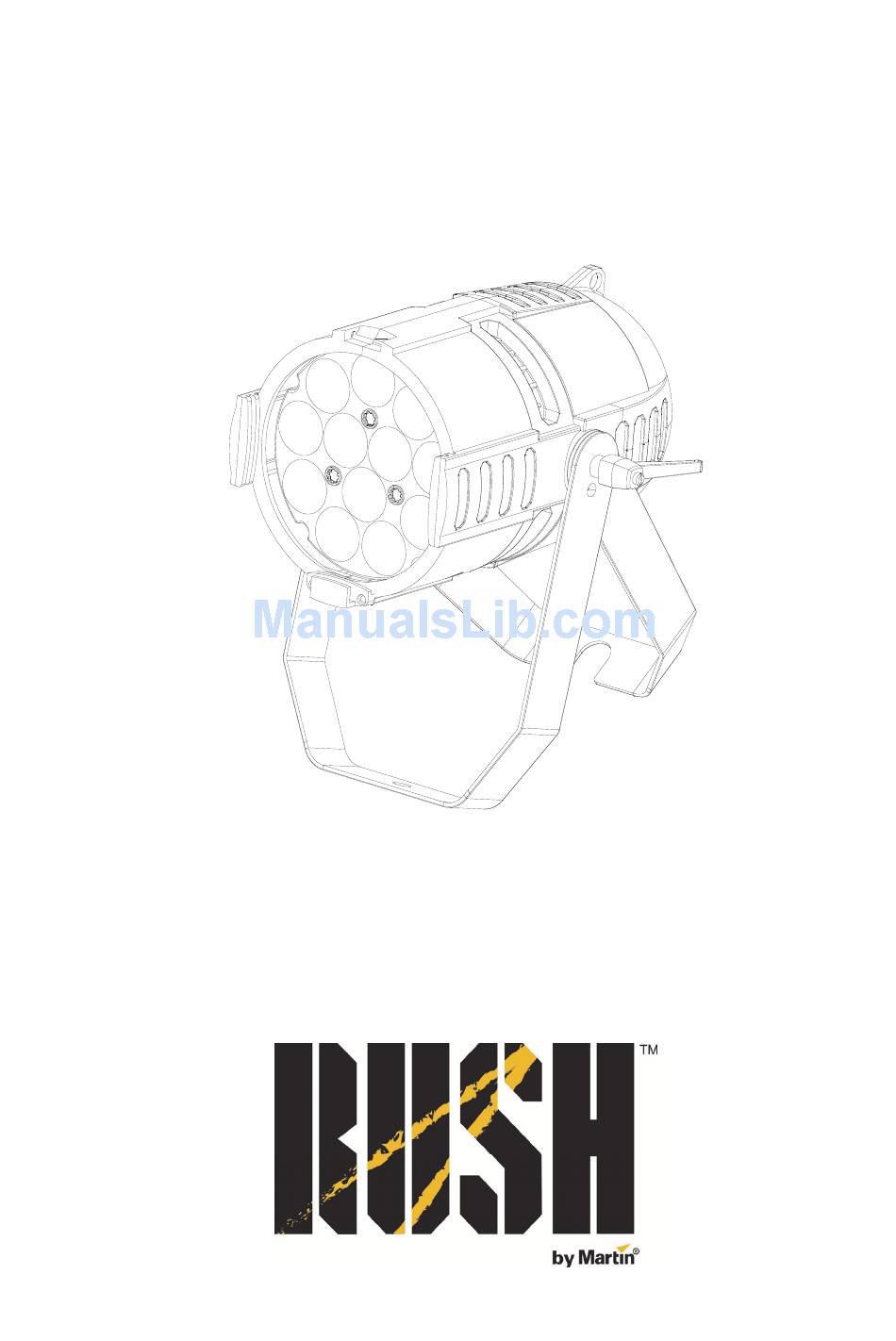

Page 1: User Manual
PAR 2 RGBW Zoom User Manual Professional Entertainment Technology... - Page 2 The Martin logo, the RUSH by Martin logo, the RUSH by Martin name, the Martin name and all other trademarks in this document pertaining to services or products by Martin Professional or its affiliates and subsidiaries are trademarks owned or licensed by Martin Professional or its affiliates or subsidiaries.
-
Page 3: Table Of Contents
Table of contents Safety information ..................... 4 Introduction ....................... 8 Before using the product for the first time ............. 8 Physical installation ..................8 Fastening the fixture to a flat surface ............9 Mounting the fixture on a truss ..............9 Securing with a safety cable ................. -
Page 4: Safety Information
Keep this manual for future use. If you have questions about how to operate the fixture safely, please contact your RUSH by Martin™ dealer or call the Martin™ 24-hour service hotline on +45 8740 0000, or in the USA on 1-888-tech-180. - Page 5 Canada the cable must be UL listed, type SJT or equivalent. In the EU the cable must be type H05VV-F or equivalent. To connect fixtures to mains power in a chain, you must first RUSH PAR 2 RGBW Zoom User Manual...
- Page 6 MAINS OUT throughput socket to MAINS IN input socket, but do not link more than: • eight (8) RUSH PAR 2 fixtures in total at 100-120 V, or • eighteen (18) RUSH PAR 2 fixtures in total at 200-240 V.
- Page 7 Do not attempt to use a fixture that is obviously damaged. Do not modify the fixture or install other than genuine RUSH by Martin™ parts. Refer any service operation not described in this manual to a qualified technician.
-
Page 8: Introduction
Introduction The RUSH PAR 2 RGBW Zoom™ is a bright single-lens LED PAR Can with fully premixed color from 12 RGBW LEDs and a 10 to 60° motorized zoom. It offers electronic dimming and strobe and comes with a flexible bracket for floor or truss mounting. -
Page 9: Fastening The Fixture To A Flat Surface
Loop the cable through one of the safety cable attachment points on the fixture (see arrows in illustration on right) and around a secure anchoring point. RUSH PAR 2 RGBW Zoom User Manual... -
Page 10: Ac Power
EU system Yellow/green Blue Brown The fixture has an auto-ranging power supply that accepts AC mains power at 100-240 V at 50/60 Hz. Do not apply AC mains power at any other voltage or RUSH PAR 2 RGBW Zoom User Manual... -
Page 11: Linking Fixtures To Power In A Chain
Using 12 AWG or 2.5mm cables from Martin™, you can link: • Maximum eight (8) RUSH PAR 2 RGBW Zoom fixtures in total at 100-120 V, or • Maximum eighteen (18) RUSH PAR 2 RGBW Zoom fixtures in total at 200-240 V. -
Page 12: Fixture Overview
Return to the previous level of the menu structure, or • Press and hold to exit the menus DOWN Go down a menu level Go up a menu level ENTER Confirm the selected function 4 – 5-pin XLR DMX input/output sockets RUSH PAR 2 RGBW Zoom User Manual... -
Page 13: Control Data Link
DMX universe and another daisy-chained link. Tips for reliable data transmission Use shielded twisted-pair cable designed for RS-485 devices: standard microphone cable cannot transmit control data reliably over long runs. 24 RUSH PAR 2 RGBW Zoom User Manual... -
Page 14: Connecting The Dmx Data Link
ENTER button, or if you want to return to the next highest level in the menu structure without making a change, press the MENU button. To exit the menus, press and hold the MENU button. RUSH PAR 2 RGBW Zoom User Manual... -
Page 15: Dmx Function Settings
9-channel mode – Full-range dimming with 16-bit fine control, shutter/strobe effects, individual control of red, green, blue and white channels for color mixing, ‘color wheel’ effect and zoom. To set a fixture’s DMX channel mode: 1. Select CHANNEL MODE and press ENTER. RUSH PAR 2 RGBW Zoom User Manual... -
Page 16: Dimming Curves
DMX signal: If you select YES, the fixture will black out If you select HOLD, the fixture will continue to show the effect that it is displaying at the time. RUSH PAR 2 RGBW Zoom User Manual... -
Page 17: Display Panel Backlight Sleep Mode
The Manual effects test menu can be used to test the fixture’s effects individually and to set a standalone scene that the fixture will show each time it is powered on: 1. Select MANUAL TEST and press ENTER. RUSH PAR 2 RGBW Zoom User Manual... -
Page 18: Stand-Alone Scene
To display the counter: 1. Select FIXTURE TIME and press ENTER. The display will show the time the unit has been running. 2. To return to a higher level of the menu structure, press MENU. RUSH PAR 2 RGBW Zoom User Manual... -
Page 19: Reset
2. To return to a higher level of the menu structure, press MENU. Reset To reset the fixture to its factory default settings: 1. Select RESET and press ENTER to confirm. 2. The fixture will now reset to its default settings. RUSH PAR 2 RGBW Zoom User Manual... -
Page 20: Effects
Color 9 Color 10 Color 11 Color 12 Color 13 Color 14 Color 15 Color 16 Color 17 Color 18 Color 19 Color 20 Color 21 Color 22 Color 23 Color 24 Color 25 RUSH PAR 2 RGBW Zoom User Manual... - Page 21 Overall intensity can be adjusted 0-100% using electronic dimming in 9- channel mode. Two channels can be used to control intensity: the first gives coarse 0-100% control, the second gives 16-bit fine adjustment. RUSH PAR 2 RGBW Zoom User Manual...
-
Page 22: Maintenance
Check again at frequent intervals. This procedure will allow you to assess cleaning requirements in your particular situation. If in doubt, consult your RUSH by Martin dealer about a suitable maintenance schedule. -
Page 23: Fuse Replacement
Do not try to repair the fixture by yourself as this may result in damage, malfunction and it may potentially void your product warranty. The equipment must only be serviced or repaired by an authorized RUSH by Martin service technician. -
Page 24: Dmx Protocol
Color wheel effect (color presets) 0-10 Open (white) 11-15 Color 1 16-20 Color 2 21-25 Color 3 Snap 26-30 Color 4 31-35 Color 5 36-40 Color 6 41-45 Color 7 46-50 Color 8 RUSH PAR 2 RGBW Zoom User Manual... - Page 25 215-221 Stop (wheel stops at current position) 222-243 CCW rotation slow fast Random colors 244-247 Random color, fast 248-251 Random color, medium 252-255 Random color, slow 0-255 Zoom wide narrow Fade RUSH PAR 2 RGBW Zoom User Manual...
-
Page 26: Control Menus
Zoom Dimmer Strobe Auto Test Automatic test of all effects Temp. Display fixture’s current temperature Fixture time Display total operation time Display currently installed firmware Firmware Version version Reset Force a fixture reset RUSH PAR 2 RGBW Zoom User Manual... -
Page 27: Troubleshooting
Check that all components on DMX link use standard DMX polarity. Attempt to control the fixture with another DMX control device. Move or shield link if it is close to an unshielded high- voltage installation. RUSH PAR 2 RGBW Zoom User Manual... -
Page 28: Specifications
Light source .......... 12 x 10 W RGBW Osram Ostar LEDs Minimum LED lifetime ..... 50 000 hours (to >70% luminous output)* Beam angle ..................10° - 60° *Figure obtained under manufacturer´s test conditions RUSH PAR 2 RGBW Zoom User Manual... - Page 29 PowerCon input connector, 3 m (9.8 ft.) ......P/N 11541503 Power relay cable, 12 AWG, SJT, with PowerCon connectors, 1.4 m (4.6 ft.) ........ P/N 11850099 Power relay cable, 12 AWG, SJT, with PowerCon connectors, 2.25 m (7.4 ft.) ......P/N 11850100 RUSH PAR 2 RGBW Zoom User Manual...
- Page 30 (Waste Electrical and Electronic Equipment), where applicable. Help preserve the environment! Ensure that this product is recycled at the end of its life. Your supplier can give details of local arrangements for the disposal of RUSH by Martin products RUSH PAR 2 RGBW Zoom User Manual...
- Page 32 Innovation Quality Performance...
