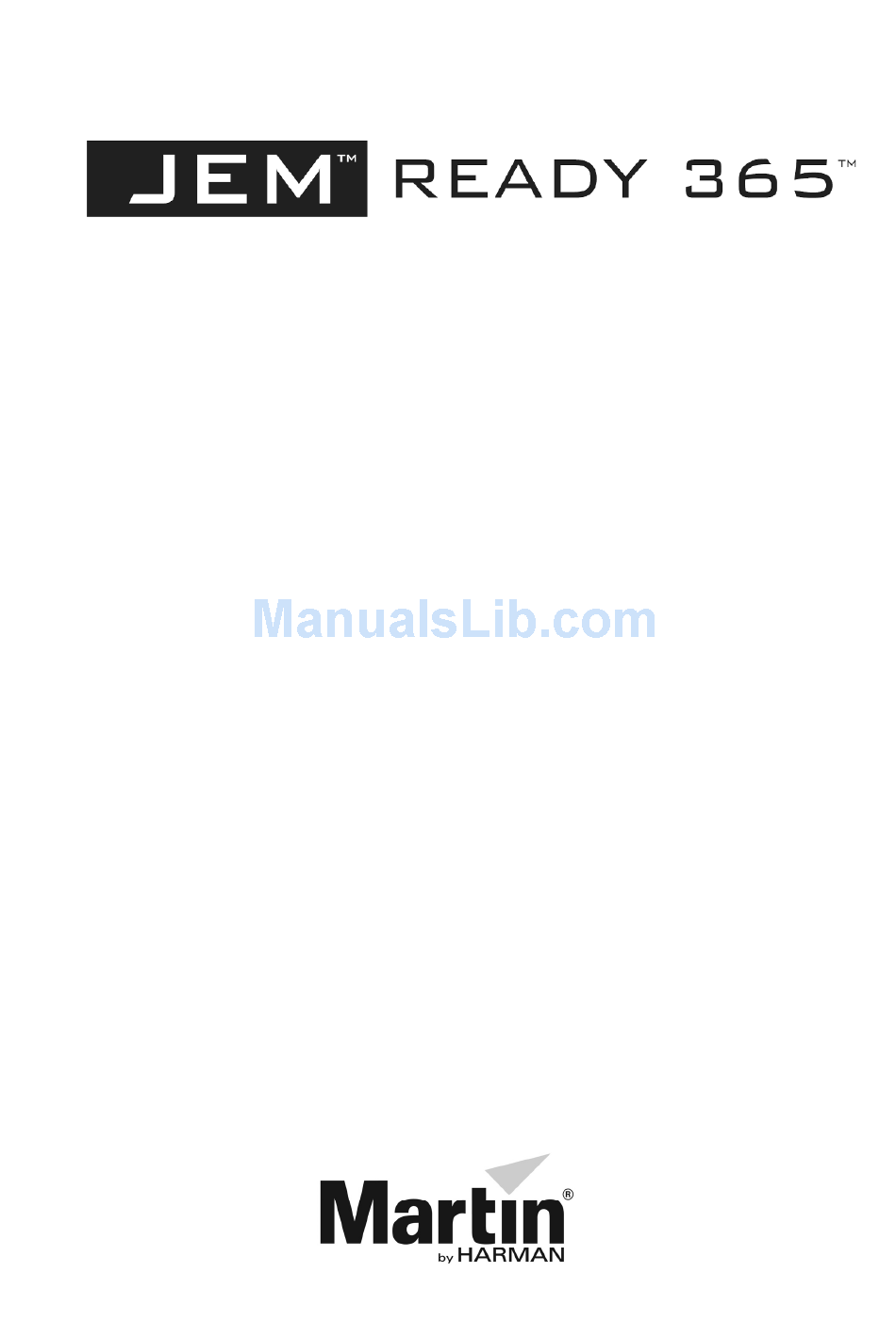

Page 1: User Manual
P/N 35010035 - E user manual... -
Page 2: Dimensions
The Martin logo, the Martin name and all other trademarks in this document pertaining to services or products by Martin Professional A/S or its affiliates and subsidiaries are trademarks owned or licensed by Martin Professional A/S or its affiliates or subsidiaries. -
Page 3: Table Of Contents
Contents Dimensions ..........................2 Contents ............................. 3 Product overview ........................7 Product description ........................ 7 Features at a glance ....................... 7 Product details ........................8 Quick Start ..........................9 Setting up ..........................9 Making haze ........................... 9 Switching off ........................... 9 Installation and setting up ...................... -
Page 4: Safety Information
If the machine or any cables connected to it are in any way damaged, defective, wet, or show signs of overheating, stop using the machine and contact Martin Service for assistance. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. - Page 5 • Do not remove the covers or attempt to repair a faulty machine. Refer any service not described in this manual to Martin. • Do not operate the machine if any parts are damaged, defective or missing. Moisture and electricity do not mix. Do not aim haze output at electrical •...
- Page 6 P r e v e n t i n g b r e a t h i n g p r o b l e m s • A haze machine can operate safely only with the haze fluid it is designed for.
-
Page 7: Product Overview
Robust and portable, the Jem Ready 365™ is capable of dispersing an even, continuous haze with exceptional optical clarity and reflectivity, the perfect small- particle haze for highlighting today’s highly defined light beams. A pressurised gas propulsion system ensures smooth distribution while a unique mixing channel allows the haze to optimize before being expelled. -
Page 8: Product Details
P r o d u c t d e t a i l s Fluid tank (under hinged cover) Digital control Main power panel switch 3 pin DMX input and link Power link out connector AVR program upload socket Power inlet connector Digital 5 pin DMX... -
Page 9: Quick Start
Locate the machine in a suitably large area with nothing in front of the haze output. Fill the fluid tank with 3.8 litres of Martin R365 Haze Fluid™ only. Use of other fluid will void the warranty. Connect the gas line from the CO cylinder using the push fit connector on the rear panel. -
Page 10: Installation And Setting Up
4. L o c a t i o n The Jem Ready 365™ is designed to be located on the floor. An optional trolley is available which holds the machine, two gas cylinders and one AF1 MKII fan. -
Page 11: Setting Up
4. • the haze fluid is one of the genuine Martin fluids listed under “Haze fluid options” on page 20. • the machine is electrically grounded (earthed) the AC power distribution circuits and lines are adequately rated for the •... -
Page 12: Turning Off The Power
If the display shows , press the RUN button to the right of the display to enable the machine. T u r n i n g o f f t h e p o w e r The Ready 365 is designed to run a self-cleaning cycle after power down to help prevent blockages. -
Page 13: Control Settings
Control settings O v e r v i e w The four quick access buttons to the left and right of the digital display at the rear of the unit allow you to quickly set the haze level and engage timer or continuous run modes. -
Page 14: Setting Run Mode
S e t t i n g R u n m o d e The Run mode sets the operational mode of the unit, either Off, Standby (heaters remain on), Fan only, Timer mode or Continuous mode. Use the Menu Previous / Next buttons to select the option. Use the Up/Down buttons to select ... -
Page 15: Setting The Dmx Base Address
S e t t i n g t h e D M X b a s e a d d r e s s Use the Previous / Next buttons to select the option. Use the Up/Down buttons to set the DMX base address from to . If you hold down the button the address will count up or down. -
Page 16: Resetting Options To Factory Settings
If the machine is not up to operating temperature the Prime function will do nothing. R e s e t t i n g o p t i o n s t o f a c t o r y s e t t i n g s The factory settings configure a standard mode of operation for the machine. -
Page 17: Remote Control
3-pin XLR socket on the rear panel of the Jem Ready 365™. The remote control is powered through its cable by the Jem Ready 365™; no batteries are required. The cable may be extended to up to 25 m (82 ft.) with a 3-pin XLR DMX cable, available from your Martin dealer. -
Page 18: Dmx Control
15. The Jem Ready 365™ requires three DMX channels. For example if the Jem Ready 365™ is set to DMX address 100, channel 1 will be controlled by address 100 and, channel 2 will be controlled by address 101, etc. -
Page 19: Rdm Operation
R D M o p e r a t i o n The Jem Ready 365™ supports DMX Remote Device Management (RDM). This allows configuration and status monitoring of the machine from a suitably equipped lighting console or control system. -
Page 20: Haze Fluid Types
Haze fluid types The Jem Ready 365™ must only be used with R365 Haze Fluid™. Martin supplies high quality haze fluids that are based on ultra-pure deionized water. No other fluid is suitable for use. DANGER! The Jem Ready 365™ can run safely only on the specific haze fluid it is designed for. -
Page 21: Basic Service
Remove the spent fuse and replace with one of exactly the same size and rating. The fuse type is indicated below. Contact Martin Service if the fuse blows repeatedly. 120V = 10AT 230V = 6.3AT... -
Page 22: Troubleshooting
Troubleshooting Problem Probable cause(s) Suggested remedy Machine not at operating Wait until message temperature no longer shown Machine will not produce set to 0 Increase setting haze when control panel set to RUN or remote control set to 0 Increase setting Haze switch turned on... -
Page 23: Status Messages
The heater is in run mode and is producing haze. The machine has detected an error with its calibration settings and will not operate. Call Martin Service. The machine has detected an error in the temperature sensor and will not operate. Call Martin Service. -
Page 24: Specifications
Specifications P h y s i c a l Length ......................766mm Width ......................318mm Height ......................268mm Dry weight ....................... 19Kg P e r f o r m a n c e Operating time ..................continuous Warm up time (approx) ................. 5-6 minutes Max’... - Page 25 CO2 pressure regulator ..............Country specific Flight cases which have been custom designed for transportation and storage of the Jem Ready 365 are available directly from www.swanflight.com. Specifications subject to change without notice. For the latest product specifications, see www.martin.com...
-
Page 26: Regulator Application Matrix
Japan 92620021 R365 REG RU Russia Should you wish to use a regulator other than the Martin-approved units above, please ensure that the regulator adheres to the following specifications: CO2 regulator outputting 30psi (2 bar), preferably of two-stage design. Specifications... - Page 27 Dis p o s ing o f th is p ro d uct Martin™ products are supplied in compliance with Directive 2002/96/E C of the E uropean Parliament and of the Council of the E uropean Union on WE E E (Waste E lectrical and E lectronic E quipment), as amended by Directive 2003/108/E C, where applicable.
- Page 28 • Olof Palmes Allé 18 • 8200 Aarhus N • Denmark Tel: +45 8740 0000 • Fax: +45 8740 0010...
