  • Page 1: User Manual

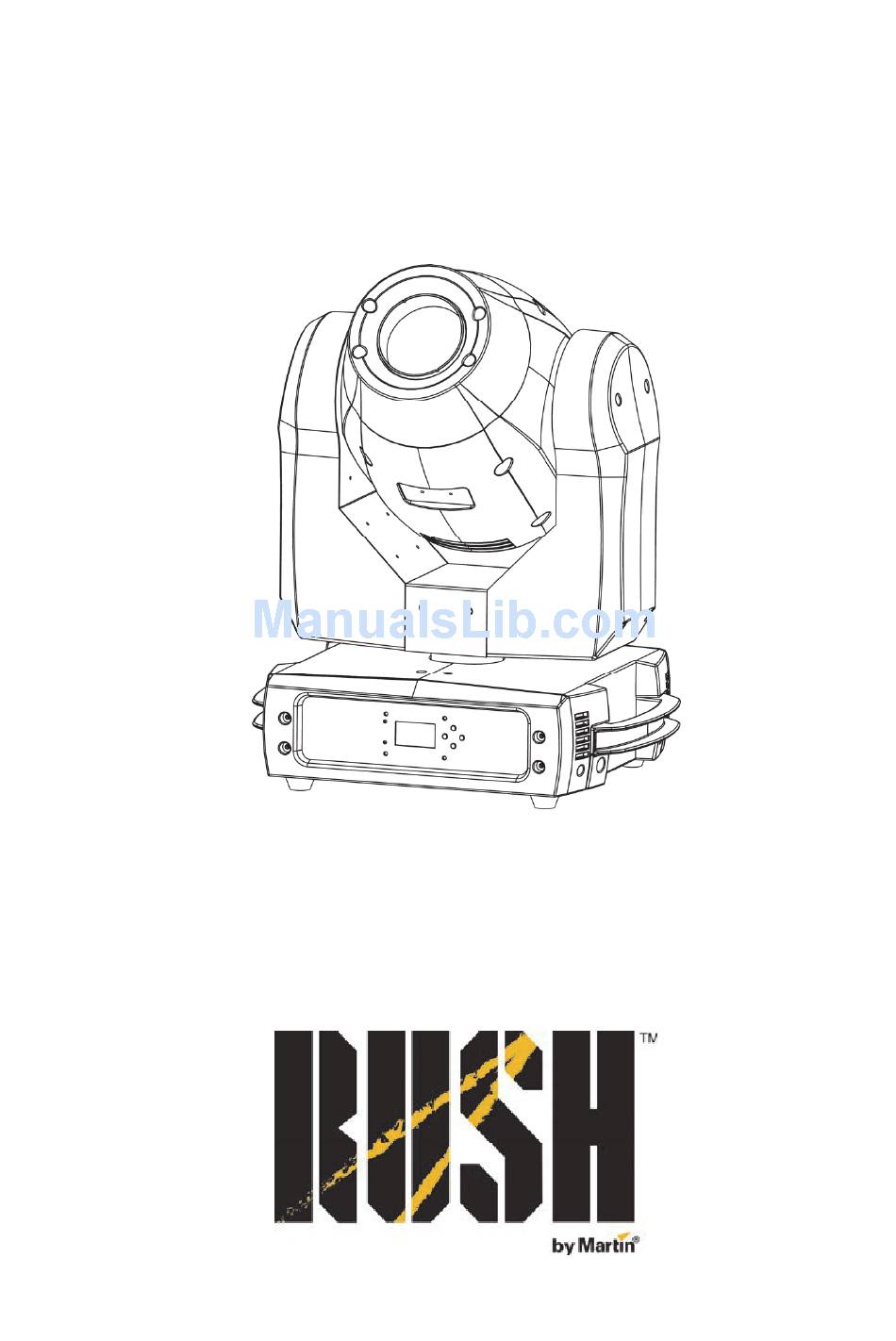

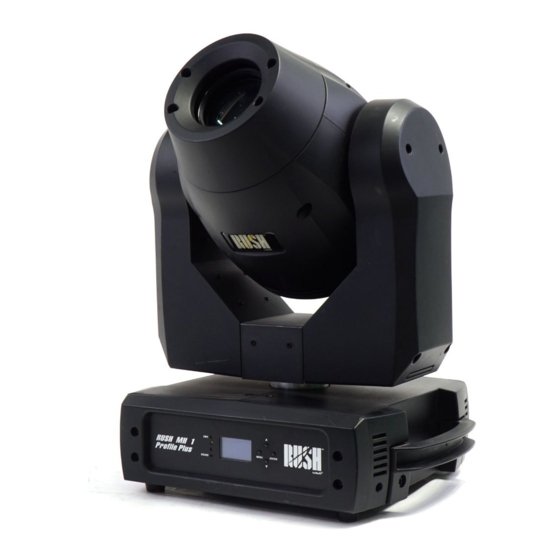

    MH 1 Profile User Manual Professional Entertainment Technology...
  • Page 2 The Martin logo, the RUSH by Martin logo, the RUSH by Martin name, the Martin name and all other trademarks in this document pertaining to services or products by Martin Professional or its affiliates and subsidiaries are trademarks owned or licensed by Martin Professional or its affiliates or subsidiaries.

  • Page 3: Table Of Contents

    Table of contents Safety information ......................4 Introduction ........................9 Before using the product for the first time ..............9 Physical installation ..................... 10 Fastening the fixture to a flat surface ............... 10 Mounting the fixture on a truss ................. 10 Securing with a safety cable ..................
  • Page 5 If you have any questions about how to install, operate or service the fixture safely, please contact your Martin™ distributor (see www.martin.com/distributors for details) or call the Martin™ 24-hour service hotline on +45 8740 0000, or in the USA on 1-888-tech-180. Respect all locally applicable laws, codes and regulations when installing, operating or servicing the fixture.
  • Page 6 SJT or equivalent. In the EU the cables must be type H05VV-F or equivalent. Suitable cables with Neutrik PowerCon connectors are available from Martin™ (see Accessories on page 41). If you use these cables, you can connect fixtures to power in a linked chain, MAINS OUT...
  • Page 7 The secondary attachment must be approved by an official body such as TÜV as a safety attachment for the weight that it secures, must comply with EN RUSH MH 1 Profile User Manual...
  • Page 8 Do not modify the fixture in any way not described in this manual or install other than genuine RUSH by Martin™ parts. Refer any service operation not described in this manual to a qualified technician.

  • Page 9: Introduction

    4. Before operating, ensure that the voltage and frequency of the power supply match the power requirements of the fixture. 5. Check the RUSH support pages on the Martin Professional website at www.martin.com for the most recent user documentation and technical information about the fixture.

  • Page 13: Linking Fixtures To Power In A Chain

    If you obtain a 14 AWG / 1.5 mm power input cable and 14 AWG / 1.5 mm throughput cables from Martin™ (see ‘Accessories’ on page 41), you can relay mains power from one fixture to another by connecting fixtures to power in a linked daisy-chain, MAINS OUT throughput socket to MAINS IN input socket, cables from Martin™, you can link:...

  • Page 14: Control Data Link

    DMX channels. Fixtures that are required to behave identically can share the same DMX address and channels. To add more fixtures or groups of fixtures when the above limit is reached, add a DMX universe and another daisy-chained link. RUSH MH 1 Profile User Manual...

  • Page 15: Tips For Reliable Data Transmission

    Standard pin-out is pin 4 = data 2 cold (-) and pin 5 = data 2 hot (+). To split the link into branches, use a splitter such as the Martin 4-Channel Opto-Isolated RS-485 Splitter/Amplifier. Terminate the link by installing a DMX termination plug in the output socket of the last fixture.

  • Page 16: Dmx Function Settings

    3. Use the UP and DOWN buttons to scroll through the DMX channels and press ENTER to select a channel. The fixture will display the DMX value it is receiving on that channel. 4. Press MENU to exit the viewer. RUSH MH 1 Profile User Manual...

  • Page 17: Show Settings

    2. Use the DOWN and UP buttons to select FOCUS 1 or FOCUS 2 (corresponding to wheel 1 (rotating) or wheel 2 (fixed)) and press ENTER to confirm. 3. Use the DOWN and UP buttons to change the focus point from 0…255. RUSH MH 1 Profile User Manual...

  • Page 18: Fixture Settings

    INVERSE and press ENTER to confirm. 3. Use the DOWN and UP buttons to select YES (inversion) or NO (normal). 4. Press ENTER to confirm (or press MENU to exit without saving any changes). RUSH MH 1 Profile User Manual...

  • Page 19: Display Settings

    2. Use the DOWN and UP buttons to select DISPLAY INVERSE and press ENTER to confirm. 3. Use the DOWN and UP buttons to select YES (invert) or NO (normal). 4. Press ENTER to confirm (or press MENU to exit without saving any changes). RUSH MH 1 Profile User Manual...

  • Page 20: Fixture Test

    Fixture functions can be tested or controlled manually: 1. Select FIXTURE TEST and press ENTER to confirm. 2. Use the DOWN and UP buttons to select MANUAL TEST and press ENTER to confirm. 3. Press MENU to exit. RUSH MH 1 Profile User Manual...

  • Page 21: Fixture Information

    1. In the menu structure, hold the ENTER button down for approx. 3 seconds to enter the OFFSET MENU. 2. Use the DOWN and UP buttons to choose the function that needs to be adjusted. Press ENTER to select it. RUSH MH 1 Profile User Manual...
  • Page 22 DOWN and UP buttons to adjust the home position of the function or effect. 4. Once the correct position has been reached, press ENTER to set this (or press MENU to exit without saving any changes). RUSH MH 1 Profile User Manual...

  • Page 24: Prism

    The fixture incorporates two color wheels, each with seven colors plus open/white. These can be individually selected, or the wheels can be rotated at varying speeds, both clockwise and counter-clockwise. The fixture can be set to automatically blackout during color changes. RUSH MH 1 Profile User Manual...

  • Page 25: Maintenance

    The user may carry out the service operations described in this manual. All other service operations must be carried out by an authorized Martin™ service technician. Do not try to repair the fixture yourself, as you may create a safety risk or cause damage that is not covered by the product warranty.

  • Page 26: Replacing The Primary Fuse

    If in doubt, consult your RUSH by Martin dealer about a suitable maintenance schedule. Use gentle pressure only when cleaning, and work in a clean, well-lit area. Do not use any product that contains solvents or abrasives, as these can cause surface damage.
  • Page 27 5. Reinstall the head cover and be ready for the head to move during a reset before reapplying power. RUSH MH 1 Profile User Manual...
  • Page 34 Information Light Use Hour Reset service Reset Time countdown timer Currently installed Firmware Version firmware version Pan & Tilt Yes/No Color Yes/No Gobo Yes/No Reset Functions Prism Yes/No Iris Yes/No Focus Yes/No Yes/No RUSH MH 1 Profile User Manual...
  • Page 40 DMX data in/out ........... 3-pin & 5-pin locking XLR Electrical AC power ............100-240 V nominal, 50/60 Hz Power consumption ................350 W Fuse ....................T 6.3 A Power supply unit ......Auto-ranging electronic switch mode RUSH MH 1 Profile User Manual...
  • Page 41 Power relay cable, 14 AWG, SJT, 1.5 mm , H05VV-F, with PowerCon connectors, 3.25 m (10.7 ft.) ....... P/N 11541511 Power connectors Neutrik PowerCon NAC3FCA power input connector, cable mount, blue ......P/N 05342804 RUSH MH 1 Profile User Manual...

  • Page 42: Specifications

    (Waste Electrical and Electronic Equipment), where applicable. Help preserve the environment! Ensure that this product is recycled at the end of its life. Your supplier can give details of local arrangements for the disposal of RUSH by Martin products. RUSH MH 1 Profile User Manual...
