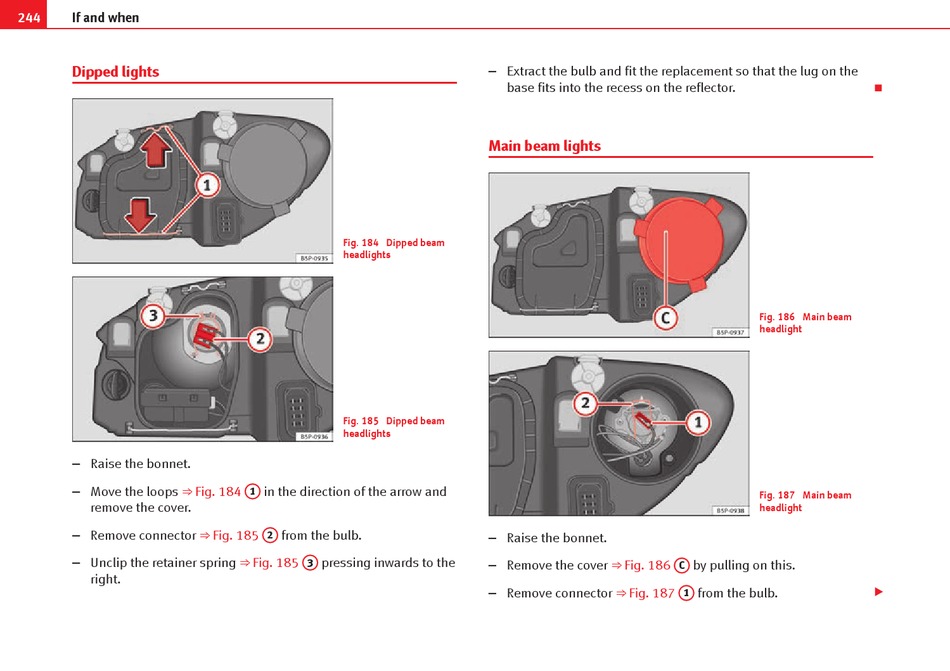

Seat ALTEA Owner's Manual page 246

244 If and when
Dipped lights
– Raise the bonnet.
⇒ F ig. 184
– Move the loops
remove the cover.
– Remove connector
– Unclip the retainer spring
right.
Fig. 184 Dipped beam
headlights
Fig. 185 Dipped beam
headlights
in the direction of the arrow and
1
⇒ F ig. 185
from the bulb.
2
⇒ F ig. 185
pressing inwards to the
3
– Extract the bulb and fit the replacement so that the lug on the
base fits into the recess on the reflector.
Main beam lights
– Raise the bonnet.
⇒ F ig. 186
– Remove the cover
⇒ F ig. 187
– Remove connector
Fig. 186 Main beam
headlight
Fig. 187 Main beam
headlight
by pulling on this.
C
from the bulb.
1


