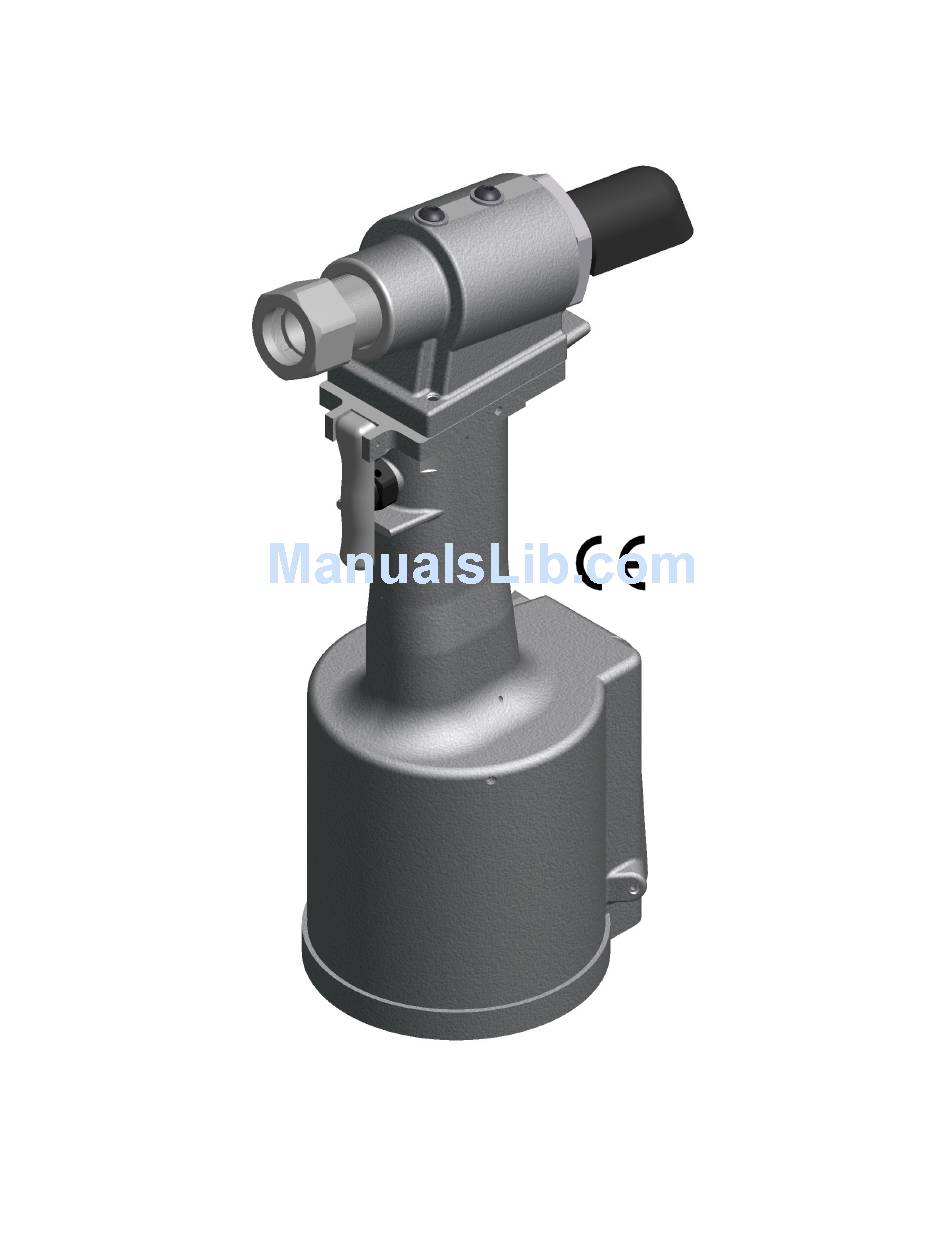

S/N: 2317 AND ABOVE
GB730
PLEASE CONTACT GAGE BILT FOR
ALL OTHER SERIAL NUMBERS.
INSTALLATION TOOL
GAGE BILT TOOLS ARE AVAILABLE WORLDWIDE
E-MAIL US FOR A DISTRIBUTOR NEAR YOU.
GAGE BILT Inc.
GAGE BILT
44766 Centre Court
(586) 226-1500
Clinton Twp. MI 48038
(586) 226-1505 Fax
MADE IN U.S.A.
e-mail: solutions@gagebilt.com / www.gagebilt.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GB730 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gage Bilt GB730

Summary of Contents for Gage Bilt GB730

  • Page 1 S/N: 2317 AND ABOVE GB730 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS. INSTALLATION TOOL GAGE BILT TOOLS ARE AVAILABLE WORLDWIDE E-MAIL US FOR A DISTRIBUTOR NEAR YOU. GAGE BILT Inc. GAGE BILT 44766 Centre Court (586) 226-1500 Clinton Twp. MI 48038 (586) 226-1505 Fax MADE IN U.S.A.

  • Page 2: Table Of Contents

    Setting stroke - .500" (12.7 mm) Rated pull load - 4,000 lbs. (17.8 kN) Noise level - 81.5 dB (A) Vibration - Tested– No Hazards Found S/N: 2317 AND ABOVE Rev. 2/15 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 3: Warnings

    It is recommended operator wear a suitable glove WARNING during operation where prolonged use is expected. Air pressure not to exceed 100 psi (6.9 bar). S/N: 2317 AND ABOVE Rev. 2/15 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 4: Principle Of Operation

    HEAD HEAD PISTON PRESSURE PISTON PRESSURE VALVE PRESSURE PRESSURE SPOOL PISTON PISTON PRESSURE PRESSURE REAR POSITION FORWARD POSITION EXHAUST Image may not reflect actual tool S/N: 2317 AND ABOVE Rev. 2/15 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 5: How To Use The Gb730

    (704343), the stem will eject to the rear of the tool. WARNING: Always disconnect air supply when tool is not in use to prevent accidental start-up. Image may not reflect actual tool S/N: 2317 AND ABOVE Rev. 2/15 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 6: Description, Operation And Maintenance

    4,000 lbs. (17.8 kN) with 90 psi (6.2 bar) air pressure at the air inlet. The GB730 riveter operates on a wide range of air pressure, with 90 to 100 psi (6.2-6.9 bar) providing the maximum efficiency. At 90 psi (6.2 bar) air pressure, the GB730 does not exceed 81.5 dB (A) and consumes 3.9 cfm at 20 cycles per minute.

  • Page 7: Filling And Bleeding

    (A). Holding actuator lever assy (704343) in, check dimension (B). Subtract dimension (A) from dimension (B). If stroke is not consistent within 1/64" (.0156) repeat steps 6-14. .690 (17.5mm) .190 (4.8mm) S/N: 2317 AND ABOVE Rev. 2/15 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 8: Troubleshooting

    Replace worn or broken parts. Clean the surface the jaws ride on. Stems lodged side by side in the follower. Disassemble, remove stems, and reassemble. Incorrect follower. S/N: 2317 AND ABOVE Rev. 2/15 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 9: Overhaul

    WARNING: Tool must be maintained in a safe working condition at all times and examined on a daily basis for damage or wear. Any repair should be done by qualified personnel trained on Gage Bilt procedures. WARNING: When operating, repairing or overhauling tool, wear approved eye protection. Do not look in front of tool or rear of tool when installing fastener.

  • Page 10: Parts Lists

    (401084), retaining ring (400935) and spring (50806) must be replaced. Failure to do so could result in SEVERE PERSONAL INJURY! O'RING - S829 BACK - UP RING - 401084 SPRING - 50806 PISTON ROD ASSY. - 730233 RETAINING RING - 400935 S/N: 2317 AND ABOVE Rev. 2/15 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 11: Air Valve

    NOTE: Valve spring tool (704162) will facilitate the proper installation of the spring (704141), valve sleeve (703139) can be pulled out using valve sleeve removal tool (704163). S/N: 2317 AND ABOVE Rev. 2/15 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 12: Dexron® Iii Oil Safety Data

    Use material for its intended purpose or recycle if possible. Oil collection services are available for used oil recycling or disposal. Place contaminated materials in containers and dispose of in a manner consistent with applicable regulations. S/N: 2317 AND ABOVE Rev. 2/15 PLEASE CONTACT GAGE BILT FOR ALL OTHER SERIAL NUMBERS.

  • Page 13: Nose Assembly Selection Chart

    A SP ®, GP ®, C6L® A ND LGP ® A RE REGISTERED TRA DEM A RKS OF A LCOA INC. A VDELOK® IS A REGISTERED TRA DEM A RK OF A VDEL UK LIM ITED. CHERRYM A X® A ND M B C® A RE REGISTERED TRA DEM A RKS OF CHERRY A EROSP A CE FA STENERS. GAGE BILT CERTIFIES THE GB730 WILL INSTALL THE ABOVE FASTENERS. PLEASE NOTE: Due to *ALL RIGHT ANGLE NOSES REQUIRE 730157 STROKE LIMITER EXCEPT 58RA.

  • Page 14: Eu Conformity And Warranty

    GAGE BILT DECLARATION OF CONFORMITY MANUFACTURER: Gage Bilt Inc. 44766 Centre Ct. Clinton Twp. Michigan (586-226-1500) WE DECLARE THAT THE EQUIPMENT SPECIFIED HEREIN CONFORMS TO THE FOLLOWING DIRECTIVES AND STANDARDS Machinery Directive 2006/42/EC EN12100-1 & EN12100-2 EN792-1:2000+A1 EU REPRESENTATIVE Edgar Hausmann GmbH Förster-Busch-Str. 10 D-34346 Hann. Münden Germany EQUIPMENT DESCRIPTION: GB730 FASTENER INSTALLATION TOOL This product specified above conforms to the above dIrectives and standards.
