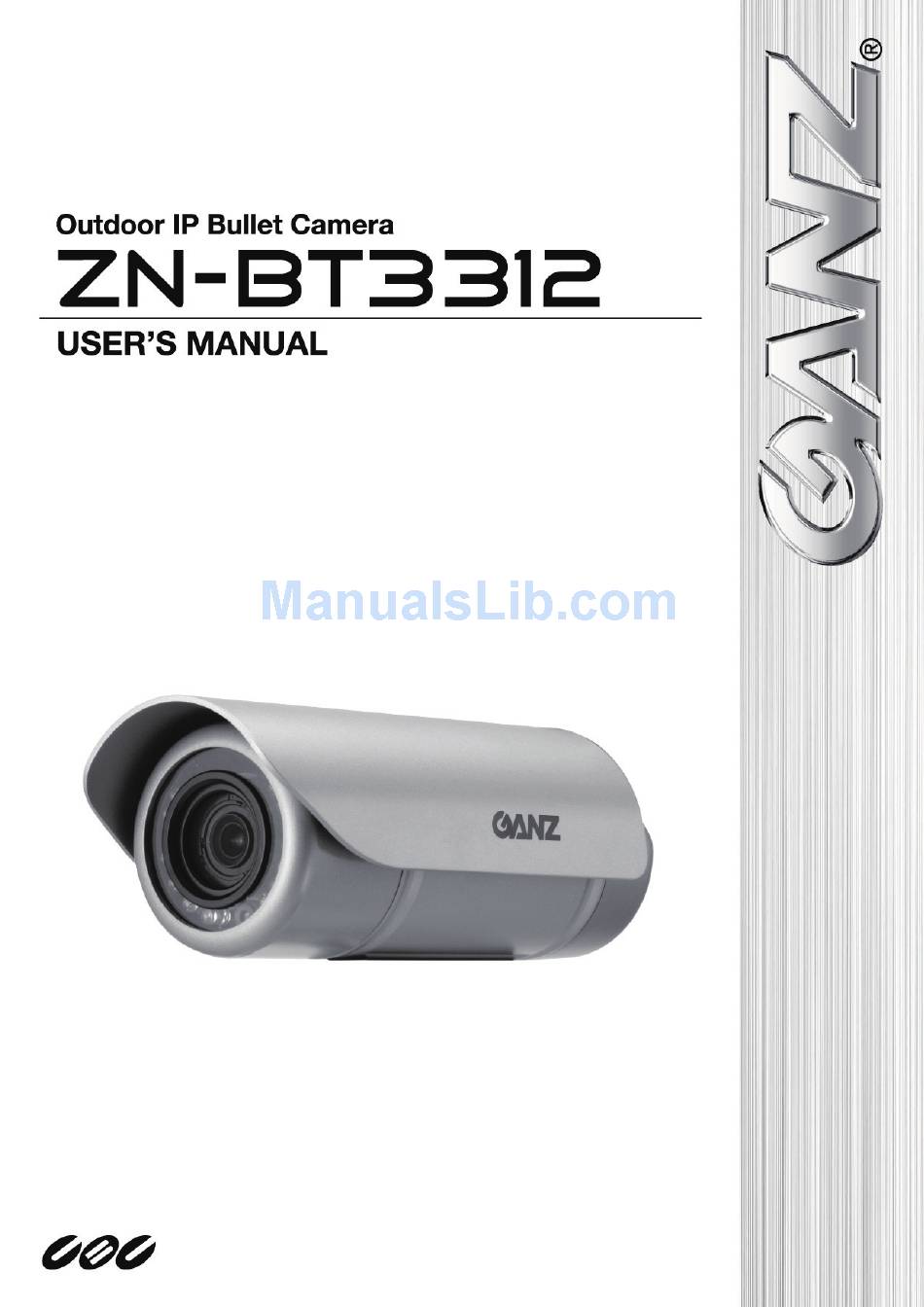

Ganz ZN-BT3312 User Manual

Outdoor ip

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Summary of Contents for Ganz ZN-BT3312

Page 2: Table Of Contents
Table of Contents Overview3 Read Before Use ��3 Package Contents ��3 Physical Description ��4 Installation 6 Hardware Installation ��6 Network Deployment ��8 Software Installation �� 11 Accessing the Network Camera 12 Using Web Browsers ��12 Using RTSP Players ��14 Main Page 15 Client Settings 18 Configuration 20 System ��20...
Page 3: Overview3
ZN-BT3312 with WDR (Wide dynamic range) feature can be very helpful to cope with very challenging lighting conditions� It is capable of capturing both of the dark part and bright part and combining the differences into a scene to generate a highly realistic image as the original scene�...
Page 4: Physical Description
Physical Description Front Panel Light Sensor Lens IR LED Connectors General I/O terminal block Ethernet 10/100 RJ45 plug Audio out (green) Microphone in (pink) Power cord socket (black) Ground General I/O Terminal Block This Network Camera provides a general I/O terminal block which is used to connect external input / output devices.
Page 5 DI/DO Diagram Refer to the following illustration for connection method� PIN 1 Power+12V PIN 2 Digital output +12V PIN 3 Digital input PIN 4 Ground Status LED The LED indicates the status of the Network Camera� Status LED Description 1� Power is being supplied to the Network Camera Blinking red (two short, one long) 2�...
Page 6: Installation 6
Hardware Reset Reset Button Status LED There is a reset button on the inner side of the Network Camera� It is used to reboot the Network Camera or restore the Network Camera to factory default� Sometimes rebooting the Network Camera could set the Network Camera back to normal state� If the problems remain after rebooted, restore the Network Camera to factory default and install again�...
Page 7 4� Install the “GANZ Installation Tool“ to assign an IP address to the Network Camera� For more information, please refer to Software installation on page 11 for details� 5� Access to the Network Camera from the Internet� For more information, please refer to Accessing the Network Camera on page 12 for details�...
Page 8: Network Deployment
Network Deployment Setup the Network Camera over the Internet This section explains how to configure the Network Camera to Internet connection. 1� If you have external devices such as sensors and alarms, connect them to the general I/O terminal block� 2�...
Page 9 2� In this case, if the Local Area Network (LAN) IP address of your Network Camera is 192�168�0�3, please forward the following ports for the Network Camera on the router� ■ HTTP port ■ RTSP port ■ RTP port for audio ■...
Page 10 Set up the Network Camera through Power over Ethernet (PoE) When using a PoE-enabled switch The Network Camera is PoE-compliant, allowing transmission of power and data via avsingle Ethernet cable� Follow the below illustration to connect the Network Camera to a PoE-enabled switch via Ethernet cable�...
Page 11: Software Installation
GANZ Installation Tool 3� From the “GANZ Installation Tool” window, click on the MAC that matches the one labeled on the side of the camera lens or S/N number on the label of carton to connect the Internet Explorer to the Network Camera�...
Page 12: Accessing The Network Camera 12
Accessing the Network Camera This chapter explains how to access the Network Camera through web browsers or RTSP players� Using Web Browsers ® 1� Launch your web browser (ex� Microsoft Internet Explorer, Mozilla Firefox or Netscape). 2. Enter the IP address of the Network Camera in the address field. Press Enter� 3�...
Page 13 ► By default, the Network Camera is not password-protected. To prevent unauthorized accesses, it is highly recommended to set a password for the Network Camera� For more information about how to enable password protection, please refer to Security on page 22� ®...
Page 14: Using Rtsp Players
Using RTSP Players To view the MPEG-4 streaming media using RTSP players, you can use one of the following players that support RTSP streaming� Quick Time Player Real Player VLC media player mpegable Player mpegable Player pvPlayer pvPlayer 1� Launch a RTSP player� 2.
Page 15: Main Page 15
Main Page This chapter explains the layout of the main page� It is composed of the following four sections: GANZ Logo, Menu, Host Name, and Live Video Window� GANZ Logo Host Name Menu Live View Window GANZ Logo Click this logo to visit GANZ website�...
Page 16 Live Video Window The following window is displayed when the video mode is set to MPEG-4: MPEG-4 protocol and media options Video title Time Title and time Video 16:00:46 2009/07/13 Video and audio control buttons Video title: The video title can be configured. For more information, please refer to Video Settings on page 35� Time: Display the current time�...
Page 17 Mute: Turn off the volume at local computer� Mic volume: When the mute function is not activated, move the slider bar to adjust the microphone volume at local computer� Mute: Turn off the microphone volume at local computer� Full screen: Click this button to switch to full screen mode� Press the “Esc” key to switch back to normal mode�...
Page 18: Client Settings 18
Client Settings This chapter explains how to select the streaming source, transmission mode and saving options at local computer� It is composed of the following four sections: Stream Options, MPEG- 4 Media Options, MPEG-4 Protocol Options and MP4 Saving Options� When completed with the settings on this page, click Save on the page bottom to enable the settings�...
Page 19 TCP: This protocol guarantees the complete delivery of streaming data and thus provides better video quality� Nevertheless, the downside with this protocol is that its real-time effect is not as good as that of the UDP protocol� HTTP: This protocol allows the same quality as TCP protocol and you don’t need to open specific port for streaming under some network environments.
Page 20: Configuration 20
Configuration Only Administrators can access the system configuration page. Each category in the left menu will be explained in the following sections� System This section explains how to configure the basic settings for the Network Camera, such as the host name and system time� It is composed of the following three columns: System, System Time and DI and DO�...
Page 21 Enable Daylight Saving Time: Select this option to enable daylight saving time (DST)� During DST, the system clock moves one hour ahead. Note that to utilize this feature, please set the time zone for your Network Camera first. Then, the starting time and ending time of the DST is displayed upon selecting this option.
Page 22: Security
Security This section explains how to enable password protection and create multiple accounts� It is composed of the following three columns: Root Password, Add User, and Manage User� Root Password The administrator account “root” is permanent and can not be deleted� Please note that if you want to add more accounts, you must apply a password for the “root”...
Page 23: Https
HTTPS This section explains how to enable authentication and encrypted communication over SSL. Enable HTTPS Select this option to turn on the HTTPS communication� Create and Install Certificate Select either to create a self-signed certificate or a signed certificate. To create a certificate from a certificate authority 1�...
Page 24 4. Look for a trusted certificate authority that issues digital certificates. Enroll the Network Camera. Wait for the certificate authority to issue a SSL certificate; then upload the issued certificate to the Network Camera� 5� Browsing the Network Camera using HTTPS helps to protect streaming data over the Internet� https://xxx.xxx.x.xxx https://192.168.5.132/index.html To create a self-signed certificate...
Page 25 2. Fill in the information required for generating a Certificate Signing Request (CSR) and click Save� 192.168.5.132 3� Browsing the Network Camera using HTTPS helps to protect streaming data over the Internet� https://xxx.xxx.x.xxx https://192.168.5.132/index.html Certificate Information Here display the certification information. Users may click Property for details� To remove the signed certificated, uncheck the Enable HTTPS secure connection and click Remove�...
Page 26: Network
Network This section explains how to configure wired network connection for the Network Camera. It is composed of the following five columns: Network Type, HTTP, HTTPS, Two way audio, FTP and RTSP Streaming� When completed with the settings on this page, click Save to enable the settings�...
Page 27 PPPoE (Point-to-point over Ethernet) Select this option to configure your Network Camera to make it accessible from anywhere with an Internet connection. Note that to utilize this feature, it requires an account provided by your ISP� Follow the steps below to acquire your Network Camera’s public IP address� 1�...
Page 28 To access the Network Camera on the LAN, both the HTTP port and secondary HTTP port can be used to access the Network Camera� For example, when the HTTP port is set to 80 and the secondary HTTP port is set to 8080, refer to the list below for the Network Camera’s IP address� http://192.168.4.160 or http://192.168.4.160:8080 Access name for stream 1 / Access name for stream 2: The access name is used to differentiate the...
Page 29 To stop talking, click again� The FTP server allows the Network Camera to utilize GANZ Installation Tool to upgrade firmware via an FTP server� By default, the FTP port is set to 21� It also can be assigned to another port number between 1025 and 65535�...
Page 30 RTSP Streaming Authentication: Depending on your network security requirements, the Network Camera provides three types of security settings for streaming via RTSP protocol: disable, basic, and digest� basic authentication is selected, the password is sent in plain text format, but there can be potential risks of it being intercepted�...
Page 31 RTSP port /RTP port for video, audio/ RTCP port for video, audio The RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media� By default, the port number is set to 554� The RTP (Real-time Transport Protocol) is used to deliver video and audio data to the clients� By default, the RTP port for video is set to 5556 and the RTP port for audio is set to 5558�...
Page 32: Ddns
Provider: Select a DDNS provider of your choice from the Provider drop-down list� GANZ offers safe100, a free dynamic domain name service to GANZ customers� It is recommended that you register with the safe100 to access the Network Camera from the Internet� Additionally, we offer other DDNS providers, such as Dyndns�org(Dynamic), Dyndns�org(Custom), TZO�com, DHS�org,...
Page 33 4� Select Enable DDNS and then click Save to enable the settings� ■ CustomSafe100 GANZ offers documents to establish CustomSafe100 DDNS server for distributors and system integrators� You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services�...
Page 34: Access List
Access List This section explains how to control the access permission by checking the client PC’s IP addresses� It is composed of the following four columns: Allowed list, Denied list, Delete allowed list, and Delete denied list� Allowed list / Denied list There are two lists for permission control: Allowed list and Denied list�...
Page 35: Audio And Video
Audio and Video This section explains how to cofigure audio and video performances of the Network Camera. It is composed of the following two columns: Video Settings and Audio Settings� Video Settings Video title: Enter a name that will be displayed on the title bar of the live video� Color: Select to display color or black/white video streams�...
Page 36 Maximum Exposure Time: 1/30 S, 1/15 S, and 1/5 S� Overlay title and time stamp on video: Select this option to place the video title and time on video streams� Note that when the frame size is set to 176 x 144 as the right picture below, only time will be stamped on video streams�...
Page 37 Privacy mask Click Privacy Mask to open the Privacy Mask page� On this page, you can block out some sensitive zones to address privacy concerns. ■ To set the privacy mask windows, follow the steps below: 1� Click New to add a new window� 2.
Page 38 Exposure level: You can manually set up the Exposure level, which ranges from 1 to 8� The default value is 4� AGC (Auto Gain Control): Automatic Gain Control, an electronic circuit which amplifies the video signal when the signal strength falls below a given value due to the lack of light� You can manually set up the AGC level (2X, 4X, or 8X)�...
Page 39 ■ Frame size Select the video size. Note that a larger frame size takes up more bandwidth. The frame sizes are selectable in the following resolutions: 176 x 144, 352 x 240, and 720 x 480� ■ Maximum frame rate This limits the maximum refresh frame rate per second�...
Page 40 If the power line frequency is set to 50Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, and 25fps. If the power line frequency is set to 60Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, 25fps, and 30fps� ■...
Page 41: Motion Detection
Motion Detection This section explains how to configure the Network Camera to enable motion detection. A total of three motion detection windows can be configured. (TCP-AV) To enable motion detection, follow the steps below: Follow the steps below to enable motion detection: 1�...
Page 42 A green bar indicates that even though motions have been detected, the event has not been triggered because the image variations still fall under the defined threshold. Percentage = 30% NOTE ► How does motion detection work? There are two motion detection parameters: Sensitivity and Percentage� In the illustration above, frame A and frame B are two sequential images�...
Page 43: Camera Control
Then you can configure the PTZ driver and RS485 port with the following settings. GANZ offers three PTZ drivers: DynaDome/SmartDOME, Lilin PIH-7x00, and Pelco D protocol� If none of the above PTZ drivers is supported by your PTZ scanner, please select Custom camera (scanner)�...
Page 44 Preset Position Click Preset Position to open the Preset Position page� You can also select preset positions for the camera to patrol. A total of 20 preset positions can be configured. Please follow the steps below to set preset positions: 1.
Page 45 ►The command buttons will be displayed on the main page: User's Manual - 45...
Page 46: Application
Application This section explains how to configure the Network Camera to responds to particular situations (event)� A typical application is that when a motion is detected, the Network Camera sends buffered images to an FTP server or e-mail address as notifications. In the illustration on the right, an event can Action be triggered by many sources, such as...
Page 47 Media name: Enter a name for the media setting� Media Type: There are three choices of media types available: Snapshot, Video Clip, and System log� Snapshot: Select to send snapshots when a trigger is activated� ■ Source: Select to take snapshots from stream 1 or stream 2. ■...
Page 48 ■ Maximum file size Video20080104_100341 Specify the maximum file size allowed. ■ File name prefix File name preﬁx Date and time sufﬁx Enter the text that will be appended to the front of the file name. The format is: YYYYMMDD_HHMMSS For example: System log: Select to send a system log when a trigger is activated�...
Page 49 Server name: Enter a name for the server setting� Server Type: There are four choices of server types available: Email, FTP, HTTP, and Network storage� Email: Select to send the media via email when a trigger is activated� ■ Sender email address: Enter the email address of the sender. ■...
Page 50 HTTP: Select to send the media files to an HTTP server when a trigger is activated. ■ URL: Enter the URL of the HTTP server. ■ User name: Enter the user name if necessary. ■ Password: Enter the password if necessary. To verify if the HTTP settings are correctly configured, click Test�...
Page 51 Event Settings In the Event column, click Add to open the event setting page� On this page, you can arrange the three elements -- Trigger, Schedule, and Action to set an event� A total of 3 event settings can be configured. Event name: Enter a name for the event setting�...
Page 52 ■ Digital input This option allows the Network Camera to use an external digital input device or sensor as a trigger source� Depending on your application, there are many choices of digital input devices on the market which helps to detect changes in temperature, vibration, sound, and light, etc� ■...
Page 53: Recording
Recording This section explains how to configure the recording settings for the Network Camera. Recording Settings Click Add to open the recording setting page� On this page, you can define the recording source, recording schedule and recording capacity� A total of 2 recording settings can be configured.
Page 54 Destination: Specify a storage destination for the recorded video files. Note that the destination field is empty by default. Please go to Configuration > Application > Server Settings to set a Network storage server; please refer to Server Settings on page 48� Max�...
Page 55: System Log
System Log This section explains how to configure the Network Camera to send the system log to the remote server as backup� It is composed of the following two columns: Remote Log and Current Log� Remote Log You can configure the Network Camera to send the system log file to a remote server as a log backup.
Page 56: Maintenance
Maintenance This chapter explains how to restore the Network Camera to factory default, upgrade firmware version, etc� Reboot This feature allows you to reboot the Network Camera, which takes about one minute to complete� When completed, the live video page will be displayed in your browser� The following message will be displayed during the reboot process�...
Page 57 Upload / Export Daylight Saving Time Configuration File This feature allows you to set the starting time and ending time of DST� Follow the steps below to set up: 1. In the Export Daylight Saving Time Configuration File Column, click Export to export an Extensible Markup Language (*.xml) file from the Network Camera.
Page 58 3� In the Upload Column, click Browse… and specify the XML file. If the incorrect date and time are assigned, you will see the following warning message when uploading the file to the Network Camera. 4� Click Upload� To enable DST, see System Time on page 22� The following message is displayed when attempting to upload an incorrect file format.
Page 59 If the upgrade is successful, you will see “Reboot system now!! This connection will close”� After that, reaccess the Network Camera� The following message is displayed when the upgrade has succeeded� Reboot system now!! This connection will close. The following message is displayed when you have selected an incorrect firmware file. Starting firmware upgrade...
Page 60: Technical Specifications
Technical Specifications Speciﬁcations ．CPU: CBC-1000 SoC System Housing ．Weather-proof IP66-rated housing ．Flash: 8MB ．RAM: 64MB Approvals ．CE, LVD, FCC, VCCI, C-Tick ．Embedded OS: Linux 2.4 ．Temperature: -20 ~ 60 °C (-4 ~ 140 °F) Operating Environments ．Board lens, vari-focal, f = 3.3 ~ 12 mm, Lens ．Humidity: 20% ~ 80% RH F1.4 (wide), F2.9 (tele), focus range: 50 cm to...
Page 61: Technology License Notice
Technology License Notice MPEG-4 AAC Technology THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE� THIS PRODUCT MAY NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT WITH REGARD TO PC SOFTWARE, OF WHICH YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES� FOR MORE INFORMATION, PLEASE REFER TO HTTP://WWW�VIALICENSING�COM�...
Page 62: Electromagnetic Compatibility (Emc)
Electromagnetic Compatibility (EMC) FCC Statement This device compiles with FCC Rules Part 15. Operation is subject to the following two conditions. ■ This device may not cause harmful interference, and ■ This device must accept any interference received, including interference that may cause undesired operation�...
