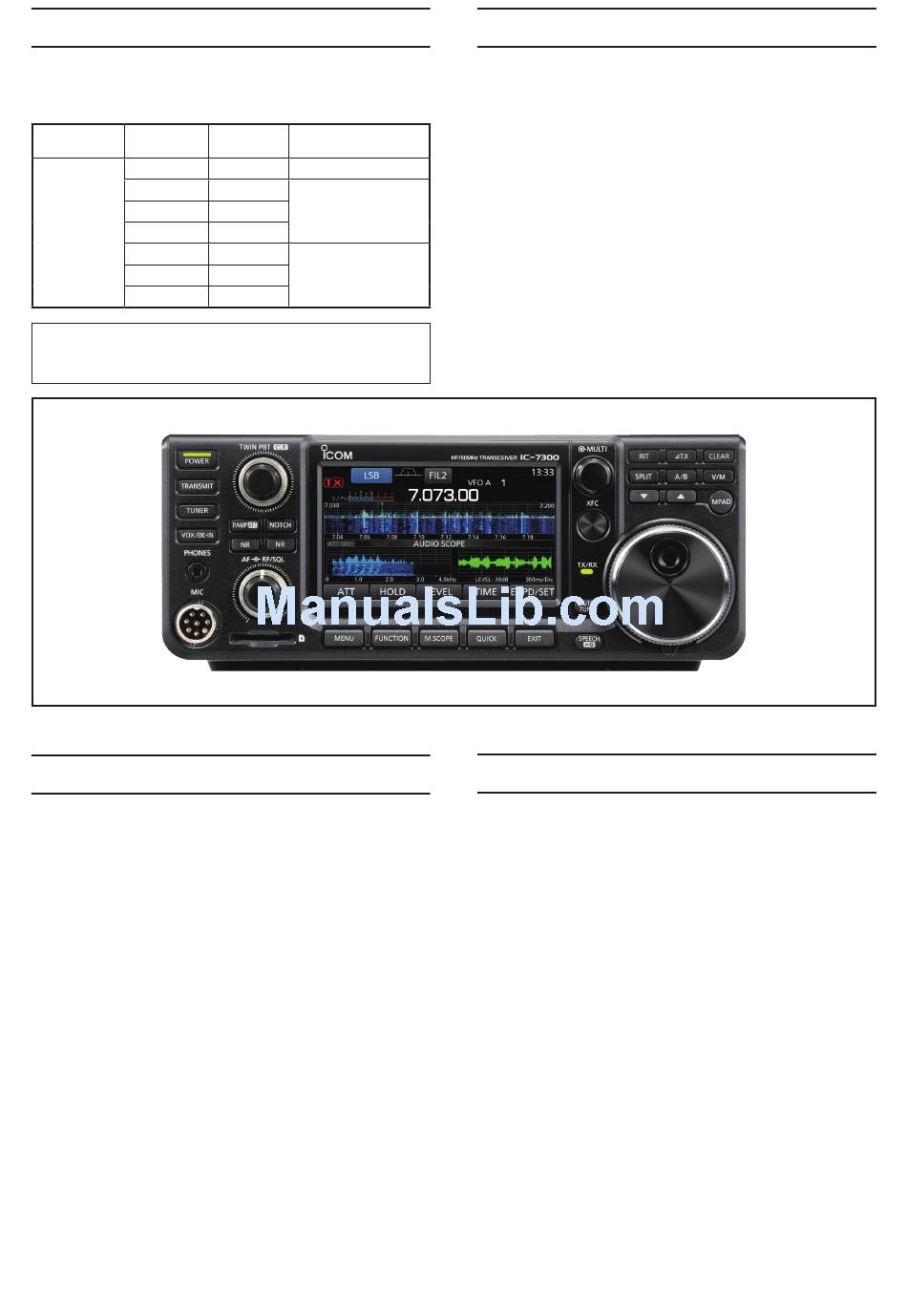

INTRODUCTION
This service manual describes the latest technical informa-
tion for the IC-7300
HF/50 MHz
lication.
MODEL VERSION
USA
EUR
ITR
IC-7300 ESP
TPE
KOR
EXP
To upgrade quality, any electrical or mechanical parts
and internal circuits are subject to change without notice
or obligation.

ORDERING PARTS

Be sure to include the following four points when ordering
replacement parts:
1. 10-digit Icom part number
2. Component name
3. Equipment model name and unit name
4. Quantity required
<ORDER EXAMPLE>
1180004830 XC6222A331MR
8110010940 3765 U-COVER
Addresses are provided on the inside back cover for your
convenience.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the
United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand, and/or other countries.
, at the time of pub-
transceiver
VERSION OPERATABLE
NUMBER BANDS
#02 HF/50 MHz
#03 HF/50/70 MHz
#05
#06
#07 HF/50 MHz
#08
#12
IC-7300 MAIN UNIT 5 pieces
IC-7300 CHASSIS 1 piece

SERVICE CAUTION

NEVER connect the transceiver to a DC power supply that
uses more than the specified voltage. This will ruin the trans-
ceiver.
DO NOT expose the transceiver to rain, snow or liquids.
DO NOT reverse the polarities of the power supply when di-
rectly applying power to the transceiver/circuit.
DO NOT apply an RF signal of more than 20 dBm (100 mW) to
the antenna connector. This could damage the transceiver's
front-end.

REPAIR NOTES

1. Make sure that the problem is internal before disassem-
bling the transceiver.
2. DO NOT open the transceiver until the transceiver is dis-
connected from its power source.
3. DO NOT force any of the variable components. Turn them
slowly and smoothly.
4. DO NOT short any circuits or electronic parts. An insulated
tuning tool MUST be used for all adjustments.
5. DO NOT keep power ON for a long time when the trans-
ceiver is defective.
6. NEVER directly transmit power into any test equipment
such as Standard Signal Generator or a Sweep Generator,
otherwise the RF power may damage them.
7. ALWAYS connect a 50 dB to 60 dB attenuator between the
transceiver and such test equipment.
8. READ the instructions of the test equipment thoroughly
before connecting it to the transceiver.
