Icom IC-7300 Service Manual page 46

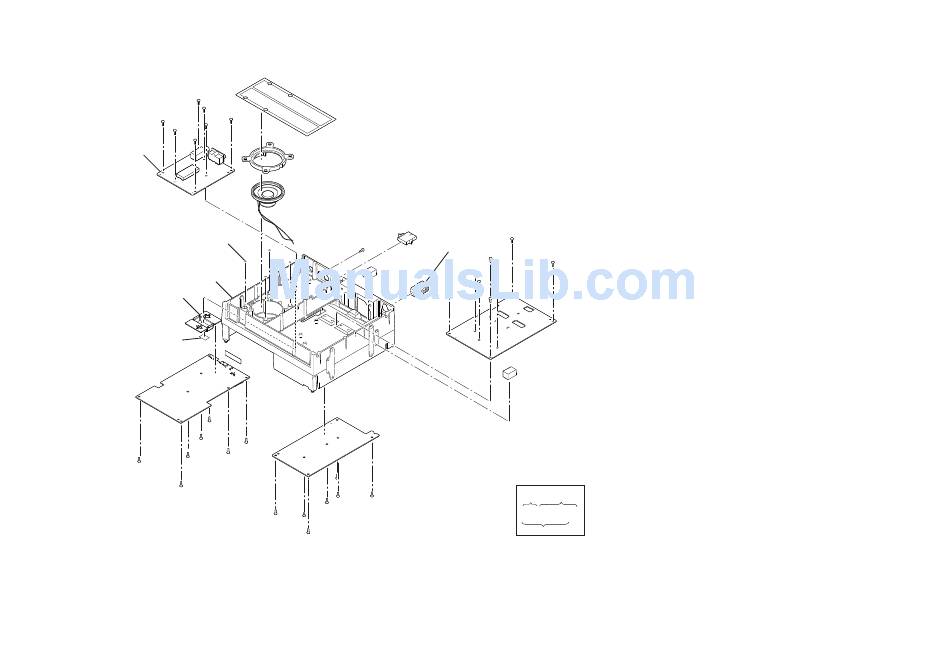

• CHASSIS
MP25(CHASSIS)×7
(8810008661)
RF UNIT
MP58(CHASSIS)×4
(8850003650)
MP1(CHASSIS)
(8010023570)
MP51(CHASSIS)
(8410002951)
MP52(CHASSIS)
(8930090910)
MAIN UNIT
MP27(CHASSIS)×7
(8810008661)
MP5(CHASSIS)
(8930093310)
MP4(CHASSIS)
(8930093300)
SP1(CHASSIS)
(2510002000)
W15(CHASSIS) W16(CHASSIS)
(8920001580) (8600037380)
MP35(CHASSIS)
W1(PA)
(8810008661)
(Refer to the parts list)
MP63(CHASSIS)
(8930084330)
TUNER UNIT
MP24(CHASSIS)×7
(8810008661)
MP26(CHASSIS)×8
(8810008661)
PA UNIT
MP63(CHASSIS)
(8930084330)
Legend:
Ref. No.
Unit Name
MP1 (CHASSIS)
(1234567890)
Parts No.
6-6
