SYSTEM DESCRIPTION:

The CSP™ RO System is a three stage reverse osmosis system.
1. First, the incoming feed water is passed through a 0.5 micron MicroTec™
sediment prefilter. This filter is required to remove excess turbidity (particulate
matter) that may cause the membrane to plug.
2. The second stage of filtration is a 0.5 micron carbon block prefilter. This filter
removes organics and chlorine from the feed water that can damage the
membrane.
3. The third filtration stage of the system is a high rejection thin film
composite (TFC) reverse osmosis membrane. It removes over 96% of
most inorganic salts, all microorganisms and almost all high molecular
weight organics in the water.
Tap Water
"INPUT"
(From Garden
Hose Adapter)
0.5 micron MicroTec™
Sediment Prefilter
(SF-MT- 0.5 -10)
Flow Restrictor (3:1)
in Red Tubing
(Green Tubing for
2:1 Flow Restrictor)
Blue Purified
Water Tubing
(Good Water)
SpectraPure
E-mail: sales@spectrapure.com Visit us on the web www.spectrapure.com

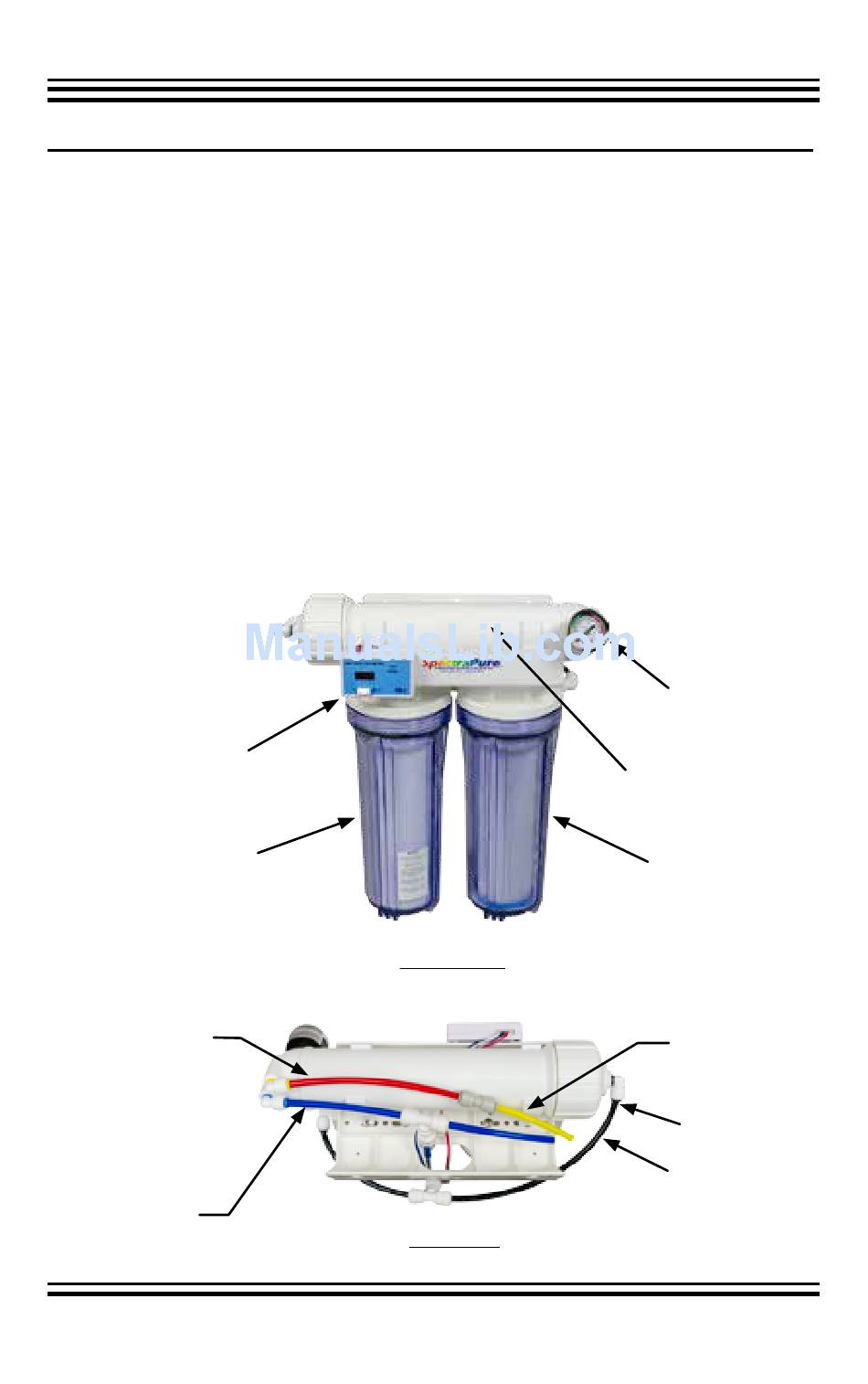

Fig. A: System Diagram
Inc .
®
Fax 480.894.6109 Fax us toll-free 1.877.527.7873
®
Front View
Top View
Pressure
Gauge
TFC RO Membrane
(inside housing)
0.5 micron
Carbon Block
Filter (CF-0.5 -10)
Yellow Concentrate
(waste) Tubing
Membrane Feed
Push Fitting
Black Tubing to
Membrane Feed
