SECTION 100-01: Identification Codes
DESCRIPTION AND OPERATION

Identification Codes

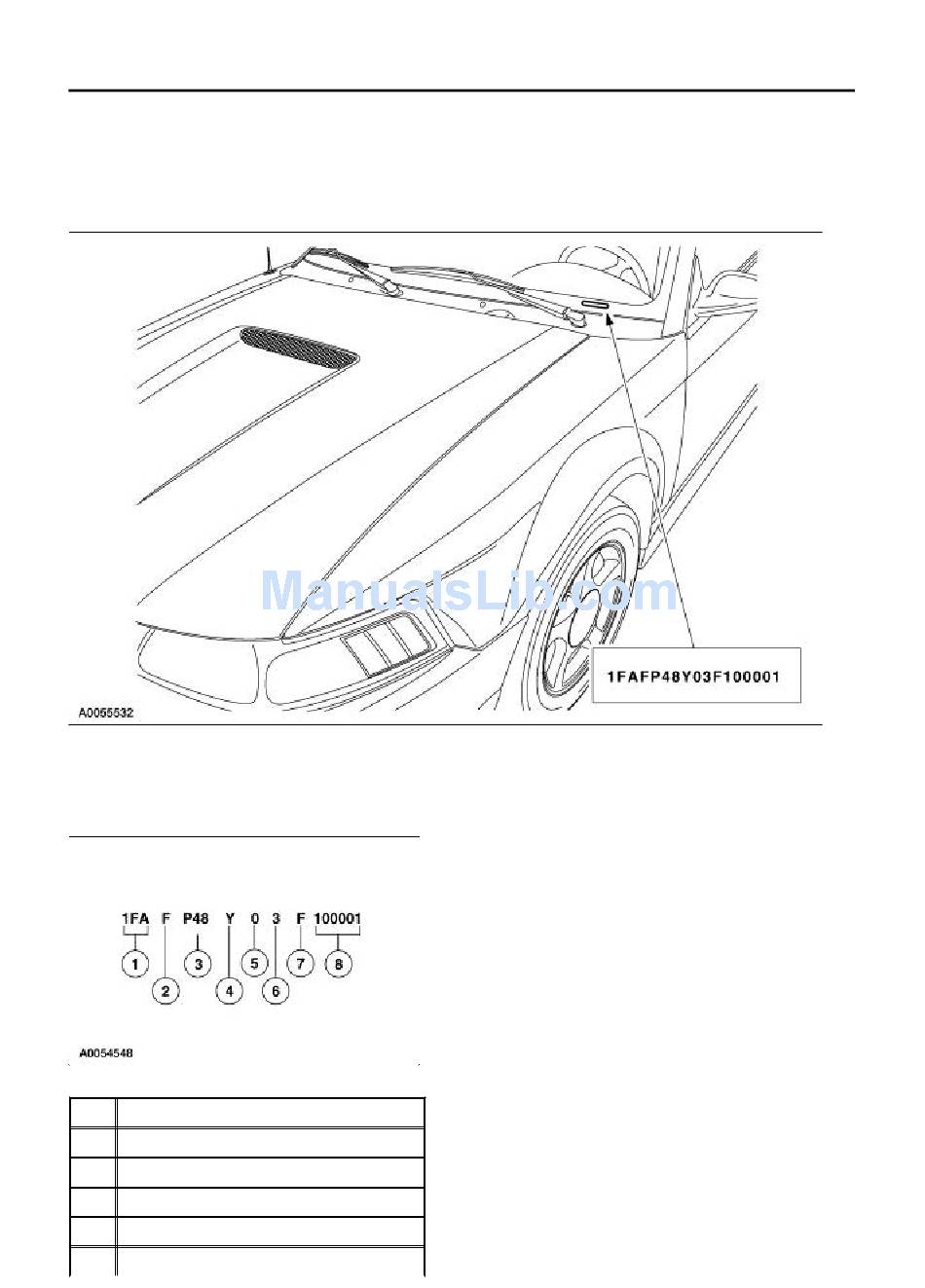

Vehicle Identification Number (VIN) Locator
The vehicle identification number (VIN) is a seventeen-digit alphanumeric code. The VIN is stamped
on a metal tab riveted to the instrument panel, top upper left of the dash. The VIN number is also found
on the vehicle certification (VC) label.
Item
Description
1
World manufacturer identifier (WMI)
2
Restraint type code
3
Line, series, body type (passenger car)
4
Engine code
2003 Mustang Workshop Manual
