SECTION 412-03: Air Conditioning

DESCRIPTION AND OPERATION
Air Conditioning
  Printable View (225 KB)
The A/C refrigerant system is a clutch cycling orifice tube type. The system components are:
A/C compressor (19703)
A/C clutch (2884)
A/C condenser core (19712)
A/C evaporator core (19860)
suction accumulator (19C836)
connecting refrigerant lines
The refrigeration system operation is controlled by the:
A/C evaporator core orifice (19D990).
A/C cycling switch (19E561).
A/C compressor pressure relief valve (19D644).
Refrigerant containment switch (3.8L) (19D594).
Dual-function pressure switch (4.6L) (19D594).
The refrigerant system incorporates an A/C compressor controlled by an A/C cycling switch.
The A/C cycling switch senses A/C evaporator core pressure to control A/C compressor operation.
An A/C compressor pressure relief valve is installed in the A/C manifold and tube (19D734) to protect the refrigerant system against excessively high refrigerant
pressures.
An evaporator core orifice is installed in the A/C evaporator core inlet tube to meter the liquid refrigerant into the A/C evaporator core.
A refrigerant containment switch is installed on 3.8L vehicles to cut-off A/C compressor operation in the event of abnormally high refrigerant system pressure.
A dual-function pressure switch is used on 4.6L vehicles for cooling fan control, and to cut-off A/C compressor operation in the event of abnormally high refrigerant
system pressure.

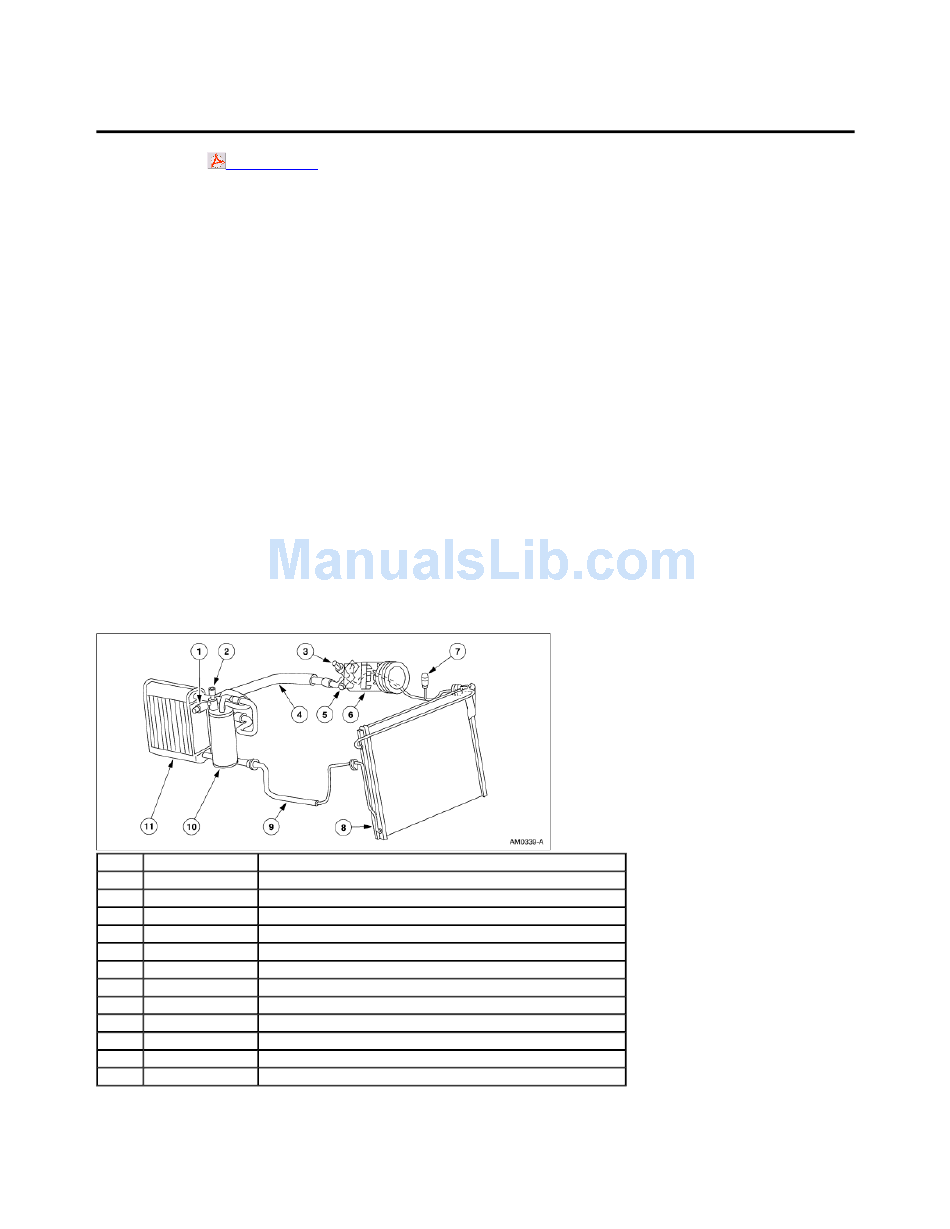

Refrigeration System Components

Item
Part Number
1
19E561
A/C cycling switch
2
19D701
A/C charge port valve (low side)
3
19D594
Refrigerant containment switch (3.8L vehicles)
3
19D594
Dual-function pressure switch (4.6L vehicles)
4
19D734
A/C manifold and tube
5
19D644
A/C compressor pressure relief valve
6
19703
A/C compressor
7
19D701
A/C charge port valve (high side)
8
19712
A/C condenser core
9
19835
Condenser to evaporator tube
10
19C836
Suction accumulator
11
A/C evaporator core (part of 19850 assembly)

A/C Compressor and Clutch Assembly

http://www.fordtechservice.dealerconnection.com/pubs/content/~WS3B/~MUS~LEN/19/S...

Description
Page 1 of 6
2003 Mustang Workshop Manual
Procedure revision date: 06/14/2002
