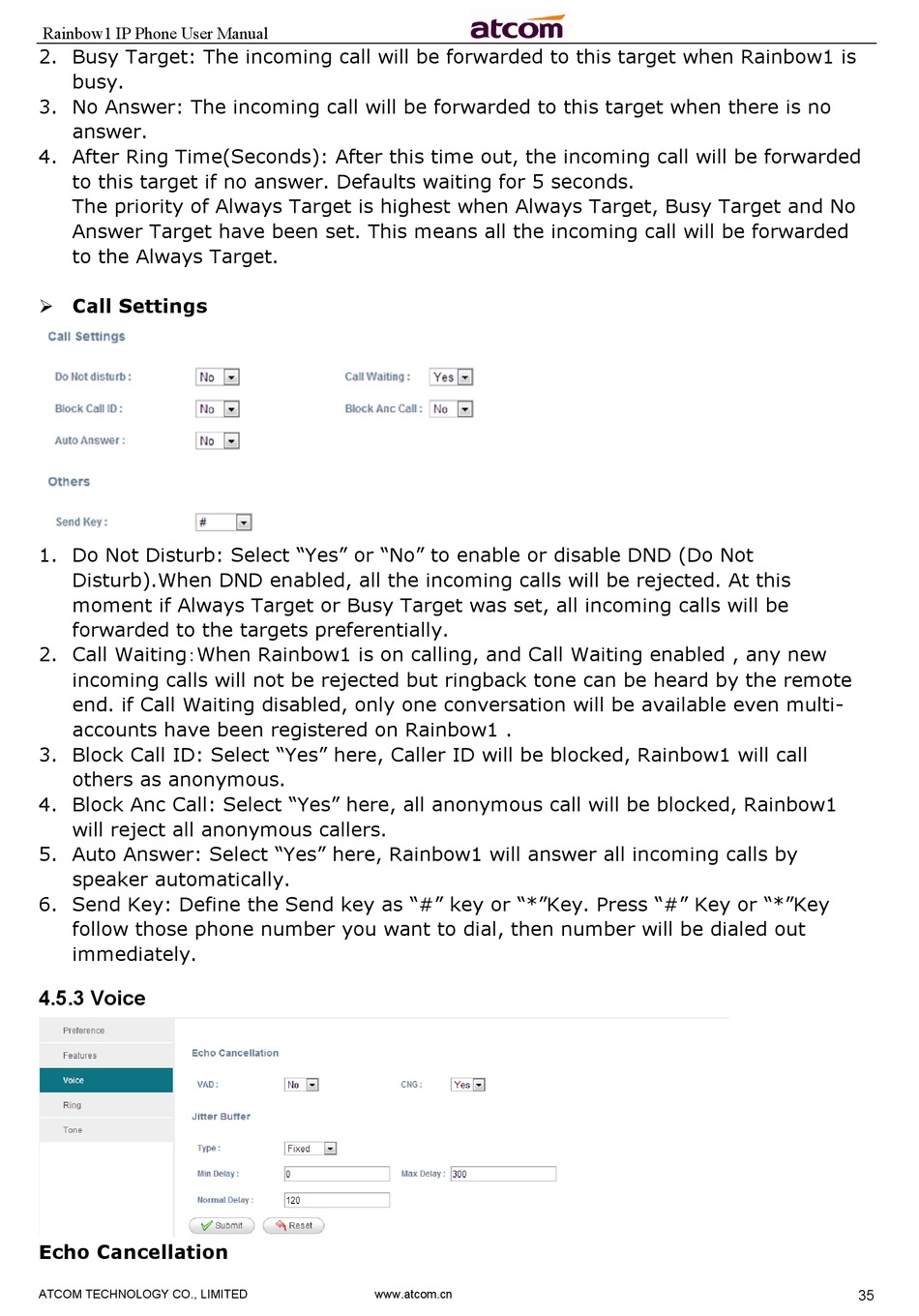

Voice - ATCOM rainbow1 User Manual

Rainbow1 IP Phone User Manual
2. Busy Target: The incoming call will be forwarded to this target when Rainbow1 is
busy.
3. No Answer: The incoming call will be forwarded to this target when there is no
answer.
4. After Ring Time(Seconds): After this time out, the incoming call will be forwarded
to this target if no answer. Defaults waiting for 5 seconds.
The priority of Always Target is highest when Always Target, Busy Target and No
Answer Target have been set. This means all the incoming call will be forwarded
to the Always Target.
 Call Settings
1. Do Not Disturb: Select "Yes" or "No" to enable or disable DND (Do Not
Disturb).When DND enabled, all the incoming calls will be rejected. At this
moment if Always Target or Busy Target was set, all incoming calls will be
forwarded to the targets preferentially.
2. Call Waiting：When Rainbow1 is on calling, and Call Waiting enabled , any new
incoming calls will not be rejected but ringback tone can be heard by the remote
end. if Call Waiting disabled, only one conversation will be available even multi-
accounts have been registered on Rainbow1 .
3. Block Call ID: Select "Yes" here, Caller ID will be blocked, Rainbow1 will call
others as anonymous.
4. Block Anc Call: Select "Yes" here, all anonymous call will be blocked, Rainbow1
will reject all anonymous callers.
5. Auto Answer: Select "Yes" here, Rainbow1 will answer all incoming calls by
speaker automatically.
6. Send Key: Define the Send key as "#" key or "*"Key. Press "#" Key or "*"Key
follow those phone number you want to dial, then number will be dialed out
immediately.

4.5.3 Voice

Echo Cancellation
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
35
