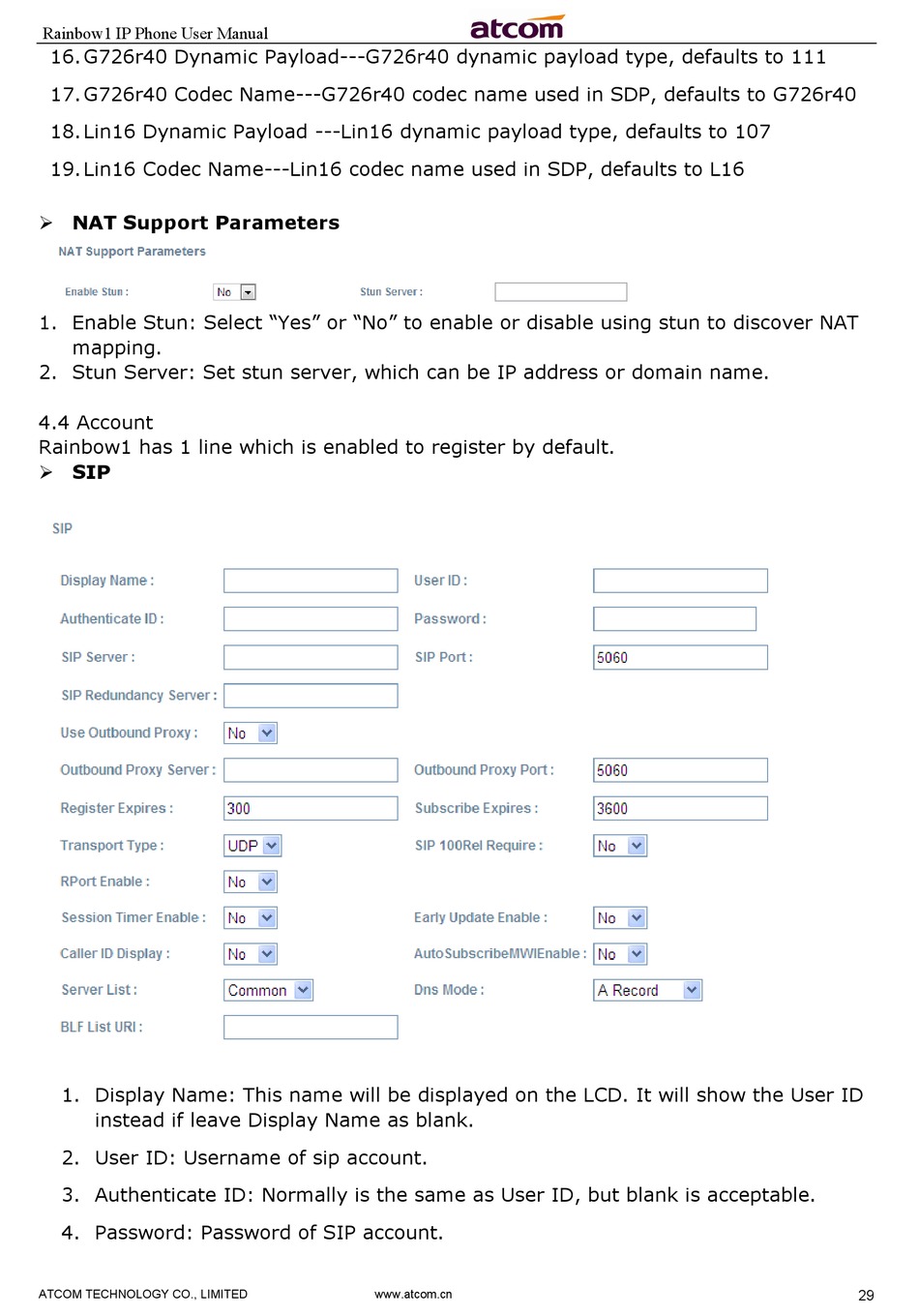

Rainbow1 IP Phone User Manual
16. G726r40 Dynamic Payload---G726r40 dynamic payload type, defaults to 111
17. G726r40 Codec Name---G726r40 codec name used in SDP, defaults to G726r40
18. Lin16 Dynamic Payload ---Lin16 dynamic payload type, defaults to 107
19. Lin16 Codec Name---Lin16 codec name used in SDP, defaults to L16
 NAT Support Parameters
1. Enable Stun: Select "Yes" or "No" to enable or disable using stun to discover NAT
mapping.
2. Stun Server: Set stun server, which can be IP address or domain name.

4.4 Account

Rainbow1 has 1 line which is enabled to register by default.
 SIP
1. Display Name: This name will be displayed on the LCD. It will show the User ID
instead if leave Display Name as blank.
2. User ID: Username of sip account.
3. Authenticate ID: Normally is the same as User ID, but blank is acceptable.
4. Password: Password of SIP account.
