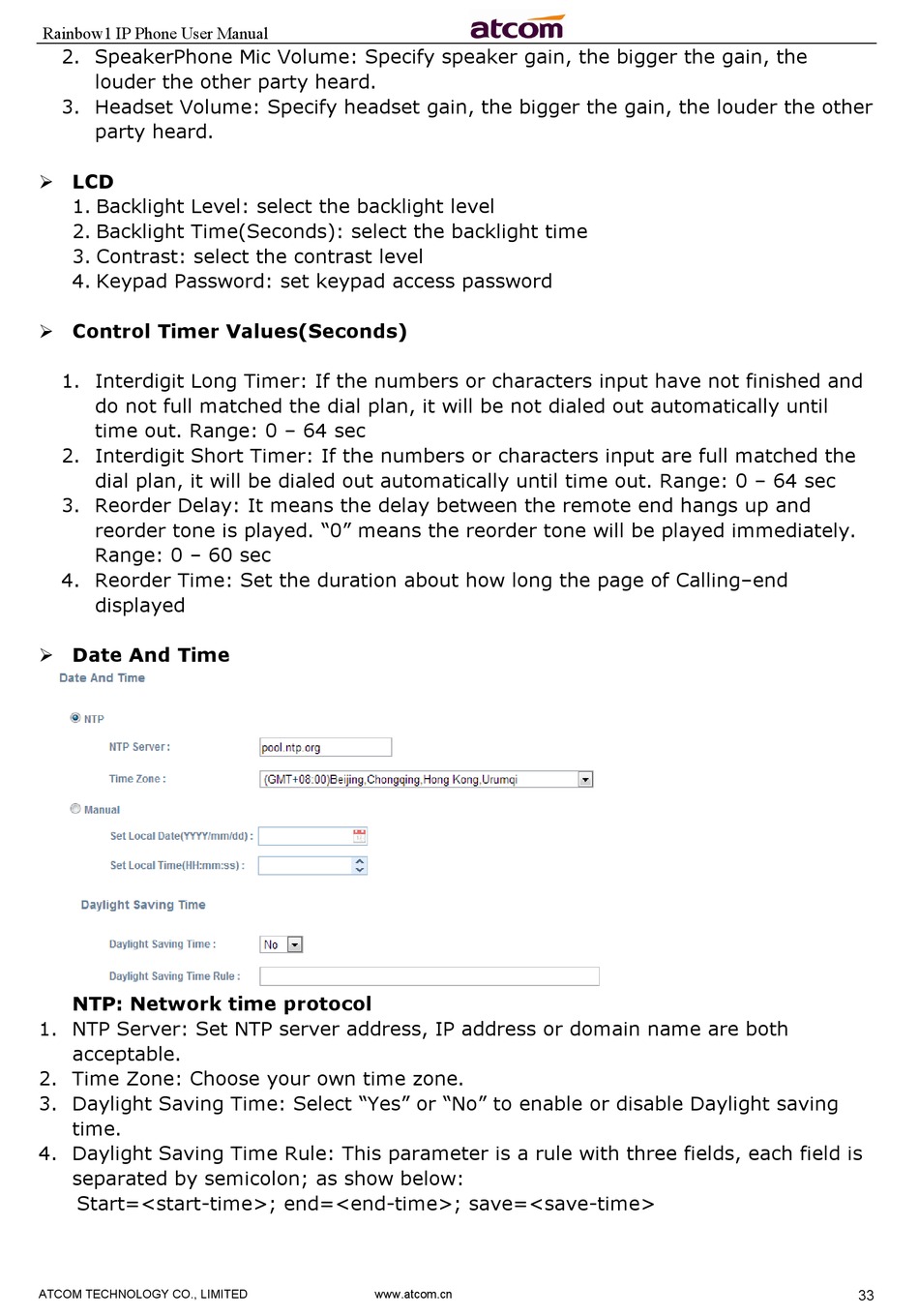

ATCOM rainbow1 User Manual page 33

Rainbow1 IP Phone User Manual
2. SpeakerPhone Mic Volume: Specify speaker gain, the bigger the gain, the
louder the other party heard.
3. Headset Volume: Specify headset gain, the bigger the gain, the louder the other
party heard.
 LCD
1. Backlight Level: select the backlight level
2. Backlight Time(Seconds): select the backlight time
3. Contrast: select the contrast level
4. Keypad Password: set keypad access password
 Control Timer Values(Seconds)
1. Interdigit Long Timer: If the numbers or characters input have not finished and
do not full matched the dial plan, it will be not dialed out automatically until
time out. Range: 0 – 64 sec
2. Interdigit Short Timer: If the numbers or characters input are full matched the
dial plan, it will be dialed out automatically until time out. Range: 0 – 64 sec
3. Reorder Delay: It means the delay between the remote end hangs up and
reorder tone is played. "0" means the reorder tone will be played immediately.
Range: 0 – 60 sec
4. Reorder Time: Set the duration about how long the page of Calling–end
displayed
 Date And Time
NTP: Network time protocol
1. NTP Server: Set NTP server address, IP address or domain name are both
acceptable.
2. Time Zone: Choose your own time zone.
3. Daylight Saving Time: Select "Yes" or "No" to enable or disable Daylight saving
time.
4. Daylight Saving Time Rule: This parameter is a rule with three fields, each field is
separated by semicolon; as show below:
Start=<start-time>; end=<end-time>; save=<save-time>
