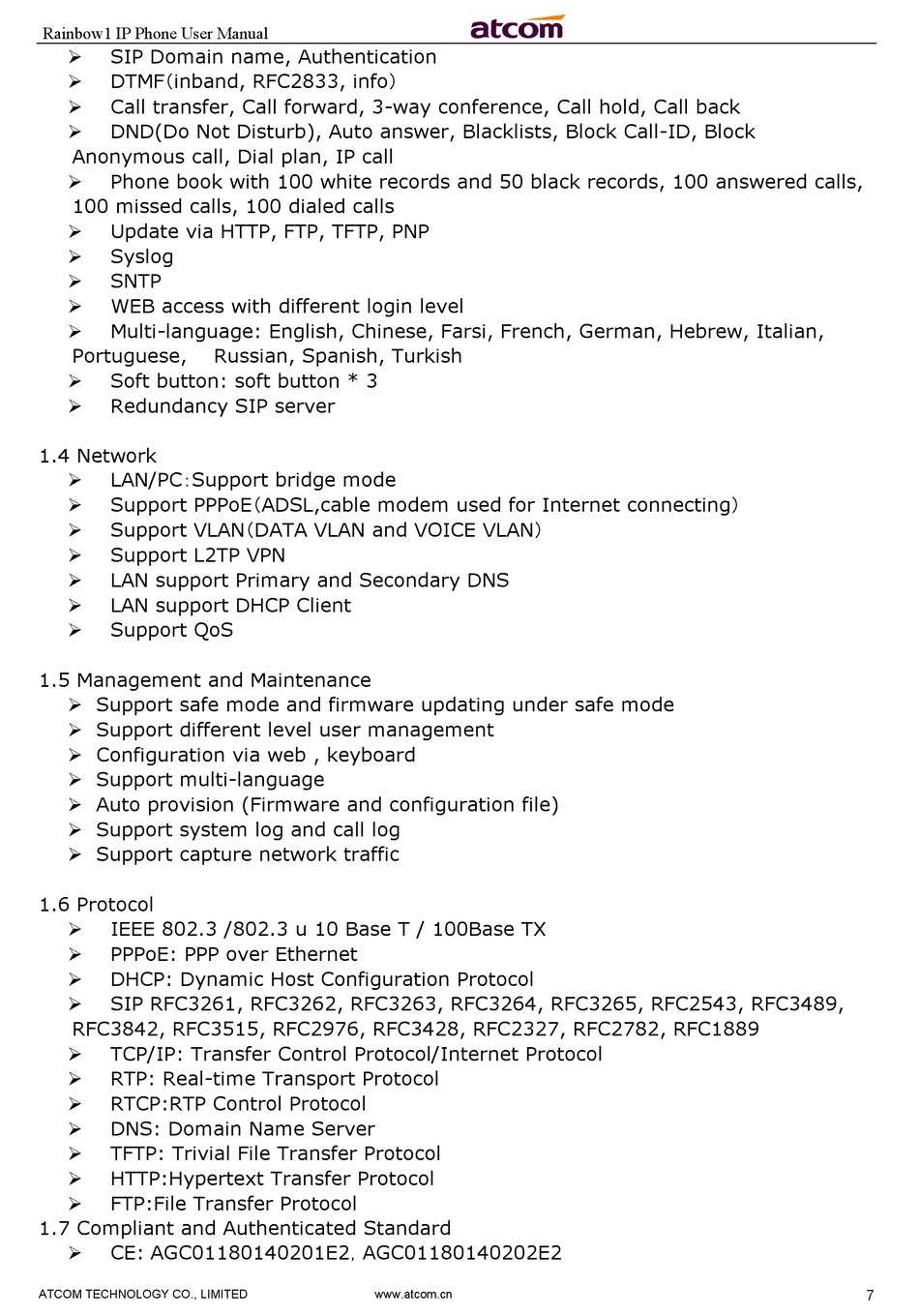

Rainbow1 IP Phone User Manual
SIP Domain name, Authentication

DTMF（inband, RFC2833, info）

Call transfer, Call forward, 3-way conference, Call hold, Call back

DND(Do Not Disturb), Auto answer, Blacklists, Block Call-ID, Block

Anonymous call, Dial plan, IP call
Phone book with 100 white records and 50 black records, 100 answered calls,

100 missed calls, 100 dialed calls
Update via HTTP, FTP, TFTP, PNP

Syslog

SNTP

WEB access with different login level

Multi-language: English, Chinese, Farsi, French, German, Hebrew, Italian,

Portuguese,
Soft button: soft button * 3

Redundancy SIP server


1.4 Network

LAN/PC：Support bridge mode

Support PPPoE（ADSL,cable modem used for Internet connecting）

Support VLAN（DATA VLAN and VOICE VLAN）

Support L2TP VPN

LAN support Primary and Secondary DNS

LAN support DHCP Client

Support QoS


1.5 Management and Maintenance

 Support safe mode and firmware updating under safe mode
 Support different level user management
 Configuration via web , keyboard
 Support multi-language
 Auto provision (Firmware and configuration file)
 Support system log and call log
 Support capture network traffic

1.6 Protocol

IEEE 802.3 /802.3 u 10 Base T / 100Base TX

PPPoE: PPP over Ethernet

DHCP: Dynamic Host Configuration Protocol

SIP RFC3261, RFC3262, RFC3263, RFC3264, RFC3265, RFC2543, RFC3489,

RFC3842, RFC3515, RFC2976, RFC3428, RFC2327, RFC2782, RFC1889
TCP/IP: Transfer Control Protocol/Internet Protocol

RTP: Real-time Transport Protocol

RTCP:RTP Control Protocol

DNS: Domain Name Server

TFTP: Trivial File Transfer Protocol

HTTP:Hypertext Transfer Protocol

FTP:File Transfer Protocol


1.7 Compliant and Authenticated Standard

CE: AGC01180140201E2，AGC01180140202E2

ATCOM TECHNOLOGY CO., LIMITED
Russian, Spanish, Turkish
