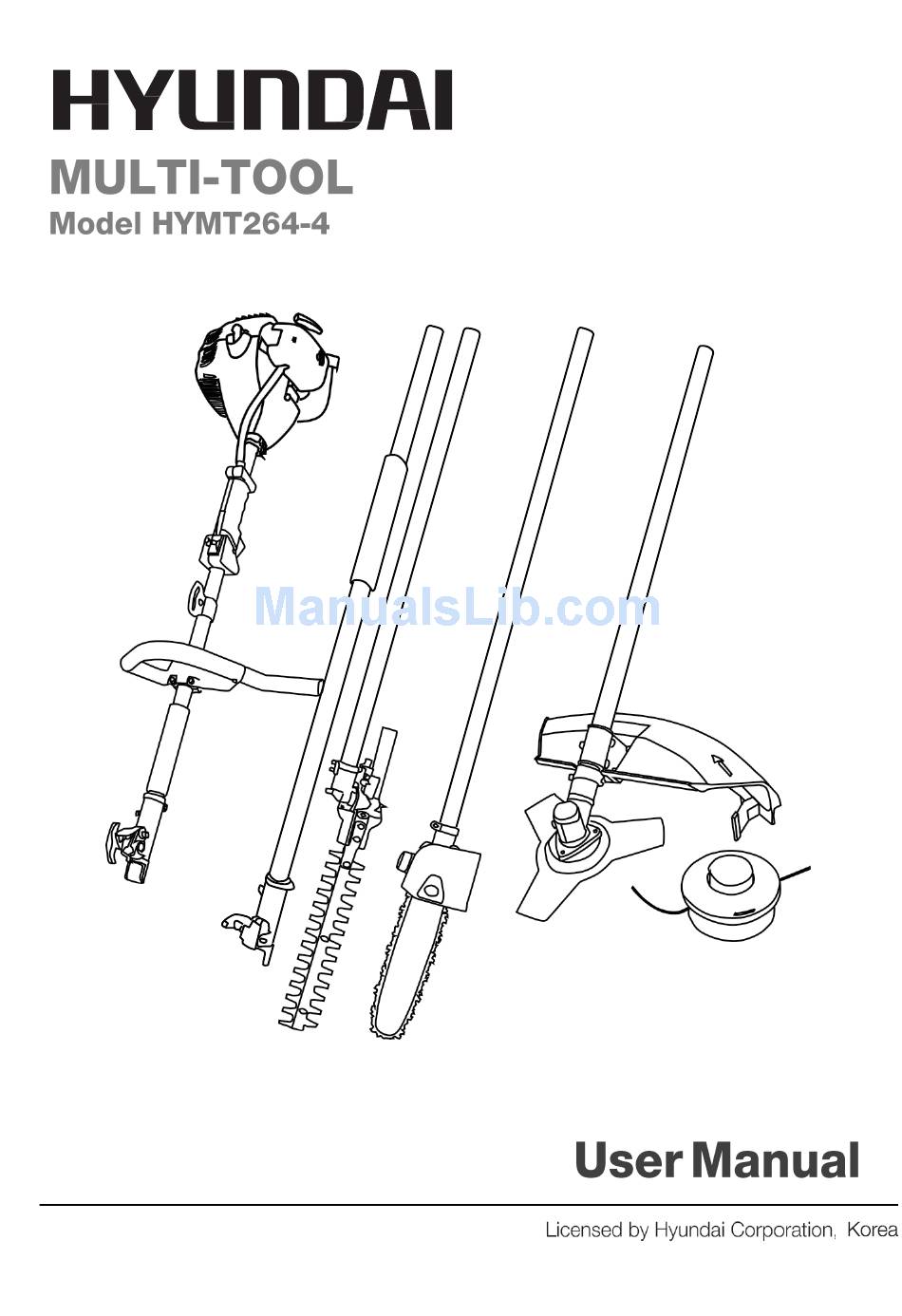

Hyundai HYMT264-4 User Manual
  1. Manuals
  2. Brands
  3. Hyundai Manuals
  4. Trimmer
  5. HYMT264-4
  6. User manual

Hyundai HYMT264-4 User Manual

Multi-tool
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYMT264-4 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai HYMT264-4

Summary of Contents for Hyundai HYMT264-4

  • Page 2: Table Of Contents

    CONTENTS o’s Page N Section Description I. SAFETY 3 - 5 2. THE UNIT 6 - 7 3. ASSEMBLY & INITIAL OPERATION 8 - 9 4. OPERATION 9 - 12 5. INSPECTION & MAINTENANCE 12 - 13 6 TRANSPORTATION 7. TECHNICAL DATA 8.

  • Page 3: Safety

    1. SAFETY. 1.1. The operator of the machine is responsible for and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Please note the following safety points 1.1.2.
  • Page 4 1.3. Carbon monoxide. 1.3.1. Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.3.2. The symptoms of Carbon monoxide poisoning can include but not limited to the following; 1.3.2.1.
  • Page 5 1.4.7. Dispose of waste fuels correctly. 1.4.8. Petrol safety. 1.4.8.1. Always fuel and defuel in well-ventilated area. 1.4.8.2. Always wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are as follows, but are not limited too. 1.4.8.3.

  • Page 6: The Unit

    2. THE UNIT 2.1 Power Unit 2.1 The unit is a universal combination set enabling perfect care of the garden and hedges and lop trees. Start handle Air Filter Throttle lockout Stop switch Front handle Unit locking screw Throttle lock Throttle trigger Fuel tank Choke lever...
  • Page 7 2.3 Pruner Pruner locking hole Automatic oil pump Pruner chain Pruner chain bar 2.4 Articulating hedge trimmer Locking hole Cutting unit Adjusting lever lock Cutting unit adjusting lever - 135° 2.5 Brush cutter Locking hole Guard Cutting blade 2.6 Grass trimmer Locking hole Guard Cutting string...

  • Page 8: Assembly & Initial Operation

    3. ASSEMBLY & INITIAL OPERATION 3.1 Power unit 3.1.1 Install the front handle as shown in the diagrams. Do not tighten the screws until you have set the perfect working position with the carrying strap. The front handle should be aligned as show in “Power Unit” diagram. 1.

  • Page 9: Operation

    3.4 Pruner 3.5 Fuel information 3.5.1 Refuelling - For air-cooled 2-stroke engines, mix unleaded petrol well with branded oil at a ratio of 40:1. Meaning that 0.2 litre oil has to be added in 8 litres of petrol. Tip: Always prepare 1 litre of the mix at a time because the mix turns unusable after prolonged storage.
  • Page 10 Push the primer bulb 3 - 5 times Push the unlocking knob and accelerate Push the throttle lock in at this position (cold) Start the machine by carefully pulling the starter cable. Do this whilst holding the machine against the ground. Now, control the throttle so that the machine runs evenly for it to reach full speed.
  • Page 11 4.2 Blade removal. 4.2.1 When the machine is supplied the blade is fitted. Follow the steps below to remove it. 4.2.2 Line up the hole in the carrier plate (Fig 1: 3) with the notch beneath it and lock the carrier plate with the size 4 Allen Key. 4.2.3 Remove the securing nut for the blade using the supplied spark plug wrench (Fig.

  • Page 12: Inspection & Maintenance

    4.4.2 Grass cutting. 4.4.2.1 Working on grass areas, hold the scythe at an angle of ca 30°and make semicircle turns to the left and right. 4.4.2.2 The best results are achieved with grass 150 mm high. If the grass is higher, it is recommended to repeat mowing several times.
  • Page 13 5.4.4 Never repair cutting attachments by welding, straightening or changing the shape. This may result in serious injury. 5.4.5 Never attempt maintenance that is not outlined in this manual. All repair work must be carried out by a Hyundai authorised service centre. Page 13 Rev 4...

  • Page 14: Transportation

    Chain Type Oregon 91P039X Chain Guide Type Oregon 100SDEA318 Engine: Engine Speed with Pruner running 8500 rpm Type of the engine Hyundai 3m x 0.35m x 0.25m L x W x H Engine Displacement 26cc Engine Speed 8500 rpm Hedge Trimmer: Fuel Tank Volume 0.45L...

  • Page 15: Troubleshooting

    8. TROUBLE SHOOTING Fault Cause Remedy Correct starting Follow the procedure not instructions for followed starting Clean the spark plug or The machine does Sooted or damp replace it with a new not start spark plug Contact an authorised Incorrect carburetor customer service setting outlet...

  • Page 16: Delcaration Of Conformity

    9. DECLARATION OF CONFORMITY Genpower Ltd confirms that this HYUNDAI product conforms to the following CE directives: • 2006/42/EC Machinery directive • 2004/108/EC EMC directive • 2000/14/EC Noise emissions directive • 97/68/EC NRMM Emissions directive Page 16 Rev 4...
  • Page 17 Page 17 Rev 4...
  • Page 18 GENPOWER LTD Isaac Way, London Road Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 info@hyundaipowerequipment.co.uk www.hyundaipowerequipment.co.uk...
