Extension Unit connections

1

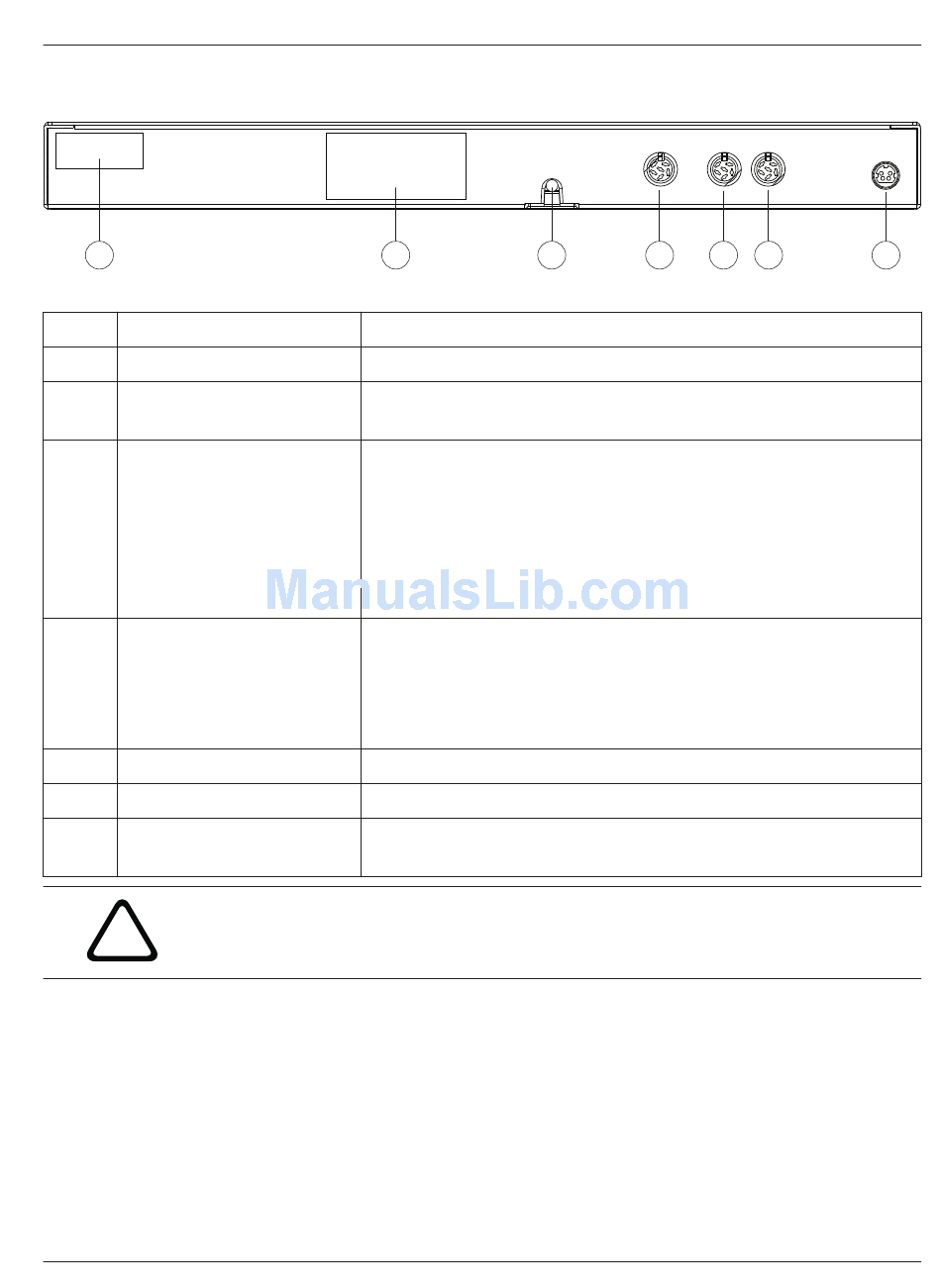

Figure 6.4: CCSD‑EXU rear view
Number Item
1 FCC label
2 Product label
3 Trunk cable with connector
4 Trunk connection
5 Tap-off connection
6 Tap-off connection
7 Power 24V 6A
Caution!
Non-approved power supplies can damage the equipment. Only use the original Bosch
!
supplied 24 VDC power supply.
Bosch Security Systems B.V.
2
Description
Label showing the FCC Declaration of Conformity.
Label showing information on the product, such as: product type, serial
number, technical data, and CE mark.
2 m (78.7 in) cable with 6‑pole circular male connector and cable lock
for connecting the Extension Unit to the previous component in the
daisy-chain. This can be:
– the Control Unit,
– another Extension Unit,
– an extension cable, or
– a Discussion Device.
6‑pole circular female connector for connecting the next component in
the daisy-chain. This can be:
– another Extension Unit,
– an extension cable, or
– a Discussion Device.
6‑pole circular female connector for connecting Discussion Devices.
6‑pole circular female connector for connecting Discussion Devices .
4‑pole circular female connector for connecting the 24 VDC power
supply.
