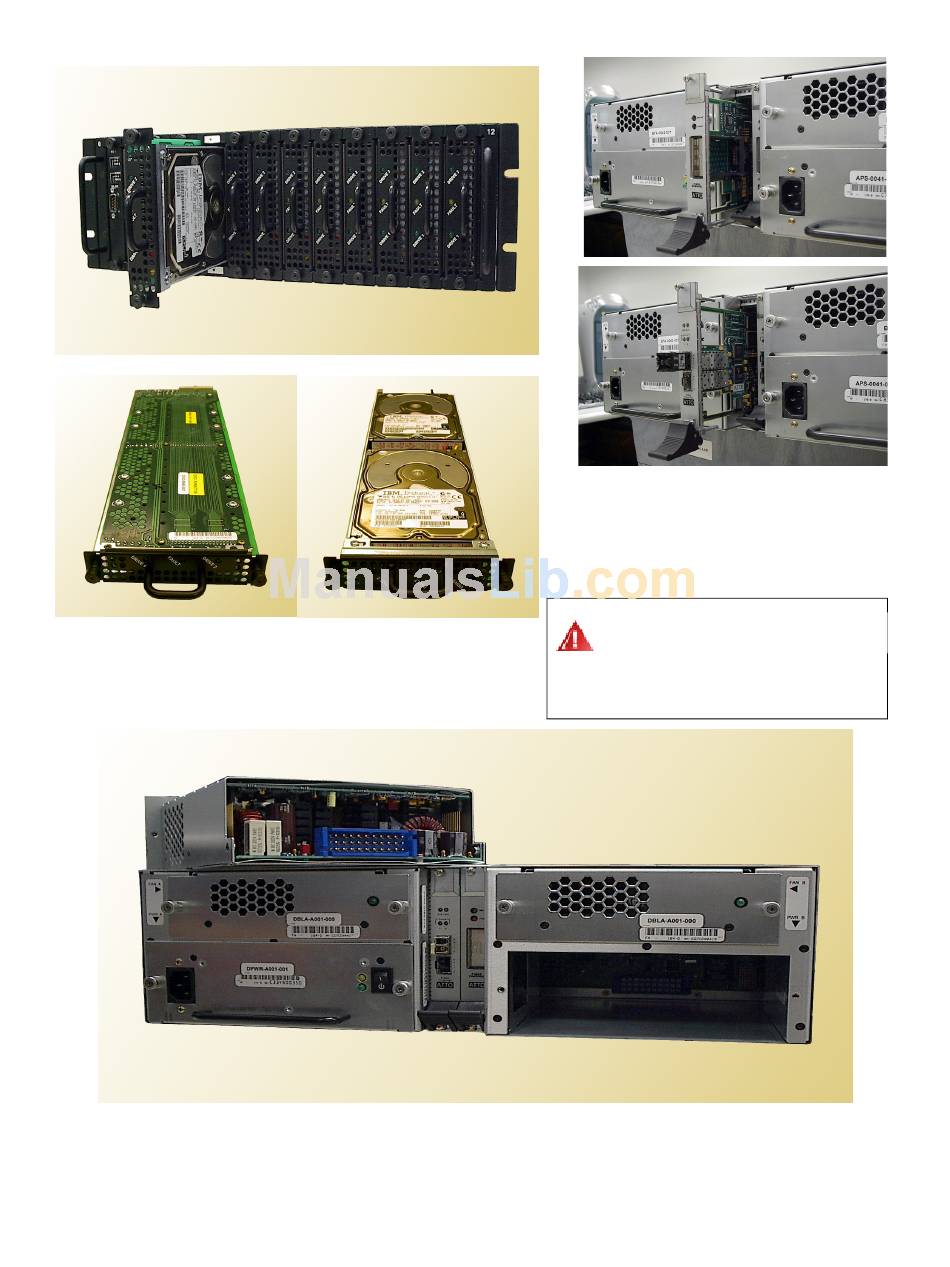

Exhibit 7-2: Above, disk drive sled partially pulled out of the Diamond
Storage Array. Bottom left, top of disk drive sled. Bottom right, underside
of disk drive sled showing individual drives
Exhibit 7-4: A power supply pulled out from a rackmount Diamond Storage Array: do not leave an empty opening
while the Diamond Storage Array is operating. Access the blower assembly and the power supply by loosening the
screws on either side of the component, then pulling out the part. If a blower or power supply stops working, keep it
in place until another component is installed. (Note: host interface configuration pictured is not supported)
Exhibit 7-3: The Fibre Channel or SCSI Host
Interface Card may be replaced by shutting
power down, removing any cable attached to the
port, removing the SFP according to
manufacturer's instructions, loosening the
screws at the top and bottom of the card, then
carefully pulling out the unit.
WARNING
Do not leave empty openings on the
front or rear of the Diamond Storage
Array under any circumstances.
70
Maintenance
