- Page 1 Manual 881 E...
-
Page 3: Table Of Contents
Brake belt contact surface ���������������������������������� 11 Chain 1/2“ x 1/8“ ������������������������������������������������� 12 Freewheel sprocket ��������������������������������������������� 13 Spare parts ���������������������������������������������������� 14 Important Read the manual carefully before using the cycle and save it for future use. © 2010 MONARK EXERCISE AB, Vansbro, Sweden... -
Page 4: Monark Exercise Ab
Since the early 1900s, Monark’s cycles have been living proof of precision, reliability, strength and service. These are the reasons why we are now the world leader in cycle ergometers and the market leader in Scandinavia in transport cycles. -
Page 5: Product Information

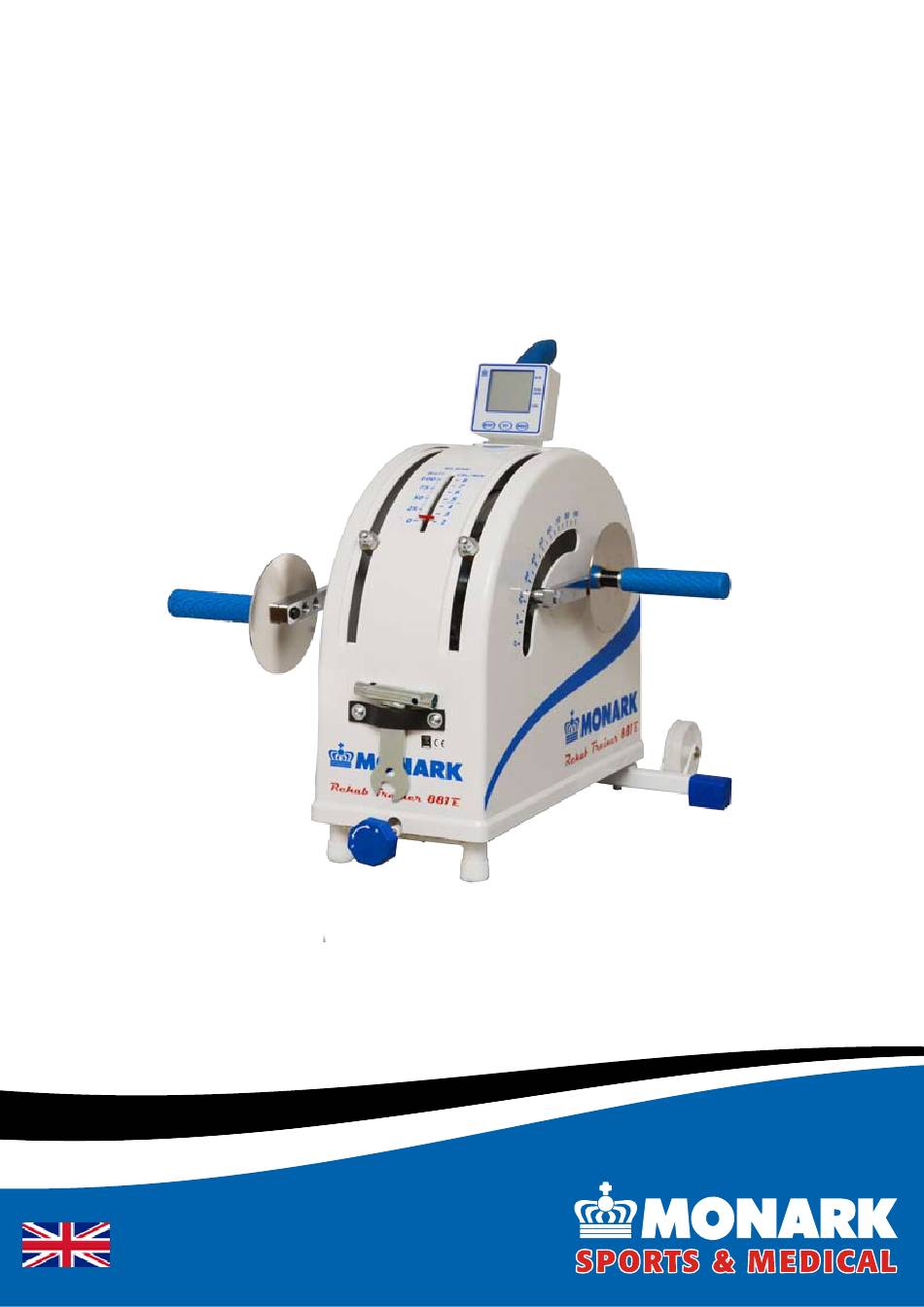

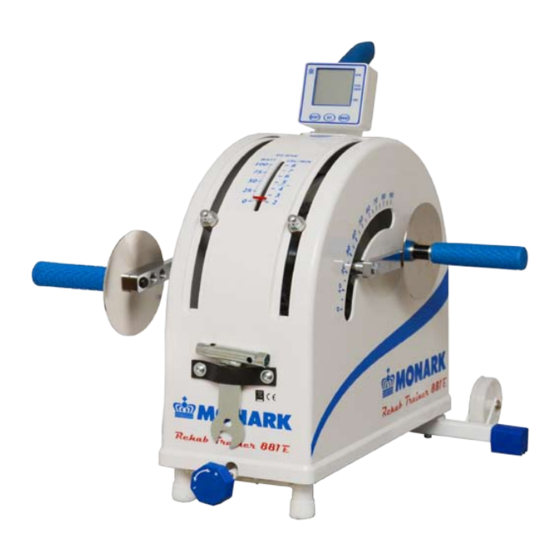

The unit can be calibrated Congratulations on your new Ergometer. • Graduated scale in watts, showing the work load at 50 rpm. The Monark Rehab Trainer 881 E is an arm and leg • Electronic display ergometer that provides the potential to individually •... -
Page 6: Operating Instruction
Operating Instruction Workload device The Monark Rehab Trainer model 881 E is an arm and leg ergometer provided with a brake belt. The power can be read in watts at 50 pedal rpm moreover, the work can be read in kilo pond metres (kpm). The... -
Page 7: Computer Specifications
SET to enter your desired value. Each press of SET will advance value by 10. When pedaling is started, measurement of remaining revolutions will begin and the unit will count down to 0 at which time beeper will sound for five seconds. Monark 881 E... -
Page 8: Calibration
Adjust the position of the right hand crank so it is in line with left hand crank and tighten the screw. Watt scale 4) 2 kp Fig: Adjustments 5) Nuts 6) Crank arm screw 7) Graduated scale 8) 3 different positions Monark 881 E... -
Page 9: Troubleshooting Guide
Check that the cable is properly connected in the back of the meter. Check batteries. Uneven movement and the pointer moves Dirt on the brake belt and/or contact surface. See section “Brake belt irregularly (up and down). contact surface”. Monark 881 E... -
Page 10: Service
EC Directive 1999/44/EC. In short, (4 times per year). the directive states for that your Monark Dealer will • Check that pedals are firmly tightened. If not, the be liable for any defects, which existed at the time of threading in the pedal arms will be damaged. -
Page 11: Batteries
The crank bearing is greased and normally requires no supplementary lubrication. If a problem arises, Brake belt contact surface please contact your Monark dealer. Deposits of dirt on the brake belt and on the contact Flywheel bearing surface may cause the unit to operate unevenly and will also wear down the brake belt. -
Page 12: Chain 1/2" X 1/8
Adjust chain adjusters to allow chain play according to above. Tighten hub nuts firmly. Replace frame covers. Monark 881 E... -
Page 13: Freewheel Sprocket
The sprocket should be lubricated with a few drops of oil once a year. Tilt the cycle to make it easier for the oil to reach the bearing. See fig: Lubrication. Fig: Lubrication Fig: Hub assembly Fig: Special remover (Art. No: 9100-14) Monark 881 E... -
Page 14: Spare Parts
9045-71 Hand guard 9145-136 Tension lever, complete 9045-101 Wall bar fastener 9145-140 Handwheel, complete 9145-550 Decal set for 881 E 6720 Crank bearing set, complete 9145-150 Set w. screw, washer and nut 9007-36 Chain wheel, 34T 9145-8 Adjustable table, accessory 9145-55 Chain 1/2”x1/8”,42 l, incl lock... - Page 15 Notes: ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................... Monark 881 E...
- Page 16 Version 1010 Art. No: 7950-308 KROONS VÄG 1, SE-780 50 VANSBRO, SWEDEN | WWW.MONARKEXERCISE.SE | TEL: +46(0)281 59 49 40 | FAX: +46(0)281 719 81...
