VoxStack Series Wireless Gateways User Manual
OpenVox Communication Co Ltd
VoxStack Series Wireless Gateways
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS-GW2120 and is the answer not in the manual?

Questions and answers

Related Manuals for OpenVox VS-GW2120

Summary of Contents for OpenVox VS-GW2120

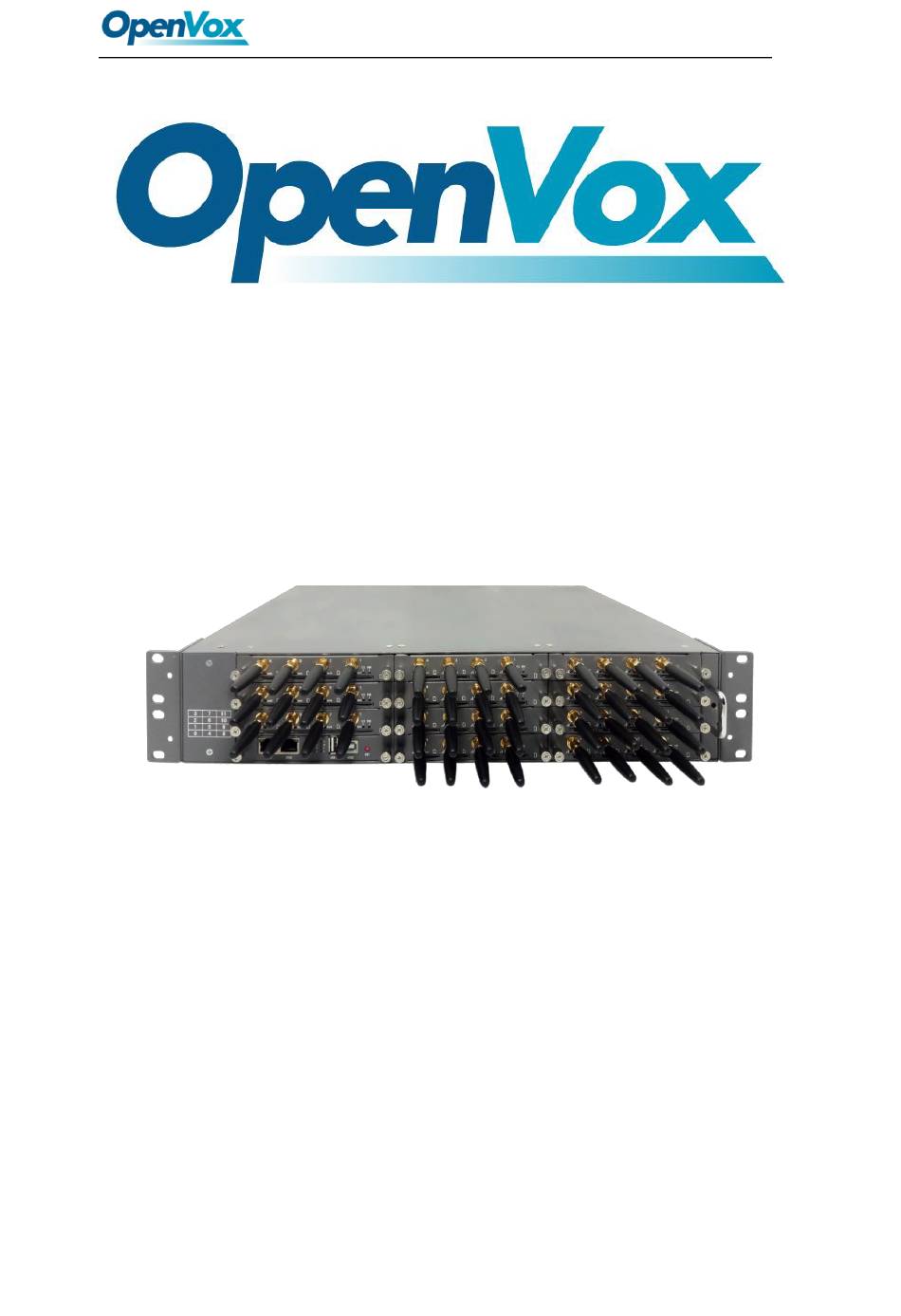

  • Page 1 VoxStack Series Wireless Gateways User Manual OpenVox Communication Co Ltd VoxStack Series Wireless Gateways User Manual...
  • Page 2 Address: 10/F, Building 6-A, Baoneng Science and Technology Industrial Park, Longhua New District, Shenzhen, Guangdong,China 518109 Tel: +86-755-66630978, 82535461, 82535362 Business Contact: sales@openvox.cn Technical Support: support@openvox.cn Business Hours: 09:00-18:00(GMT+8) from Monday to Friday URL: www.openvox.cn Thank You for Choosing OpenVox Products!
  • Page 3 VoxStack Series Wireless Gateways User Manual Copyright © Copyright 2019 OpenVox Inc. All rights reserved. No part of this document may be reproduced without prior written permission. Confidentiality Information contained herein is of a highly sensitive nature and is confidential and proprietary to OpenVox Inc.
  • Page 4 VoxStack Series Wireless Gateways User Manual Revision History Version Date Detail 2019/04/04 Initial...

  • Page 5: Table Of Contents

    VoxStack Series Wireless Gateways User Manual Contents 1. Overview ........................4 1.1 What is VoxStack Series Wireless Gateways？ ..........4 1.2 Application ....................... 5 1.3 Main Features ....................6 1.4 Physical Information..................8 1.5 Login ......................... 9 2. System ........................10 2.1 Status......................
  • Page 6 VoxStack Series Wireless Gateways User Manual 4.1.2 Add New IAX2 Endpoint ..............45 4.2 Batch SIP Endpoints ..................50 4.3 Advanced SIP Settings ..................52 4.4 Advanced IAX2 Settings ................. 60 4.5 SIP Account Security ..................66 5. Routing ........................68 5.1 Call Routing Rules ...................
  • Page 7 VoxStack Series Wireless Gateways User Manual 8.2 Asterisk CLI ..................... 95 8.3 Asterisk File Editor ..................95 8.4 Internet ......................96 8.5 Cloud Management ..................96 8.6 Balance ......................97 8.7 Phone Number ....................98 9. Logs .......................... 99...

  • Page 8: Overview

    Interface). The new VoxStack series of gateways are available in three models, the VS-GW1202 V2, the VS-GW1600 V2 and the VS-GW2120 V2 series of wireless gateways. The modular design of the VS-GW1202 V2 wireless gateway can be plugged into two...

  • Page 9: Application

    VoxStack Series Wireless Gateways User Manual 1.2 Application Figure 1-2-1 Application Topology Figure 1-2-2 VS-GW1600 series products positive Figure1-2-3 VS-GW1600 series front panel Figure 1-2-4 VS-GW2120 series products positive...

  • Page 10: Main Features

    VoxStack Series Wireless Gateways User Manual Figure1-2-5 VS-GW2120 series front panel Table 1-2-1 Status light description Status Light Color Status Green and Flash Module Initiating Red and Flash No SIM Card Signal Status LED Always red Worst Signal Quality Always yellow...
  • Page 11 VoxStack Series Wireless Gateways User Manual  SIP V2.0 RFC3261 Compliance  DTMF Mode: RFC2833/Inband/SIP Info  Multiple SIP/IAX2 Registrations modes  Abundant Codecs:G.711A, G.711U, G.729, G.722, G.723, G.726, GSM  IPv4，UDP/TCP，DHCP，TELNET，HTTP/HTTPS，TFTP  PPTP VPN  HTTP/SSH（Optical Telnet）  Ping & Traceroute Command on the Web ...

  • Page 12: Physical Information

     Outbound  Automatically Reboot  Support MMP  Support for custom scripts, dial plans  Support OpenVox cloud manage 1.4 Physical Information  Weight: VS-GW1202 V2: 1300g VS-GW1600 V2: 3682g VS-GW2120 V2: 6144g VS-GWM420G: 162g VS-GWM420W: 170g VS-GWM420L: 178g ...

  • Page 13: Login

    VoxStack Series Wireless Gateways User Manual VS-GW1600 V2: 46W VS-GW2120 V2: 88W  Operation Temperature:0~40°C  Storage Temperature: -20~70°C  Operation humidity:10% ~ 90% non-condensing  WAN: 2*10/100M 1.5 Login  Default IP: 172.16.98.1  Username: admin  Password: admin For the first time, you can access by using default IP 172.16.98.1.

  • Page 14: System

    VoxStack Series Wireless Gateways User Manual 2. System 2.1 Status On the “Status” page, you will find the information of all Modules, SIP, IAX2, Routing and the Network. Figure 2-1-1 System Status Table 2-1-1 Description of System Status Option Definition Number of each ports.
  • Page 15 VoxStack Series Wireless Gateways User Manual Band GSM/ LTE. Bit Error Rate. Carrier Display the network carrier of current SIM card. Registration Indicates the registration status of current module. Status Post Dial Delay (PDD) is the time from the point at which the final dialed digit is sent until they hear a ringtone or other in-band message.

  • Page 16: Time

    VoxStack Series Wireless Gateways User Manual 2.2 Time Table 2-2-1 Definition of Time Settings Options Definition System Time Your gateway system time. The world time zone: Please select the one which is the same Time Zone or the closest as your city. POSIX TZ Posix time zone strings.

  • Page 17: Login Settings

    VoxStack Series Wireless Gateways User Manual For example, you can configure like this: Figure 2-2-1 Time Setting You can synchronize the gateway time in different ways: Sync from NTP or Sync from Client by pressing different buttons. 2.3 Login Settings The new gateway has no administration privileges, all you can do is reset a username and password to manage your gateway.

  • Page 18: General

    VoxStack Series Wireless Gateways User Manual Define your password to manage your gateway Allowed characters Password "-_+. < >&0-9a-zA-Z". Length: 1-32 characters. Confirm Please input the same password as 'Password' above. Password http and https: You can access gateway via link: http://gatewayIP Login or https://gatewayIP Mode...

  • Page 19: Tools And Information

    VoxStack Series Wireless Gateways User Manual Figure 2-4-1 Language Settings If you switch it on, you can manage your gateway to reboot automatically as you like. There are four reboot types for you to choose, “By Day, By Week, By Month or By Running Time”.
  • Page 20 VoxStack Series Wireless Gateways User Manual If you press "OK", the system will restart and the current call will be hung up. The same as the Asterisk Reboot. Update Firmware We offer 2 kinds of update types for you, you can choose System Update or System Online Update.

  • Page 21: Setting Wizard

    VoxStack Series Wireless Gateways User Manual Restore Configuration Sometimes there is something wrong with your gateway that you don’t know how to solve it. Mostly you can select factory reset, you just need to press a button and your gateway will be reset to the factory status. Figure 2-5-5 Restore Configuration System Information On the “Information”...
  • Page 22 VoxStack Series Wireless Gateways User Manual Figure 2-6-1 Setting Wizard...

  • Page 23: Module

    VoxStack Series Wireless Gateways User Manual 3. Module You can see the information of SIM card on this page. 3.1 Module Settings Figure 3-1-1 Module Settings On this page, you can see the information of the module status, click the button to configure the port.
  • Page 24 If you want to hide your number when you call out, you can just switch CLIR “ON” (Of course you need your operator’s support). Figure 3-1-5 CLIR Application OpenVox GSM/3G Gateway supports optional GSM voice codec. For more details, you can see the picture below： Figure 3-1-6 GSM Voice Codec...
  • Page 25 VoxStack Series Wireless Gateways User Manual We also provide IMEI automatically modified performance. Figure 3-1-7 Automatic IMEI modification If you want to modify the IMEI number, log in to the gateway to modify the IP address as follows. Input http://gatewayIP/cgi-bin/php/gsm-autoimei.php in your browser.
  • Page 26 VoxStack Series Wireless Gateways User Manual Figure 3-1-10 Advanced Setting As you can see, each port is set to any number. "X" means any number from 0-9. All you have to do is fill in all the lines and click "Set All". Click "Save", the current IMEI will change, this is automatically generated.
  • Page 27 VoxStack Series Wireless Gateways User Manual Speaker The range of the speaker volume level is 0-100. This will Volume adjust the loud speaker volume level by an AT command. Microphone The range of the microphone volume is: 0-15. This will Volume change the microphone volume level by an AT command.

  • Page 28: Call Forwarding

    VoxStack Series Wireless Gateways User Manual Your call status will be displayed on the main screen. Figure 3-1-13 Module Information 3.2 Call Forwarding Sometimes it's not convenient for you to answer the call. If you don't want to lose some important calls, you can choose call forwarding. There are different kinds of call types for you to choose, Such as call forwarding unconditional, call forwarding no reply, call forwarding busy and call forward on not reachable.

  • Page 29: Call Waiting

    VoxStack Series Wireless Gateways User Manual Figure 3-2-1 Call Forwarding 3.3 Call Waiting You can switch the Call Waiting Function of the SIM card on/off in the port on this page. Figure 3-3-1 Call Waiting...

  • Page 30: Simbank

    VoxStack Series Wireless Gateways User Manual Table 3-3-1 Definition of Call Waiting Options Definition Switch on call Choose the port you want to set, switch to "On" and click the waiting "Settings" button. Switch off call Choose the port you want to set, switch to "Off" and click the waiting "Settings"...

  • Page 31: Dtmf

    VoxStack Series Wireless Gateways User Manual Table 3-4-1 Definition of Simbank Options Options Definition Simemusvr The switch of using remote SIM card， you cannot use local card after Switch opening. Serial Number Serial number, unique. Network mode, Normal for local connection, OPlink for external Net Mode network.

  • Page 32: Bcch

    VoxStack Series Wireless Gateways User Manual Table 3-5-1 Definition of DTMF Detection Settings Options Definition It is the power difference between the row and the column DTMF Normal energies. Normal Twist is where the Column energy is greater Twist and than the Row energy.

  • Page 33: Toolkit

    VoxStack Series Wireless Gateways User Manual The BCCH mode can be changed by clicking the button. Figure 3-6-2 BCCH Mode 3.7 Toolkit You can get USSD information, send AT command or check the number of this module. The AT command is very helpful for you when debugging a module. Figure 3-7-1 Function Options Table 3-7-1 Description of Definition of Functions Options...

  • Page 34: Module Update

    VoxStack Series Wireless Gateways User Manual To perform some specific AT commands. It is useful when you have a debug of the modem. For example, perform [AT+CSQ] AT Command to check what signal qualify it is. In AT commands, there is no difference between “a”...

  • Page 35: Call And Sms Limit

    VoxStack Series Wireless Gateways User Manual 3.9 Call and SMS Limit Click the edit button to set call restrictions, lock cards, and SMS restrictions. You can also view statistics on call/sms sent here. Figure 3-9-1 Call and SMS Limit Call Limit You can limit the number of daily calls, number of days connected, and number of hours of calls for the selected channel.
  • Page 36 VoxStack Series Wireless Gateways User Manual Call Limit Time Now we offer you two types of call duration limit, you can choose “Single Call Duration Limit” or “Call Duration Limitation” to control your calling time. This will limit the time of each call. First you need to switch “Enable” on, then you can set “Step”...
  • Page 37 VoxStack Series Wireless Gateways User Manual You can set a value for the Alarm Threshold. When the remaining call duration of the port reaches the set value, the gateway will send alarm info to the designated phone. You can also turn on enable auto reset, which can be selected from one day, one week or one month.
  • Page 38 VoxStack Series Wireless Gateways User Manual before the total call duration is reset). This value must be less than the call duration limit. Alarm Phone User will received alarm message from the gateway when Number receiving alarm phone number. Alarm The alarm port information description sends the alarm Description information to the user's phone.
  • Page 39 VoxStack Series Wireless Gateways User Manual Figure 3-9-6 Lock Card Table 3-9-2 Description of Lock Card Options Definition Call Failed Mark The number of consecutive calls failed to reach the number Count of settings, making the port. Lock the port after the number of successive call failures Called Failed Lock reaches the set number, restrict the port expiration, and no Count...
  • Page 40 VoxStack Series Wireless Gateways User Manual SMS Limit Figure 3-9-7 SMS Limit Table 3-9-3 Definition of SMS Limit Options Definition When closed, no matter whether the message is sent SMS Limit successfully or not, the number of messages is counted；When Success Flag opened, the number of messages is counted when the message is sent successfully.

  • Page 41: Voip

    VoxStack Series Wireless Gateways User Manual 4. VOIP 4.1 VOIP Endpoints This page shows everything about your SIP&IAX2, you can see the status of each SIP&IAX2. Figure 4-1 SIP&IAX2 Endpoints 4.1.1 Add New SIP Endpoint Main SIP Endpoint Settings: You can click button to add a new SIP endpoint, and if you want to modify existed endpoints, you can click button.
  • Page 42 VoxStack Series Wireless Gateways User Manual For convenience, we have designed a method that you can register your SIP endpoint to your gateway, thus your gateway just work as a server. Figure 4-1-2 Server Registration Also you can choose registration by “This gateway registers with the endpoint”, it’s the same with “None”, except the name and the password.
  • Page 43 VoxStack Series Wireless Gateways User Manual None --- Not registering; Server --- When register as this type, it means the gateway acts as a SIP server, and SIP endpoints register to the gateway; Client --- When register as this type, it means the gateway acts as a client, and the endpoint should be register to a SIP server.
  • Page 44 VoxStack Series Wireless Gateways User Manual Advanced: Registration Options Figure 4-1-4 Advanced Registration Options Table 4-1-2 Definition of Registration Options Options Definition Authentication Just a username used when registering。 User When Gateway registers as a SIP user agent to a SIP Register proxy (provider), calls from this provider connect to this Extension...
  • Page 45 VoxStack Series Wireless Gateways User Manual Qualify Whether to check the link status of the peer How often, in seconds, to check the endpoint's Qualify Frequency connection status. A proxy to which the gateway will send all outbound Outbound Proxy signaling instead of sending signaling directly to endpoints.
  • Page 46 VoxStack Series Wireless Gateways User Manual Table 4-1-3 Description of DTMF Detection Settings Options Definition Set default DTMF Mode for sending DTMF. Default: rfc2833. DTMF Mode Other options: 'info', SIP INFO message(application/dtmf-relay); 'Inband', Inband audio(require 64kbit codec -alaw, ulaw). Trust Whether or not the Remote-Party-ID header should be trusted.
  • Page 47 VoxStack Series Wireless Gateways User Manual Table 4-1-4 Definition of Signaling Options Options Definition Whether the tone is ringing. Never：Indicates that the incoming calls are never applied. Progress Inband Option values: yes, no, never. Default: never. Append Whether or not to add‘user=phone’to URIs that contain a user=phone to valid phone number.
  • Page 48 VoxStack Series Wireless Gateways User Manual Default is enabled. Whether or not to allow 302 or REDIR to non-local SIP Allow address. Promiscuous Notice： Redirecting the local system causes a loop call, which Redirects is not supported by asterisk. Max Forwards Setting for the SIP Max-Forwards header (loop prevention).

  • Page 49: Add New Iax2 Endpoint

    VoxStack Series Wireless Gateways User Manual Timer the call will auto congest. The default is 64*T1. There are three modes for you to choose: originate, request and run session-timers always; Accept or run the session timer only Session Timers when requested by another user agent；Refuse, Do not run session timers in any case.
  • Page 50 VoxStack Series Wireless Gateways User Manual password. Figure 4-1-8 None Registration For convenience, you can choose registration by “Server”, thus your gateway just work as a server. Figure 4-1-9 Server Registration Also you can choose registration by “Client”, it will work as a Client. Figure 4-1-10 Client Registration...
  • Page 51 VoxStack Series Wireless Gateways User Manual Table 4-1-6 Definition of IAX2 Options Options Definition A name which is able to read by human. And it's only used for Name user's reference. The endpoint will use username to authenticate with the Username gateway.
  • Page 52 VoxStack Series Wireless Gateways User Manual both ends have plain text access to the secret. "rsa" allows unidirectional secret knowledge through public/private keys. Transfer Disable or not IAX2 native transfer . Trunk Use IAX2 trunking with this host. Advanced: Registration Options Figure 4-1-11 Registration Options Table 4-1-7 Definition of Registration Options Options...
  • Page 53 VoxStack Series Wireless Gateways User Manual IAX2 Encryption Figure 4-1-12 IAX2 Encryptions Table 4-1-8 Definition of Encryption Options Options Definition Encryption Enable IAX2 encryption. The default is no. Force encryption insures no connection is established unless both sides support encryption. By switching this option on, Force Encryption encryption is automatically switch on as well.

  • Page 54: Batch Sip Endpoints

    VoxStack Series Wireless Gateways User Manual Trunk MTU Set the maximum transmission unit for IAX2 UDP trunking. How frequently to send trunk messages in msec. This is Trunk Frequency 20ms by default. Ensure that frame timestamps get sent end-to-end Trunk Time Stamps properly.
  • Page 55 VoxStack Series Wireless Gateways User Manual Table 4-2-1 Definition of Multiple SIP Endpoints Options Definition The display name is the same as the registered name on the SIP Username server by default. Password Authenticating with the gateway and characters are allowed. Hostname or IP address or hostname of the endpoint or 'dynamic' if the endpoint has a dynamic IP address.

  • Page 56: Advanced Sip Settings

    VoxStack Series Wireless Gateways User Manual 4.3 Advanced SIP Settings Networking Figure 4-3-1 Networking General Table 4-3-1 Definition of Networking General Options Options Definition UDP Bind Port Choose a port on which to listen for UDP traffic. Enable TCP Enable server for incoming TCP connection (default is no). TCP Bind Port Choose a port on which to listen for TCP traffic.
  • Page 57 VoxStack Series Wireless Gateways User Manual Whether enable the internal SIP calls or not when you select Enable Internal the registration option "Endpoint registers with this gateway". SIP Call Internal SIP Call Specify a prefix before routing the internal calls. Prefix S Figure 4-3-2 NAT Settings Table 4-3-2 Definition of NAT Settings Options...
  • Page 58 VoxStack Series Wireless Gateways User Manual configured, chan_sip will renew all outbound registrations when the monitor detects any sort of network change has occurred. default this option enabled, res_stun_monitor only takes effect once. If res_stun_monitor is enabled and you don't want changes on the network to cause an outbound registration, use the option below to disable this feature.
  • Page 59 VoxStack Series Wireless Gateways User Manual Figure 4-3-3 RTP Settings Table 4-3-3 Definition of RTP Settings Options Options Definition Start of RTP Port Range Start of port numbers to be used for RTP. End of RTP port Range End of port numbers to be used for RTP. Parsing and compatibility Figure 4-3-4 Parsing and Compatibility...
  • Page 60 VoxStack Series Wireless Gateways User Manual Table 4-3-4 Instruction of Parsing and Compatibility Options Definition Strict RFC Check header tags，character conversion in URIs, and multiline Interpretation headers for strict SIP compatibility(default is yes). Send Compact Send compact SIP headers. Headers Allows you to change the username filed in the SDP owner SDP Owner string.
  • Page 61 VoxStack Series Wireless Gateways User Manual list of methods that your endpoint does not implement in the disallowed methods option. Note that if your endpoint is truthful with its Allow header, then there is no need to set this option. The Shrink Caller Id function removes '(', ' ', ')', non-trailing '.', and '-' not in square brackets.
  • Page 62 VoxStack Series Wireless Gateways User Manual Registration Expiry Registration How often, in seconds, to retry registration calls. Default 20 Timeout seconds. Number of Number of registration attempts before we give up. Registration Security Figure 4-3-5 Security Settings Table 4-3-5 Instruction of Security Options Definition Match Auth...
  • Page 63 VoxStack Series Wireless Gateways User Manual there is this user or peer, which will reduce the possibility of the attacker scanning the SIP account. This parameter is enabled by default. Authenticate Enabling this option will authenticate OPTIONS requests just like Options INVITE requests are.

  • Page 64: Advanced Iax2 Settings

    VoxStack Series Wireless Gateways User Manual Codec Settings Select codecs from the list below. Figure 4-3-7 Codec Settings 4.4 Advanced IAX2 Settings General Settings Figure 4-4-1 General Settings...
  • Page 65 VoxStack Series Wireless Gateways User Manual Table 4-4-1 Instruction of General Options Definition Bind Port Bind port and bindaddr may be specified Set Iaxcompat to yes if you need to use a tiered switch, or if Enable some of the latency may occur when performing a lookup in a IAXCompat dial plan, otherwise enabling it will result in a small performance conflict.
  • Page 66 VoxStack Series Wireless Gateways User Manual You may specify a default account for Call Detail Records (CDRs) Account Code in addition to specifying on a per-user basis. Music on Hold Figure 4-4-2 Music on Hold Settings Table 4-4-2 Instruction of Music on Hold Options Definition Specifies the type of waiting music that plays while the...
  • Page 67 VoxStack Series Wireless Gateways User Manual Table 4-4-3 Instruction of Codec Settings Options Definition Specify bandwidth of low, medium, or high to control which Band Width codes are used in general. Disallow Adjust the type of codec to be switched off. Allow Adjust the type of codec to be switched on and the priority.
  • Page 68 VoxStack Series Wireless Gateways User Manual In the ideal world, when we bridge VoIP channels we don’t want to jitter buffering on the switch, since the endpoints Force Jitter Buffer can each handle this. However, some endpoints may have poor jitter buffers themselves, so this option will force to always jitter buffer, even in this case.
  • Page 69 VoxStack Series Wireless Gateways User Manual Misc Settings Figure 4-4-5 Misc Settings Table 4-4-5 Instruction of Misc Settings Options Definition IAX Thread Count Establishes the number of IAX helper threads to handle I/O IAX2 Max Thread Establishes the number of extra dynamic threads that may be Count spawned to handle I/O.

  • Page 70: Sip Account Security

    VoxStack Series Wireless Gateways User Manual allocated contributes to this limit. For use cases, see the call token user guide. This option's default value of 8192 should be sufficient in most cases. Quality of Service Figure 4-4-6 Quality of Service Table 4-4-6 Instruction of Quality of Service Options Definition...
  • Page 71 VoxStack Series Wireless Gateways User Manual You need to understand its rules when using TLS. The following table shows the setting parameters of TLS. Table 4-5-1 Parameters of TLS settings Options Definition TLS Enable Enable or disable DTLS-SRTP support. If set it off, there is no need to verify the server certificate when the client is operating.

  • Page 72: Routing

    VoxStack Series Wireless Gateways User Manual 5. Routing 5.1 Call Routing Rules Figure 5-1-1 Call Routing Rules You are allowed to set up new call routing rules by , and after setting routing rules, move rules’ order by pulling up and down, click button to edit the routing and to delete it.
  • Page 73 VoxStack Series Wireless Gateways User Manual The figure above shows that all the phones in the group ALL are transferred to the IAX2-2133. When the "incoming source" is GSM/LTE port, "prepend", "prefix" and "match pattern" in the "Advanced Routing Rules" are invalid, and only the "CallerID" option is available.
  • Page 74 VoxStack Series Wireless Gateways User Manual In the DISA Settings, you can set a Password, Authentication or Secondary Dialing. Figure 5-1-4 Advance Routing Rule Settings In the Advance Routing Rule Settings, you can set the function of the dial Patterns、 Time Patterns、Calling, Forward, Delay and Failover Table 5-1-2 Description of Advanced Routing Rule Options...
  • Page 75 VoxStack Series Wireless Gateways User Manual If the dialed number matches the patterns specified by the subsequent columns, then this will be prepended before sending to the trunks. Prefix: Prefix to remove on a successful match. The dialed number is compared to this and the subsequent columns for a match.

  • Page 76: Groups

    VoxStack Series Wireless Gateways User Manual Random Delay Randomly obtain any value within the threshold interval. Failover Call The gateway will attempt to send the call out each of these Through Number in the order you specify. 5.2 Groups Sometimes you want to make a call through one port, but you don’t know if it is available, so you have to check which port is free.

  • Page 77: Batch Creating Rules

    VoxStack Series Wireless Gateways User Manual 5.3 Batch Creating rules This page can generate multiple routing rules at the same time. Figure 5-3-1 Batch Creating rules The SIM number will be sent to the target PBX or SIP server as DID number, and the calling number will be set to the caller ID in the outgoing route.

  • Page 78: Mnp Settings

    VoxStack Series Wireless Gateways User Manual Figure 5-3-3 Create an outgoing route 5.4 MNP Settings Mobile Number Portability allows switching between mobile phone operators without changing the mobile number. Figure 5-4-1 MNP Settings The URL is displayed as a password string. So please enter the URL in the format below and check if it is correct.

  • Page 79: Routing Blacklist

    VoxStack Series Wireless Gateways User Manual 5.5 Routing Blacklist Figure 5-5-1 Routing Blacklist Settings Blacklists are used to add a phone number to the blacklist or to remove a phone number from the blacklist. After opening the blacklist routing, in the incoming mode, if the calling number is in the blacklist, it will be routed to hangup() to end the call.

  • Page 80: Sms

    VoxStack Series Wireless Gateways User Manual 6. SMS 6.1 General You can choose enable SMS Received, SMS Local Stored and SMS Status Report or not. Figure 6-1-1 SMS Settings Sender Options You can change sender options here, include resend and the time of resend. Figure 6-1-2 Sender Options Table 6-1-1 Description of Sender Options Options...
  • Page 81 This is a tool that makes it available for you to email account to transmit th e SMS to other email boxes. The following settings realize that received SMS through openvpnvoip@gmail.com transmit to openvpnvoip@yahoo.com.cn, open vpnvoip@hotmail.com and support@openvox.cn. Figure 6-1-3 SMS to Email Table 6-1-2 Types of E-mail Box...
  • Page 82 The password to login your existing email. When you choose Yahoo and 163 free e-mails, this option is TLS Enable not available. SMTP Server To set outgoing mail server. For example：mail.openvox.cn. Destination Email The first email address to receive the inbox message. Address1 Destination Email The second email address to receive the inbox message.
  • Page 83 VoxStack Series Wireless Gateways User Manual Address3 SMS Control It allows the endpoint to send some specific KEY WORDS and corresponding PASSWORD in response to operate the gateway. SMS is case-sensitive. In default, this function is disabled. Figure 6-1-4 SMS Control For example, SMS control password is 123456 which has nothing to do with the login password, you can send “get info 123456”...
  • Page 84 VoxStack Series Wireless Gateways User Manual Reboot asterisk PASSWORD：To restart your gateway core. restore config PASSWORD： To reset the configuration files back to the default factory settings. Get info PASSWORD：To get your gateway IP address. Switch on: When the size of the SMS inbox record file reaches the max size, the system will cut a half of the file.
  • Page 85 VoxStack Series Wireless Gateways User Manual Username: the login username for send sms. Password: the login password for send sms. Phone number: the destination telephone number. Message: the SMS contents. Port: the gsm port for send sms. For example: gsm-1.1, gsm-1.2.

  • Page 86: Sms Sender

    VoxStack Series Wireless Gateways User Manual The name of the parameter used to process param4 message the ' message ' value. The name of the parameter used to process param5 time the ' time ' value. 6.2 SMS Sender Click the box to select the corresponding port number, fill in the target number and SMS content .Then you can send it.

  • Page 87: Sms Outbox

    VoxStack Series Wireless Gateways User Manual Figure 6-3-1 SMS Inbox 6.4 SMS Outbox On this page, you are allowed to scan, delete, clean up, and export each port’s received SMS. Also, you are allowed to check messages by port, phone number, time order and message keywords.

  • Page 88: Sms Forwarding

    VoxStack Series Wireless Gateways User Manual 6.5 SMS Forwarding Using this function, you can forward incoming sms to your mobile. You can click button to add new routing. For example： Figure 6-5-1 SMS Forwarding SMS received by lte-1.1 and lte-1.2, will be transferred to phone number 13923704563 through lte-1.3 or lte-1.4.

  • Page 89: Network

    VoxStack Series Wireless Gateways User Manual 7. Network 7.1 LAN Settings There are three types of LAN port IP: Factory, Static, and DHCP. The Factory is the default type with an IP of 172.16.98.1. This page is not editable when the LAN IPv4 type is selected as "Factory".

  • Page 90: Wan Settings

    VoxStack Series Wireless Gateways User Manual information to check slot number). Static: Manually set up your gateway IP. DHCP: Automatically get IP from your local LAN. MAC Address Physical address of your network interface. IP Address The IP address of your gateway. Netmask The subnet mask of your gateway.

  • Page 91: Ddns Settings

    VoxStack Series Wireless Gateways User Manual Figure 7-3-1 PPTP VPN Settings Figure 7-3-2 N2N VPN Settings 7.4 DDNS Settings You can enable or disable DDNS (dynamic domain name server). Figure 7-4-1 DDNS Settings...

  • Page 92: Toolkit

    VoxStack Series Wireless Gateways User Manual Table 7-4-1 Definition of DDNS Settings Options Definition DDNS Enable/Disable DDNS (dynamic domain name server). Type Set the type of DDNS server. Username Your DDNS account’s login name. Password Your DDNS account’s password. Your domain The domain to which your web server will belong.

  • Page 93: Firewall Settings

    VoxStack Series Wireless Gateways User Manual 7.6 Firewall Settings Figure 7-6-1 Firewall Settings Table 7-6-1 Definition of Firewall Settings Options Definition If you want to use White/Black List, and security rules, you Firewall Enable must enable this option. Whether to enable the Ping function. If the status is OFF: Ping Enable disable ping, the gateway does not allow ping.

  • Page 94: Security Rules

    VoxStack Series Wireless Gateways User Manual 7.7 Security Rules Figure 7-7-1 Security Rules Settings Click "submit" button to submit and apply configuration. If "List IP Settings" has no problem, you will see popup window like below. Please read the warning and tips carefully. And Click "Apply" button in 1 minute. If time runs out, this window will close automatically.

  • Page 95: Sip Capture

    VoxStack Series Wireless Gateways User Manual successfully. Figure 7-7-3 Security Rules Apply 7.8 SIP Capture You can capture the SIP packets on this page to facilitate location problems. Figure 7-8-1 SIP Capture Table 7-8-1 SIP Capture Settings Options Definition Interface You can choose eth0, eth1 or eth0:0.

  • Page 96: Advances

    VoxStack Series Wireless Gateways User Manual 8. Advances 8.1 Asterisk API When you make “Enable” switch to “ON”, this page is available. Figure 8-1-1 Asterisk API Table 8-1-1 Definition of Asterisk API Options Definition Port Network port number. Manager Name Name of the manager without space.
  • Page 97 VoxStack Series Wireless Gateways User Manual If you want to deny some hosts or networks, you can Deny use char & as separator. For example: 192.168.1.0/255.2 55.255.0&10.0.0.0/255.0.0.0. If you want to permit some hosts or networks, you can Permit use char & as separator. For example: 192.168.1.0/255. 255.255.0&10.0.0.0/255.0.0.0.
  • Page 98 VoxStack Series Wireless Gateways User Manual Originate Permission to initiate new calls. Write-only. Select all or deselect all. Please refer to the following figure to access the gateway API by telnet. 172.16.179.1 is the gateway’s IP, and 5038 is its API port. Figure 8-1-2 Telnet Access Gateway API...

  • Page 99: Asterisk Cli

    VoxStack Series Wireless Gateways User Manual 8.2 Asterisk CLI On this page, you are allowed to run Asterisk commands. Figure 8-2-1 Asterisk CLI Command: Type your Asterisk CLI commands here to check or debug your gateway. Notice: If you type “help” or “?” and execute it, the page will show you the shell command.

  • Page 100: Internet

    Figure 8-4-1 Asterisk Internet 8.5 Cloud Management SWG and VoxStack series gateways both support OpenVox Cloud Management. Figure 8-5-1 OpenVox Cloud Management If your device is connected to the cloud management, the SSH and the web pages of the gateway can be accessed through the cloud management, and it can be monitored whether the device is connected to the cloud management platform.

  • Page 101: Balance

    VoxStack Series Wireless Gateways User Manual Table 8-5-1 Definition of Cloud Management Options Definition Enable Cloud Turn on/off the cloud management. Service Currently supports two servers, one is China and the other is Choose Service the United States. Registered account or email on the cloud management Account platform.

  • Page 102: Phone Number

    VoxStack Series Wireless Gateways User Manual Figure 8-6-2 Balance Settings 8.7 Phone Number The wireless gateway also provides a number inquiry function, which can automatically send a short message to the operator to query the number of the SIM card that you use currently. Figure 8-7-1 Phone Number Figure 8-7-2 Phone Number...

  • Page 103: Logs

    VoxStack Series Wireless Gateways User Manual 9. Logs On the “Log Settings” page, you should set the related logs on to scan the responding logs page. For example, set “System Logs” on like the following, then you can turn to “System”...
  • Page 104 VoxStack Series Wireless Gateways User Manual Switch on: when the size of log file reaches the max size, the system will cut a half of the file and the new logs will be Auto clean retained; (SIP logs) Switch off: logs will remain, and the file size will increase gradually.
  • Page 105 VoxStack Series Wireless Gateways User Manual With the Syslog software, the gateway's logs and CDRs can be monitored and stored locally on the PC. Figure 9-2 Logs Settings Figure 9-3 System Logs You can easily browse your CDRs on the Web GUI, you also can delete, clean or export your CDR information.
  • Page 106 VoxStack Series Wireless Gateways User Manual Figure 9-5 GSM Outbound...
