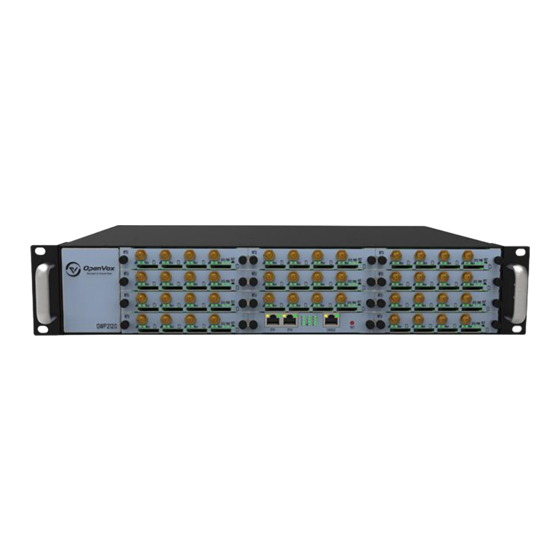

Summary of Contents for OpenVox VS-GWP1600 Series

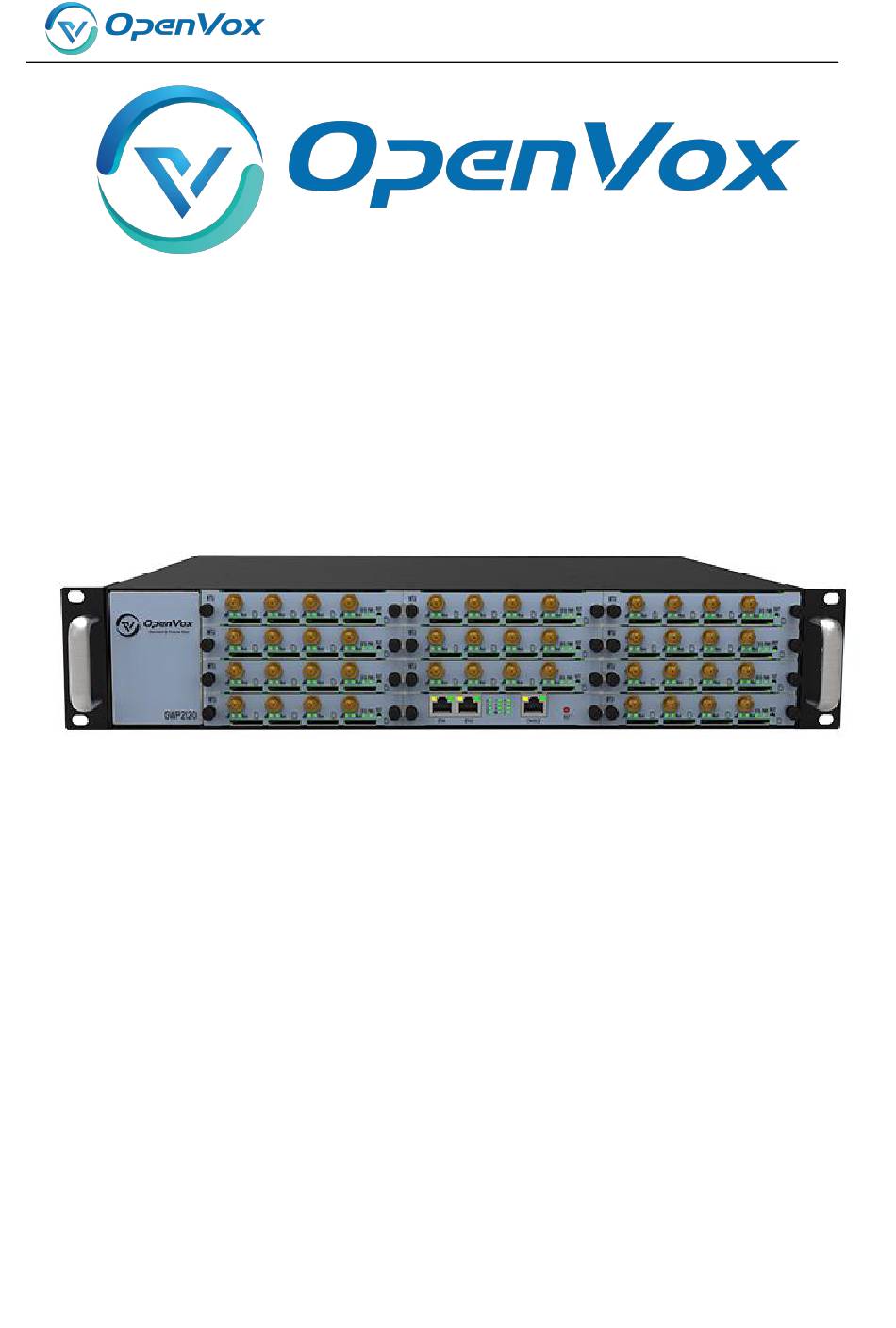

- Page 1 GWP1600/2120 User Manual OpenVox Communication Co Ltd VS-GWP1600/2120 Gateway User Manual Version 1.0 OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
- Page 2 Address: Room 624, 6/F, Tsinghua Information Port, Book Building, Qingxiang Road, Longhua Street, Longhua District, Shenzhen, Guangdong, China 518109 Tel: +86-755-66630978, 82535461, 82535362 sales@openvox.cn Business Contact: support@openvox.cn Technical Support: Business Hours: 09:00-18:00(GMT+8) from Monday to Friday URL: www.openvox.cn Thank You for Choosing OpenVox Products! OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
- Page 3 OpenVox has made every effort to ensure that the information contained in this document is accurate and complete; however, the contents of this document are subject to revision without notice. Please contact OpenVox to ensure you have the latest version of this document.
- Page 4 GWP1600/2120 User Manual Revise History Version Release Date Description 21/7/2022 Full text OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
-
Page 5: Table Of Contents
2.5.4 Restore Configuration ....................21 2.6 Information .......................... 21 2.7 User .............................22 3. MODULE ............................23 3.1 MODULE Settings ......................... 23 3.1.1 Call Duration Limit Settings ..................25 3.2 DTMF ............................ 28 3.3 Toolkit ...........................29 4. STRATEGY ........................... 31 OpenVox Communication Co. ,LTD. Website: www.openvox.cn... - Page 6 5.4.2 Music on Hold ......................62 5.4.3 Instruction of Codec Settings ..................62 5.4.4 Jitter Buffer Settings ....................63 5.4.5 Misc Settings ......................64 5.4.6 Quality of Service ...................... 65 6. Routing ............................67 6.1 Groups ..........................71 OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
- Page 7 8.6 Security Settings ........................88 8.6.1 Firewall Settings ......................88 8.6.2 White/Black List Settings ..................89 8.7 Security Rules ........................90 8.8 SIP Capture ...........................91 9. Advances ............................92 9.1 Asterisk API ...........................92 9.2 Asterisk CLI ........................... 94 OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
- Page 8 GWP1600/2120 User Manual 9.3 Asterisk File Editor ........................95 9.4 Cloud Management ......................95 10. Logs .............................. 97 OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
-
Page 9: Overview
With a friendly GUI and unique modular design, users may easily set up their customized gateway. Also, secondary development can be completed through API. It can provide users with more diverse telecommunication access methods and help users reduce communication costs. OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 10: Application
GWP1600/2120 User Manual 1.2 Application Figure 1-2-1 Application Topology Figure 1-2-2 VS-GWP1600 series product Table 1-2-1 VS-GWP1600 Slot Description CSU-F OpenVox Communication Co. ,LTD. Website: www.openvox.cn... - Page 11 Always green Best Signal Quality Flash (0.5s) Communicating Call Status LED Blind Normal Network Status LED Green and Flash Network Connected Running Status LED Green and Flash(0.5s) Work Normally Power Indicator Always Green Power on OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
-
Page 12: Panel
②Channel indicator and power status indicator ③Console ④Reset Button 2. WTU (Wireless Trunk Unit) ①Operating status indicator ②Power status indicator ③Reset button ④SIM Card Slot ⑤Antenna ⑥SIM card working status indicator ⑦SIM card signal strength indicator OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 13: Main Features
SMS Forwarding and Quick Reply SMS Remotely Controlling Gateway CLID Display & Hide (Need operators’ support ) USSD transceiver 1.5 Physical Information Weight: VS-GWP1600: 4.8kg VS-GWP2120: 6.5kg VS-GWM420G: 162g OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 14: Software
WAN: 2*10/100M 1.6 Software Default IP: 172.16.98.1 Username: admin Passward: admin For the first time, you can access by using default IP 172.16.98.1. Then configure the module as you want. OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 15: System
GWP1600/2120 User Manual 2. System 2.1 Status On the “Status” page, you will find all Modules, SIP, IAX2, Routing and Network information. Figure 2-1 Systm Status OpenVox Communication Co. ,LTD. Website: www.openvox.cn... - Page 16 Module Display the status of the port. "Ready" means registering and "READY" means Status port is available Remain This value is multiplied by to step length is a rest call time. Time OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
-
Page 17: Time
Sync from Client Sync time from local machine. For example, you can configure like this: Figure 2-2 Time Settings You can set your gateway time Sync from NTP or Sync from Client by pressing different buttons. OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 18: Login Settings
You can access gateway via link: http://gatewayIP https://gatewayIP https: You can only access gateway via link: https://gatewayIP Port Specify the web server port number. For example, you can configure like this: Figure 2-3 Login Settings OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 19: General
“By Day, By Week, By Month and By Running Time”. Figure 2-5 Reboot Type If use your system frequently, you can set this enable, it can helps system work more efficient. OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 20: Tools And Information
2.5.2 Update Firmware We offer 2 kinds of update types for you, you can choose System Update or System Online Update. If you choose System Online Update,you will see the following information: figure 2-7 Update Firmware OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 21: Upload And Backup Configuration
Figure 2-9 Restore Configuration 2.6 Information On the “Information” page, there shows some basic information about the gateway. You can see software and hardware version, storage usage, memory usage and some help information. Figure 2-10 Information OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 22: User
GWP1600/2120 User Manual 2.7 User On the “User” page, webpage accounts can be added via admin user. You can add different accounts with different rights. Figure 2-11 Information OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 23: Module
GWP1600/2120 User Manual 3. MODULE 3.1 MODULE Settings Figure 3-1 Module Settings On this page, you can see your SIM Card information and module status, click action button to configure the port. Figure 3-2 Port Configuration OpenVox Communication Co. ,LTD. Website: www.openvox.cn... - Page 24 Caller ID restriction, this function is used to hidden caller ID of SIM card number. The gateway will add ‘#31#’ in front of mobile number. This function must support by Operator. SMS Center Number Your SMS center number of your local carrier. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
-
Page 25: Call Duration Limit Settings
Figure 3-5 Single Settings Call Duration Limitation: This will limit your total calling time of this port. If remain time is 0, it will not send calls through this port. Figure 3-6 Call Duration Limitation Settings OpenVox Communication Co. ,LTD. Website: www.openvox.cn... - Page 26 Define a threshold value of call minutes, while the call minutes less than this value, the gateway will send alarm information to designated phone. Alarm Description Alarm port information description, which will be sent to user mobile phone with alarm information. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
- Page 27 Web GUI, you can set whether to check. When you do some changes, you need to Save and Apply, then “Remain Time” will show as Notice: you set. Your calling status will show on the main interface. Figure 3-9 Module Information OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
-
Page 28: Dtmf
DTMF Hits Begin Sampling matching value. You can choose 2 or 3. DTMF Misses End The time interval between the two digits you input. Adjust the speed of input. The smaller value represents the shorter intervals. OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 29: Toolkit
If you want to send AT command, first you should input your command, then select certain ports and choose “ ”, finally choose “ ”. Copy to Selected Execute Figure 3-12 AT Command Example OpenVox Communication Co. ,LTD. Website: www.openvox.cn... - Page 30 GWP1600/2120 User Manual OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
-
Page 31: Strategy
Turn on the card strategy switch and set the card switching strategy. You can switch cards in ascending or descending order according to the set sim card registration time, use time, outgoing time, outgoing times, and SMS sending times. Figure 4-2 Strategy of switching sim cards among four cards OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 32: Limit
“single length” × “single call duration limit”, the sim card will be limited to make any calls. If you set “single call duration”, the system will hang up the call when the call time exceeds the set value. Figure 4-4 call limit time OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 33: Lock
SMS automatically to detect if the sim card is available. If SMS is sent successfully, then gateway will set call failed time to 0. Unless, the sim card will be locked. OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 34: Sms Limit
SMS count, 0 means no limit. Month Limit SMS value of monthly limit SMS count, 0 means no limit. Count SMS Clean Date Automatically clear the number of sent messages every month at 0:00:00 on the set date. OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 35: Call Stats
Figure 4-13 SMS sent statistics 4.7 Pin Code When the SIM card is set with a pin code, you need to enter the pin code to make a successful call Figure 4-14 Pin code OpenVox Communication Co. ,LTD. Website: www.openvox.cn... - Page 36 GWP1600/2120 User Manual OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
-
Page 37: Voip
If you set up a SIP endpoint by registration “None” to a server, then you can’t register other SIP endpoints to this server. (If you add other SIP endpoints, this will cause Out-band Routes and Trunks confused.) OpenVox Communication Co. ,LTD. Website: www.openvox.cn... - Page 38 GWP1600/2120 User Manual Figure 5-2 None Registration For convenience, we have designed a method that you can register your SIP endpoint to your gateway, thus your gateway just work as a server. Figure 5-3 Server OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
- Page 39 Hostname or IP IP address or hostname of the endpoint or 'dynamic' if the Address endpoint has a dynamic IP address. This will require registration. Transport This sets the possible transport types for outgoing. Order of OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
- Page 40 Yes --- Force Rport to always be on and perform comedia RTP handling. Rport if requested and comedia --- Use Rport if the remote side says to use it and perform comedia RTP handling. Advanced——Registration Options Figure 5-5 Advanced Registration Options OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
- Page 41 How often, in seconds, to check the endpoint's connection Qualify Frequency status. A proxy to which the gateway will send all outbound signalling Outbound Proxy instead of sending signalling dirrectly to endpoints. Call Settings Figure 5-6 Call Settings OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
- Page 42 Whether or not to display Caller ID. Caller ID Presentation Usually used when this sip work as a trunk. To limit Call Limit number of maximum channels supported by the sip trunk. Advanced:——Signaling Settings Figure 5-7 Signaling Settings OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
- Page 43 Send TRYING on REGISTER Send a 100 Max Forwards Trying when the endpoint registers. A proxy to which the gateway will send all outbound signaling instead of sending signaling directly to Outbound Proxy endpoints. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
- Page 44 Minimum session refresh interval in seconds. Default is Minimum Session 90secs. Maximum Maximum session refresh interval in seconds. Defaults to Session Refresh 1800secs. Interval The session refresher, uac or uas. Defaults to uas. Session Refresher OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
-
Page 45: Add New Iax2 Endpoint
Figure 5-9 None Registrarion For convenience, we have designed a method that you can register your IAX2 endpoint to your gateway, thus your gateway just work as a server. OpenVox Communication Co. ,LTD. Website: www.openvox.cn... - Page 46 GWP1600/2120 User Manual Figure 5-10 Server Also you can choose registration by “This gateway registers with the endpoint”, it will work as a Client. Figure 5-11 Client OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
- Page 47 Transfer This application allows you to transfer calls. Trunk Purpose: To obtain a better chart of actual bandwidth usage "trunk=yes" per codec as seen "on-the-wire" when using IAX2 trunking between two Asterisk telephony servers. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
- Page 48 "LAGGED" state. Use an average of the last two PONG result to reduce falsely Qualify Smothing detected LAGGED host. The default is ‘no’. The port number the gateway will connect to at this endpoint. Port OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
- Page 49 Force encryption insures no connection is established unless Force Encryption both sides support encryption. By turning this option on, encryption is automatically; turned on as well. The default is no IAX2 Trunk Settings Figure 5-14 IAX2Trunk Settings OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
- Page 50 Minimum amounts of time that IAX2 peers can request Min. RegExpire as a registration interval (in seconds). Maximum amounts of time that IAX2 peers can request Max. RegExpire as a registration expiration interval(in seconds). OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
-
Page 51: Batch Sip Endpoints
Authenticating with the gateway and characters are allowed. Registration --- Not registering; None --- When register as this type, it means the gateway acts Server as a SIP server, and SIP endpoints register to the gateway; OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 52: Advanced Sip Settings
Tick - Automatically increments based on the password entered in the first lineDo not check - All SIP endpoints have the same password as the first one. 5.3 Advanced SIP Settings 5.3.1 Networking Networking General Figure 5-16 Networking General OpenVox Communication Co. ,LTD. Website: www.openvox.cn... - Page 53 Whether enable the internal SIP calls or not when you select Enable Internal the registration option "Endpoint registers with this gateway". SIP Call Specify a prefix before routing the internal calls. Internal SIP Call Prefix NAT Settings Figure 5-17 NAT Settings OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
- Page 54 SIP provider. The externally mapped TCP port, when the gateway is Externally Mapped TCP Port behind a static NAT or PAT. The external hostname (and optional TCP port) of the External Hostname OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
- Page 55 Start of RTP Port Range Start of range of port numbers to be used for RTP End of RTP port Range End of port numbers to be used for RTP RTPTimeout RTP Timeout retransmission time OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
-
Page 56: Paesing And Compatibility
The external hostname (and optional TCP port) of the NAT. Disallowed SIP Methods The shrinkcallerid function removes '(', ' ', ')', non-trailing Shrink Caller ID '.', and '-' not in square brackets. For example, the caller id OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 57: Security
Attempts Enter '0' for unlimited Number of registration attempts before we give up. 0 = continue Number of Registration forever, hammering the other server until it accepts the registration. Default is 0 tries, continue forever. 5.3.3 Security Figure 5-20 Security Settings OpenVox Communication Co. ,LTD. Website: www.openvox.cn... - Page 58 Allow or reject guest calls (default is yes, to allow). If your gateway is connected to the Internet and you allow guest Allow Guest Calling calls, you want to check which services you offer everyone out there, by enabling them in the default context. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
-
Page 59: Media
Sets type of service for SIP packets TOS for SIP Packets Sets type of service for RTP packets TOS for RTP Packets 5.3.5 Codec Settings Select codecs from the list below. OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 60: Advanced Iax2 Settings
GWP1600/2120 User Manual Figure 4-22 Codec Settings 5.4 Advanced IAX2 Settings 5.4.1 General Settings Figure 5-23 General Settings OpenVox Communication Co. ,LTD. Website: www.openvox.cn... - Page 61 You may specify a global default language for users. This can be specified also on a per-user basis. If omitted, will fallback to English(en) Account Code You may specify a default account for Call Detail Records (CDRs) in addition specifying on a per-user basis. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
-
Page 62: Music On Hold
You may specify a global default language for users. This can be specified also on a per-user basis. If omitted, will fall back to English(en) 5.4.3 Instruction of Codec Settings Figure 5-25 Codec Settings OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 63: Jitter Buffer Settings
In the ideal world, when we bridge VoIP channels we don’t want to jitter buffering on the switch, since the endpoints can Force Jitter Buffer each handle this. However, some endpoints may have poor jitter buffers themselves, so this option will force to always OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 64: Misc Settings
The default is 40, so without modification, the new jitter buffer will set its size to the jitter value may help if your network normally has low jitter, but occasionally has spikes. 5.4.5 Misc Settings Figure 5-27 Misc Settings OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 65: Quality Of Service
IP address. Any connection resulting in a non-call token validated call number being allocated contributes to this limit. For use cases, see the call should be sufficient in most cases. 5.4.6 Quality of Service Figure 4-28 Quality of Service OpenVox Communication Co. ,LTD. Website: www.openvox.cn... - Page 66 GWP1600/2120 User Manual Table 4-22 Instruction of Quality of Service Options Definition Type of service Class of service OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
-
Page 67: Routing
Finally click the button to save what you set. Call Routing Rule: You can click button to set up your routings. Figure 6-2 Example of Set up Routing Rule OpenVox Communication Co. ,LTD. Website: www.openvox.cn... - Page 68 The name of this route. Should be used to describe what types Routing Name of calls this route matches (for example, 'SIP2CDMA' or 'CDAM2SIP'). Call Comes in From The launching point of incoming calls. Send Call Through The destination to receive the incoming calls. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
- Page 69 CallerID: If CallerID is supplied, the dialed number will only match the prefix + match pattern if the CallerID has been transmitted matches this. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
- Page 70 Monday to Thursday, from 00:00 to 02:00, during this time (meet all above time conditions), all calls will follow this route. And the time will synchronize with your Sever time. Figure 6-4 Failover Call Through Number You can add one or more “Failover Call Through Numbers”. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
-
Page 71: Groups
That would be troublesome. But with our product, you don’t need to worry about it. You can combine many Port or SIP to groups. Then if you want to make a call, it will find available port automatically. Figure 6-5 Routing Group OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 72: Batch Creating Rules
SIP Trunk Inbound and outbound calls through designated SIP trunks Set the Caller What caller ID name would you like to set before sending ID Name to this call to the endpoint. OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 73: Mnp Settings
Here is an example of the MNP url: https://s1.bichara.com.br:8181/chkporta.php?user=832700&pwd=sdsfdg&tn=8388166902 The 8388166902 is the outgoing phone number, when config the MNP url, should replce it with ${num}. Then it turns to https://s1.bichara.com.br:8181/chkporta.php?user=832700&pwd=sdsfdg&tn=${num}。 Figrue 6-7 MNP Settings OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 74: Sms
7.1.2 SMS to Email This is a tool that makes it available for you to email account to transmit the SMS to other email boxes. The following settings realize that received SMS through openvpnvoip@gmail.com transmit OpenVox Communication Co. ,LTD. Website: www.openvox.cn... - Page 75 Connectivity Gmail smtp.gmail.com √ HotMail smtp.live.com √ smtp.mail.yahoo.co.i Yahoo! × e-mail smtp.163.com × Table 7-3 Definition of SMS to E-mail Options Definition Enable When you choose on, the following options are available, otherwise, unavailable. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
- Page 76 The password to login your existing email. TLS Enable When you choose Yahoo and 163 free e-mails, this option is not available. SMTP Server To set outgoing mail server. e.g. mail.openvox.cn. Destination The first email address to receive the inbox message. Email Address1 Destination The second email address to receive the inbox message.
-
Page 77: Sms Control
SMS Format For example, the message formats: reboot system PASSWORD: To reboot your whole gateway. The PASSWORD is referring to the PASSWORD you set up from option OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 78: Http To Sms
SMS record will remain, and the file size will increase gradually. default on, max size = 20 MB 7.1.4 HTTP to SMS Figure 7-5 HTTP to SMS 7.1.5 SMS to HTTP Figure 7-6 SMS to HTTP Settings OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 79: Sms Sender
On this page, you are allowed to scan, delete, clean up, and export each port’s received SMS. Also you are allowed to check messages by port, phone number, time order and message keywords. Figure 7-8 SMS Inbox OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 80: Sms Outbox
On this page, you are allowed to scan, delete, clean up, and export each port’s received SMS. Also you are allowed to check messages by port, phone number, time order and message keywords. Figure 7-9 SMS Outbox OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 81: Sms Forwarding
Such as: Figure 7-10 SMS Forwarding Rules SMS received by cdma-1.1 and cdma-1.2, cdma-1.4, will be transfered to phone number 18664565204 through port cdma-1.8 or cdma-1.10. Figure 7-11 Create a Routing OpenVox Communication Co. ,LTD. Website: www.openvox.cn... - Page 82 For "ascending" Policy, if you choose 2 or more ports members, it will use first available port to transfer sms. For this case, if cdma-1.8 is availble, it will always use cdma-1.8 to trnasfer sms; Otherwise, it will use cdma-1.10 to transfer sms. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
-
Page 83: Network
172.16.98.1. When you choose LAN IPv4 type is “Factory”, this page is not editable. A reserved IP address to access in case your gateway IP is not available. Remember to set a similar network segment with the following address of your local PC. Figure 8-1 LAN Settings OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 84: Wan Settings
There are three types of WAN port IP, Disable, Static and DHCP. DHCP is the default type. When you Choose IPv4 type is “Disable” or “DCHP”, this page is not editable. Figure 8-2 WAN Settings OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 85: Vpn Settings
Physical address of your network interface. Address The IP address of your gateway. Netmsk The subnet mask of your gateway. Default Gateway Default getaway IP address. 8.3 VPN Settings VS-GWP1600/2120 series gateways support PPTP VPN. Figure 8-3 VPN Settings OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 86: Ddns Settings
Enable/Disable DDNS(dynamic domain name server) DDNS Set the type of DDNS server. Type Your DDNS account’s login name. Username Your DDNS account’s password. Password The domain to which your web server will belong. Your domain OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 87: Toolkit
It is used to check network connectivity. Support Ping command on web GUI. Figure 8-5 Toolkit 8.5.2 TCP Capture You can capture the tcp packets on the page to facilitate locationg problems. Figure 8-6 TCP Capture OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 88: Security Settings
If you want to use White/Black List, and security rules, Firewall Enale you must enable this option. To disable ping or not. OFF: disable ping. This gateway will Ping Enable not allow to ping. OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 89: White/Black List Settings
And Click "Apply" button in 1 minute. If time runs out, this window will close automatically. Figure 8-9 Firewall Rules Apply If you see windows like below. It means your configuration has been applied successfully. OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 90: Security Rules
If "List IP Settings" has no problem, you will see popup window like below. Please read the warning and tips carefully. And Click "Apply" button in 1 minute. If time runs out, this window will close automatically. Figure 8-12 Security Rules Apply OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 91: Sip Capture
You can capture the SIP packets on the page to facilitate locationg problems. Figure 8-14 SIP Capture Table 8-7 SIP Capture Settings Options Definition You can choose eth0 or eth1 Inferface Method-filter You can choose INVITE, OPTIONS and REGISTER OpenVox Communication Co. ,LTD. Website: www.openvox.cn... -
Page 92: Advances
Name of the manager without space Password for the manager. Characters: Allowed characters Manager secret “-_+.<>&0-9a-zA-Z”. Length:4-32 characters. If you want to deny many hosts or networks, use char & Deny as separator.Example: 0.0.0.0/0.0.0.0 or OpenVox Communication Co. ,LTD. Website: www.openvox.cn... - Page 93 Once you set like the above figure, the host 172.16.100.110/255.255.0.0 is allowed to access the gateway API. Please refer to the following figure to access the gateway API by telnet. 172.16.179.1 is the gateway’s IP, and 5038 is its API port. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
-
Page 94: Asterisk Cli
Figure 9-3 Asterisk CLI Type your Asterisk CLI commands here to check or debug your gateway. Command: If you type “help” or “?” and execute it, the page will show you the executable commands. Notice: OpenVox Communication Co. ,LTD. Website: www.openvox.cn... - Page 95 Click “New Configuration File” to create a new configuration file. After editing or creating, please reload Asterisk. 9.4 Cloud Management VS-GWP1600/2120 series gateways support OpenVox Cloud Management. Figure 9-5 Cloud Management If your device is connected to the cloud management, the SSH and web pages of the gateway can be accessed through the cloud management, and it can be monitored whether the device is connected to the cloud management platform.
- Page 96 United States. Registered account or email on the cloud management Account platform The password of the account registered on the cloud Password management platform Connection Is it currently connected to the cloud management platform? Status OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
- Page 97 For example, set “System Logs” on like the following, then you can turn to “System” page for system logs, otherwise, system logs is unavailable. And the same with other log pages. Figure 10-1 Log Settings Figure 10-2 System Logs OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
- Page 98 Whether enable or disable SIP log. switch on: when the size of log file reaches the max size, the Auto clean system will cut a half of the file. New logs will be (SIP logs) retained. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
- Page 99 Auto clean system will cut a half of the file. New logs will be retained. (CDR logs) switch off : logs will remain, and the file size will increase gradually. default on, max size=20MB. OpenVox Communication Co. ,LTD. Website: www.openvox.cn...
