  • Page 1 SIP Video Intercom i18S USER MANUAL V1.0 Wall mounting Flush mounting www.fanvil.com...
  • Page 2 Document Firmware Explanation Time V1.0 2.1.1.3390 Initial issue 20180208 V1.1 2.1.1.3445 Change some description 20180514...
  • Page 3 Safety Notices 1. Please use the specified power adapter. If you need to use the power adapter provided by other manufacturers under special circumstances, please make sure that the voltage and current provided is in accordance with the requirements of this product, meanwhile, please use the safety certificated products, otherwise may cause fire or get an electric shock.

  • Page 4: Table Of Contents

    Table of Content A. Product introduction ............................6 1. Appearance of the product........................6 2. Description ..............................6 B. Start Using................................7 1. Confirm the connection ..........................7 1) Power port.............................7 2) Power, Security functions Input, Security functions Output port...........7 3) Wiring instructions..........................7 2. Quick Setting..............................8 C.
  • Page 5 f) Time/Date............................36 (5) Security settings ..........................37 (6) Function Key............................39 E. Appendix................................41 1. Technical parameters ..........................41 2. Basic functions.............................42 3. Schematic diagram ..........................42 4. The broadcast terminal configuration notice..................43 5 / 43...

  • Page 6: Product Introduction

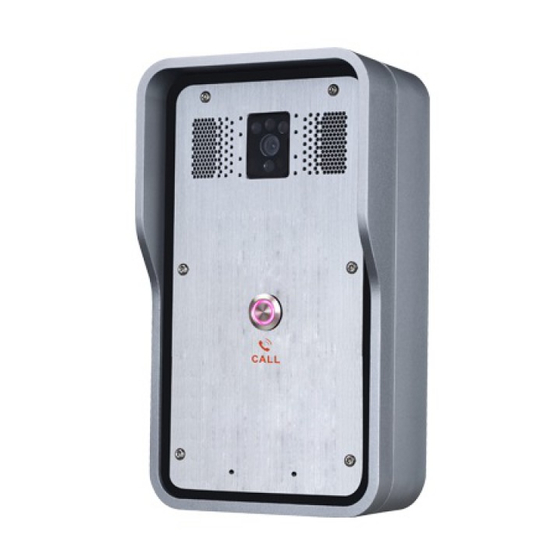

    A.Product introduction i18S Voice Access is a digital network door phone. Its core part adopts mature VoIP solution (Broadcom chip), which can perform stably and reliably, it is hands-free, adopting digital full-duplex mode. The voice is loud and clear. It has a series of advantages, such as generous appearance, comfortable keypad and low power consumption, etc.

  • Page 7: Start Using

    B.Start Using Before you start to use the equipment, please make the following installation: Confirm the connection Please confirm the power cord, network cable, electric lock control line connected and the boot-up is normal. (Check the network state of light) Power port Switch WAN port...

  • Page 8: Quick Setting

    The product default factory setting of network mode is STATIC IP. Before the entering of Web setting, pls connec the PC to the same LAN network with i18S or set the network segment of PC's Static IP address in the same segment of i18S.

  • Page 9: Call

    2. Call Configure shortcut key as hot key then setup a number. The configured number will be called when user press the shortcut key. 3. End Call Enable the DSS key to hang up the call. D.Page settings 1. Browser configuration When the device and your computer are successfully connected to the network, enter the IP address of the device on the browser as http://xxx.xxx.xxx.xxx/, Then you can see the login interface of the web page management.

  • Page 10: Configuration Via Web

    Default user with root level: Username: admin Password: admin 3. Configuration via WEB (1) System a) Information Information Field Name Explanation System Display equipment model, hardware version, software version, uptime, Last Information uptime and MEMinfo. Shows the configuration information for WAN port, including connection mode of Network WAN port (Static, DHCP, PPPoE), MAC address, IP address of WAN port.

  • Page 11: B) Account

    b) Account On this page, user can add or remove users depending on their needs and can modify existing user permission. Account Field Name Explanation Change Web Authentication Password You Can modify the login password to the account Add New User You can add new user User Accounts Show the existing user information...

  • Page 12: C) Configurations

    Configurations Configurations Field Name Explanation Export Save the equipment configuration to a txt or xml file. Please Right click on Configurations the choice and then choose “Save Link As.” Import Browse to the config file, and press Update to load it to the equipment. Configurations Reset to factory This will reset factory default settings and remove all configuration...

  • Page 13: E) Auto Provision

    e) Auto Provision Auto Provision Field Name Explanation Common Settings Show the current config file’s version. If the version of configuration Current downloaded is higher than this, the configuration will be upgraded. If the Configuration endpoints confirm the configuration by the Digest method, the Version configuration will not be upgraded unless it differs from the current configuration...
  • Page 14 configuration will not be upgraded unless it differs from the current configuration. CPE Serial Serial number of the equipment Number Authentication Username for configuration server. Used for FTP/HTTP/HTTPS. If this is Name blank the phone will use anonymous Authentication Password for configuration server. Used for FTP/HTTP/HTTPS. Password Configuration File Encryption key for the configuration file...

  • Page 15: F) Fdms

    3. Update at time interval – update at periodic update interval TR069 Enable TR069 Enable/Disable TR069 configuration ACS Server Type Select Common or CTC ACS Server Type. ACS Server URL ACS Server URL. ACS User User name for ACS. ACS Password ACS Password.

  • Page 16: G)Tools

    g) Tools Syslog provide a client/server mechanism for the log messages which is recorded by the system. The Syslog server receives the messages from clients and classifies them based on priority and type. Then these messages will be written into a log by rules which the administrator has configured.

  • Page 17: Network

    Syslog Server System log server IP address. Address Server Port System log server port. APP Log Set the level of APP log. Level SIP Log Level Set the level of SIP log. Network Packets Capture Capture a packet stream from the equipment. This is normally used to troubleshoot problems. Reboot Phone Some configuration modifications require a reboot to become effective.
  • Page 18 Subnet mask The current Subnet Mask Default The current Gateway IP address gateway The MAC address of the equipment Get the MAC address of time. Timestamp Settings Select the appropriate network mode. The equipment supports three network modes: Network parameters must be entered manually and will not change. All Static parameters are provided by the ISP.

  • Page 19: B) Vpn

    3) If the HTTP port is set to 0, HTTP service will be disabled. b) VPN The device supports remote connection via VPN. It supports both Layer 2 Tunneling Protocol (L2TP) and Open VPN protocol. This allows users securely connect from public network to local network remotely.

  • Page 20: Line

    Field Name Explanation VPN IP Address Shows the current VPN IP address. VPN Mode Enable VPN Enable/Disable VPN. L2TP Select Layer 2 Tunneling Protocol Select OpenVPN Protocol. (Only one protocol may be activated. After the OpenVPN selection is made, the configuration should be saved and the phone be rebooted.) Layer 2 Tunneling Protocol (L2TP) L2TP Server...
  • Page 21 21 / 43...
  • Page 22 Field Name Explanation Basic Settings (Choose the SIP line to configured) Display the current line status at page loading. To get the up to date line status, user has to refresh the page manually. There are a few status here: 1) Inactive, indicates that this line is not activated yet, user can activate the line by selecting the option “activate”.
  • Page 23 SIP Proxy Server Enter the IP or FQDN address of the SIP proxy server Address SIP Proxy Server Port Enter the SIP proxy server port, default is 5060 Outbound proxy Enter the IP or FQDN address of outbound proxy server provided by the address service provider Outbound proxy port...
  • Page 24 Name When this setting is enabled, the features in this section will not be handled by the device itself but by the server instead. In order to control Use Feature Code the enabling of the features, the device will send feature code to the server by dialing the number specified in each feature code field.

  • Page 25: B) Basic Settings

    Using TCP protocol to guarantee usability of transport for SIP messages Auto TCP above 1500 bytes Enable Feature Sync Feature Sycn with server Enable GRUU Support Globally Routable User-Agent URI (GRUU) RTP Encryption Enable RTP encryption such that RTP transmission will be encrypted RTP Encryption Key Set the pass phrase for RTP encryption b) Basic Settings...

  • Page 26: Intercom Settings

    Field Name Explanation SIP Settings Local SIP Port Set the local SIP port used to send/receive SIP messages. Registration Failure Set the retry interval of SIP REGISTRATION when registration failed. Retry Interval Enable Strict UA Enable or disable Strict UA Match Match DHCP Server would respond an OPTION message to the request from DHCP client.

  • Page 27: B) Audio

    Delay Start Time Set start delay time Device description displayed on IP scanning tool software. Initial Value is Description “i18S”. b) Audio This page configures audio parameters such as voice codec, speak volume, mic volume and ringer volume. 27 / 43...
  • Page 28 Audio Setting Field Name Explanation First Codec The first codec choice: G.711A/u, G.722 G.723.1, G.729AB G.726-32 The second codec choice: G.711A/u, G.722 G.723.1, G.729AB G.726-32, Second Codec None The third codec choice: G.711A/u, G.722 G.723.1, G.729AB G.726-32, Third Codec None The forth codec choice: G.711A/u, G.722 G.723.1, G.729AB G.726-32, Fourth Codec None...

  • Page 29: C) Video

    These settings are only for the devices which support multiple output power. Be aware of that, the selected output power must be less than the real output power of the external speak, otherwise the external speak might be damaged. The embedded speaker can be set to use static output power mode, and the external Speaker speak can be set as 10W, 20W, 30W output power.
  • Page 30 Video Field Name Explanation Camera Status Display the relevant information of the camera, including maximum access, maximum stream, maximum sub stream, and the status. Video Capture Auto: IRCUT switches according to the actual ambient light level of the camera IRCUT Mode Synchronization: The switching of the IRCUT is determined by the actual brightness of the IR lamp.
  • Page 31 Automatic: automatically switches according to the DNC Threshold and the brightness of the actual environment where the camera is located Day/Night Day Mode: The camera's video screen is always colored, if there is IR-cut will Mode be synchronized to switch. Night Mode: the camera's video screen is always black and white, if there is IR-cut will be synchronized switch.

  • Page 32: D) Mcast

    Select the video codec type, it’s recommended to use “Base Line” to stay the same as the video output or stream receiver. Advanced Settings Video Select the transport type of the video stream Direction H.264 Payload Set the payload type of H.264 Type RTSP Information Main...
  • Page 33 incoming flows of multicast RTP, lower precedence than the current common calls, device will automatically ignore the group RTP stream. If the priority of the incoming flow of multicast RTP is higher than the current common calls priority, device will automatically receive the group RTP stream, and keep the current common calls in state.
  • Page 34 Listener configuration Blue part (name) "Group 1","Group 2" and "Group 3" are the names of the monitoring multicast which you set. The group name will be displayed on the screen when you answer the multicast. If you have not set, the screen will display the IP: port directly. Purple part (host: port) It is a set of addresses and ports to listen, separated by a colon.

  • Page 35: E) Action Url

    "multicast information group 2". If multicast is a new "group of 1", then the call will come in. Because "the priority group 1" is 2, higher than the current call "priority group 2" 3 If multicast is a new "group of 3", "1" will listen to the equipment and maintain the "group of 2”. Because "the priority group 3"...

  • Page 36: F) Time/Date

    f) Time/Date Time/Date Field Name Explanation Network Time Server Settings Time Synchronized Enable time-sync through SNTP protocol via SNTP Time Synchronized Enable time-sync through DHCP protocol via DHCP Primary Time Server Set primary time server address Secondary Time Set secondary time server address, when primary server is not reachable, the device Server will try to connect to secondary time server to get time synchronization.

  • Page 37: Security Settings

    (5) Security settings Security settings Field Name Explanation Input settings Input Detect Enable input detection Low Level Trigger(Close Trigger),Double short circuit detection port(If it is single port, is the low level)Detection to trigger when closed Trigger Mode High Level Trigger(Disconnect Trigger),Double short circuit detection port(If it is single port, is the high level)Detection to trigger when disconnect.
  • Page 38 By Duration Received the terminal equipment to send the DTMF password, if correct, which triggers the corresponding output port (The Port level time change, By < Output Duration> control) Remote DTMF By Calling State Trigger During the call, receive the terminal equipment to send the DTMF password, if correct, which triggers the corresponding output port (The Port level time change, by call state control, after the end of the call, port to return the default state)

  • Page 39: Function Key

    (6) Function Key Key Event You might set up the key type with the Key Event. Type Subtype Usage None No responding Dial Dialing function Key Event Release Delete password input, cancel dialing input and end call Identification key Hot Key You might enter the phone number in the input box.
  • Page 40 Using Speed Dial mode together with Fill the , can define The SIP Speed Dial whether this call is allowed to be hung up called account Hot Key party’s SIP by re-pressing the speed dial key. correspond account or In Intercom mode, if the caller’s IP phone ing lines IP address Intercom...

  • Page 41: Appendix

    E.Appendix 1. Technical parameters Communication protocol SIP 2.0(RFC-3261) Main chipset Broadcom DSS key materials Stainless steel 1 or 2 DSS Key Audio amplifier Adjustable Volume control Full duplex Support (AEC) speakerphone Speech DTMF TYPE In-band, Out-of-band(RFC 2833), SIP INFO flow wideband speech G.722 code...

  • Page 42: Basic Functions

    2. Basic functions 2 SIP Lines PoE Enabled Full-duplex speakerphone (HF) Intelligent DSS Keys (Speed Dial/intercom etc.) Wall-mounting / Flush-mounting Special integrated noise reduction module Dual microphone Omnidirectional voice pickup 1 embedded short circuit input interface 1 embedded short circuit output interface. Support 4 controlled events: remote DTMF; remote server’s commands;...

  • Page 43: The Broadcast Terminal Configuration Notice

    4. The broadcast terminal configuration notice How to avoid an incoherency sound when the broadcast playing? When the terminal used as broadcast, the speaker is loud. If do not set mute for microphone, the AEC (echo cancellation) of equipment will be activated, which leads the sound incoherence.
